Derale Remote Oil Cooler Installation Kit

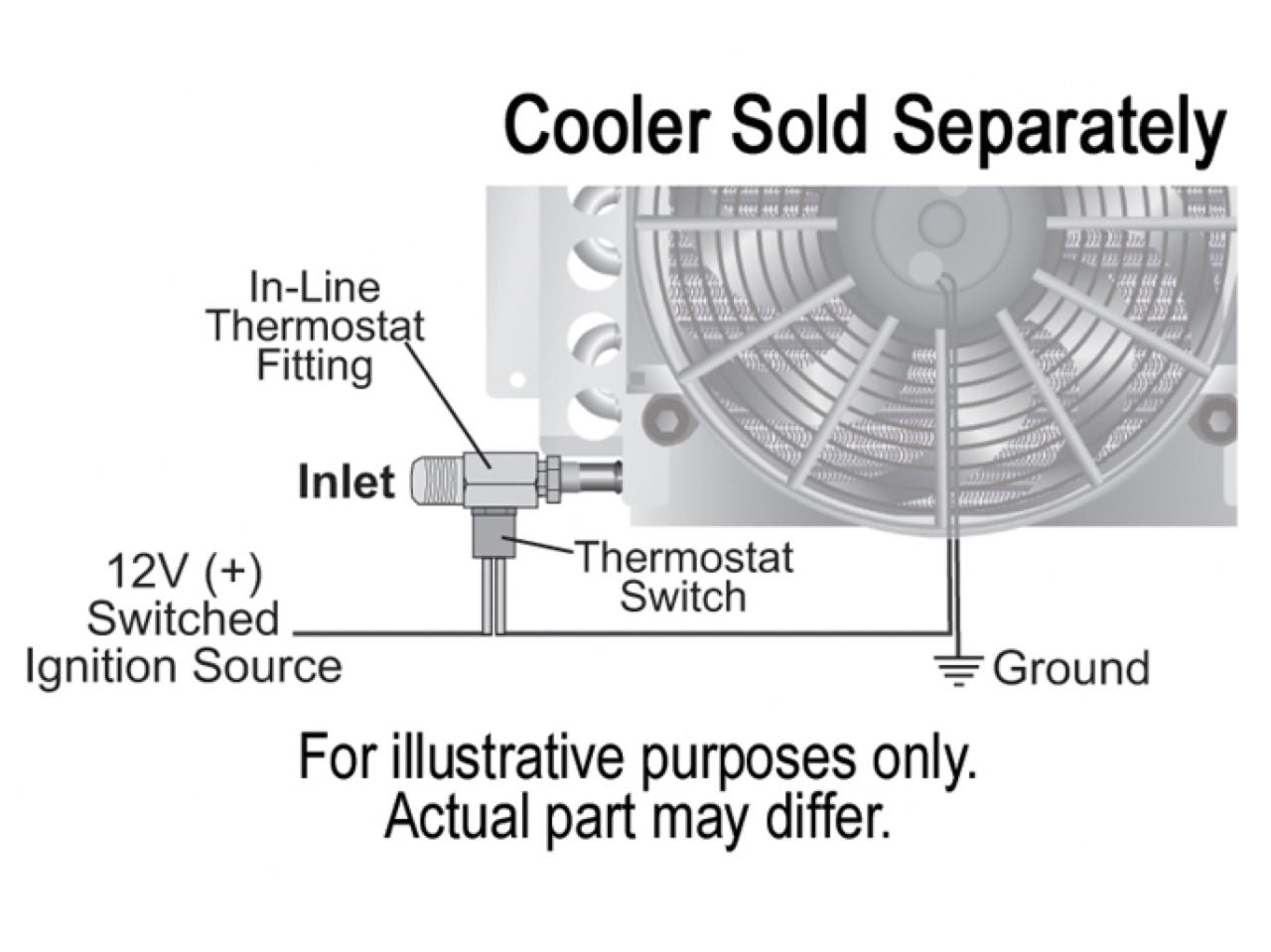

This universal installation kit is designed for engine oil cooler applications only and comes complete with most everything you will need to install. Although it is designed for Derale's popular remote mount coolers, it will also work with competitor models as well. Included is an 180°F in-line thermostat for activating the electric fan.
Specifications
- In-line thermostat : 180° F

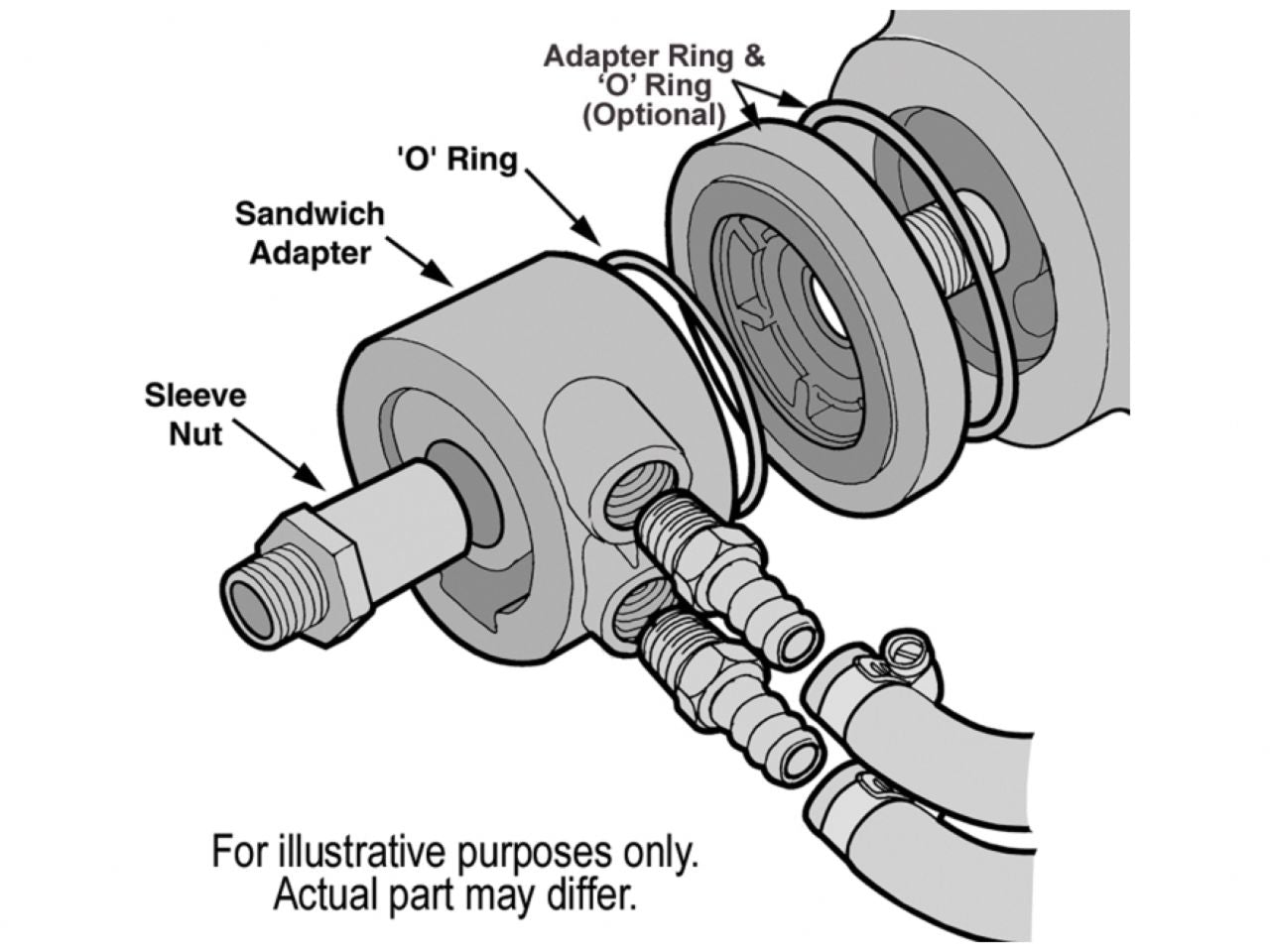

- Sandwich adapter: Type A Universal
- Adapter o-ring diameter: 2-3/4" or 3-1/2"
- Adapter thread sizes: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, 22 x 1.5mm
- Adapter thickness: 1-3/4" or 2-1/8"
- Adapter port size: 3/8" NPT
- Fitting size: 1/2" barb
- Hose size: 1/2"
- Hose length: 10'
Features
- Complete kit to remotely mount an engine oil cooler

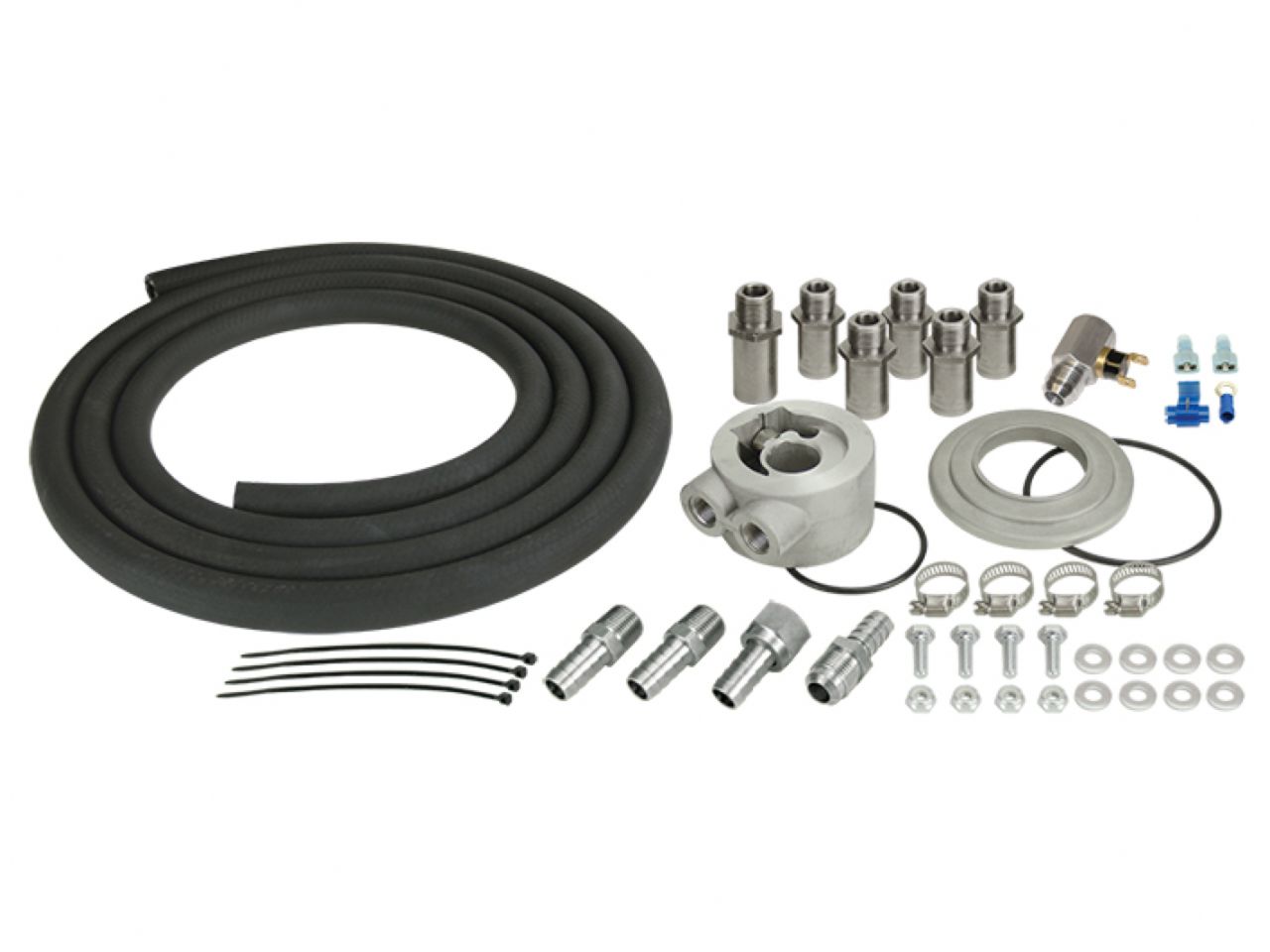

- Engine Oil Cooler kit includes universal* thermostatic sandwich adapter and adapter plate, 13/16-16", 3/4-16", 18mm, 20mm, & 22mm sleeve nuts, 180°F In-line thermostat, 10 ft of 1/2" OEM spec hose, and mounting hardware
- *Universal application - One part no. fits most automotive applications. See Engine Adapter Quick Reference Guide for specific applications
Derale Remote Oil Cooler Installation Kit
Sale price$89.72 USD
Regular price$112.15 USD
