Derale Universal Single Engine Oil Filter Relocation Kit with 1/2" NPT Ports
Universal Single Engine Oil Filter Relocation Kit with 1/2" NPT Ports

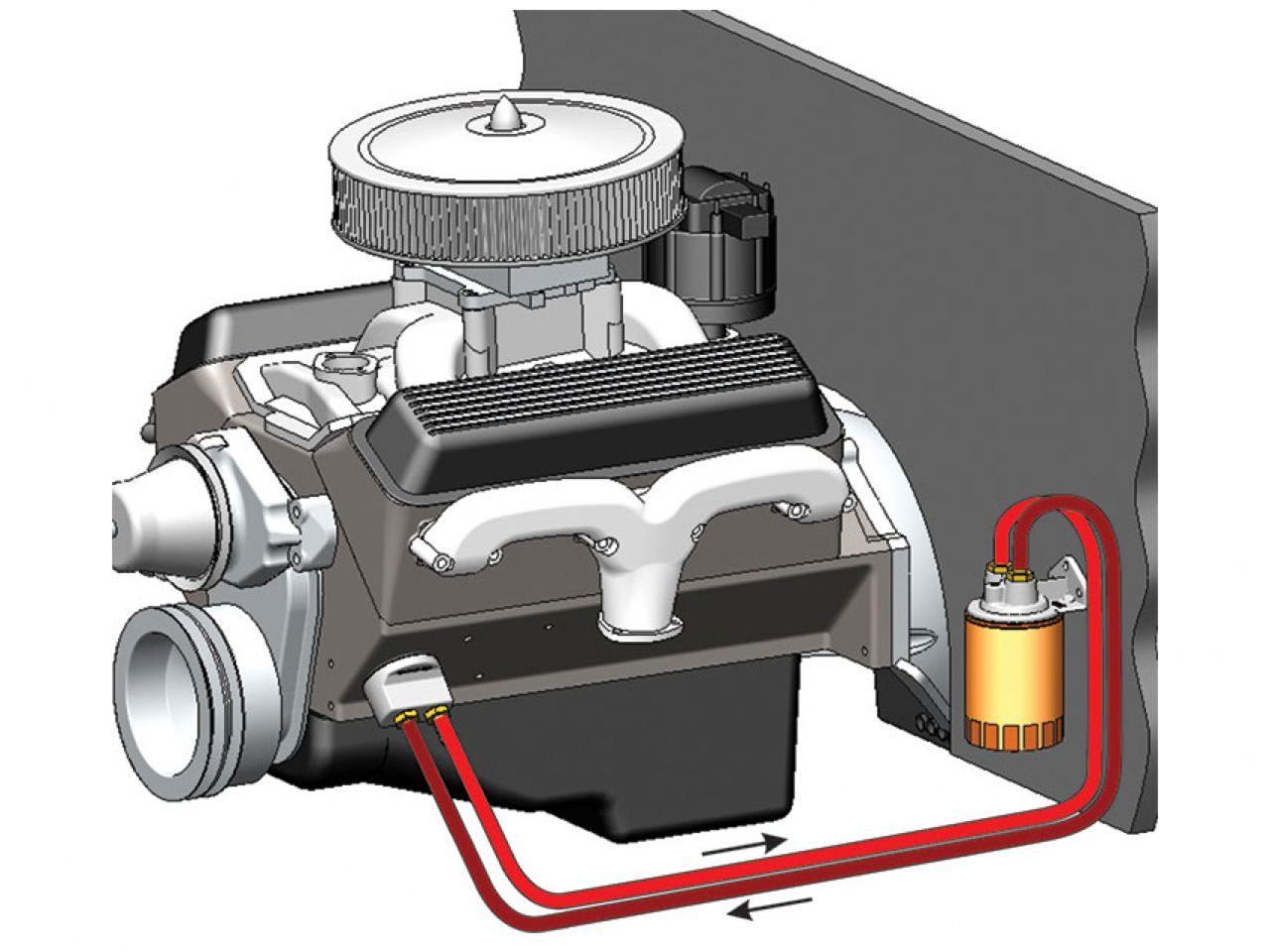

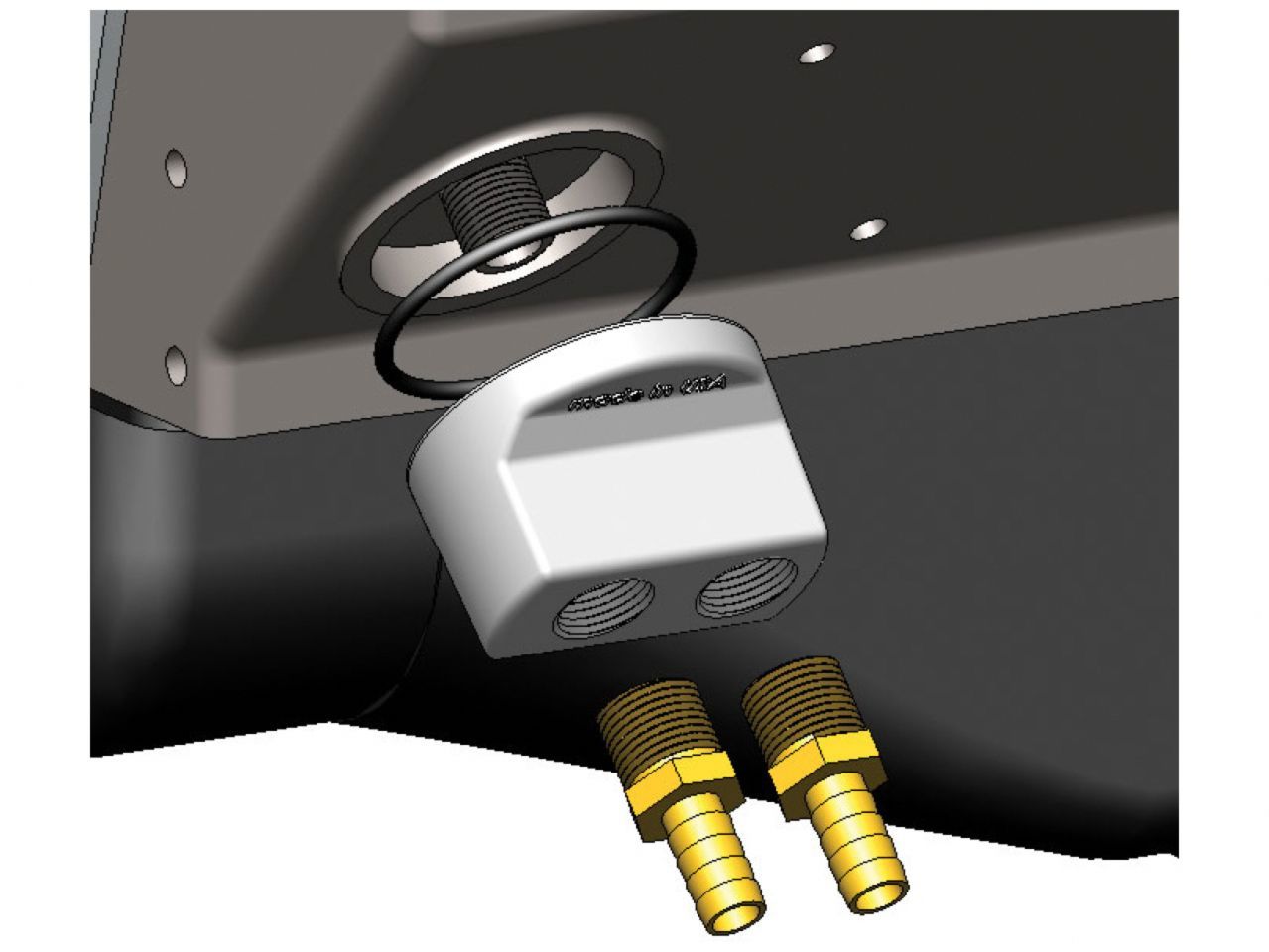

This Universal single filter kit allows oil filter to be relocated to a convenient, easy-access location. Includes a high quality, die cast aluminum 1/2" NPT ports up filter mount and a 1/2" NPT ports spin-on adapter with most everything you need for an easy installation. Filter mount uses Fram PH8A Oil Filter or equivalent. Designed to fit most passenger vehicles on the road today with 2 1/2" to 3 1/2" oil filter landings. Spin-on adapters provide external oil lines to allow the addition of an engine oil cooler and/or remote filter mount, installing at the stock engine oil filter location. This all-new version has a billet style look and has an ultra-bright, polished appearance.

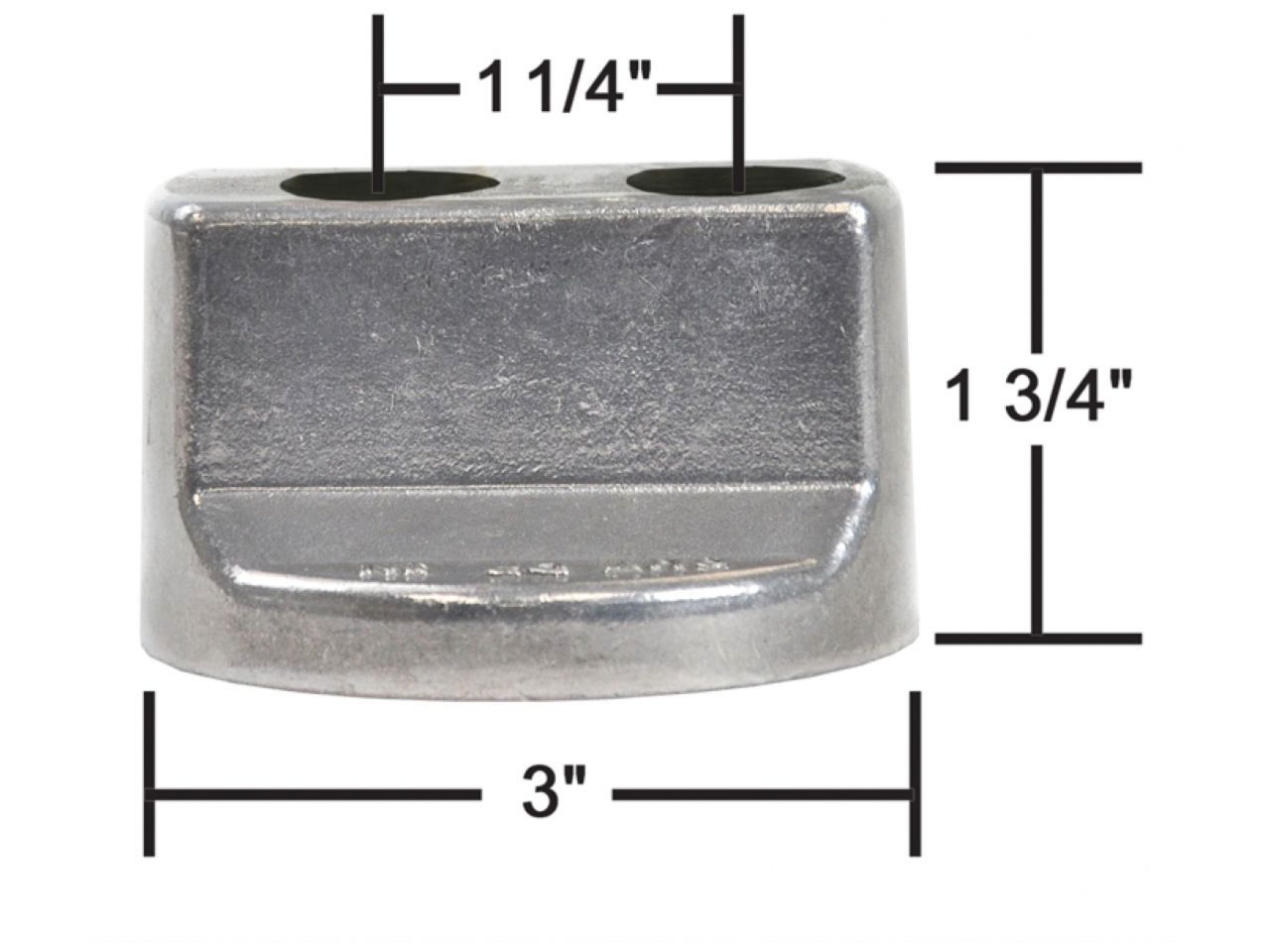

- Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm
- Adapter thickness: 1-3/4" or 2"
- Adapter inlet size: 1/2" NPT
- Remote filter landing: 2-1/2", 2-3/4" or 3-1/2"
- Remote filter thread size: 3/4"-16
- Remote filter inlet size: 1/2" NPT
- Hose size: 1/2"
- Hose length: 10'
- Allows for oil filter to be moved to a more convenient location
- Faster and easier filter changes
- Ideal for engine swaps
- Increases oil capacity

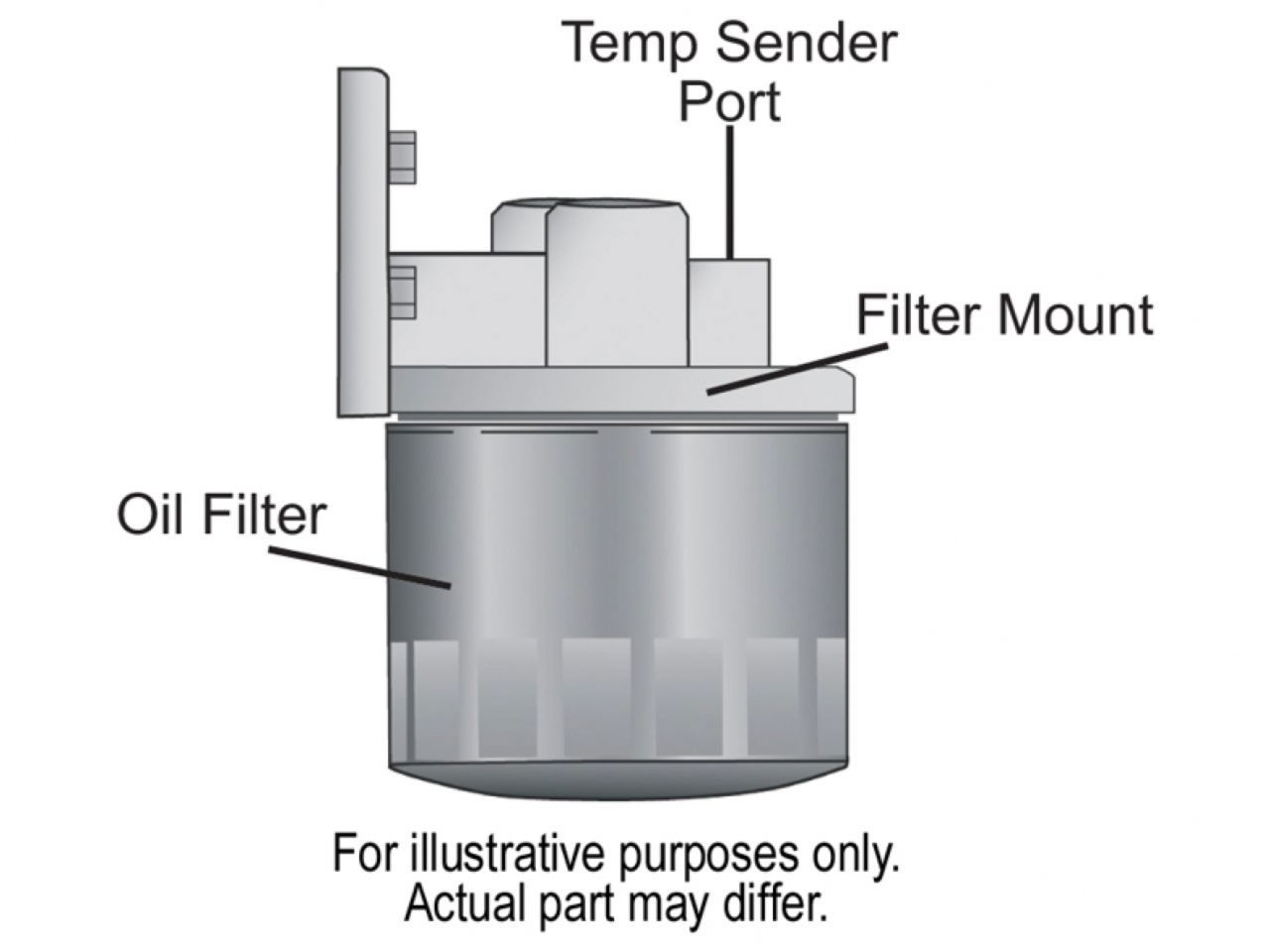

- Single ports-up style filter mount
- Cast from high quality aluminum

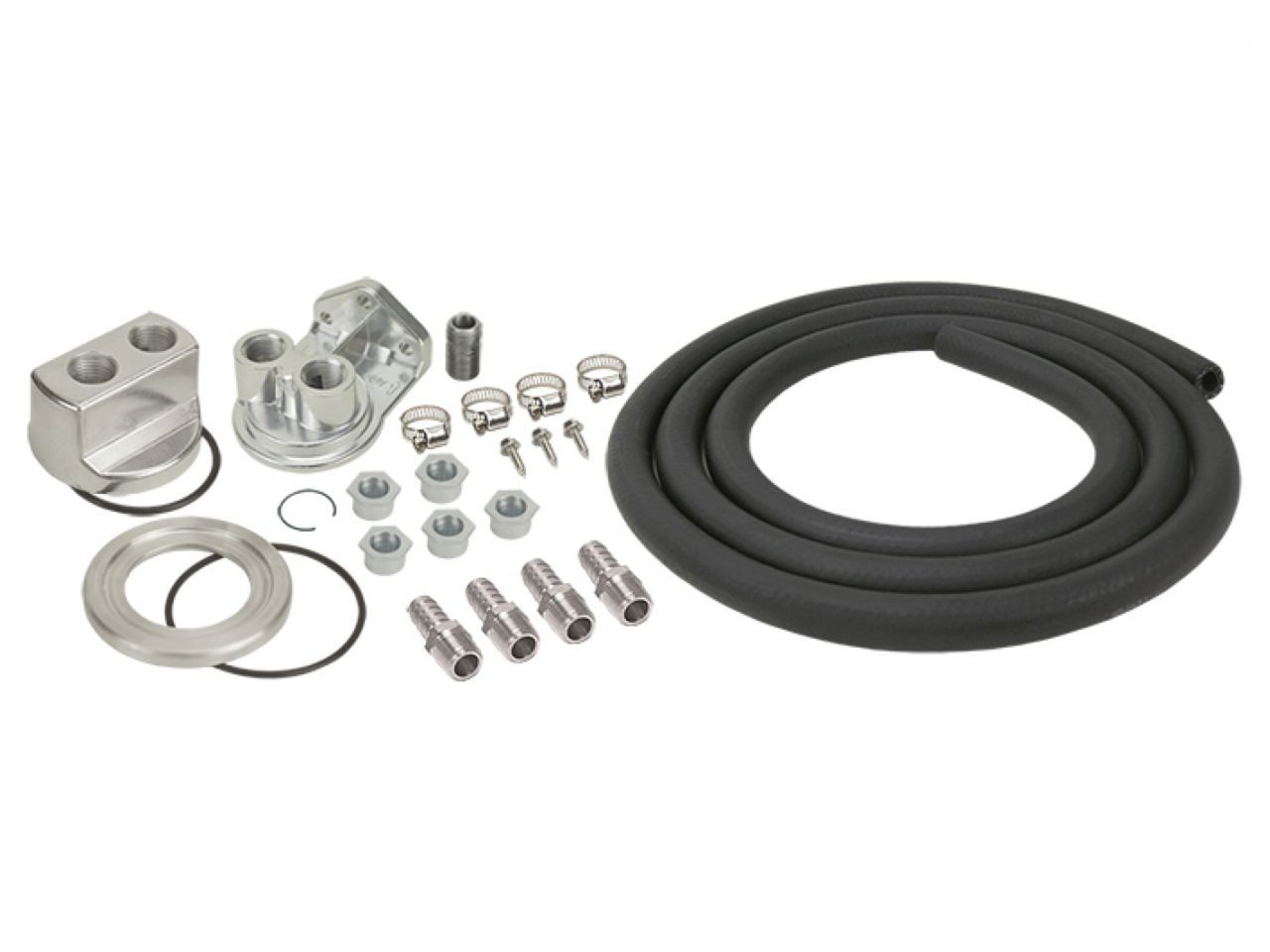

- 10 ft 1/2" OEM spec hose provided
- Filter mount uses Fram PH8A or equivalent filter
- Type J Universal Spin-On Adapter with 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm thread sizes
