Derale Spin-On Adapter Kit

Derale Spin-On Adapter Kit

sku: 1448V | mpn: 15747
$70.73
$70.73 $70.73
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

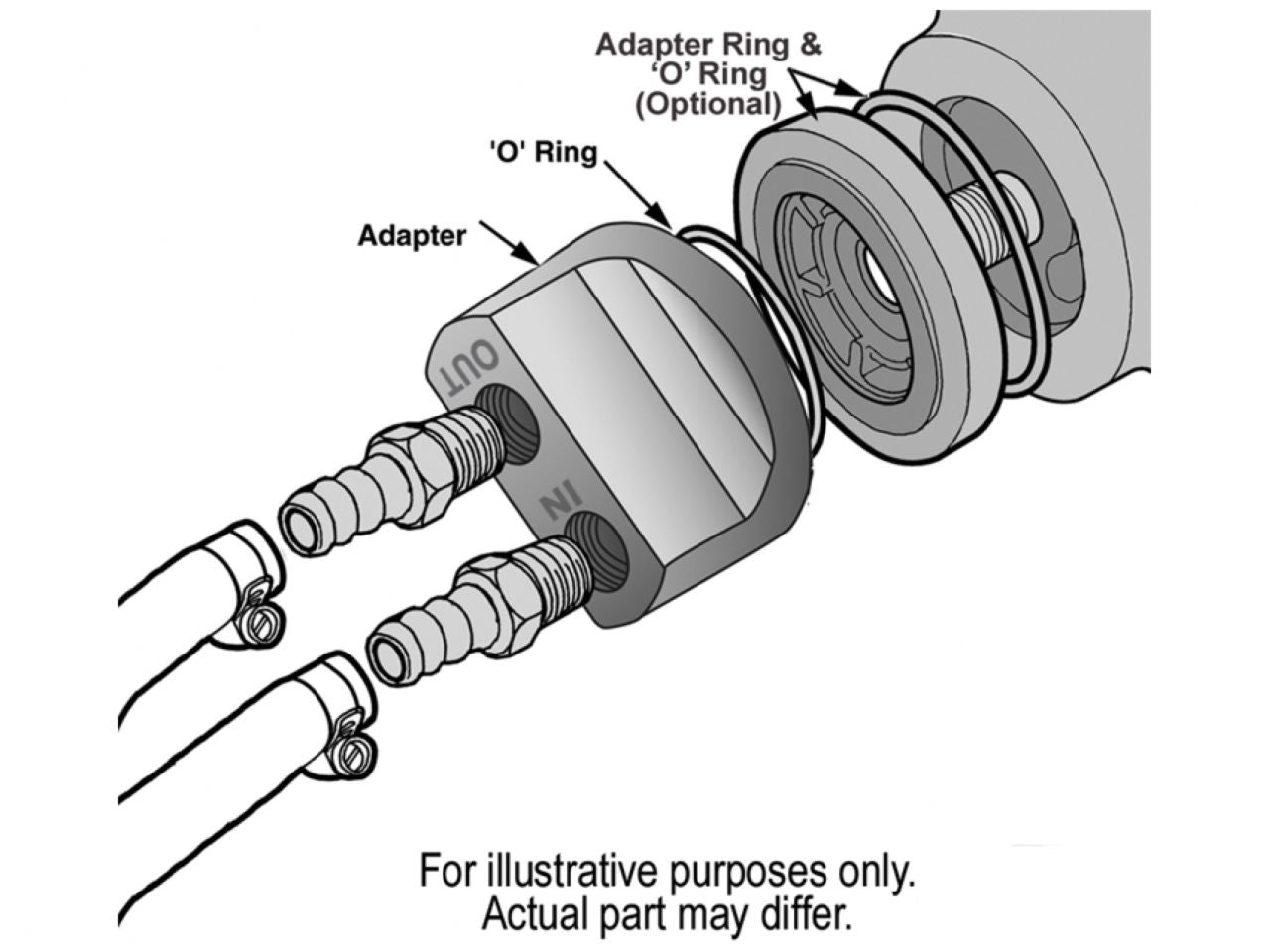

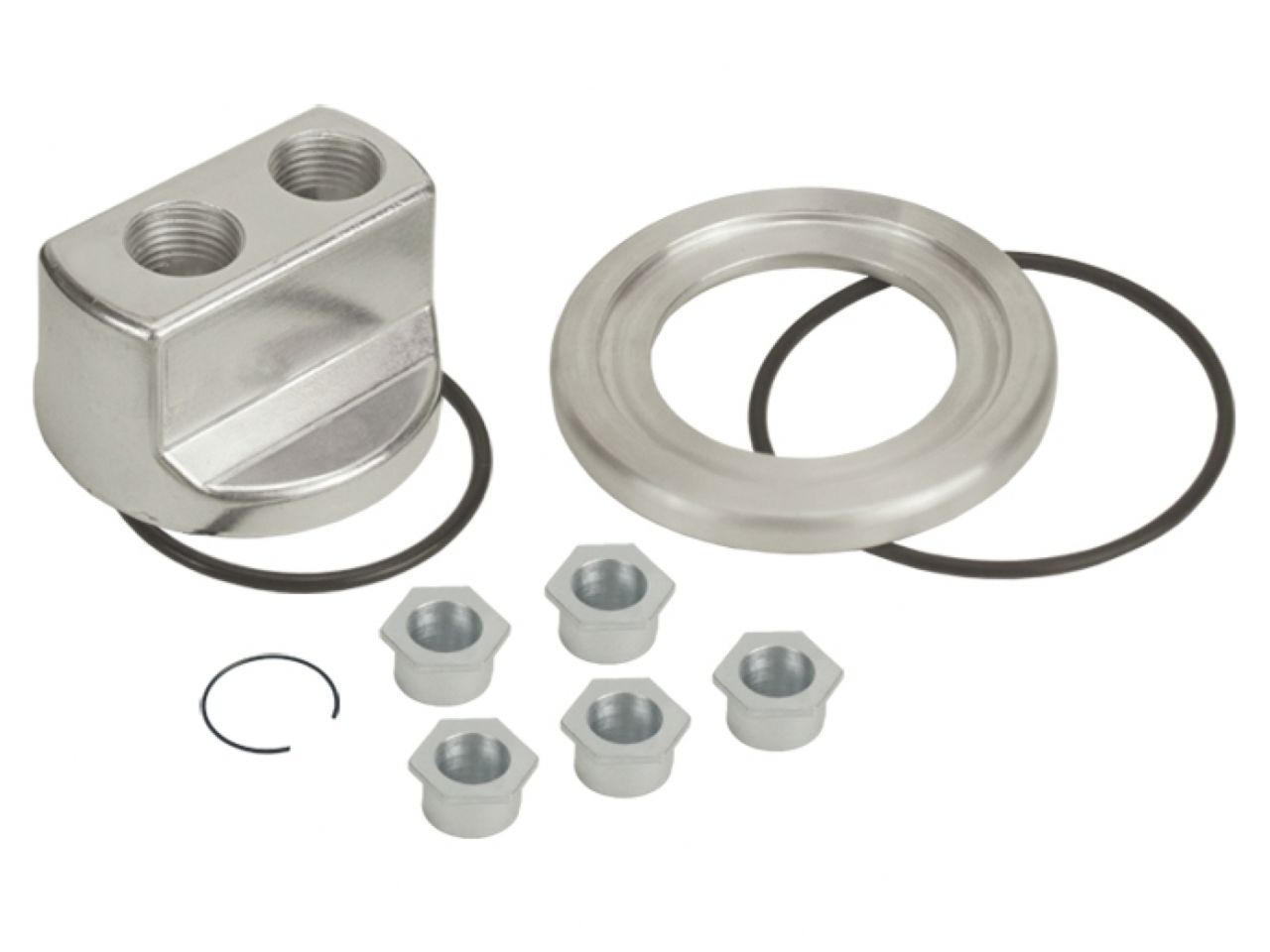

Kit includes a high quality, die cast aluminum 1/2" NPT spin-on adapter designed to fit most passenger vehicles on the road today with 2 1/2" to 3 1/2" oil filter landings. Spin-on adapters provide external oil lines to allow the addition of an engine oil cooler and/or remote filter mount, installing at the stock engine oil filter location. This all-new version has a billet style look and has an ultra-bright, polished appearance.

Specifications:
  • Thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm
  • O-ring size: 2-1/2", 2-3/4" or 3-1/2"

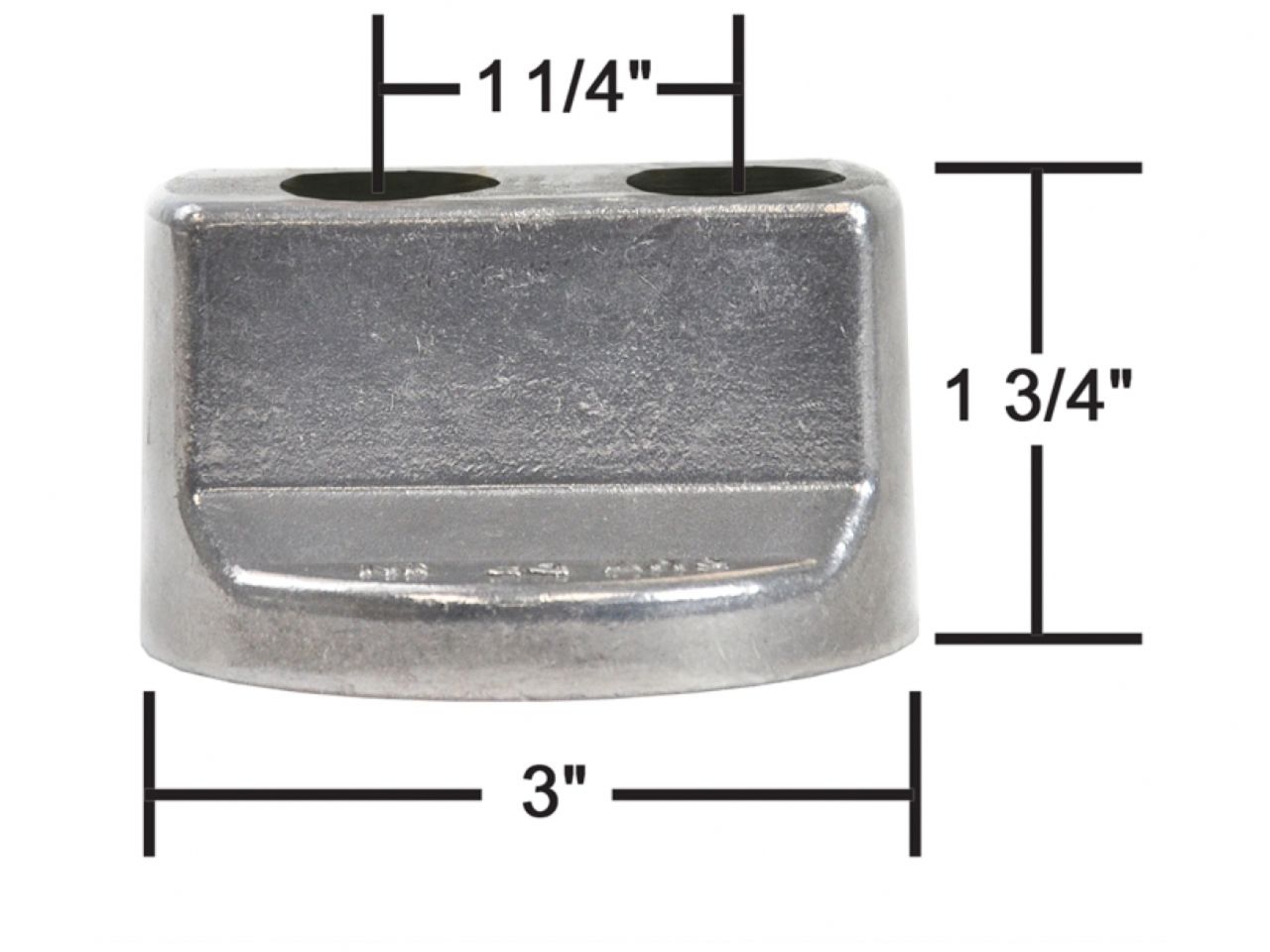

  • Thickness: 1-3/4" or 2"
  • Inlet size: 1/2" NPT
Features:
  • Provides external oil lines for remote filter mounts and oil coolers
  • Ultra bright finish
  • New billet style design
  • Type J Spin-on Adapter with 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm thread sizes, fits most applications
  • 1/2" NPT ports
