Derale Thermostatic Sandwich Adapter Kit (22x1.5mm)

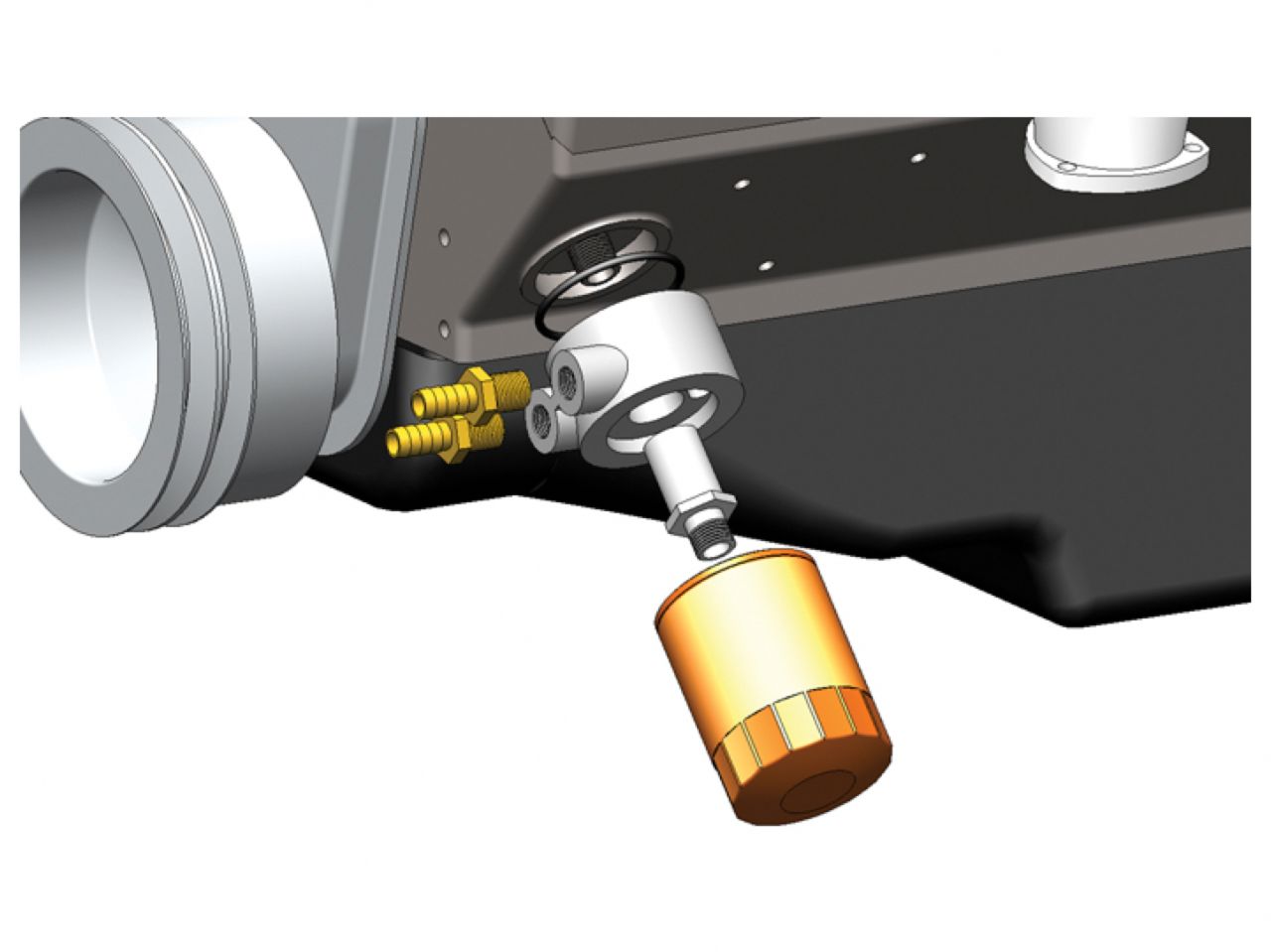

High quality die-cast aluminum thermostatic sandwich adapter with 3/8" NPT ports and an O-ring diameter of 2 3/4", this adapter provides external oil lines to allow the addition of an engine oil cooler. It installs between the stock engine oil filter landing and the oil filter. Stock filter is retained. Designed to be used on engines with a 22mm x 1.5 filter thread. Kit includes sleeve nut and hose barb fittings.

Features

• Provides external oil lines for oil coolers without relocating the factory oil filter
• Cast form high quality aluminum
• Maintain factory equivalent oil filter
• Type I Sandwich Adapter with 22 x 1.5mm thread size *see application guide for specific applications

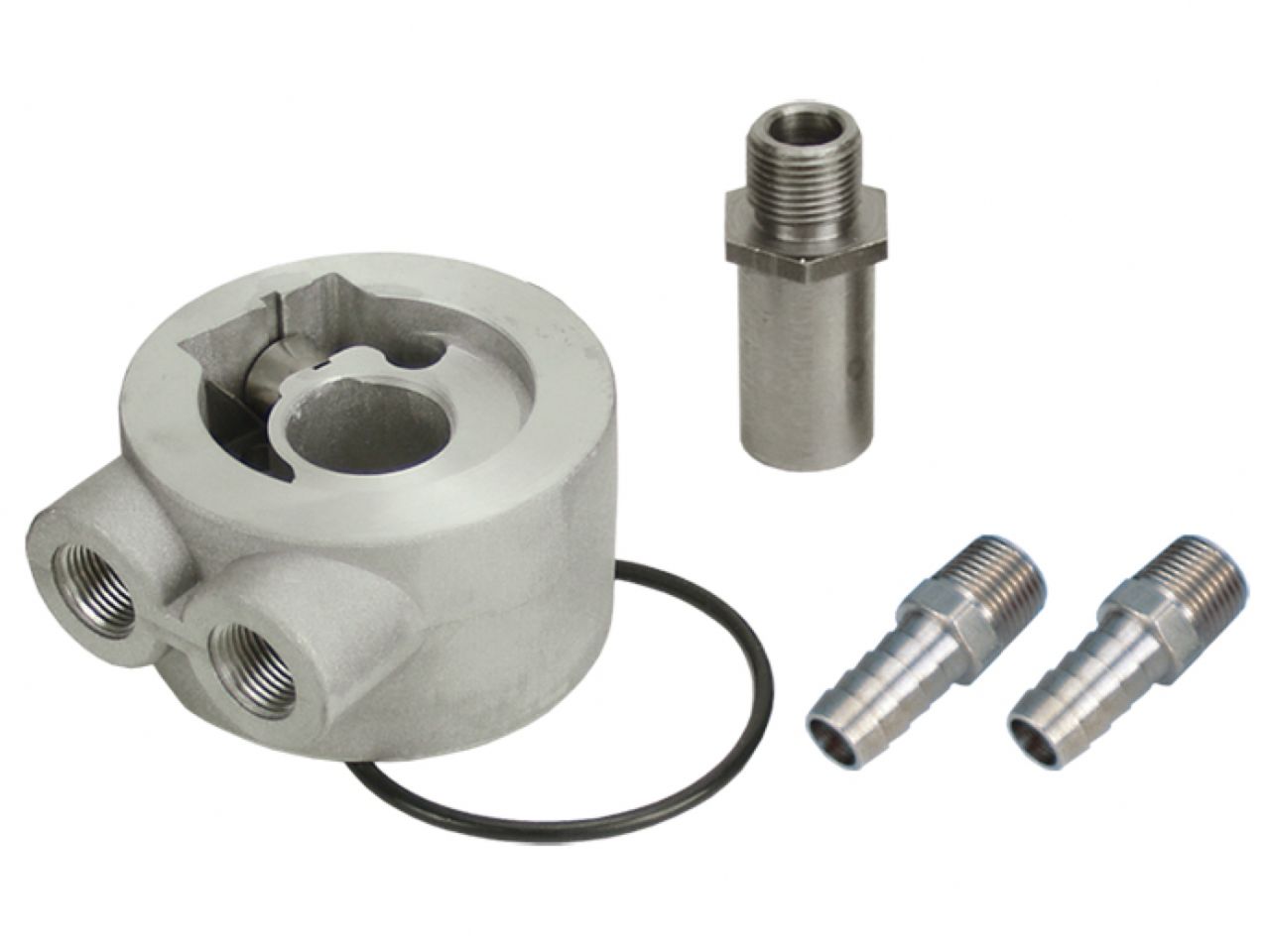

• Complete Kit includes 1/2" hose barb brass fittings, sandwich adapter, sleeve nut & O-ring

Specifications

• Sandwich Adapter type: I
• Adapter thread size: 22 x 1.5mm
• Adapter o-ring size: 2-3/4"
• Adapter thickness: 1-3/4"
• Adapter inlet size: 3/8" NPT
• Barb size: 1/2"
