Derale Oil Filter Relocation Kit (20x1.5mm)

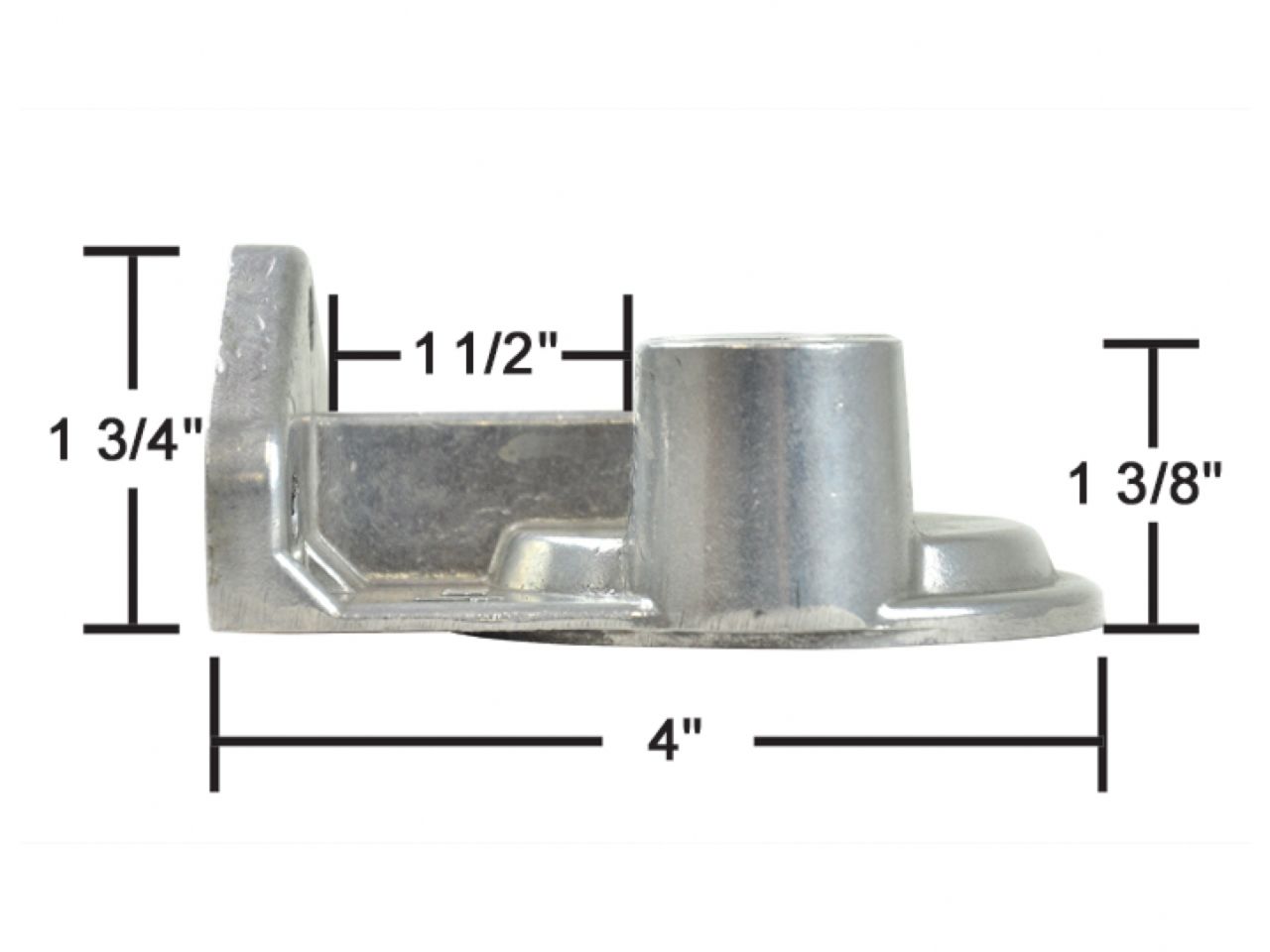

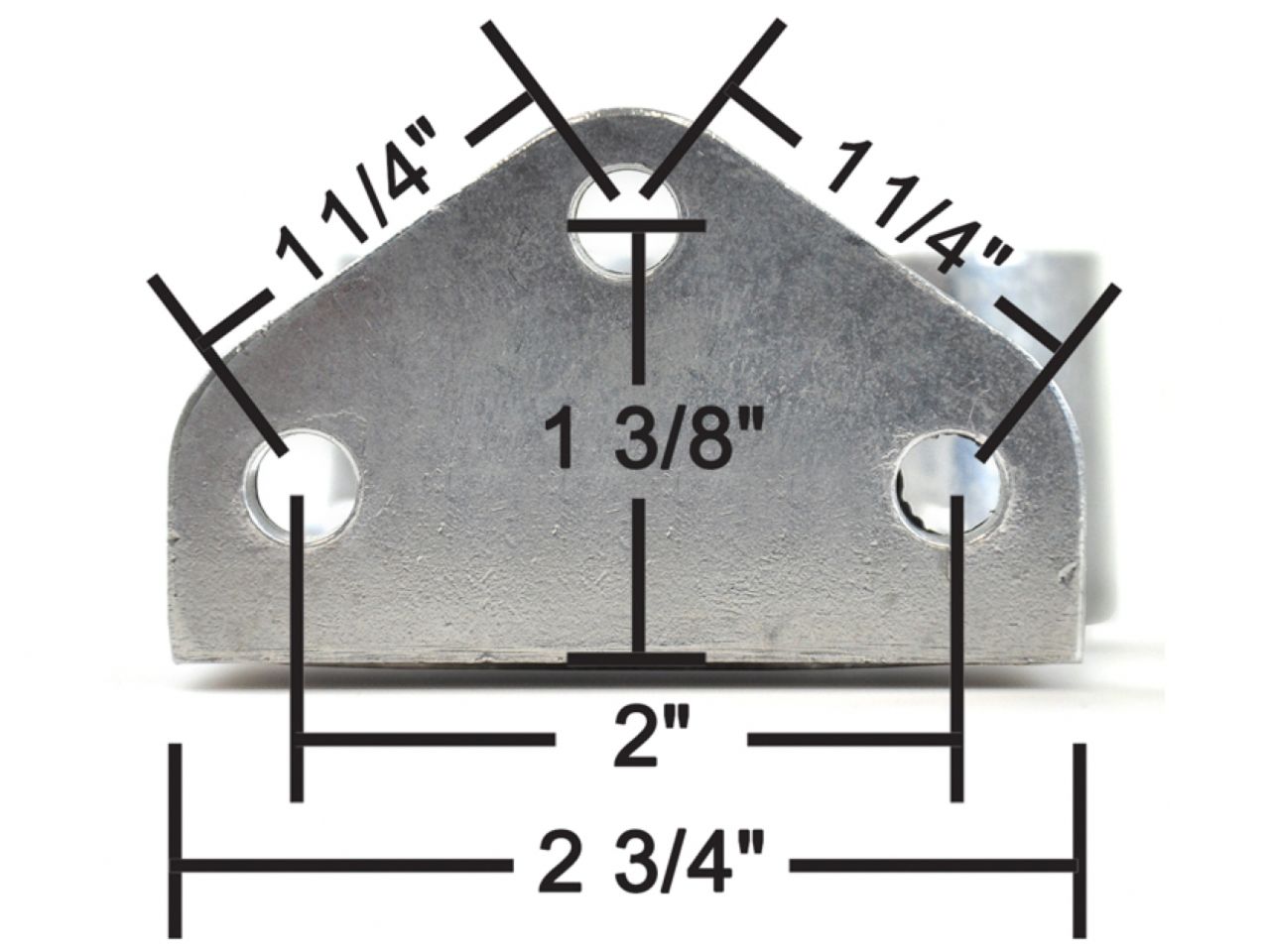

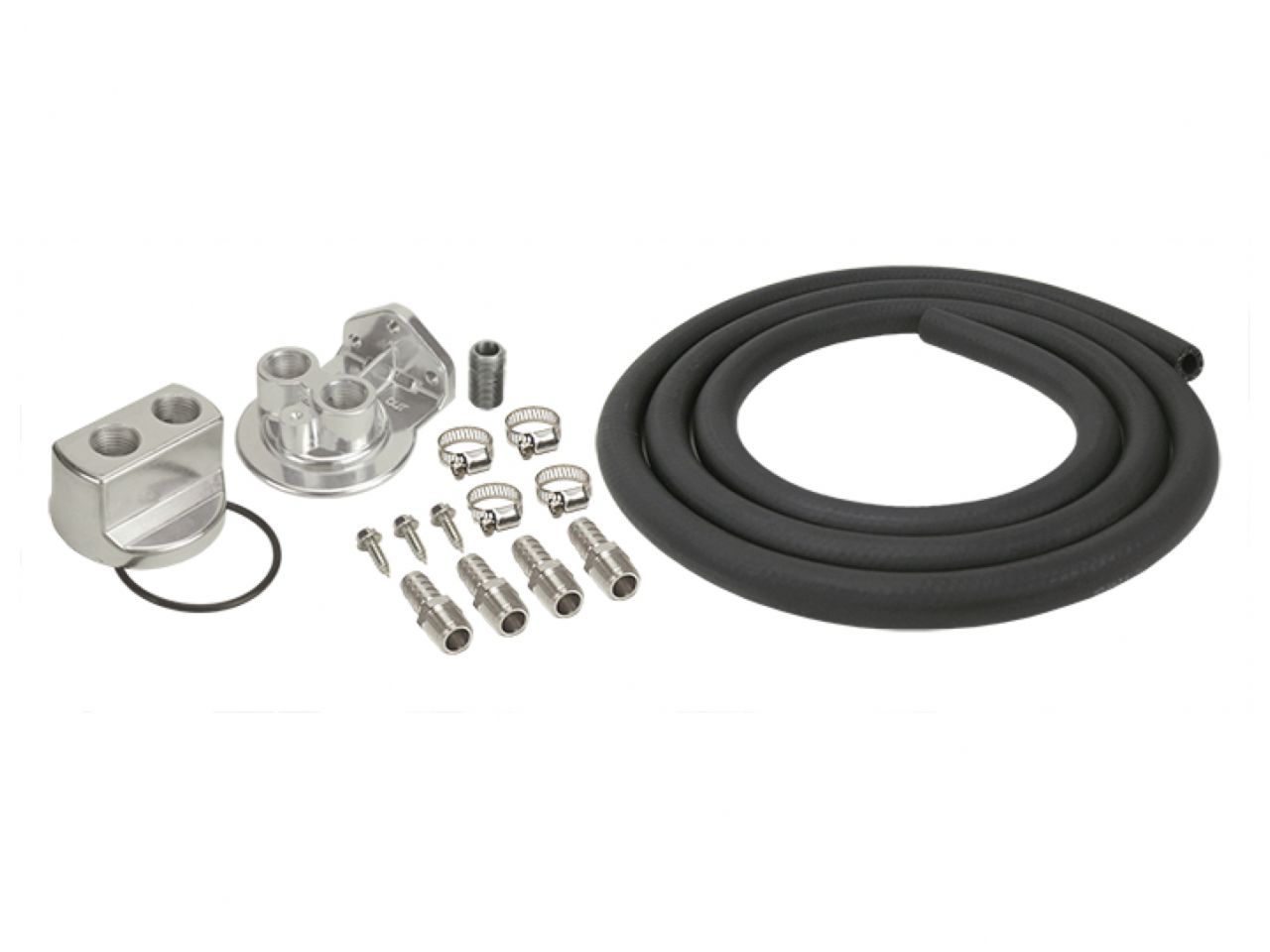

This kit allows oil filter to be relocated to a convenient, easy-access location to accommodate quick, clean filter changes. Includes a high quality, die cast aluminum 1/2" NPT ports up filter mount and 20mm x 1.5 threaded spin-on adapter with most everything you need for an easy installation. Filter mount uses Fram PH8A Oil Filter or equivalent.
Specifications
- Spin-on adapter type: M
- Adapter thread size: 20 x 1.5mm
- Adapter thickness: 1-3/4"
- Adapter inlet size: 1/2" NPT
- Remote filter landing: 2-1/2", 2-3/4"
- Remote filter thread size: 3/4"-16
- Remote filter inlet size: 1/2" NPT
- Hose size: 1/2"
- Hose length: 10'
Features

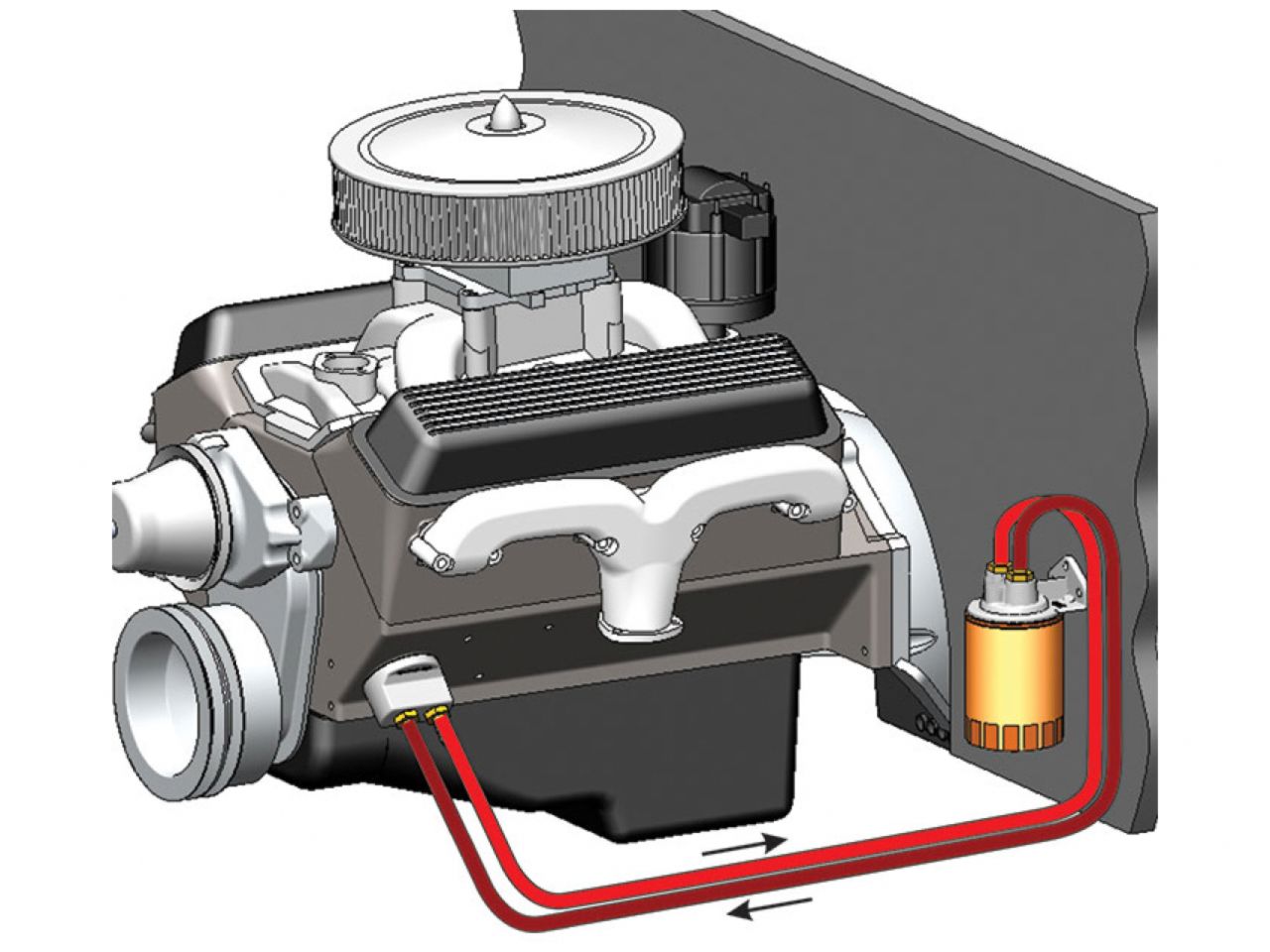

- Allows for oil filter to be moved to a more convenient location
- Faster and easier filter changes
- Ideal for engine swaps
- Increases oil capacity
- Single ports-up style filter mount
- Cast from high quality aluminum
- 10 ft 1/2" OEM spec hose provided

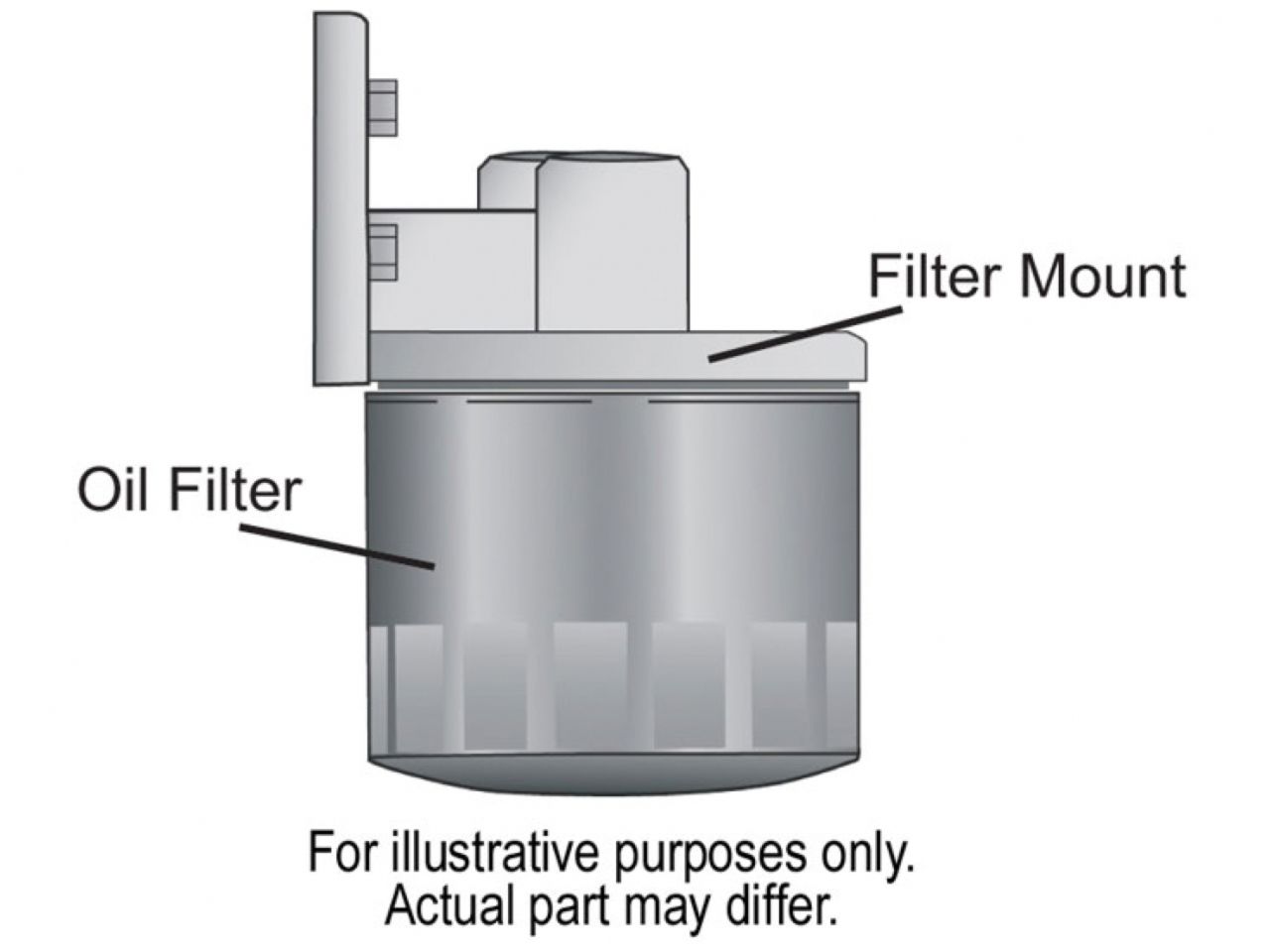

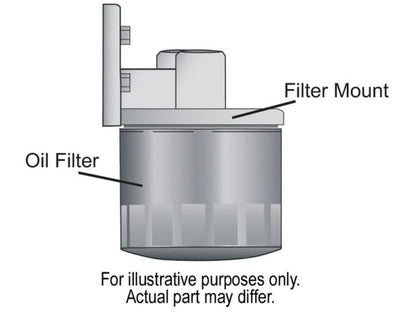

- Filter mount uses Fram PH8A or equivalent filter

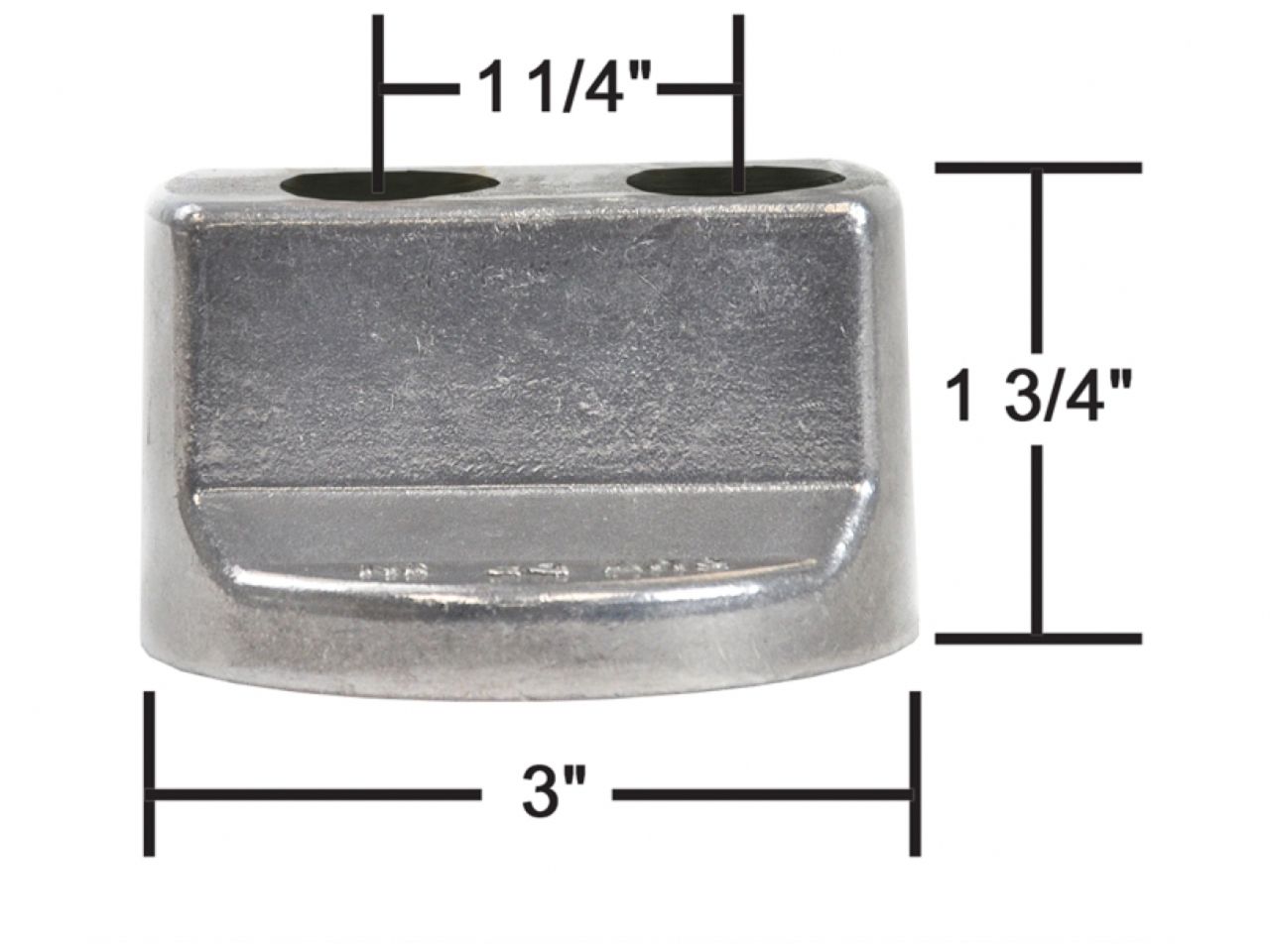

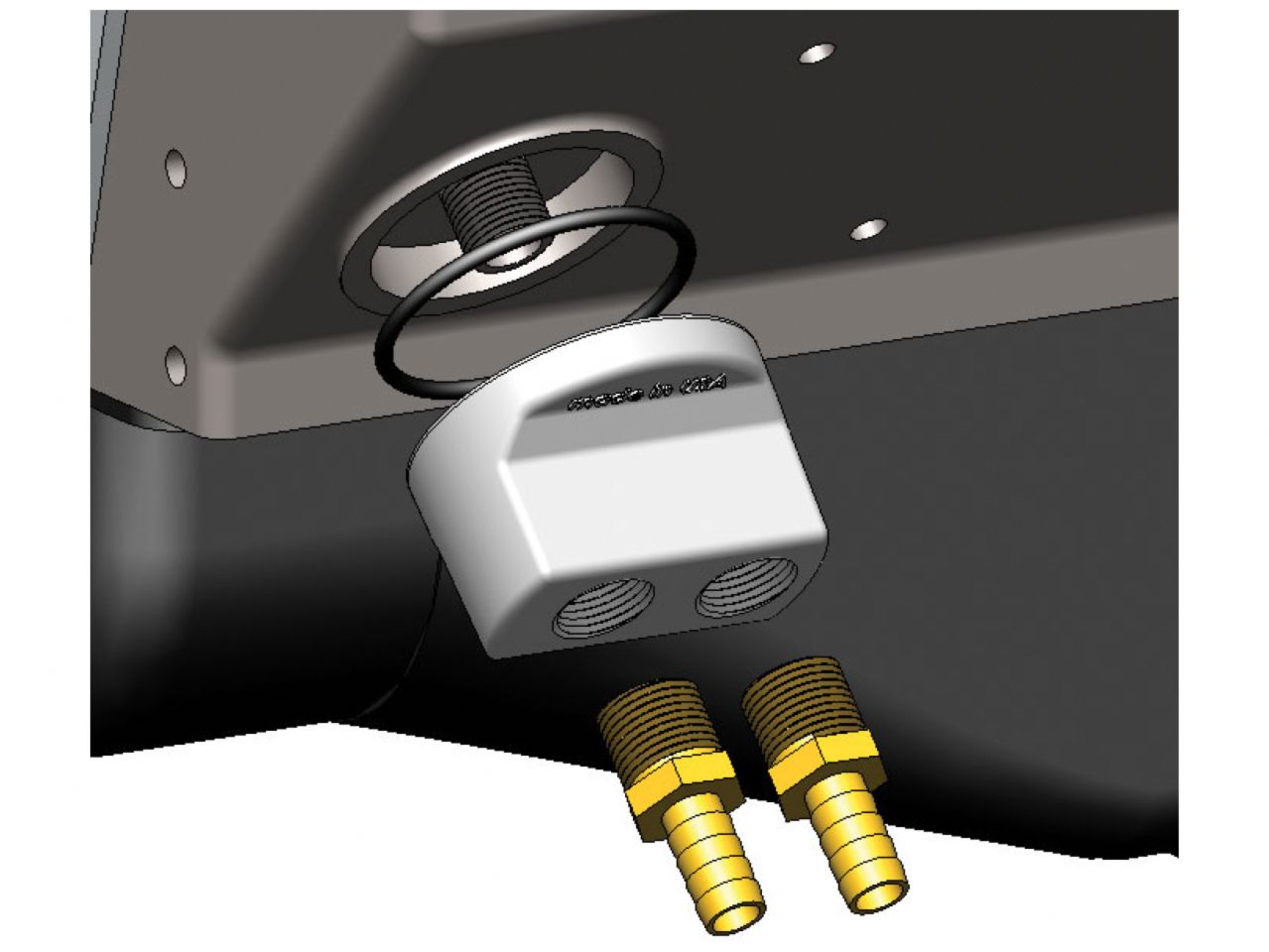

- Type M Spin-On Adapter with 20 x 1.5mm thread size *see application guide for specific applications
- Aluminum Fittings
Derale Oil Filter Relocation Kit (20x1.5mm)
Sale price$57.04 USD
