Derale Tube & Fin Engine Cooler Kit (Spin-On Adpter)

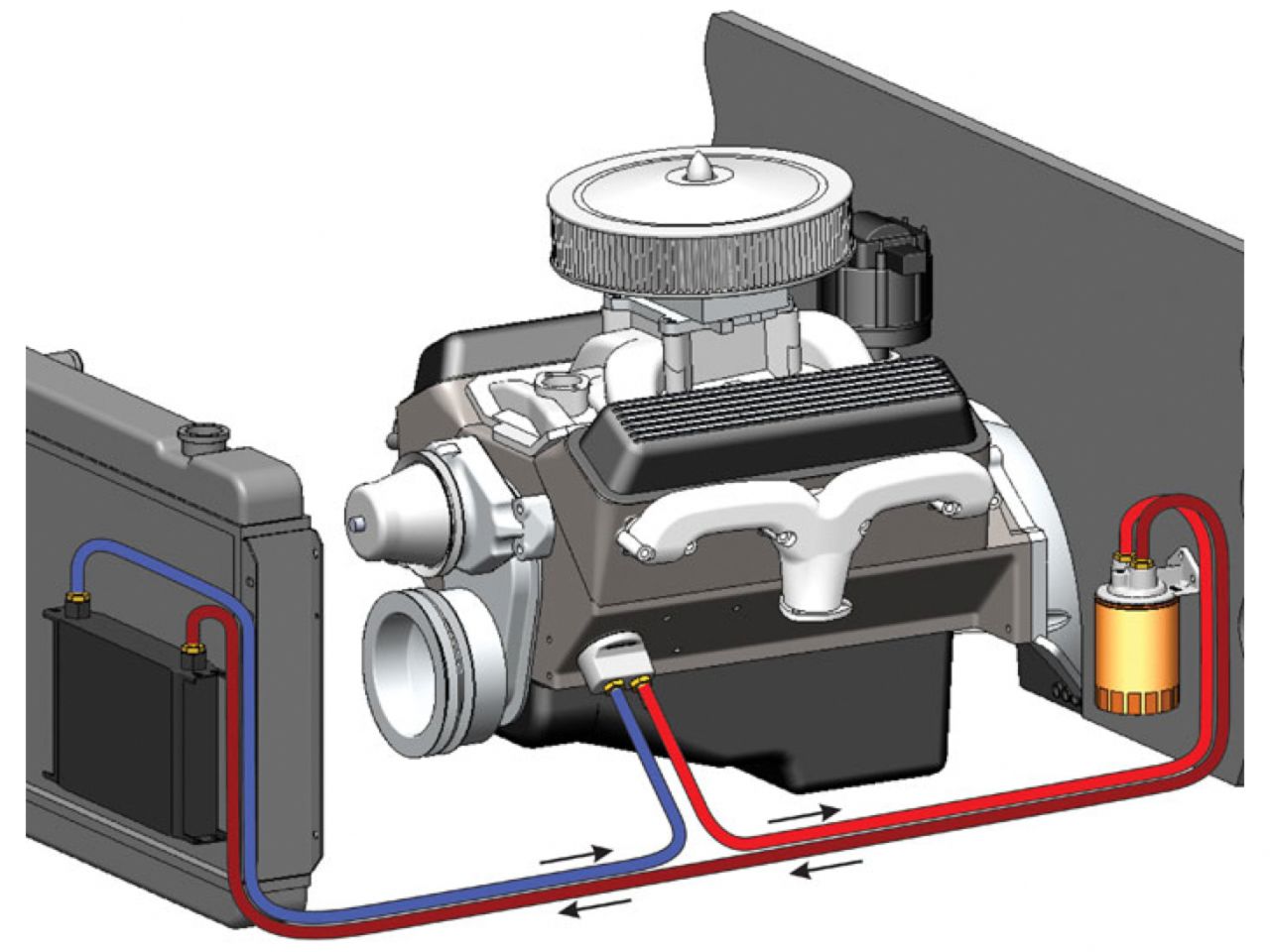

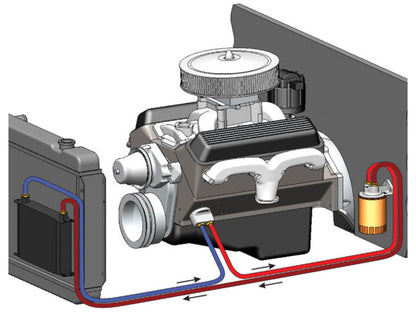

This kit not only includes an engine oil cooler but a remote oil filter mount. This Tube & Fin oil cooler kit reduces oil temperatures to help extend the life of lower end components and oil life. It can also help to reduce coolant temperatures. This universal kit comes with a complete installation kit to install easily on most vehicle engines. Filter mount uses Fram PH8A Oil Filter or equivalent.
Specifications
- Cooler style: Tube & Fin
- Cooler construction: Copper tube and Aluminum fin
- Cooler inlet size: 1/2" barb

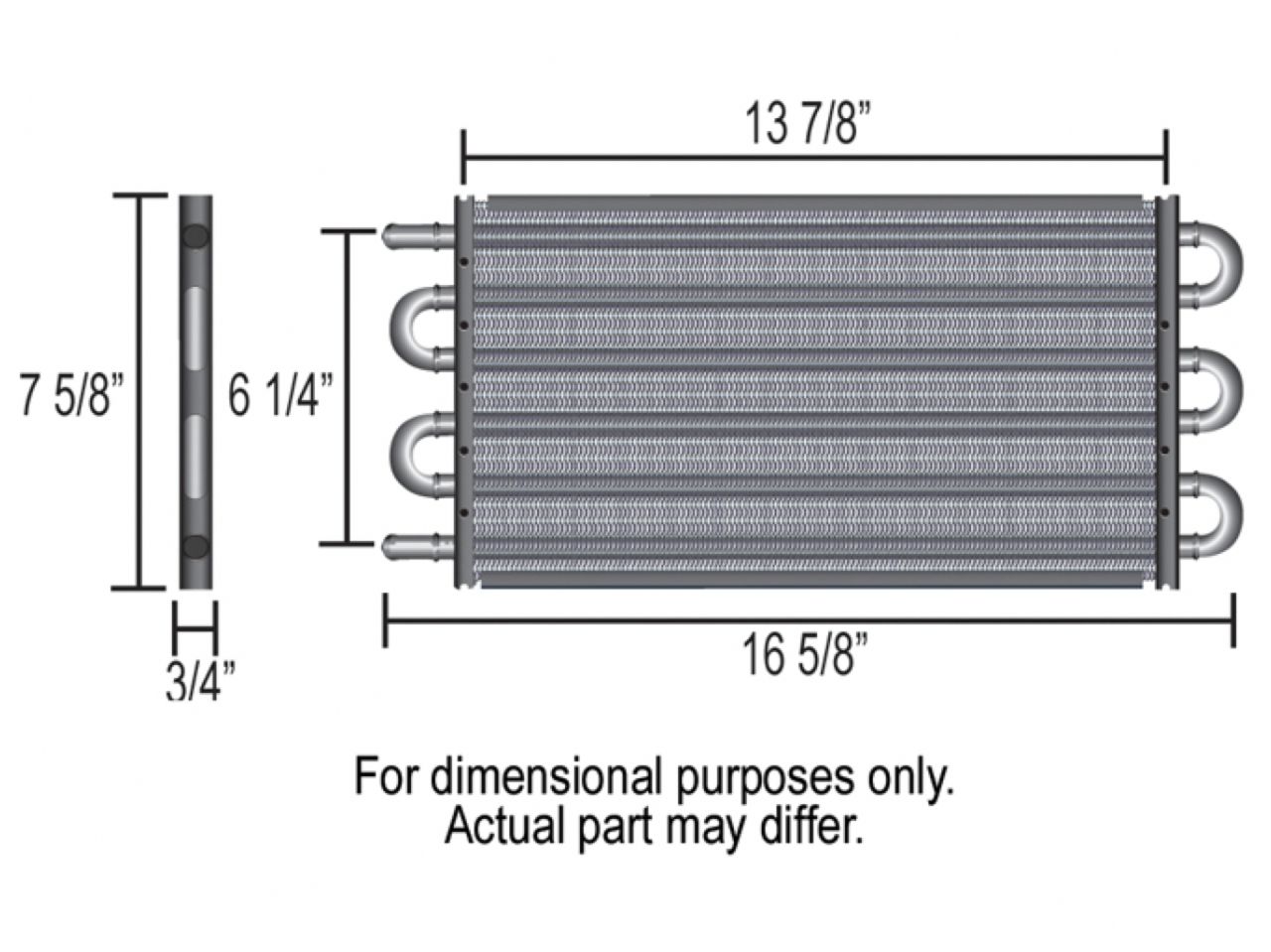

- Cooler width: 16-5/8"
- Cooler height: 7-5/8"
- Cooler depth: 3/4"
- Cooler inlet dim: 6-1/4"
- Cooler mounting: 13-3/4"

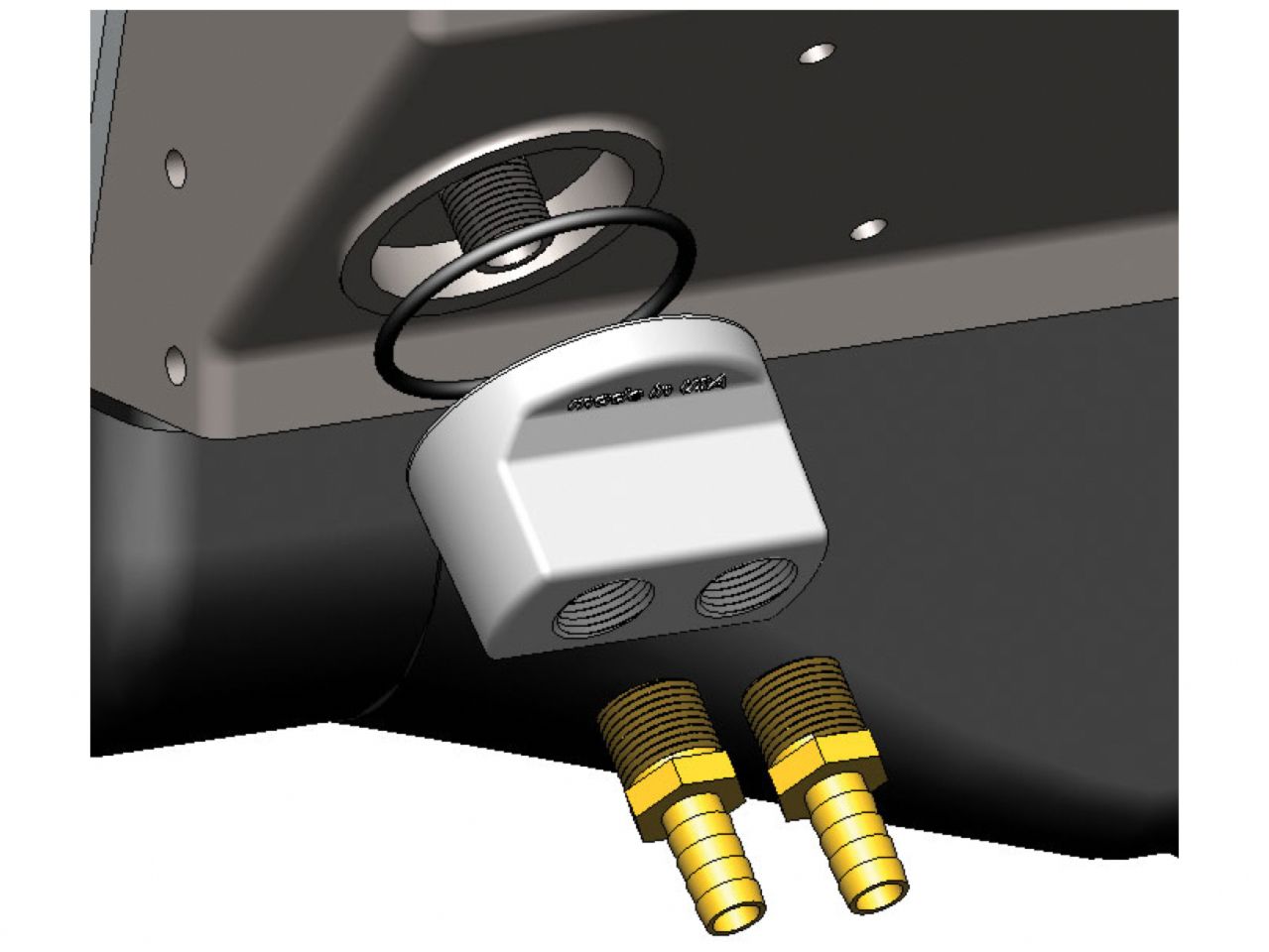

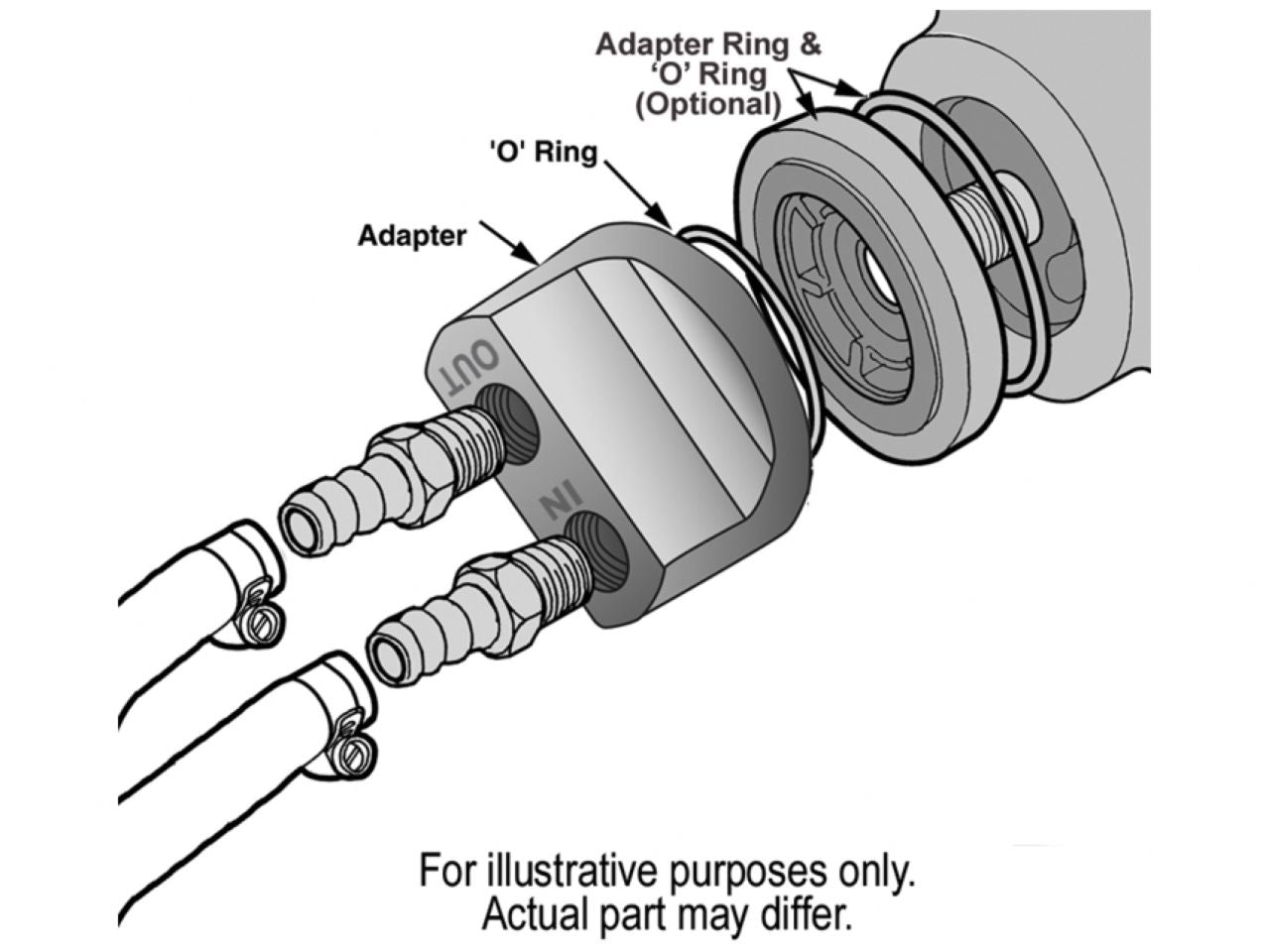

- Spin-On Adapter type: J
- Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm

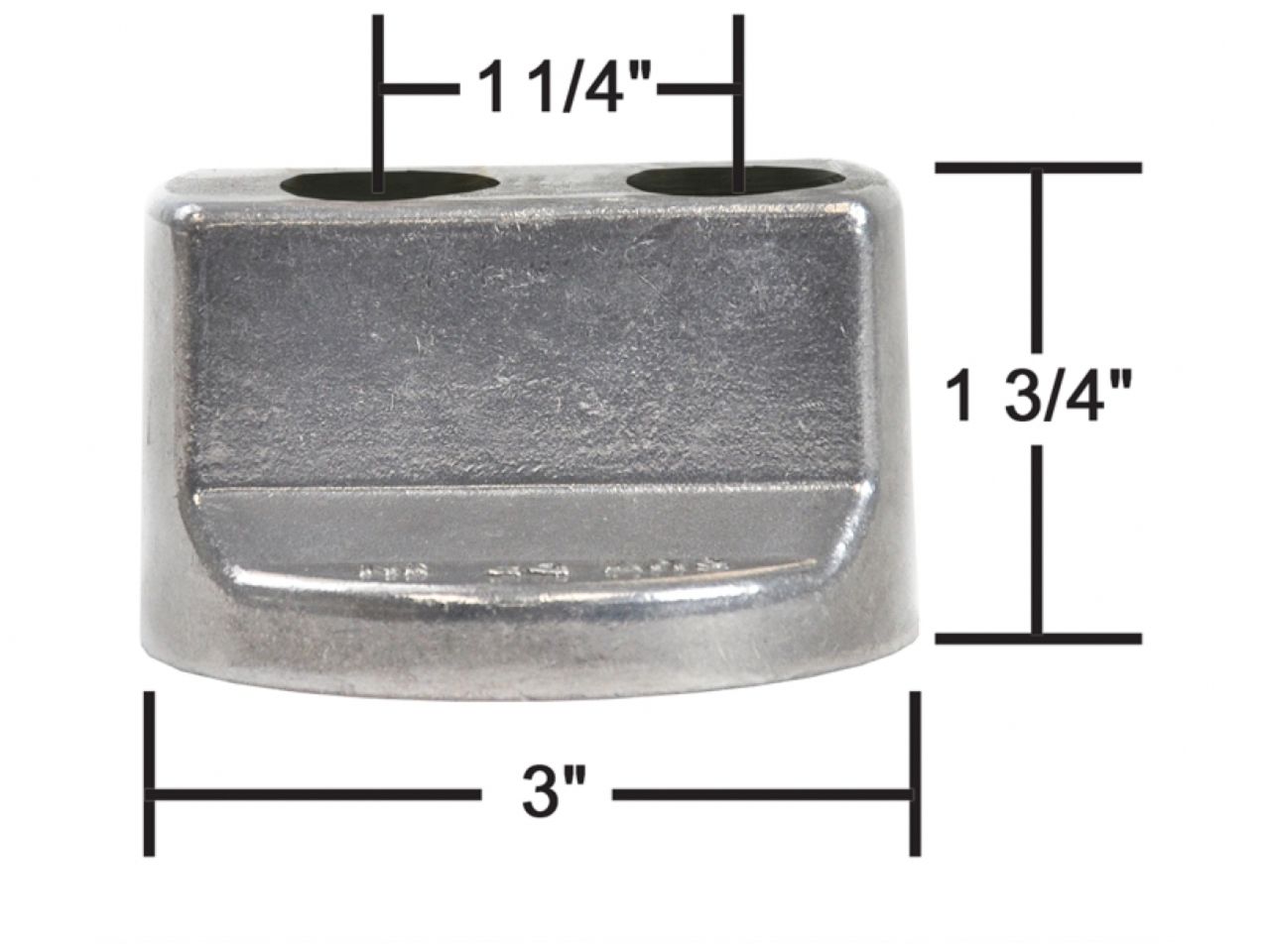

- Adapter thickness: 1-3/4" or 2"
- Adapter inlet size: 1/2" NPT

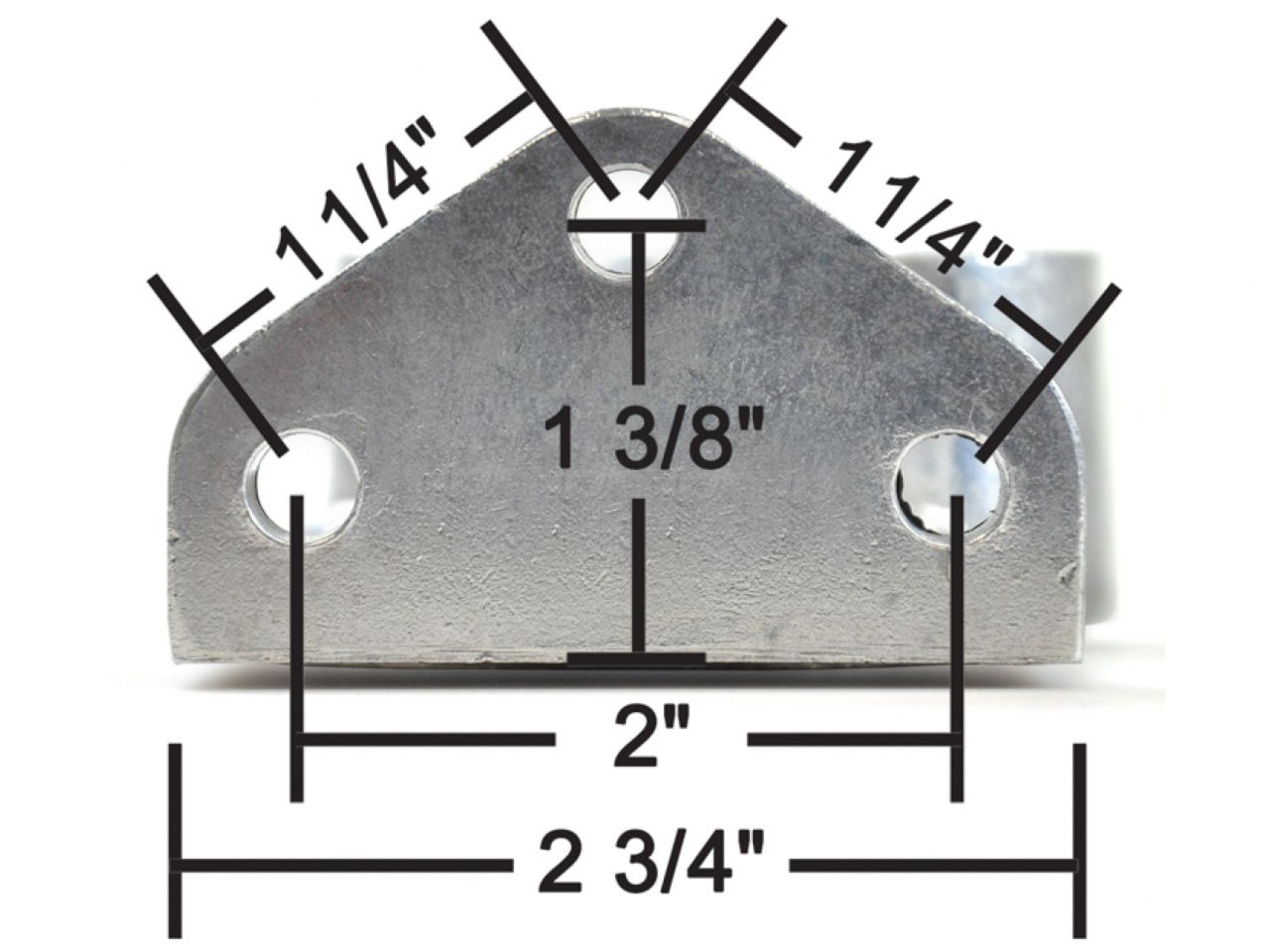

- Remote filter landing: 2-1/2", 2-3/4" or 3-1/2"
- Remote filter thread size: 3/4"-16
- Remote filter inlet size: 1/2" NPT
- Hose size: 1/2"
- Hose length: 10'
Features
- Can reduce oil temperature up to 50°F
- Helps reduce coolant temperature
- Extends engine life
- Includes ports-up filter mount (Fram PH8A equivalent filters)
- 6 pass Tube & Fin style cooler
- Type J Spin-On Adapter fits most applications *see application guide for specific applications

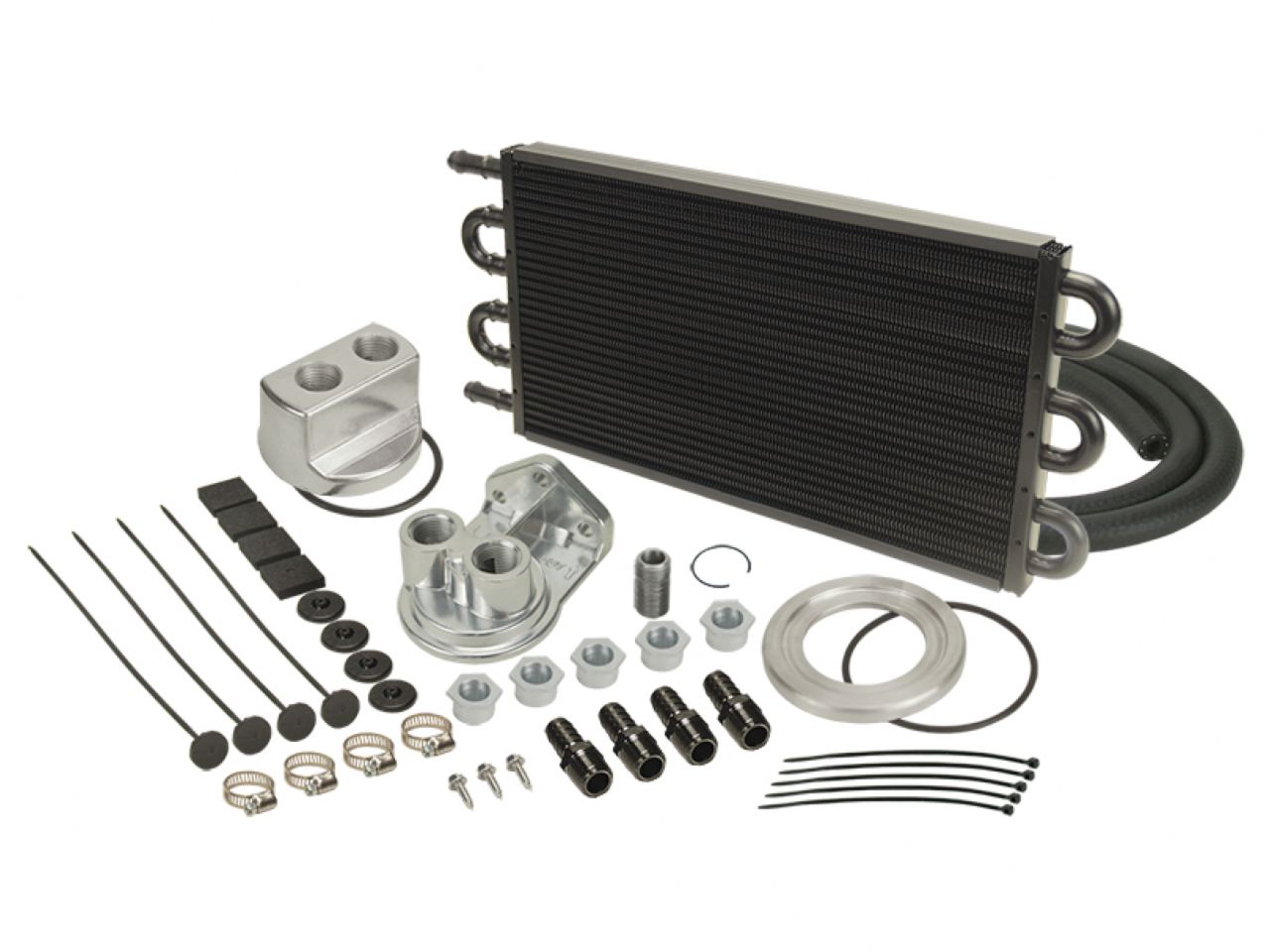

- Complete hardware kit included
Derale Tube & Fin Engine Cooler Kit (Spin-On Adpter)
Sale price$152.03 USD
Regular price$190.04 USD
