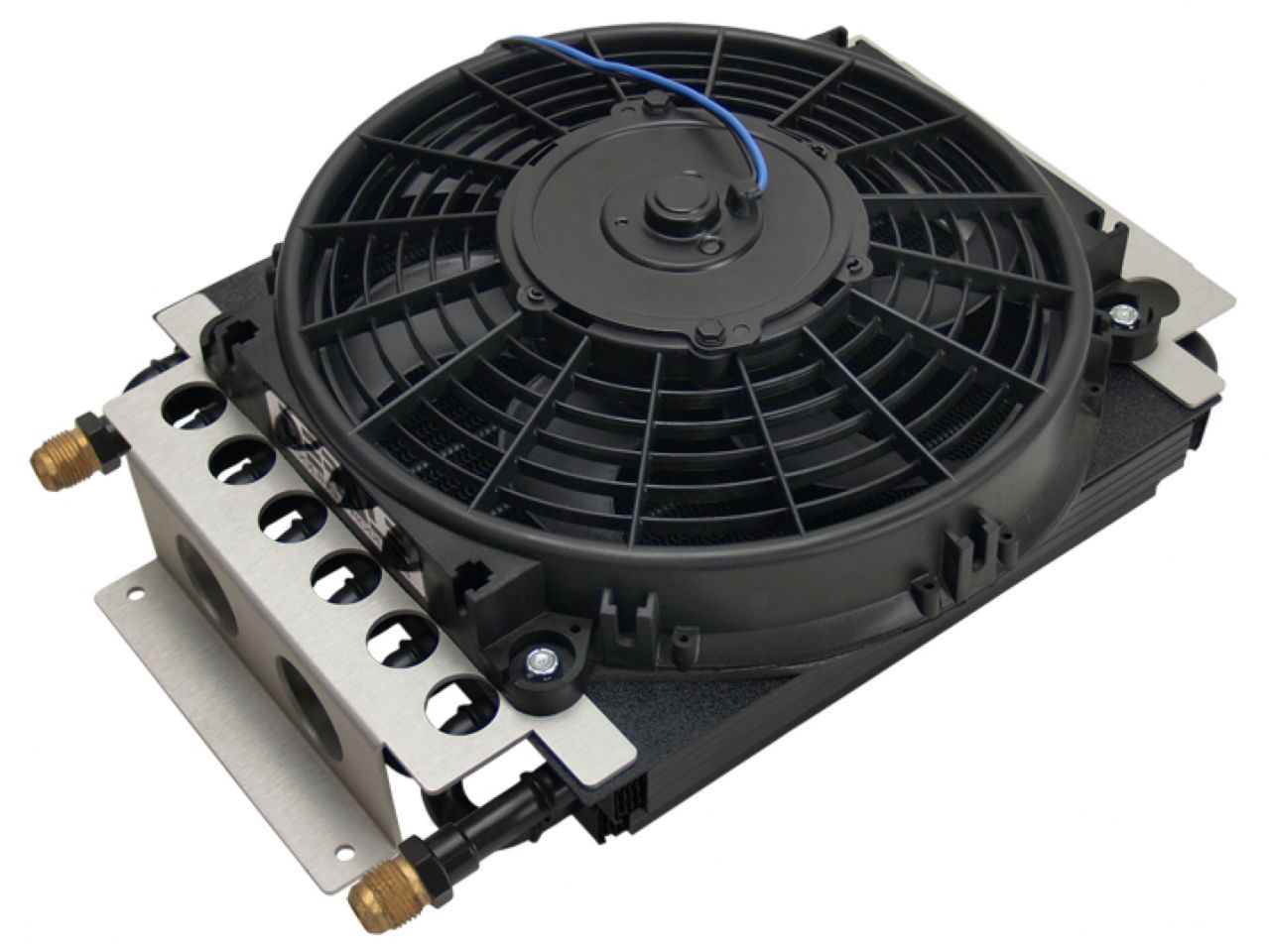

Derale Electra-Cool Engine Oil Cooler Kit (-8AN)

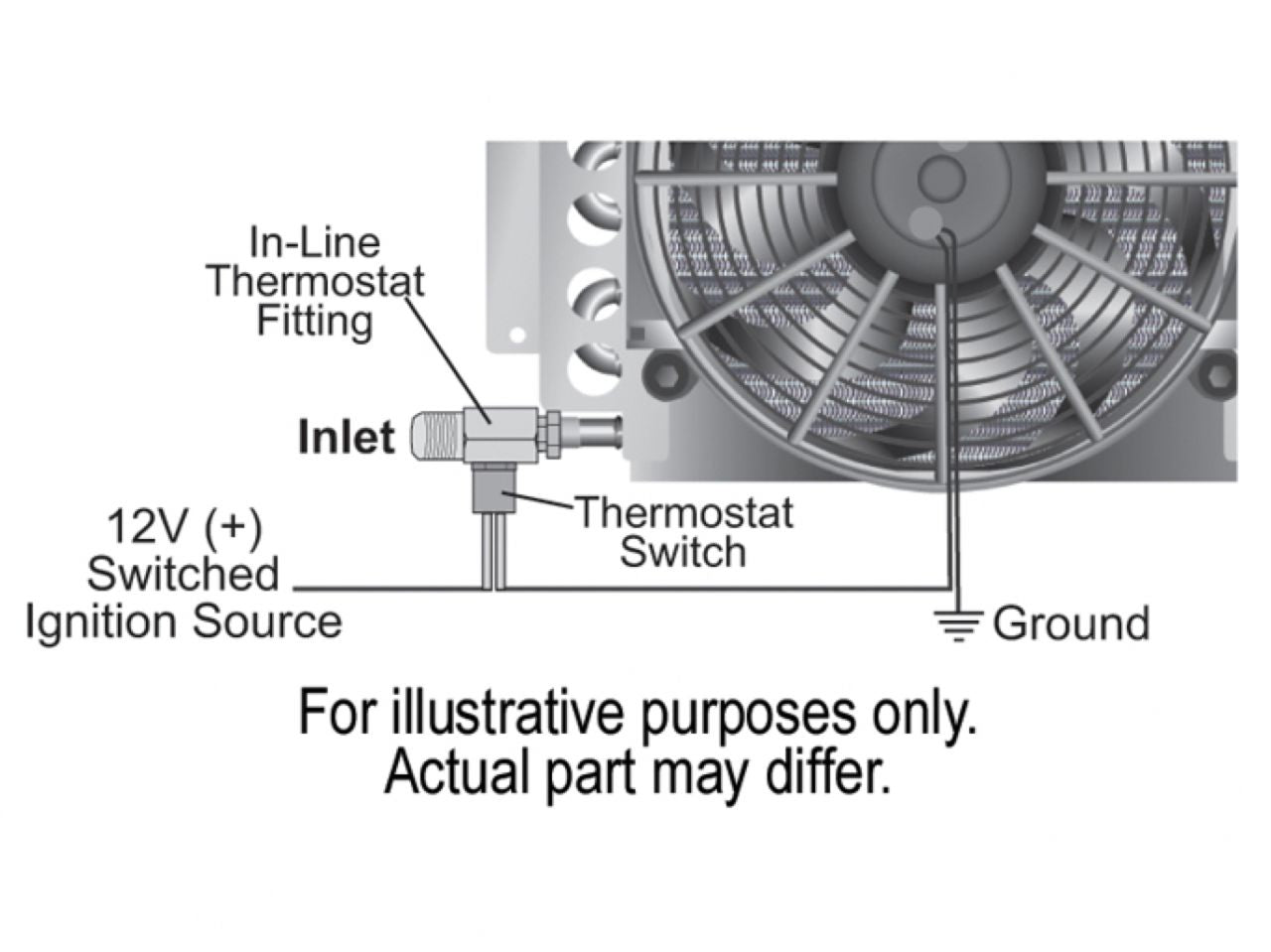

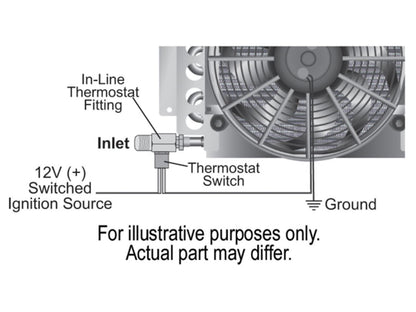

With its own air supply, this popular remote cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16 pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, this universal kit comes with a complete installation kit to install easily on most vehicle engines. See application guide for detailed applications. Also included is an 180°F in-line thermostat for activating the electric fan.
Specifications
- Cooler style: 16 pass Tube & Fin
- Inlet size: -8AN
- Fan size: 10"
- CFM: 650
- Amp draw: 5.3

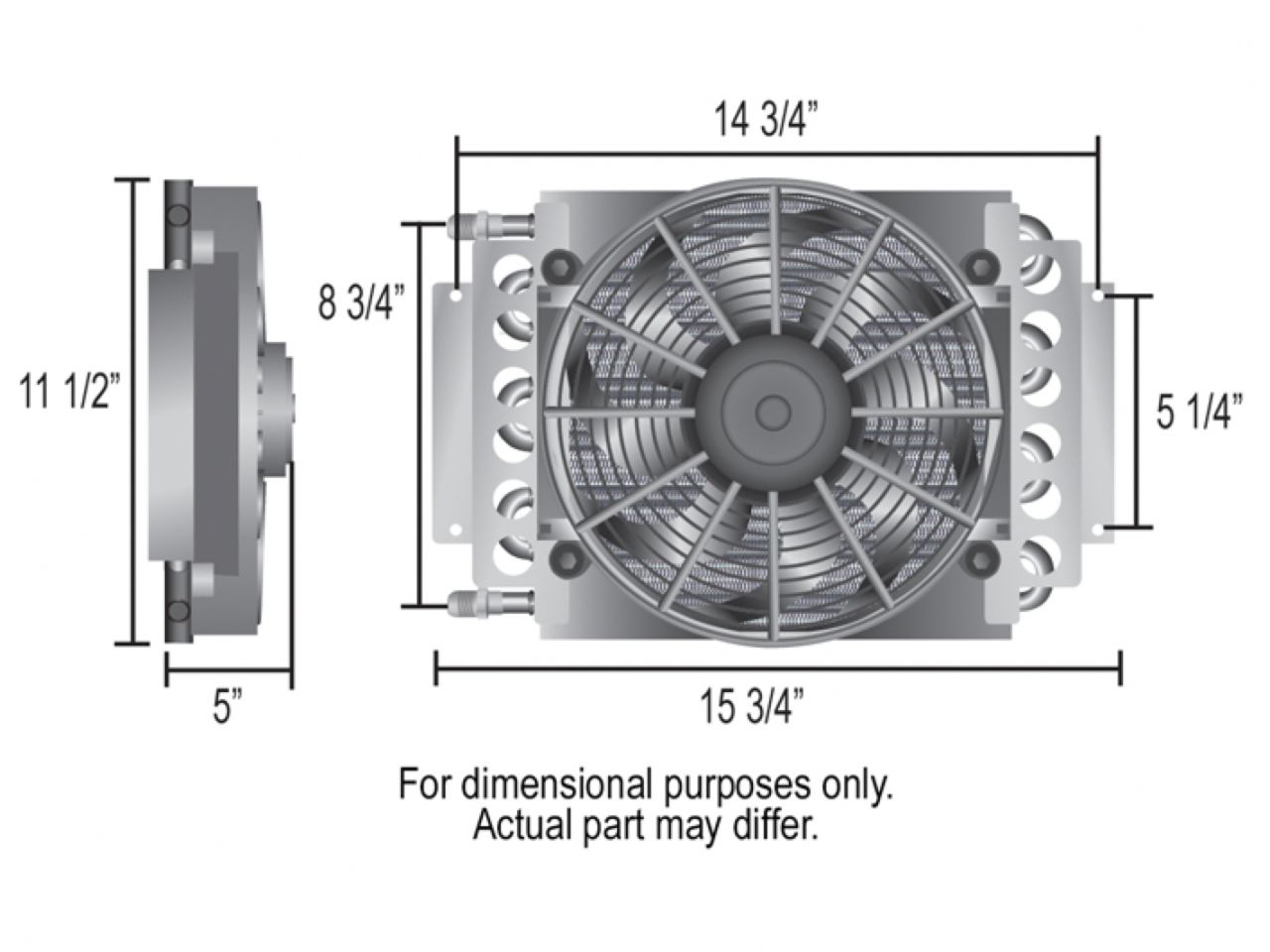

- Width: 15-3/4"
- Height: 11-1/2"
- Depth: 5"
- Inlet dim: 8-3/4"
- Mounting: 14-3/4" x 5-1/4"
- Sandwich adapter inlet size: 3/8" NPT
- Cooler fluid capacity: 19.6 oz
- Hose size: 1/2"
- Hose length: 10'
- Airflow: Puller (reversible)
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- 16 pass Tube & Fin cooler
- Clear anodized aluminum shroud
- 650 CFM reversible Tornado electric fan
- -8AN inlet size
- Derale coolers are rated at 250psi working pressure and 300psi burst strength

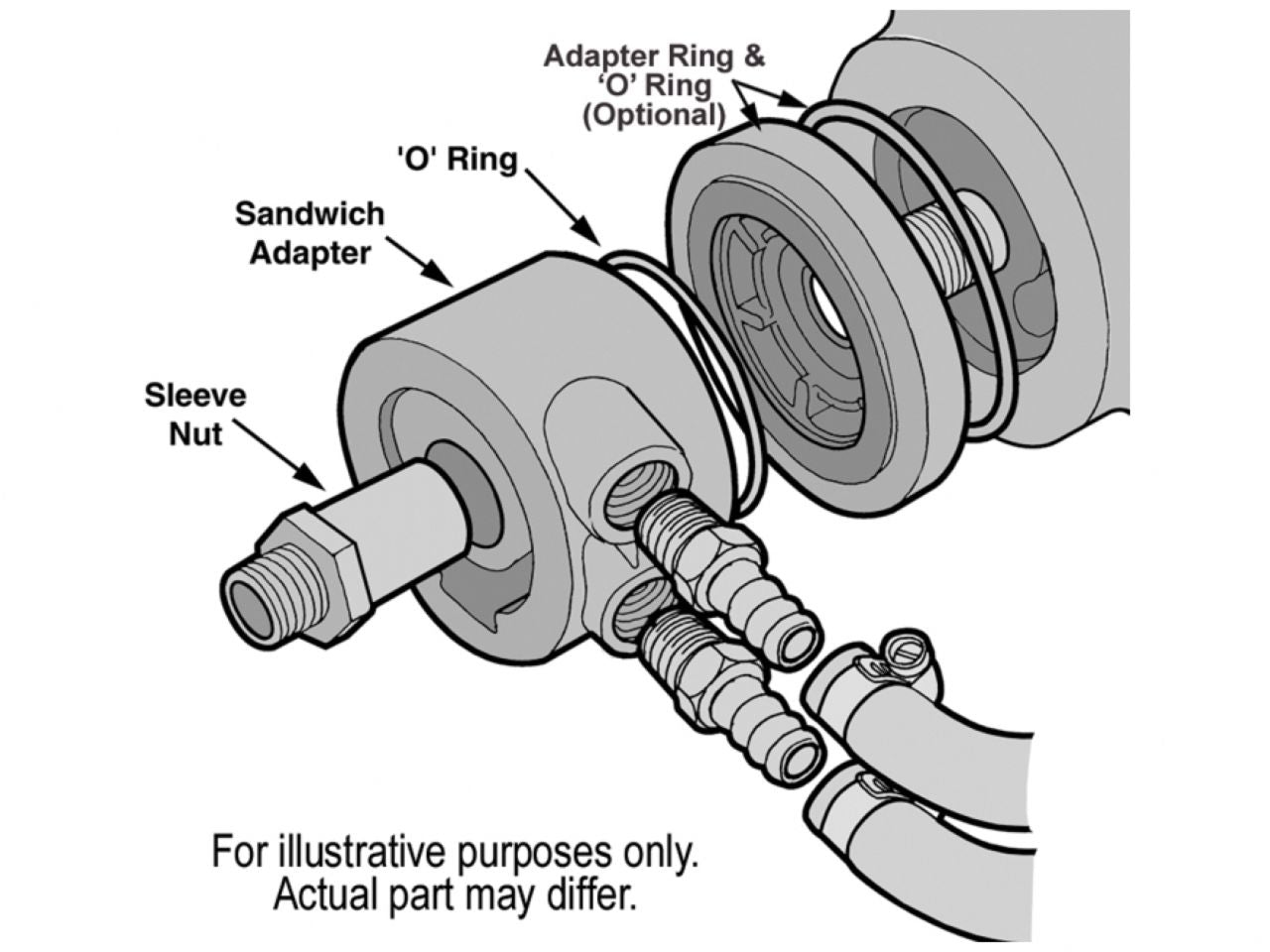

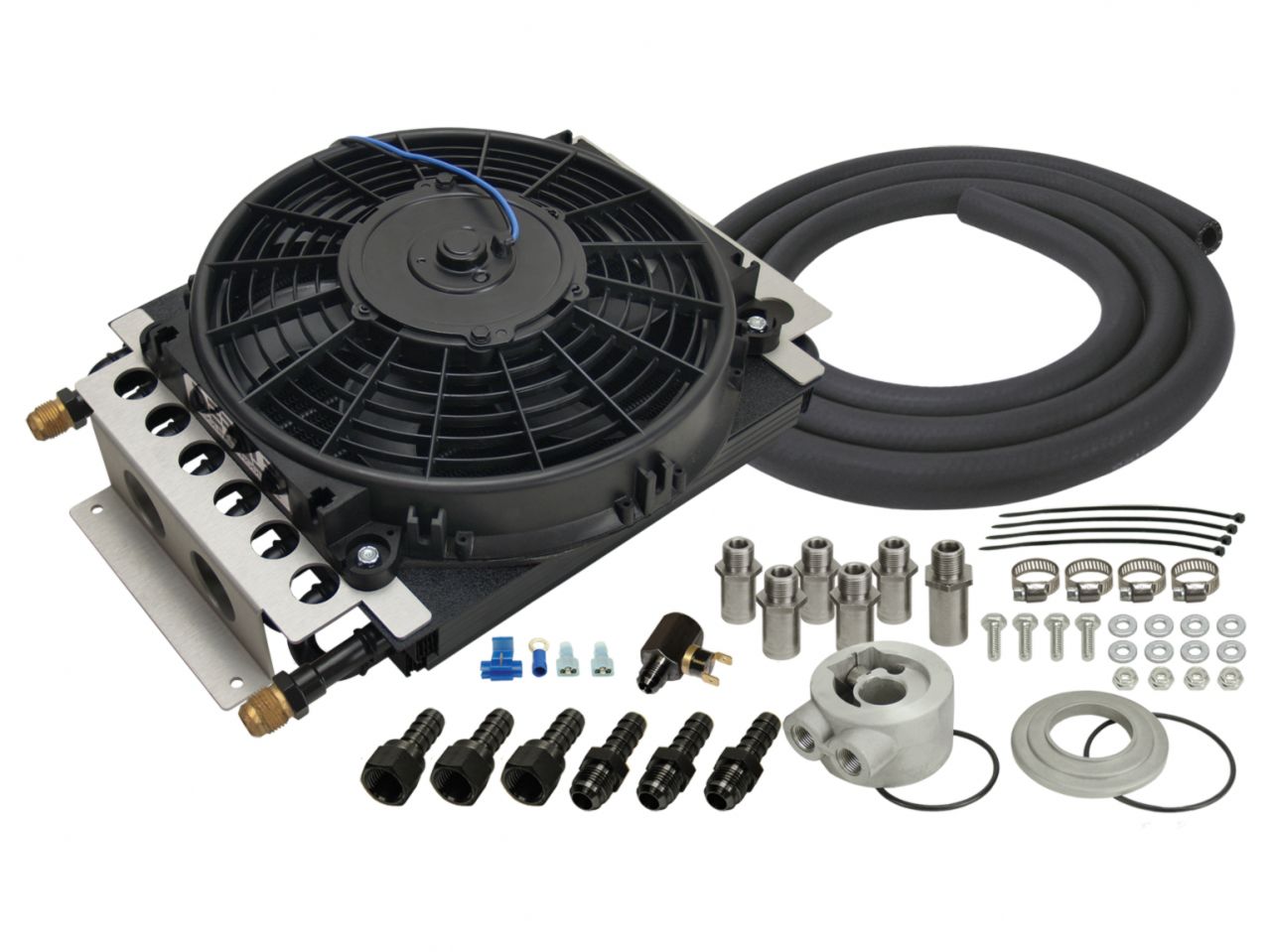

- Engine cooler kit includes fan mounted cooler, universal thermostatic sandwich adapter, 13/16-16", 3/4-16", 18mm, 20mm, & 22mm sleeve nuts, two -8AN fittings, four 1/2" hose barb fittings, 180°F In-line thermostat,10 ft. OEM spec hose & hardware
Derale Electra-Cool Engine Oil Cooler Kit (-8AN)
Sale price$314.99 USD
