Derale Dual Circuit Electra-Cool Cooler (-8AN)

Derale Dual Circuit Electra-Cool Cooler (-8AN)

sku: 144JF | mpn: 15220
$352.44
$352.44 $352.44
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

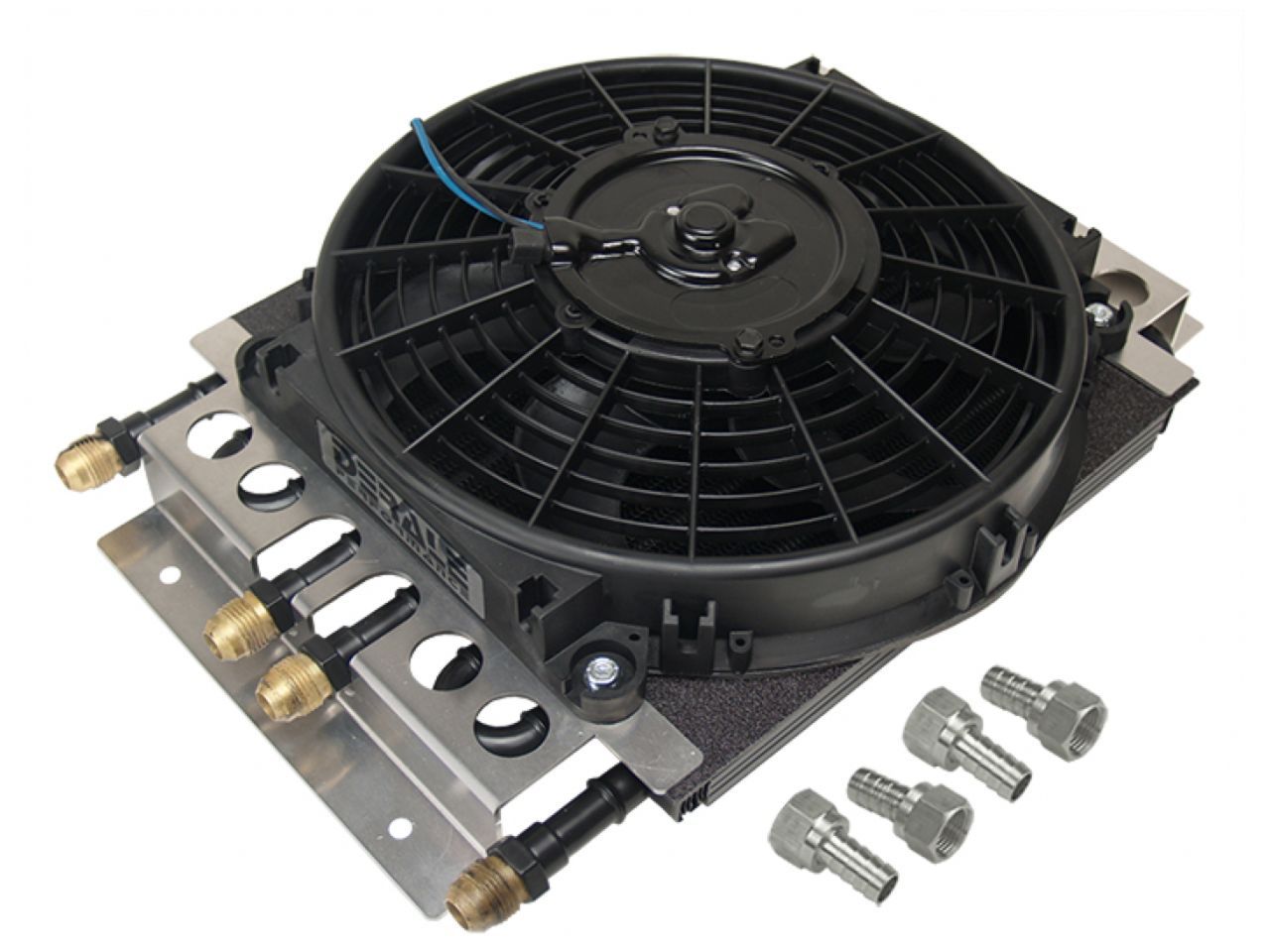

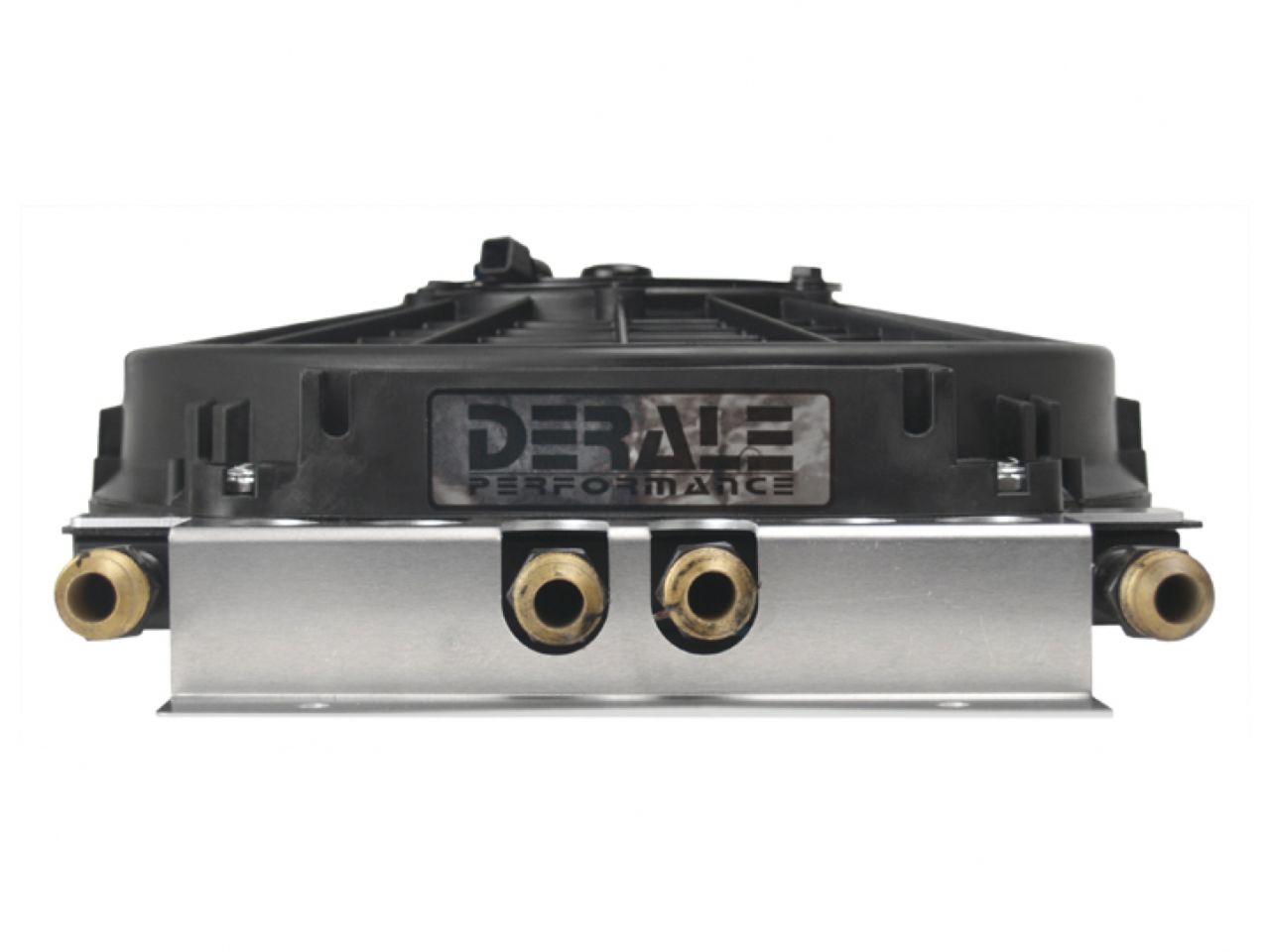

Combining an efficient 4 & 4 Pass copper/aluminum cooler core with a powerful 10" Tornado electric fan, this compact remote cooler cools two separate systems with one compact design that can be mounted literally anywhere space permits. Includes clear anodized aluminum mounting brackets, (2) -8AN x 3/8" and (2) -8AN x 1/2" hose barb fittings to adapt to a wide variety of heat removal requirements.

Specifications
  • Cooler style: 4 & 4 pass Tube & Fin
  • Inlet size: -8AN
  • Fan size: 10"
  • CFM: 650
  • Amp draw: 5.3

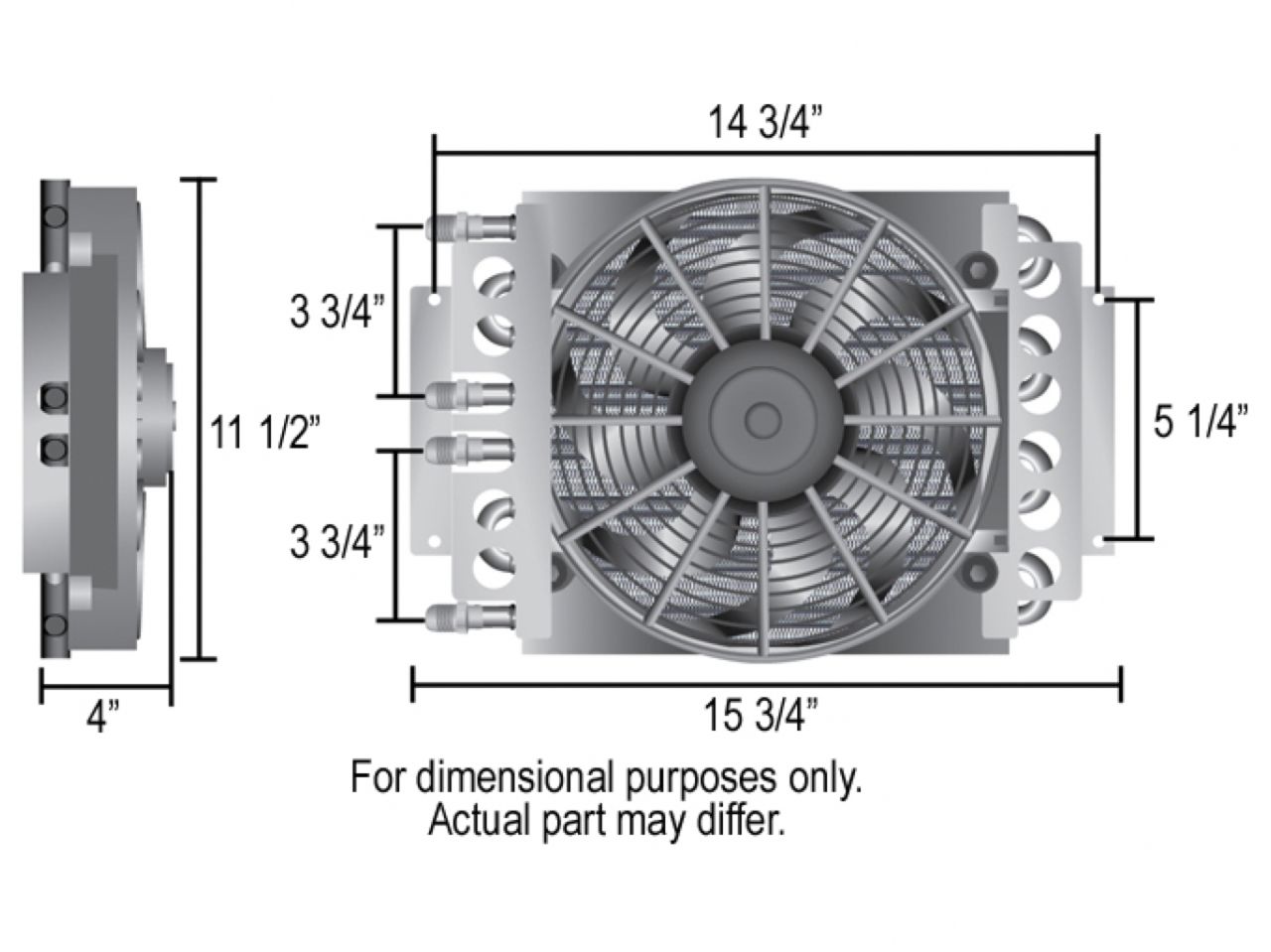

  • Width: 15-3/4"
  • Height: 11-1/2"
  • Depth: 4"
  • Inlet dim: 8-3/4"
  • Mounting: 14-3/4" x 5-1/4"
  • Cooler fluid capacity: 9 oz
  • Barb size: 1/2"
  • Airflow: Puller (reversible)
Features
  • Cools two systems with one compact, space-saving design
  • Efficient copper/aluminum 4 & 4 pass cooler core
  • Reversible 10" Tornado electric fan
  • Clear anodized aluminum brackets
  • Includes (2) -8AN x 3/8" and (2) -8AN x 1/2" hose barb fittings
  • Cooler is rated at 250psi working pressure and 300psi burst strength
