Derale Trans Cooling Pan (Ford E4OD/4R100/5R110)
Derale Trans Cooling Pan (Ford E4OD/4R100/5R110)
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Transmission Oil Pan
- Category
- Motor Vehicle Transmission & Drivetrain Parts
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 18.3 lb
- Barcode
- 083277142086
Billable shipping weight; may include dimensional weight.

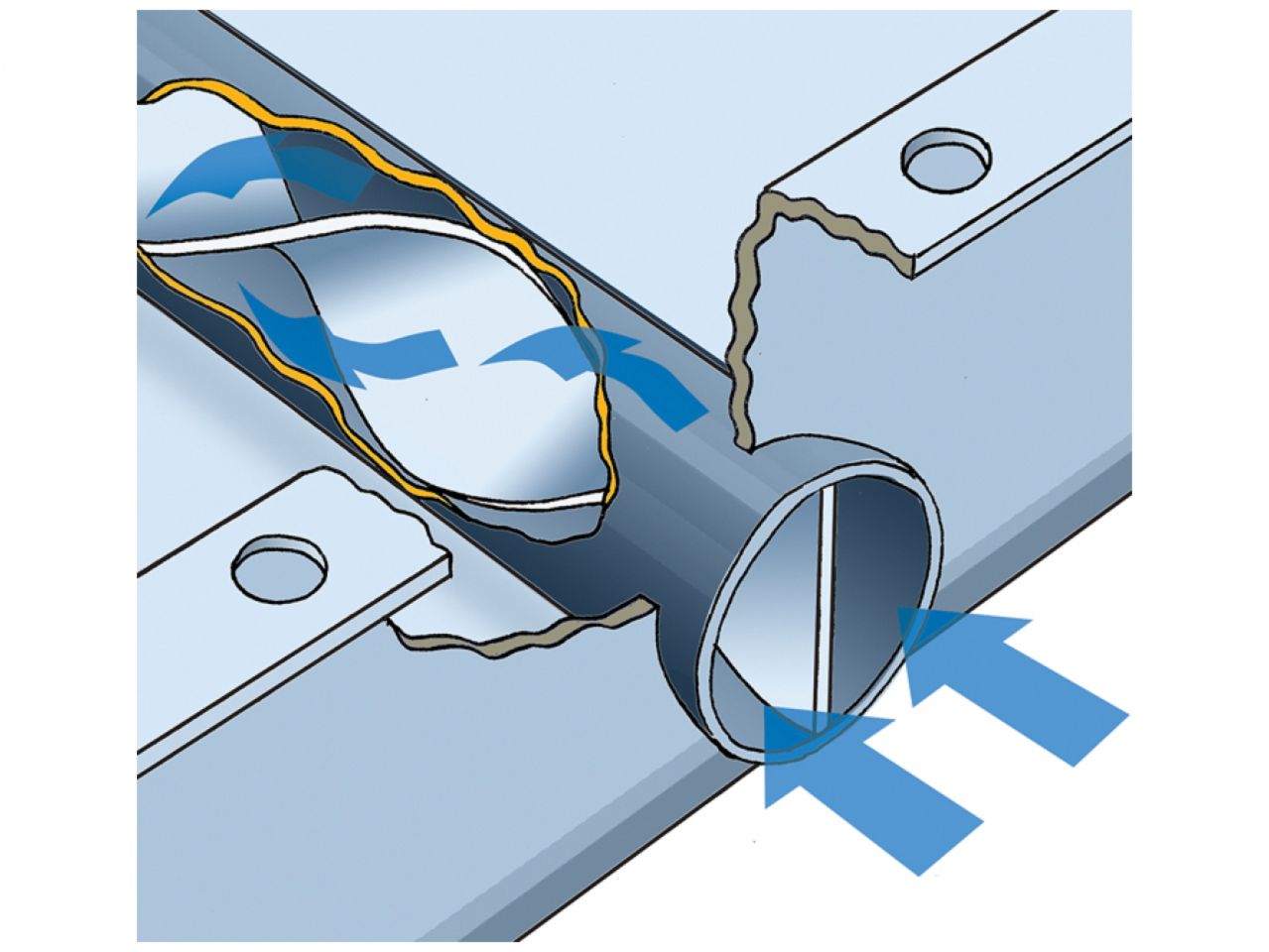

Derale's Transmission Cooling Pan #14208 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for Ford's E4OD, 4R100 and later 5R110 & 5R110W heavy duty transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.
SPECIFICATION

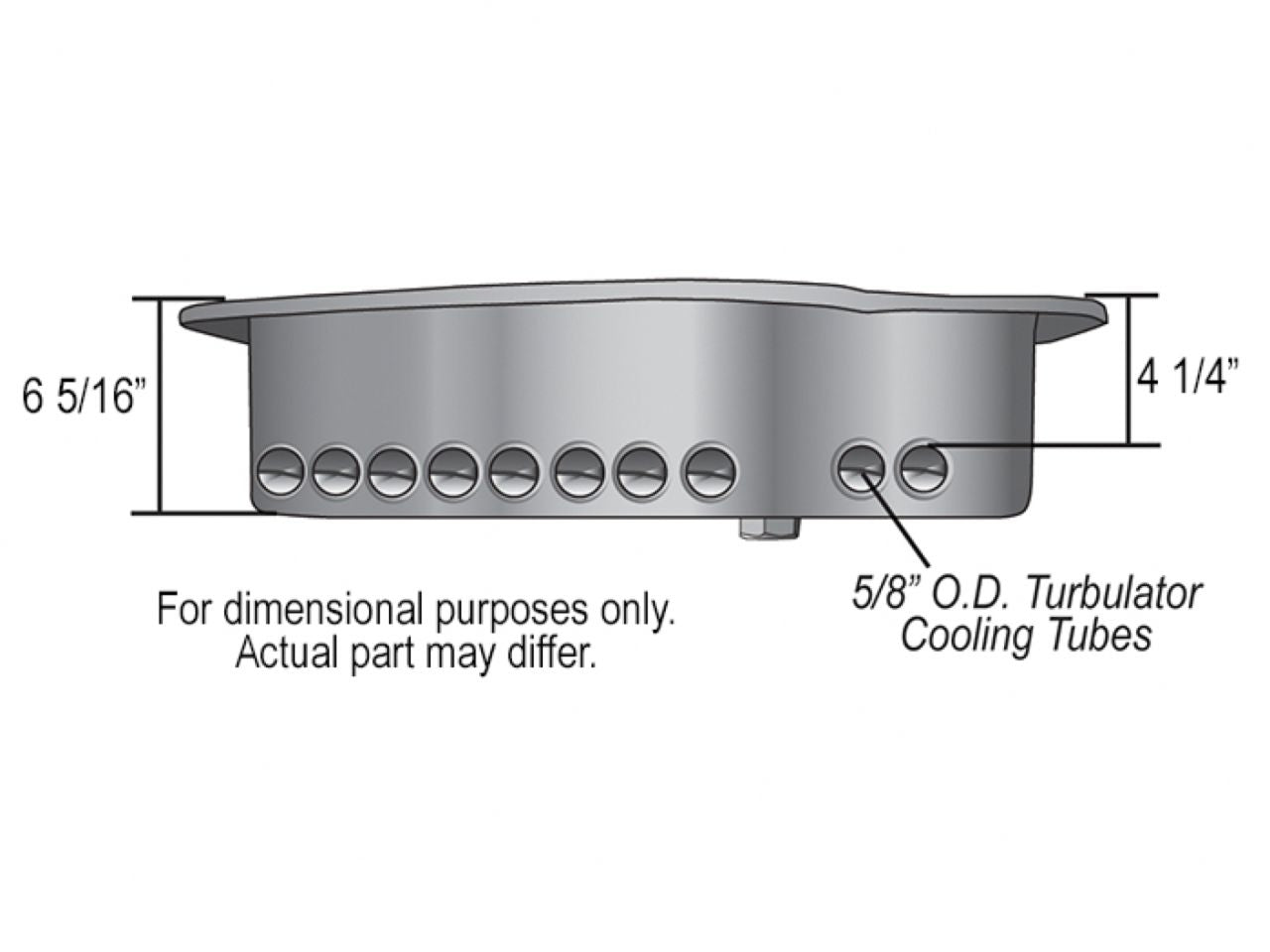

- Pan Dimensions: 20 3/8"
- Length x 13 3/4"
- Width x 6 5/16"
- Height Drain plug adds 1/4" to height
- Tube depth: 4-1/4"
- Temp bung size: 1/8" NPT
- Drain plug size 1/2"-20
- Replacement drain plug Derale 14000
- Heavy gauge stamped steel construction
- Two stage heat dissipating black finish
- 1/8" NPT temperature sender port
- Reduces fluid temperatures up to 50°F
- Increases fluid capacity by 7 qts. 30 oz.
- Patented turbulator cooling tubes add heat transfer capability
- Magnetic drain plug with increased magnetic strength and rubber/steel washer
- Uses OEM filter with no filter extension required
