Derale Trans Cooling Pan 1446V

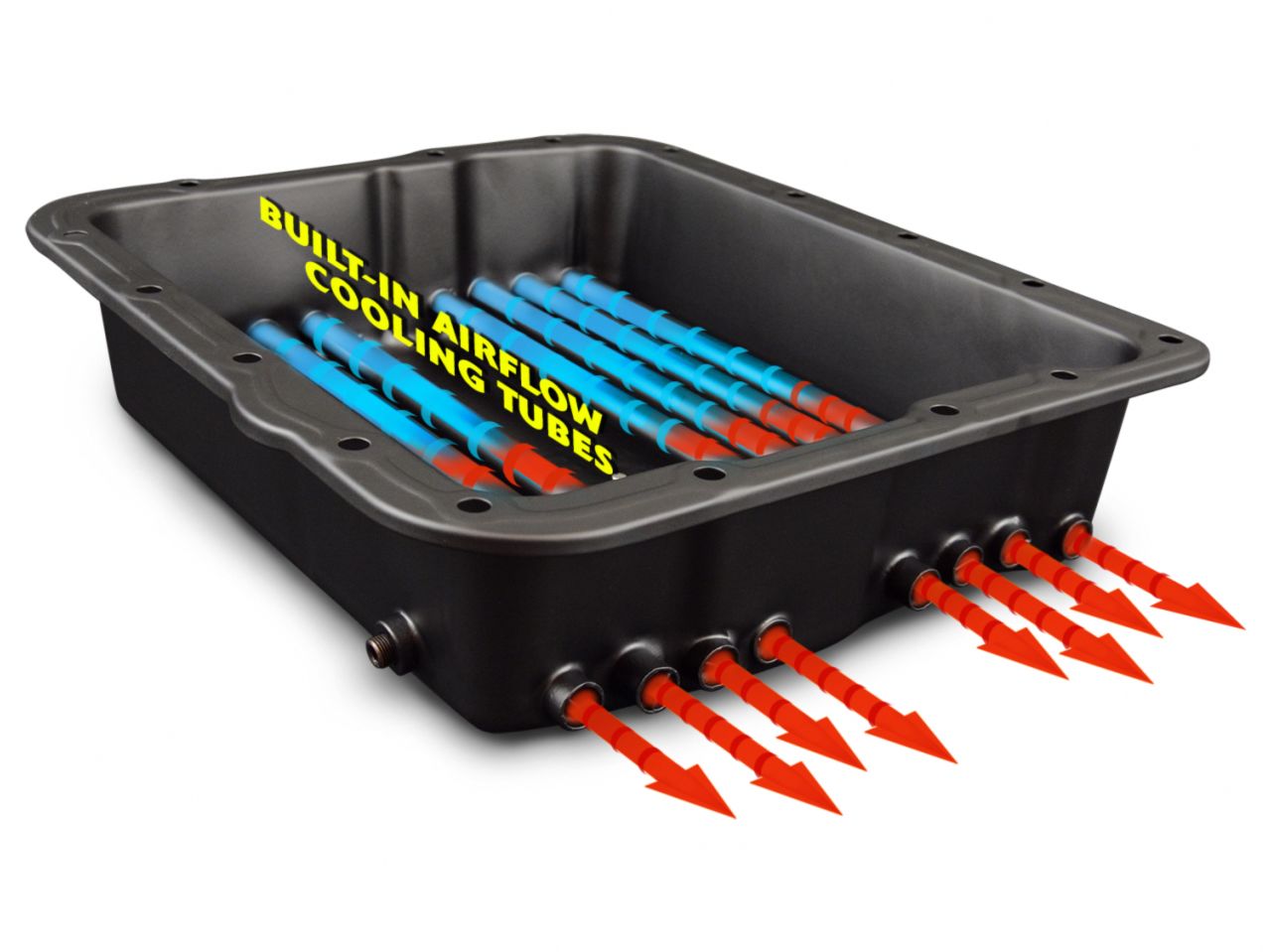

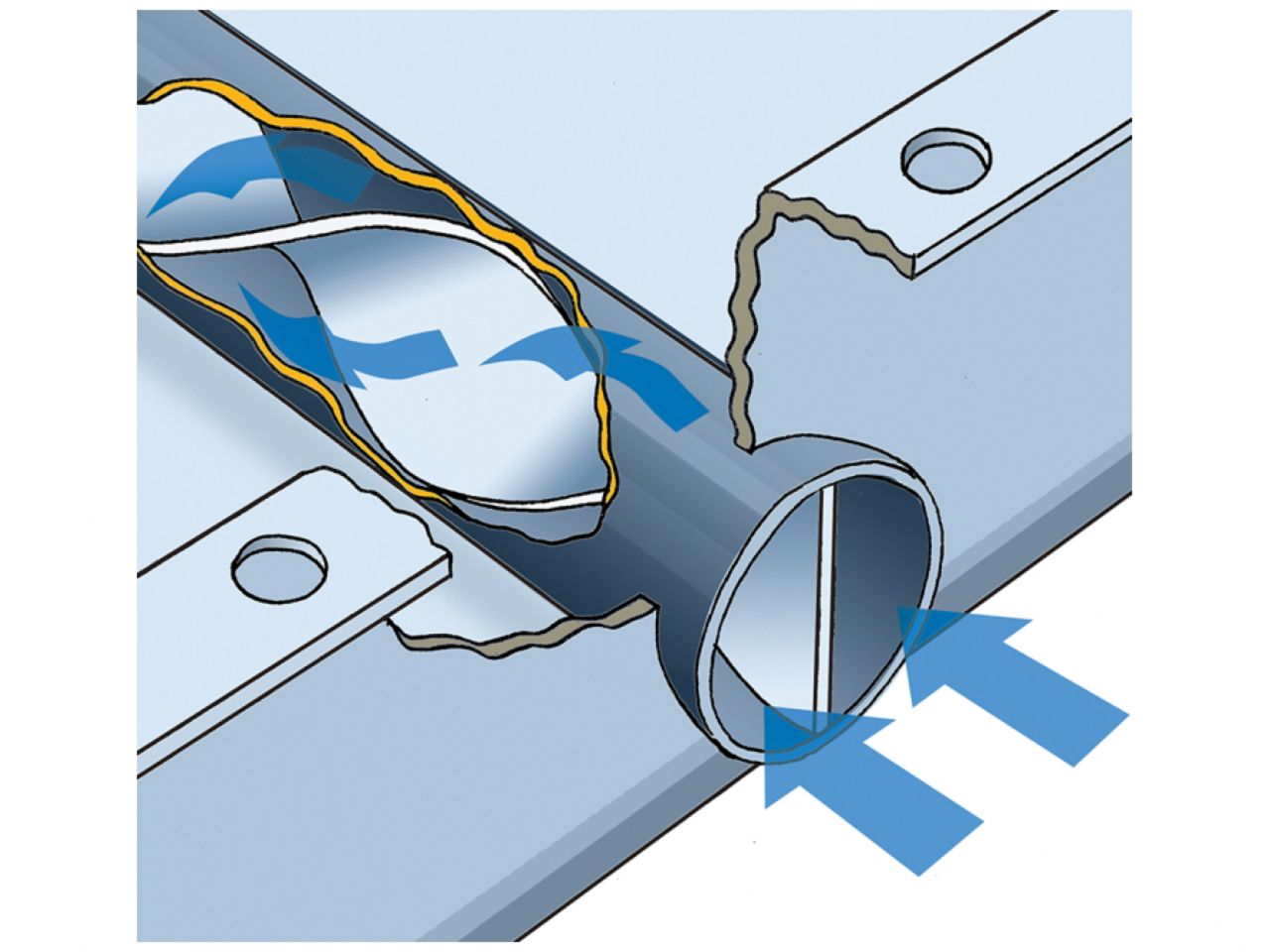

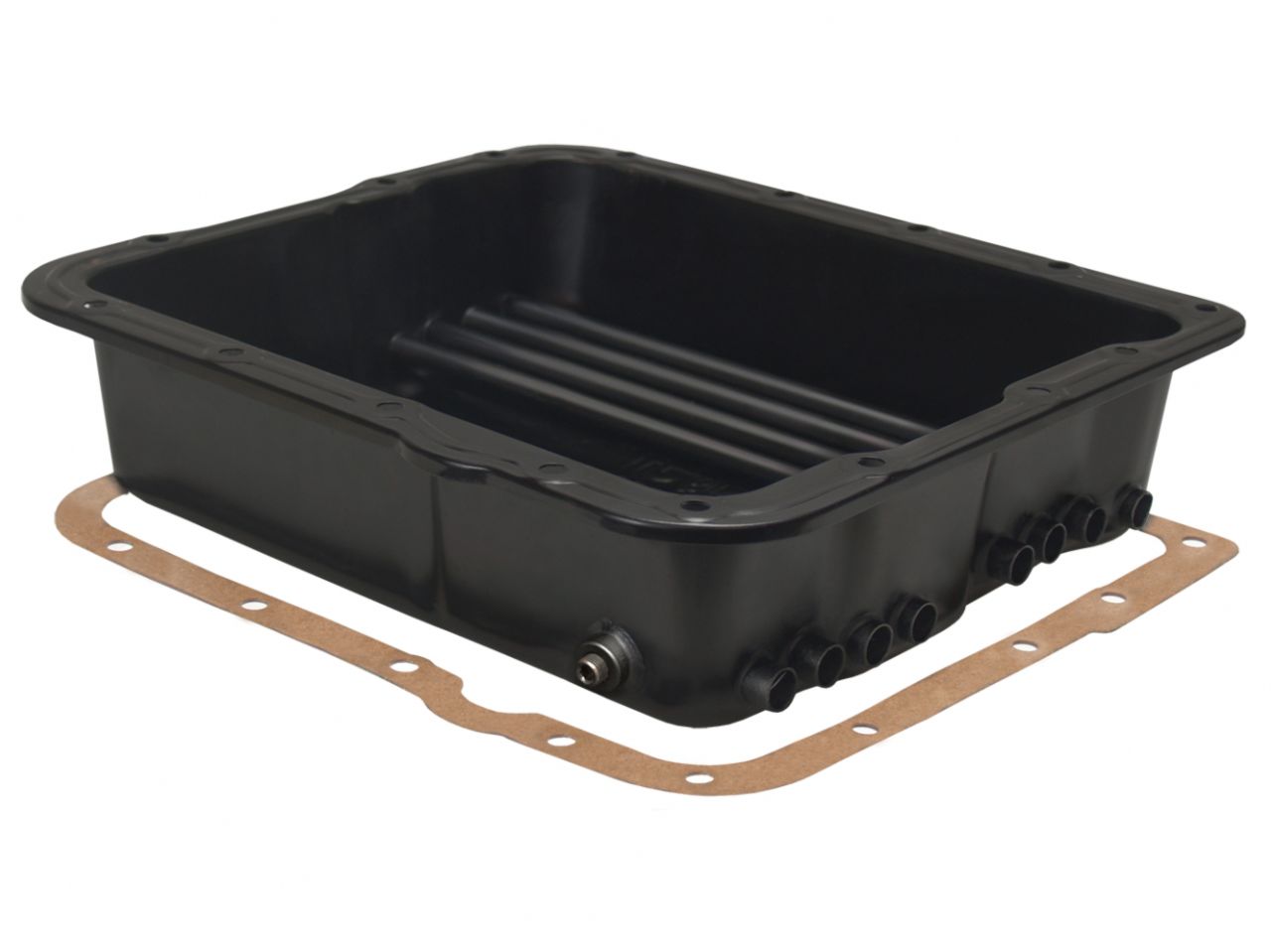

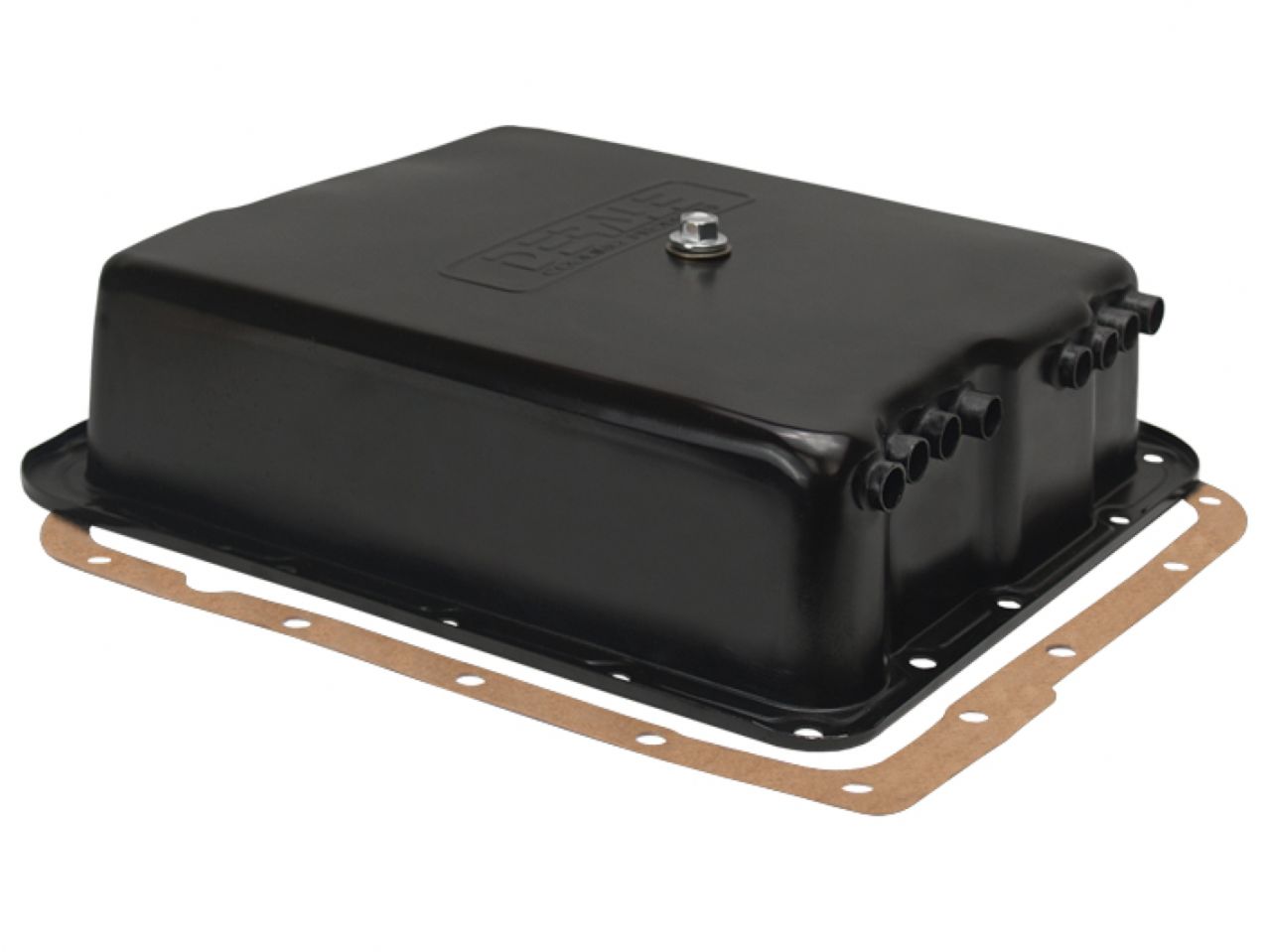

Derale's Transmission Cooling Pan #14204 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's popular 700R4/4L60 & 4L60E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

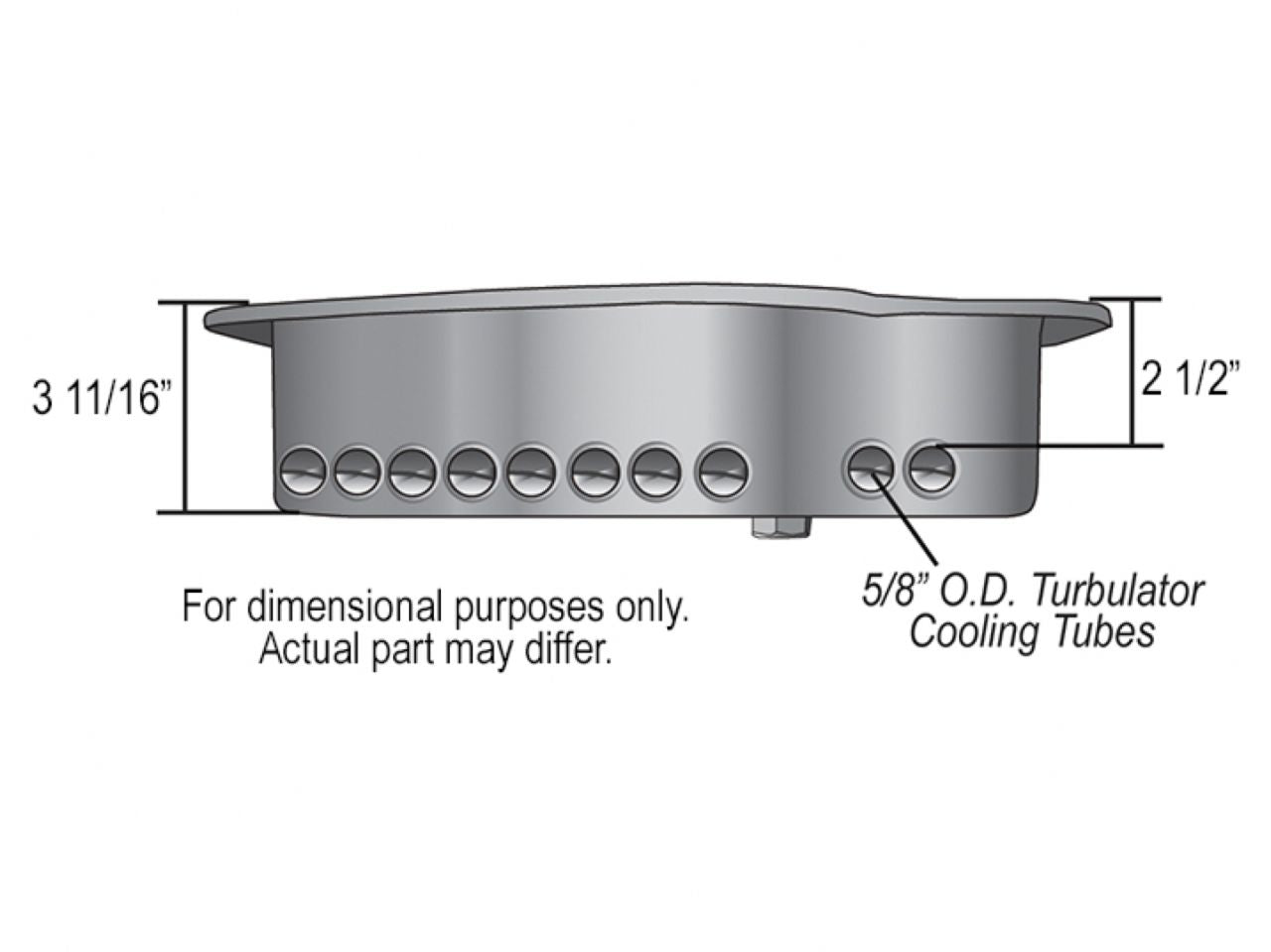

Pan Dimensions: 14 7/8"

Length x 13 5/16"

Width x 3 11/16"

Height
Drain plug adds 1/4" to height

Tube depth: 2-1/2"

Temp bung size: 1/8" NPTDrain plug size 1/2"-20

Replacement drain plug Derale 14000
