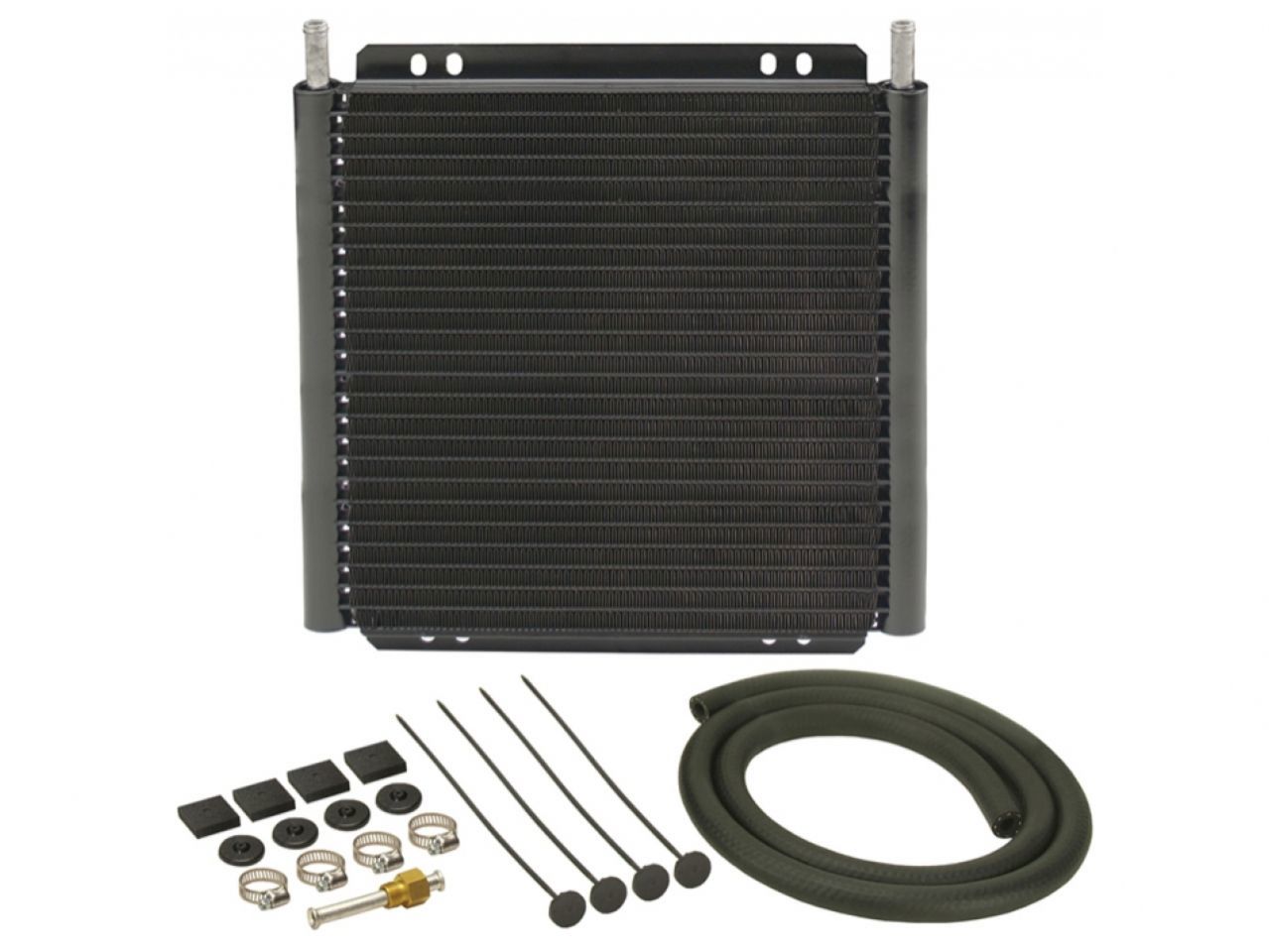

Plate & Fin Transmission Cooler Kit 24 Row Series 8000

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for full size cars trucks and SUVs with medium to light-heavy duty use and consistent towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

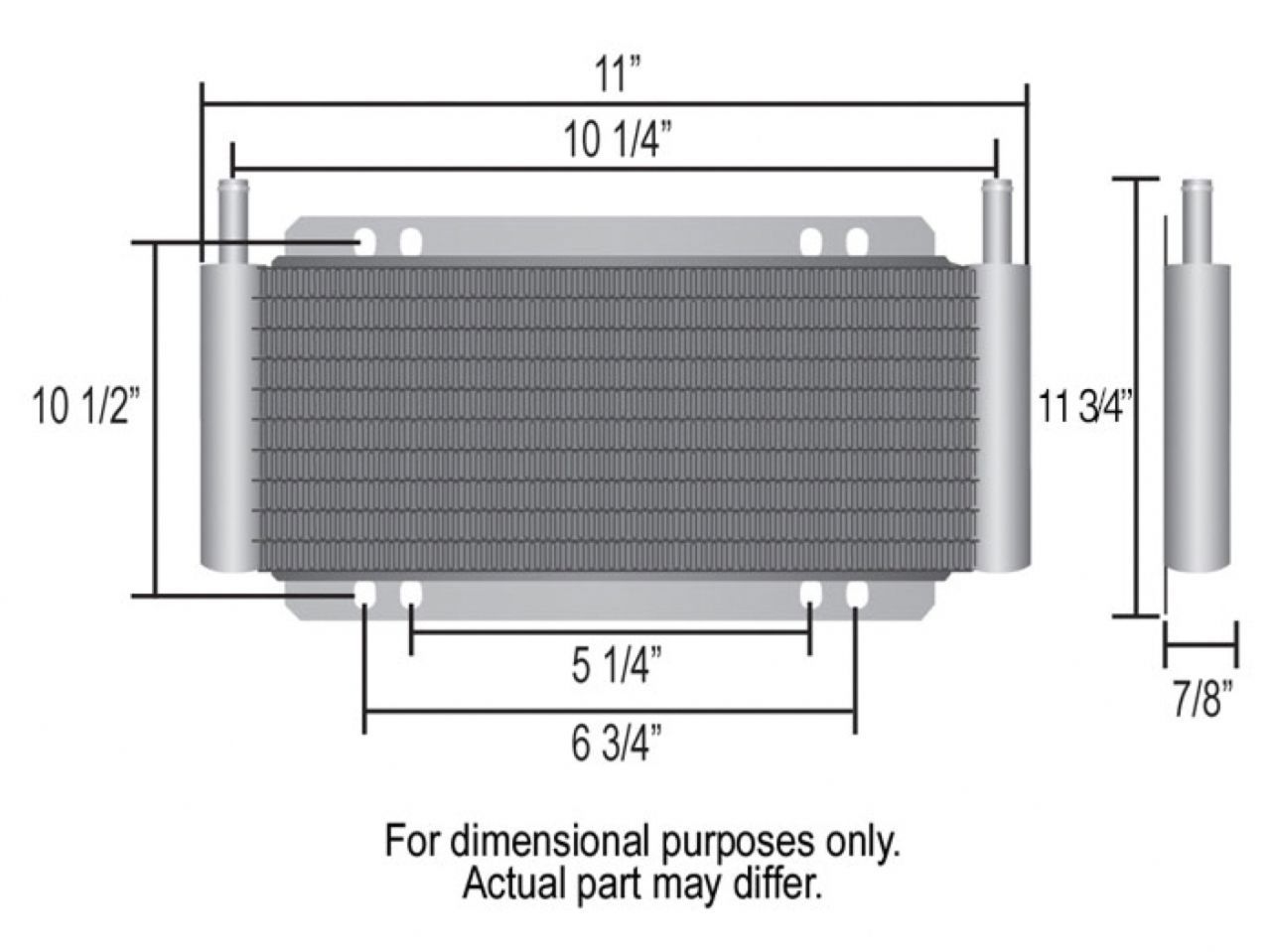

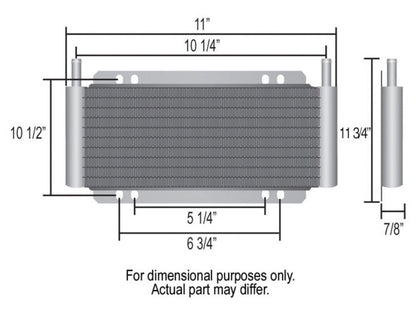

Specifications
  • Cooler style: Plate & Fin
  • Construction: Aluminum
  • Inlet size: 11/32" barb
  • GVW: 22500
  • Width: 11"
  • Height: 12"
  • Depth: 7/8"
  • Inlet dim: 10-1/4"
  • Mounting: 6-3/4" x 10-1/2"
  • Hose size: 11/32"
  • Hose length: 4'

Features
  • Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
  • Extruded plastic cooling fin guards
  • Improves transmission performance
  • Sturdy furnace-brazed aluminum construction
  • 24 row cooler design
  • 3/4" embossed turbulators maximize cooling & minimize pressure drop
  • 11/32" hose barb inlets
  • 24000 GVW rated
  • Complete hardware kit included
  • Fluid Capacity: 8 oz.
