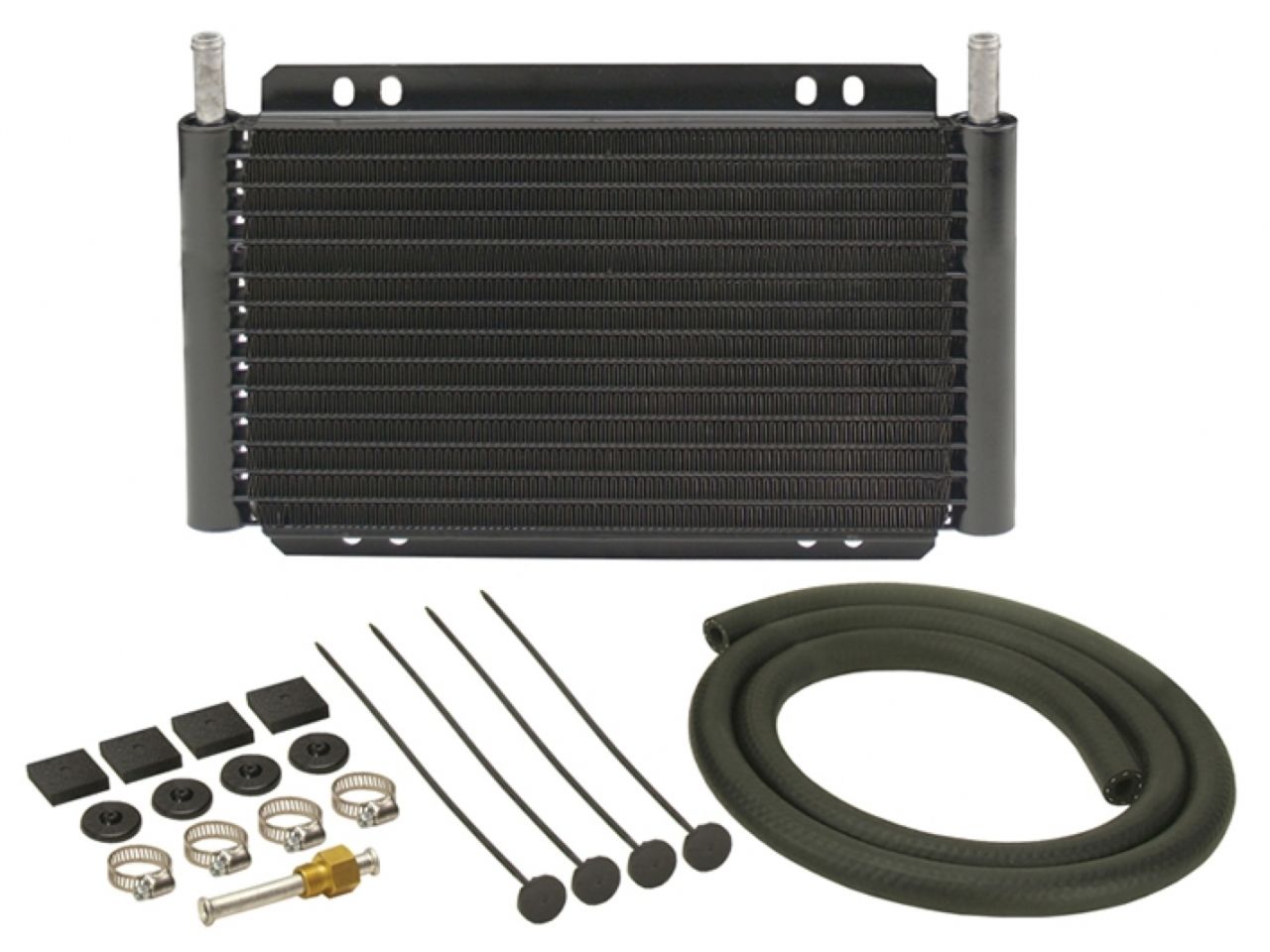

Derale Plate & Fin Trans Cooler Kit (11/32)
-
A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Specifications- Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 11/32" barb
- GVW: 17500
- Width: 11"
- Height: 7-1/4"
- Depth: 7/8"
- Inlet dim: 10-1/4"
- Mounting: 6-3/4" x 6-1/8"
- Hose size: 11/32"
- Hose length: 4'
Features- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- 13 row cooler design
- 3/4" embossed turbulators maximize cooling & minimize pressure drop
- 11/32" hose barb inlets
- 17500 GVW rated
- Complete hardware kit included
- Fluid Capacity: 4 oz.
Derale Plate & Fin Trans Cooler Kit (11/32)
Sale price$72.76 USD
