Derale 19-Row Stack Plate Trans Cooler Kit (-6AN)
With our top of the line 19 Row Stack Plate cooler, -6AN aluminum fittings and hose barb adapters, this highly efficient kit extends transmission life by preventing heat-related transmission failures while also improving shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -6AN male

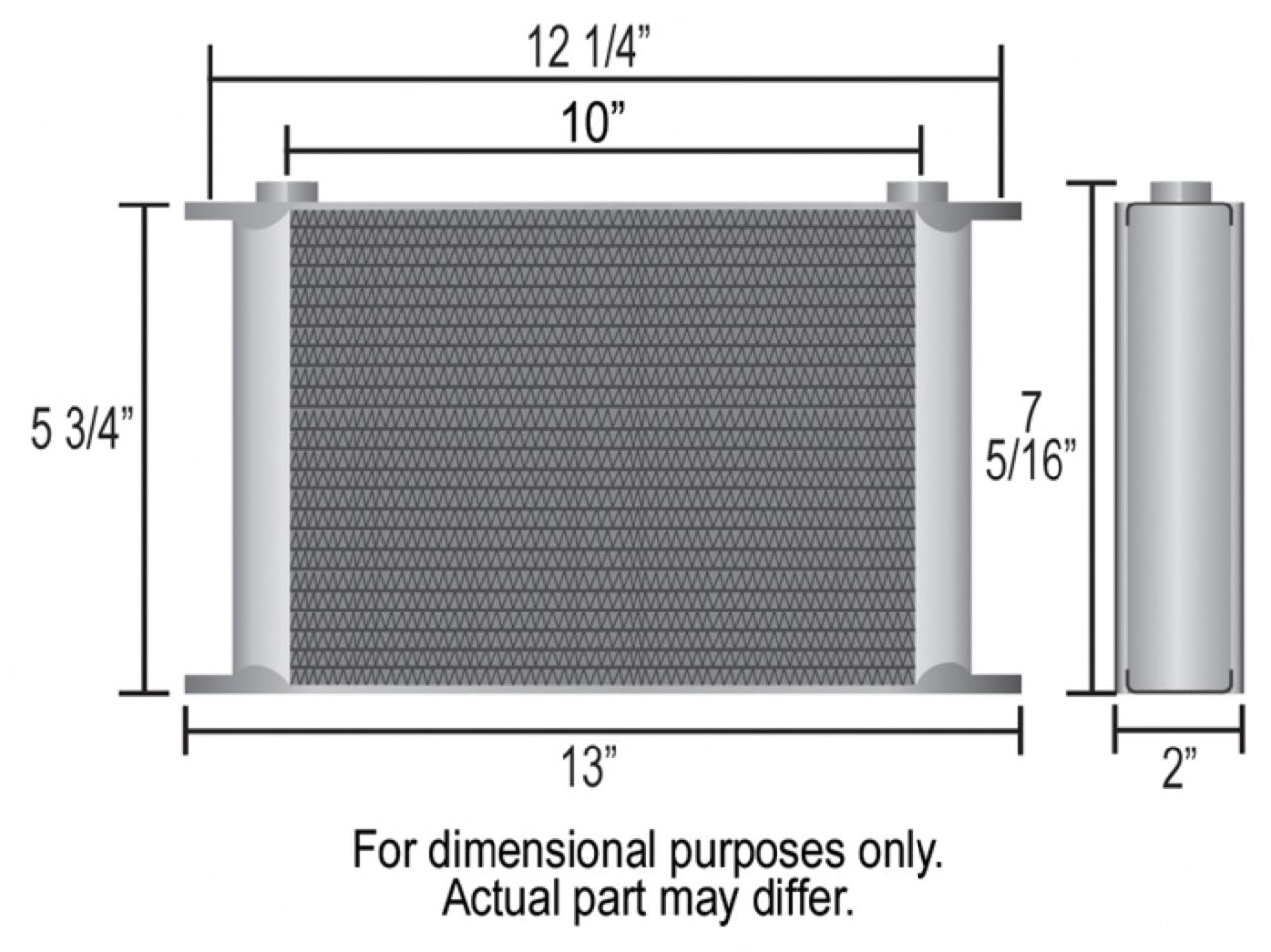

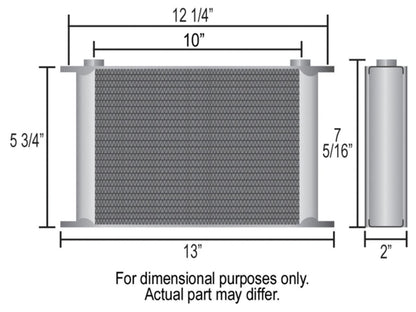

- Width: 13"
- Height: 7-5/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x5-3/4"
- 37,000 BTU's Per Hour
- Derale coolers are rated at 250psi working pressure and 300psi burst strength
- 12oz additional fluid capacity
Features
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 19 row cooler design

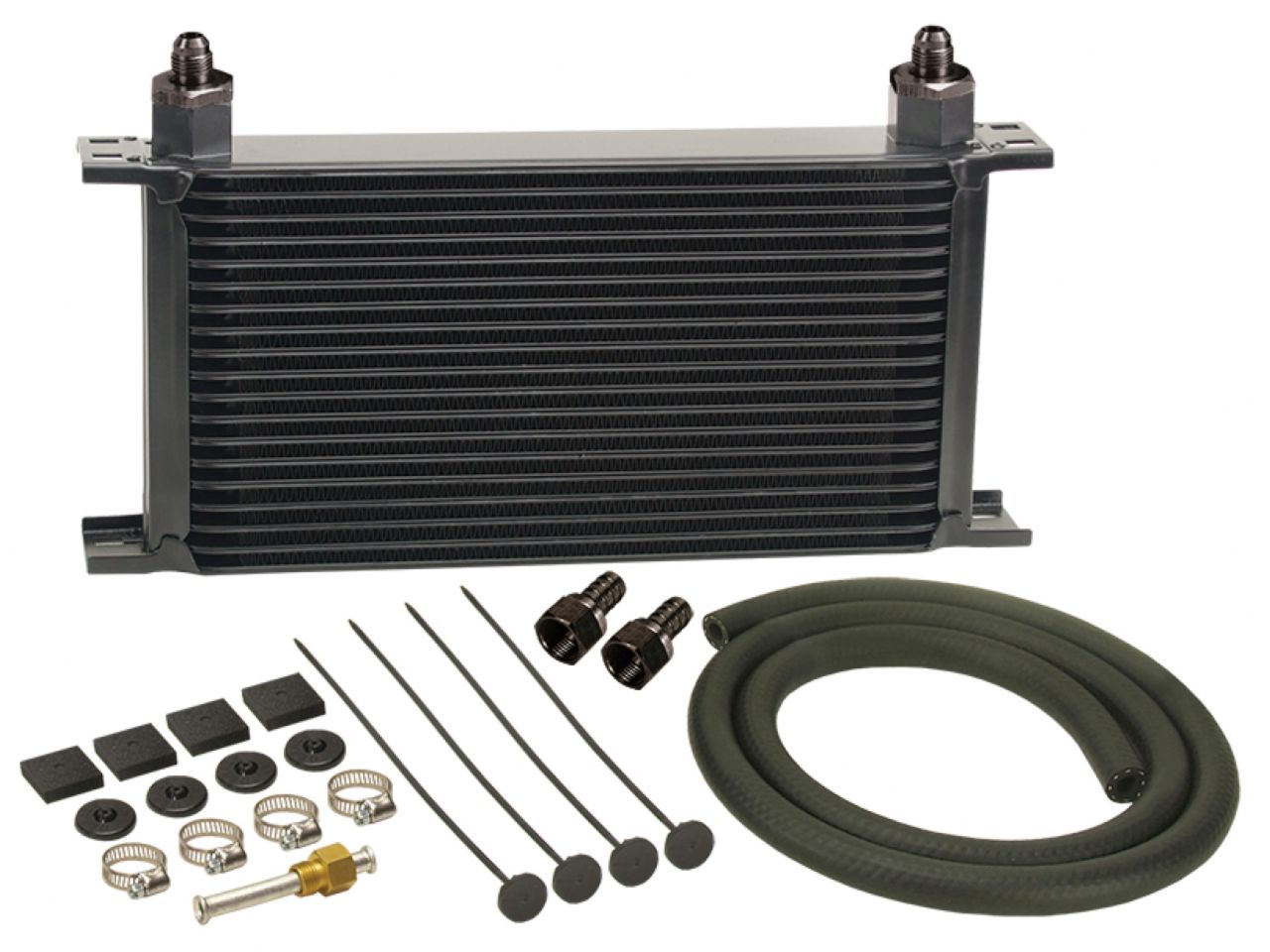

- Male -6AN aluminum O-ring inlet fittings & 3/8" hose barb adapters included
- Complete hardware kit included
Derale 19-Row Stack Plate Trans Cooler Kit (-6AN)
Sale price$164.99 USD
