Derale 16-Row Stack Plate Trans Cooler Kit (-6AN)
Derale 16-Row Stack Plate Trans Cooler Kit (-6AN)
sku: 144LY | mpn: 13402
Regular price
$236.31
Regular price
$229.91
Sale price
$236.31
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

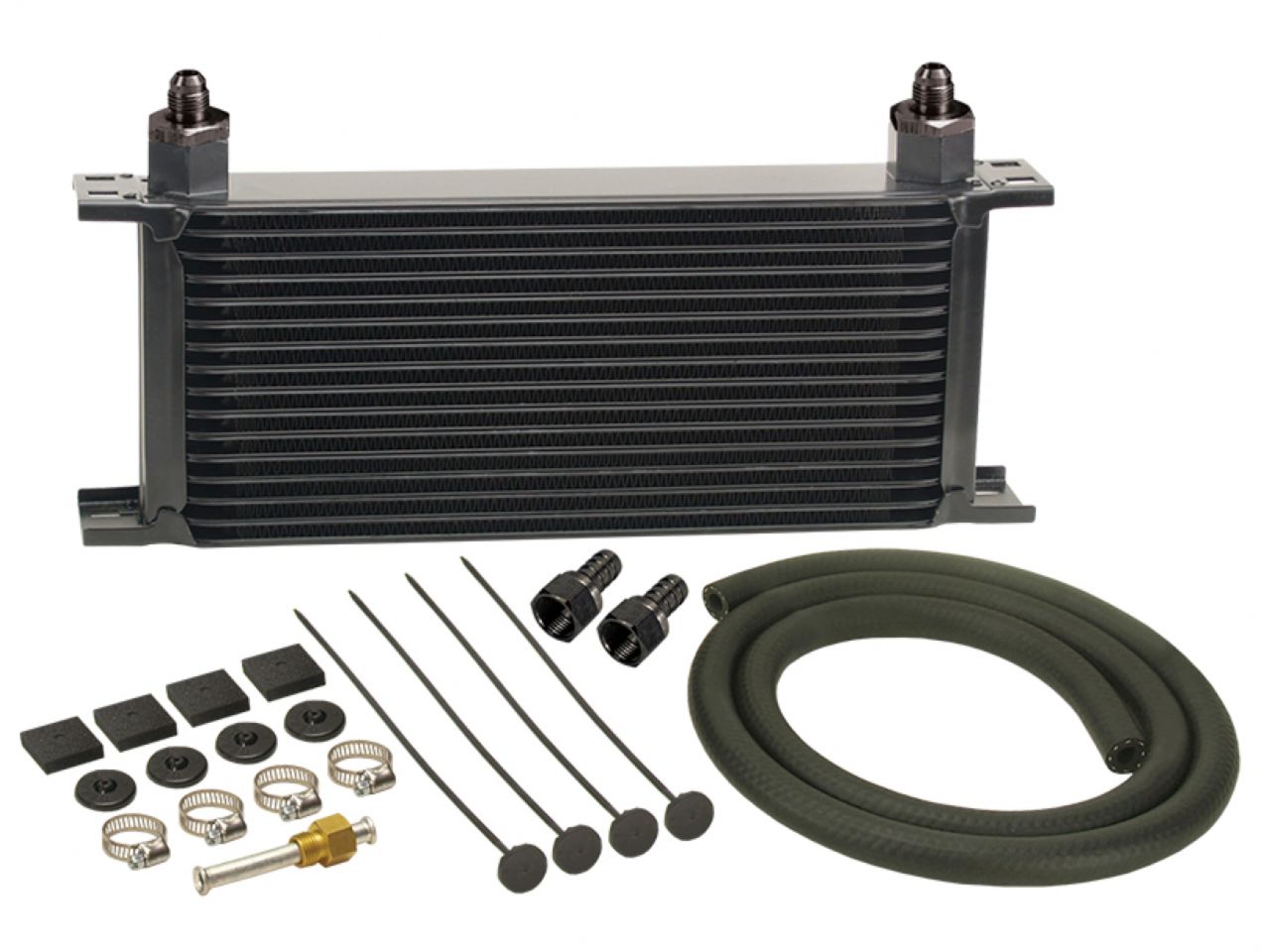

With our top of the line 16 Row Stack Plate cooler, -6AN aluminum fittings and hose barb adapters, this highly efficient kit extends transmission life by preventing heat-related transmission failures while also improving shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

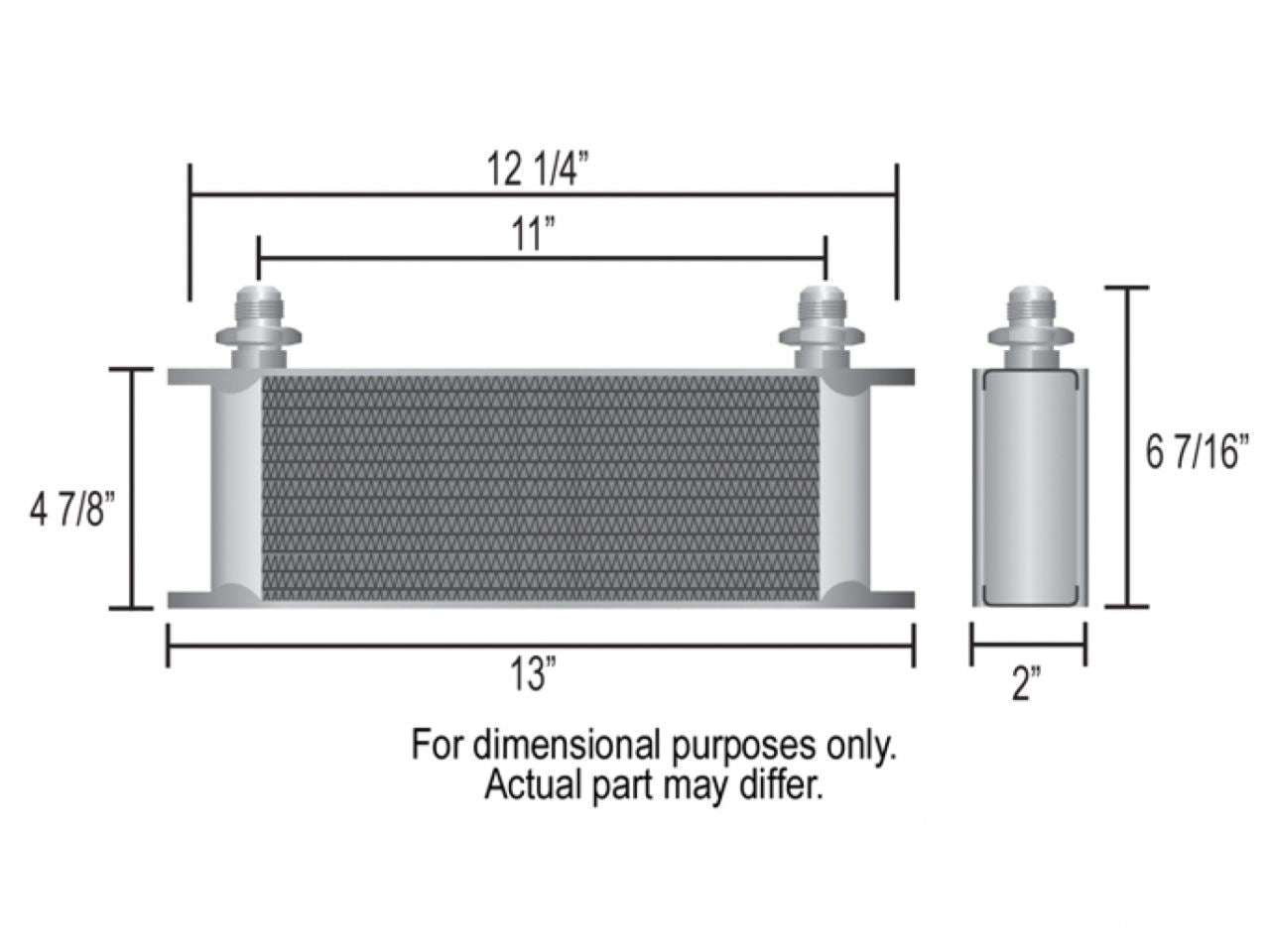

Specifications
- Cooler style: Stacked Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -6AN male
- Fitting size: 3/8" barb
- Width: 13"
- Height: 6-7/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 4-7/8"
- Hose size: 3/8"
- Hose length: 4'
Features
- Built in turbulators agitate fluid for maximum heat transfer
- Sturdy furnace brazed all aluminum construction
- High efficiency Stacked Plate 16 row cooler
- Male -6AN aluminum O-ring inlet fittings & 3/8" hose barb adapters included
- Complete hardware kit included
- 32,000 BTU's Per Hour
- Derale coolers are rated at 250psi working pressure and 300psi burst strength
