Derale Copper/Aluminum Transmission Cooler 6 Pass 13" Series 7000 -6AN

Derale Copper/Aluminum Transmission Cooler 6 Pass 13" Series 7000 -6AN

sku: 144RG | mpn: 13316
$79.29
$79.29 $79.29
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

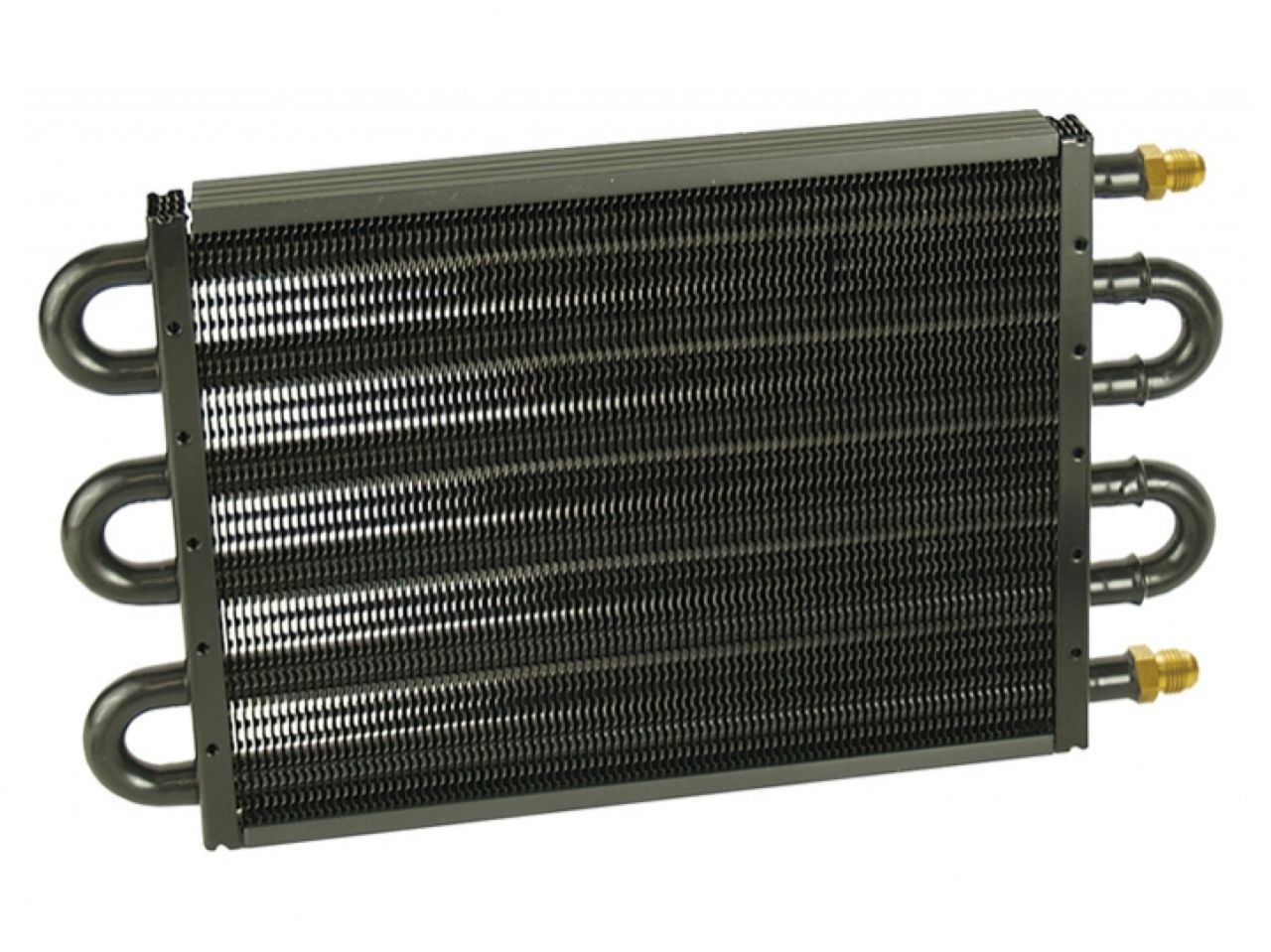

Transmission Cooler, Copper/Aluminum, 6 Pass 13" Series 7000 -6AN

This Tube & Fin cooler features 1/2" copper tubing expanded into aluminum cooling fins and embossed turbulators. It is built with -6AN inlets and can be used as a transmission cooler, power steering or fuel cooler with equal efficiency. No mounting hardware included.

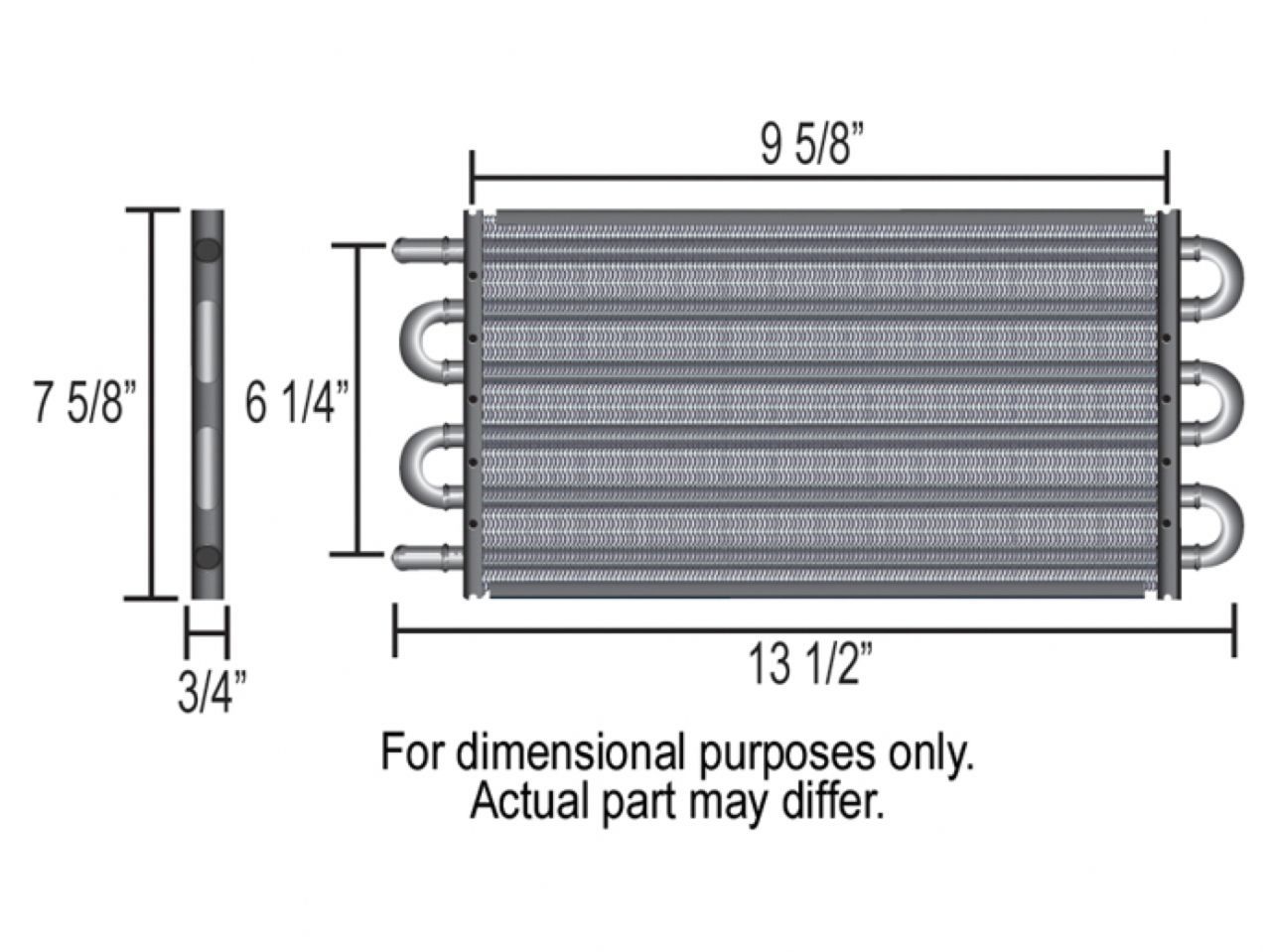

Specifications
  • Cooler style: Tube & Fin
  • Construction: Copper tube and aluminum fin
  • Inlet size: -6AN
  • GVW: 15500
  • Width: 13-1/2"
  • Height: 7-5/8"
  • Depth: 3/4"
  • Inlet dim: 6-1/4"
  • Mounting: 9-5/8"

Features
  • Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
  • Extruded plastic cooling fin guards
  • 6 pass cooler design
  • 1/2" copper tubing expanded into aluminum cooling fins
  • -6AN inlets
  • 15500 GVW rated
  • Cooler core only, no hardware kit included
