Derale Dual-Pass Heat Sink Cooler Kit, 24

SKU: 144T2 | MPN:  13267
Only 3 units left
Sale price$99.74 USD

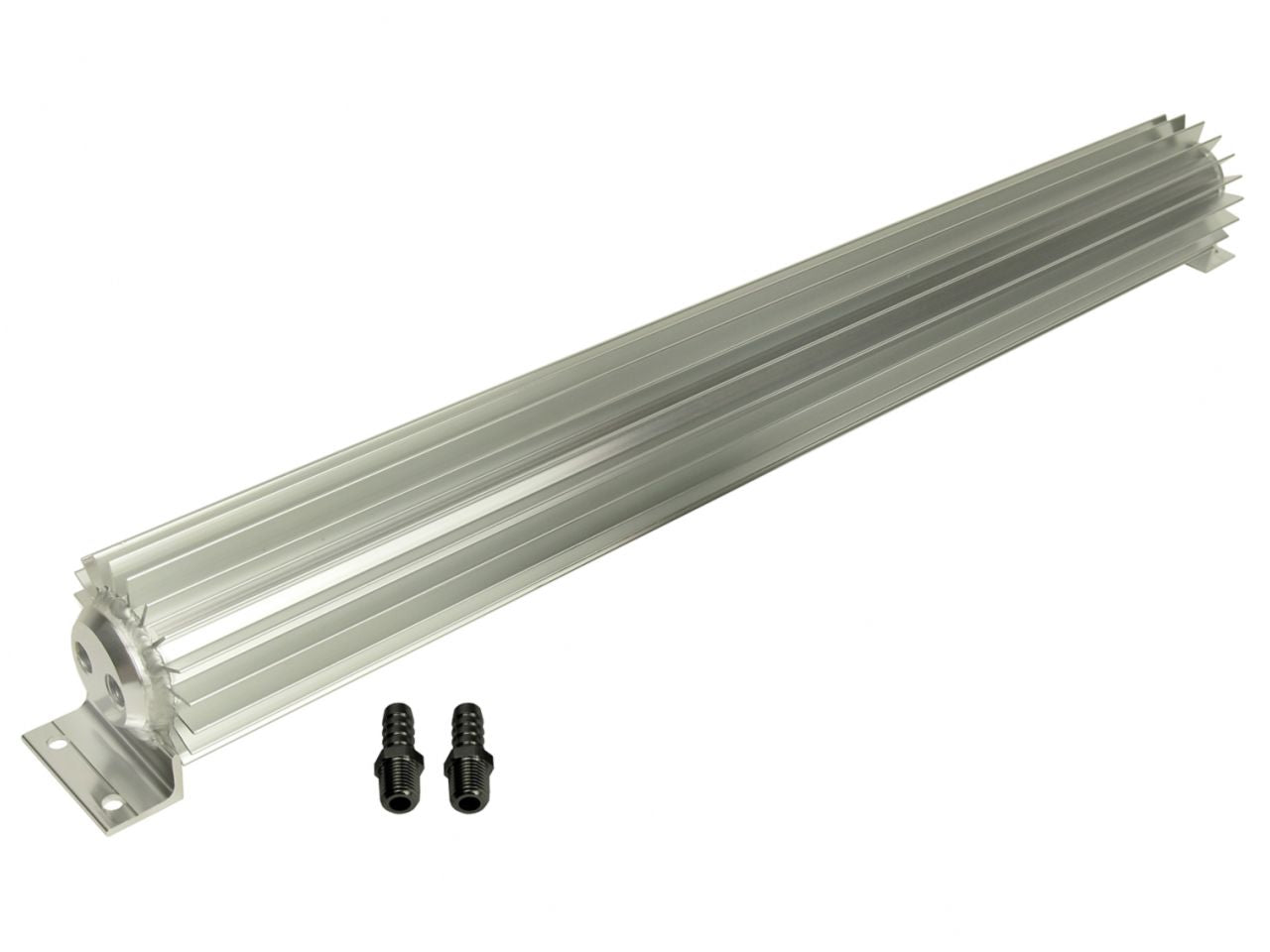

This all aluminum two-pass Heat Sink cooler uses both external and internal fins to maximize heat transfer. With a 3" diameter it can be mounted in a variety of locations and the universal design can be used to cool a wide variety of components. This one is perfect for fuel and power steering applications but can also be used to cool engine oil and transmission fluid in light duty applications. With the inlet and outlet ports on the same end mounting in limited space applications is much easier. Includes hose barbs.

Specifications
  • Cooler style: Heat Sink
  • Construction: Aluminum
  • Inlet size: Dual 1/4" NPT
  • Fitting size: 3/8" barb

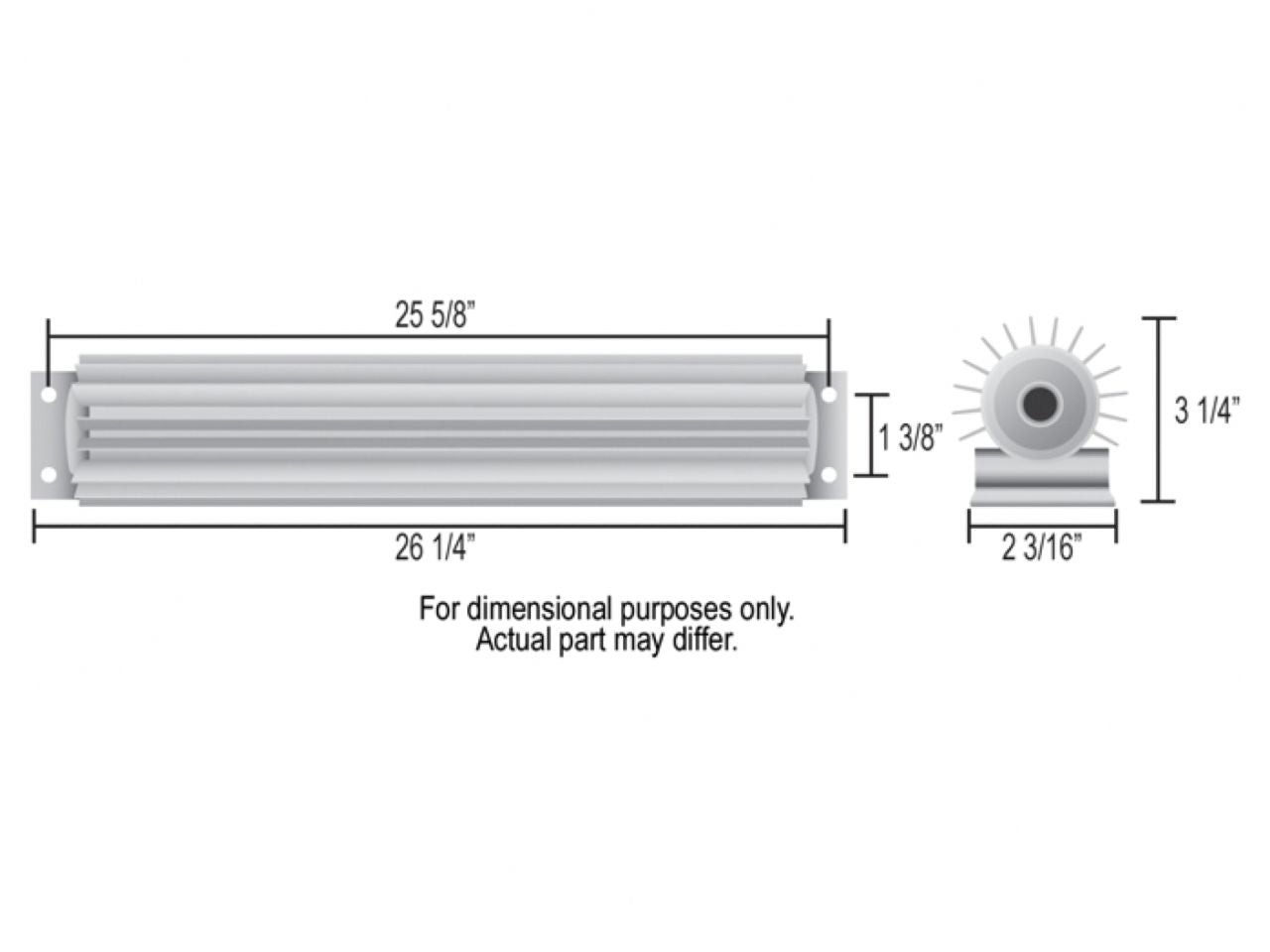

  • Length: 26-1/4"
  • Width: 2-3/16"
  • Depth: 3-1/4"
  • Mounting: 25-5/8" x 1-3/8"
  • Capacity: 28 ounces
Features
  • Aluminum heat sink design produces high heat transfer
  • External & internal heat dissipating fins
  • Compact 3" diameter to fit most frame rails
  • Dual pass cooler design
  • 1/4" NPT inlets
  • 3/8" hose barb fittings included
  • All Derale coolers are rated at 250 psi working pressure, 300 psi burst strength
