Derale Dual-Pass 14" Transmission Heat Sink Cooler Kit, 12
Dual-Pass 14" Transmission Heat Sink Cooler Kit, 12
Description

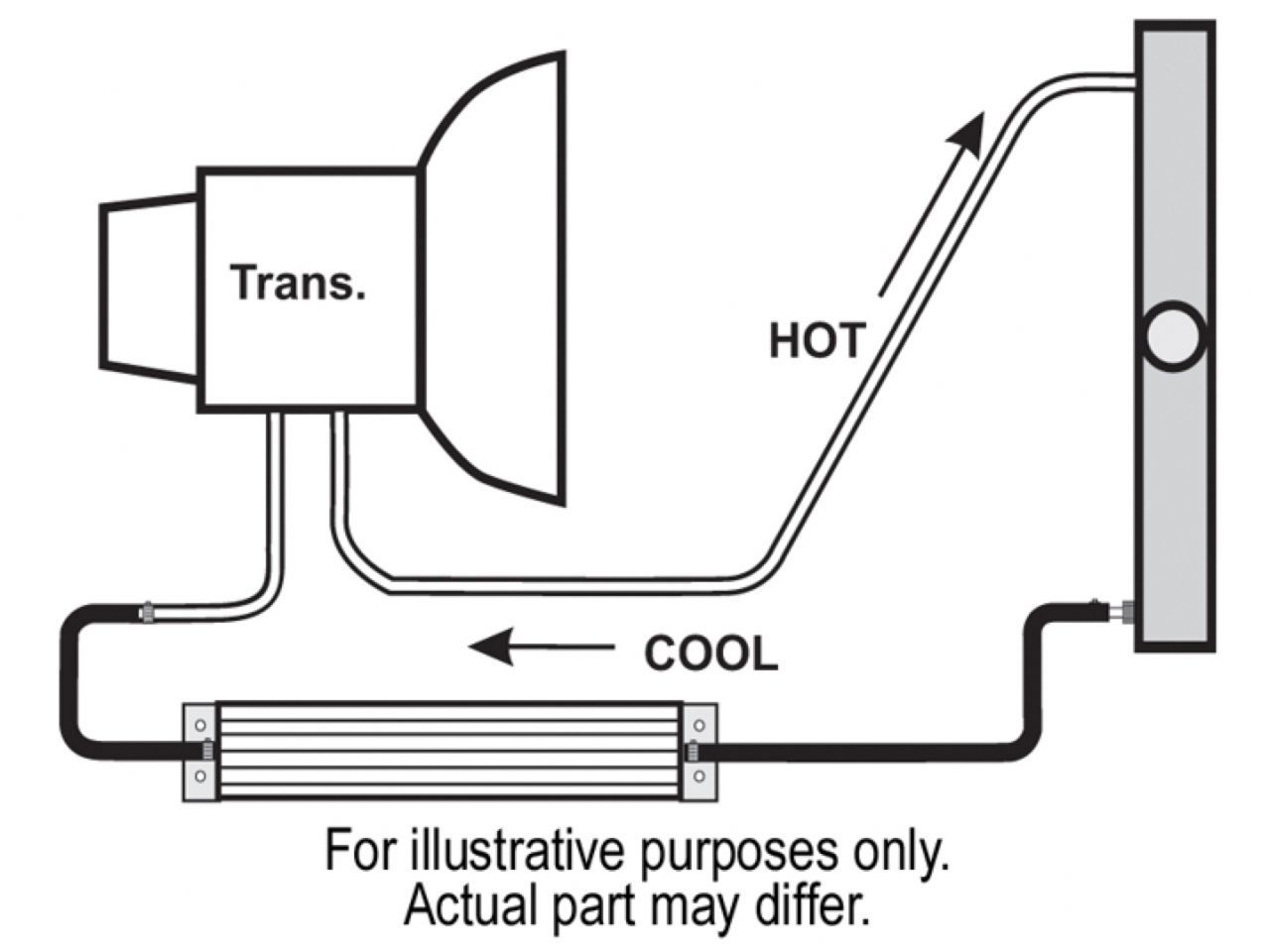

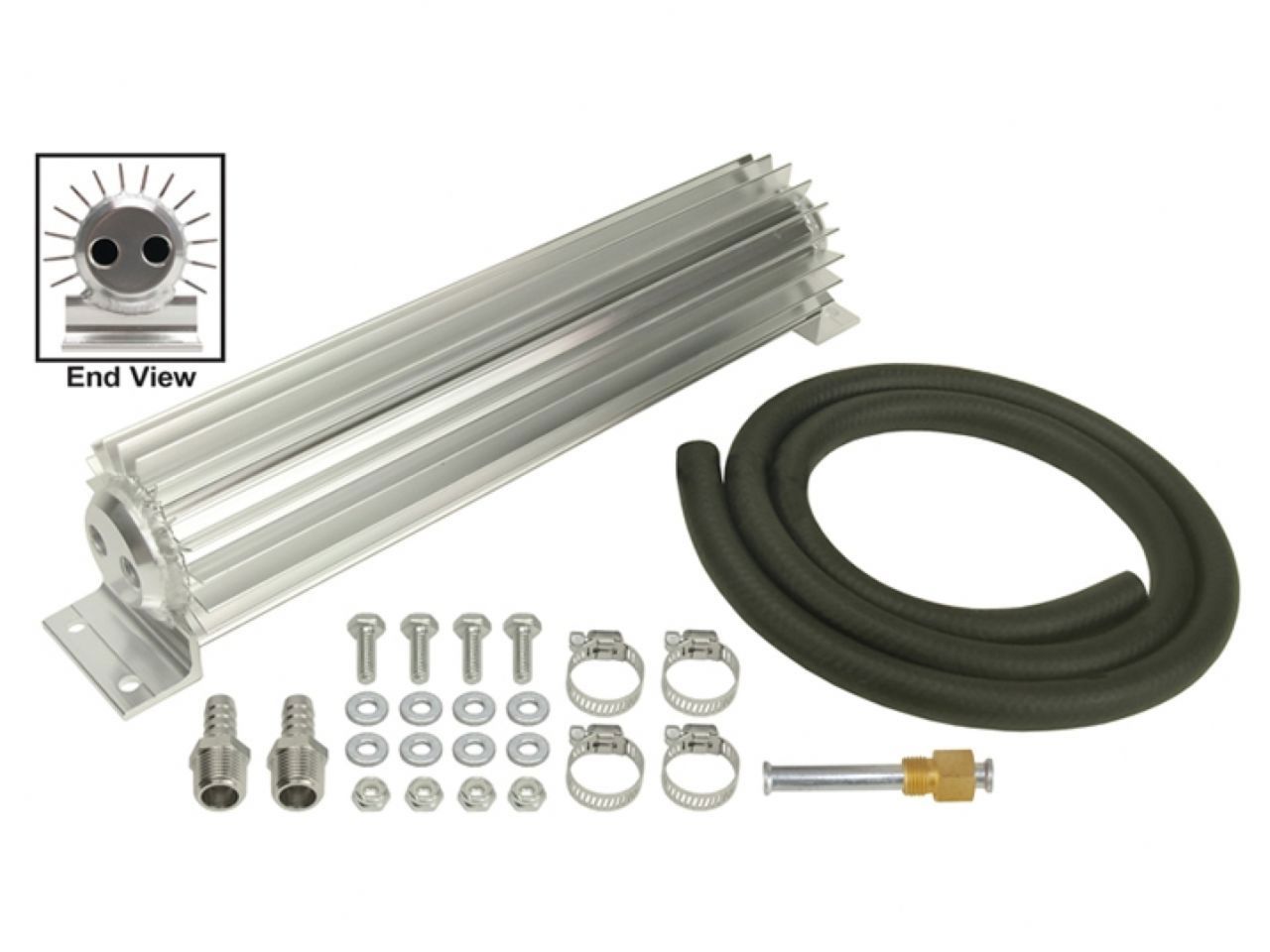

This compact all aluminum two-pass Heat Sink cooler kit uses both external and internal fins to maximize heat transfer. With a 3" diameter it can be mounted in a variety of locations. With the inlet and outlet ports on the same end mounting in limited space applications is much easier. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines, making it a perfect solution for light duty transmission cooling needs.
Specifications
- Cooler style: Heat Sink
- Construction: Aluminum
- Inlet size: Dual 1/4" NPT
- Fitting size: 3/8" barb

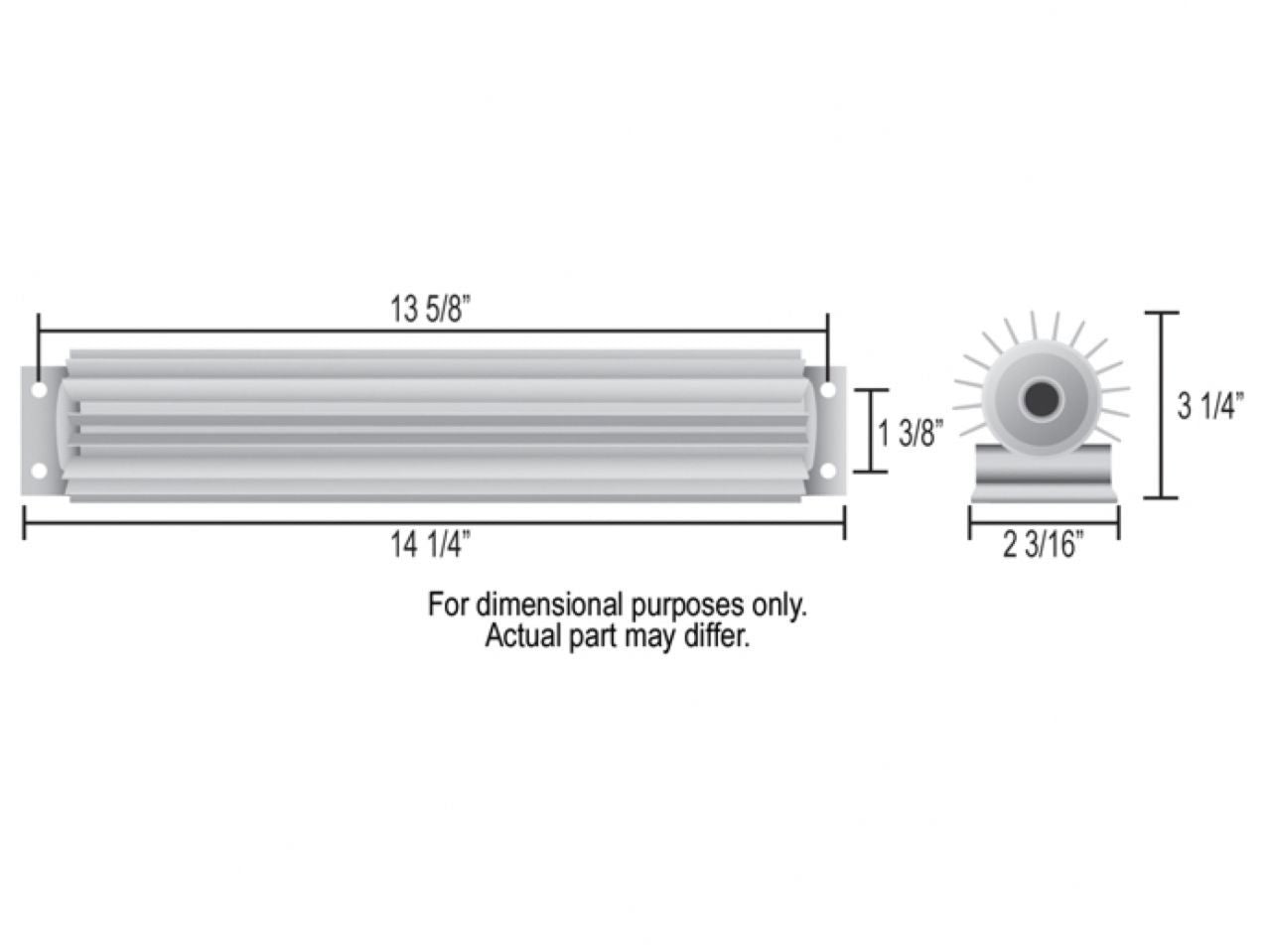

- Length: 14-1/4"
- Width: 2-3/16"
- Depth: 3-1/4"
- Mounting: 13-5/8" x 1-3/8"
- Capacity: 14 ounces
- Hose size: 3/8"
- Hose length: 4'
Features
- Aluminum heat sink design produces high heat transfer
- External & internal heat dissipating fins
- Compact 3" diameter to fit most frame rails
- Dual pass cooler design
- 1/4" NPT inlets
- 3/8" hose barb fittings included
- Complete hardware kit included
- All Derale coolers are rated at 250 psi working pressure, 300 psi burst strength
