Derale Frame Rail Transmission Cooler, 2 Pass 24" Series 7000, 11/32" barb
Frame Rail Transmission Cooler, 2 Pass 24" Series 7000, 11/32" barb
With the same 1/2" copper tubing expanded into aluminum cooling fins and embossed turbulators as our larger transmission coolers, this cooler uses a slim design to enable frame mounting in limited space applications. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines. Perfect for light-duty use and occasional light towing.
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: 11/32" barb

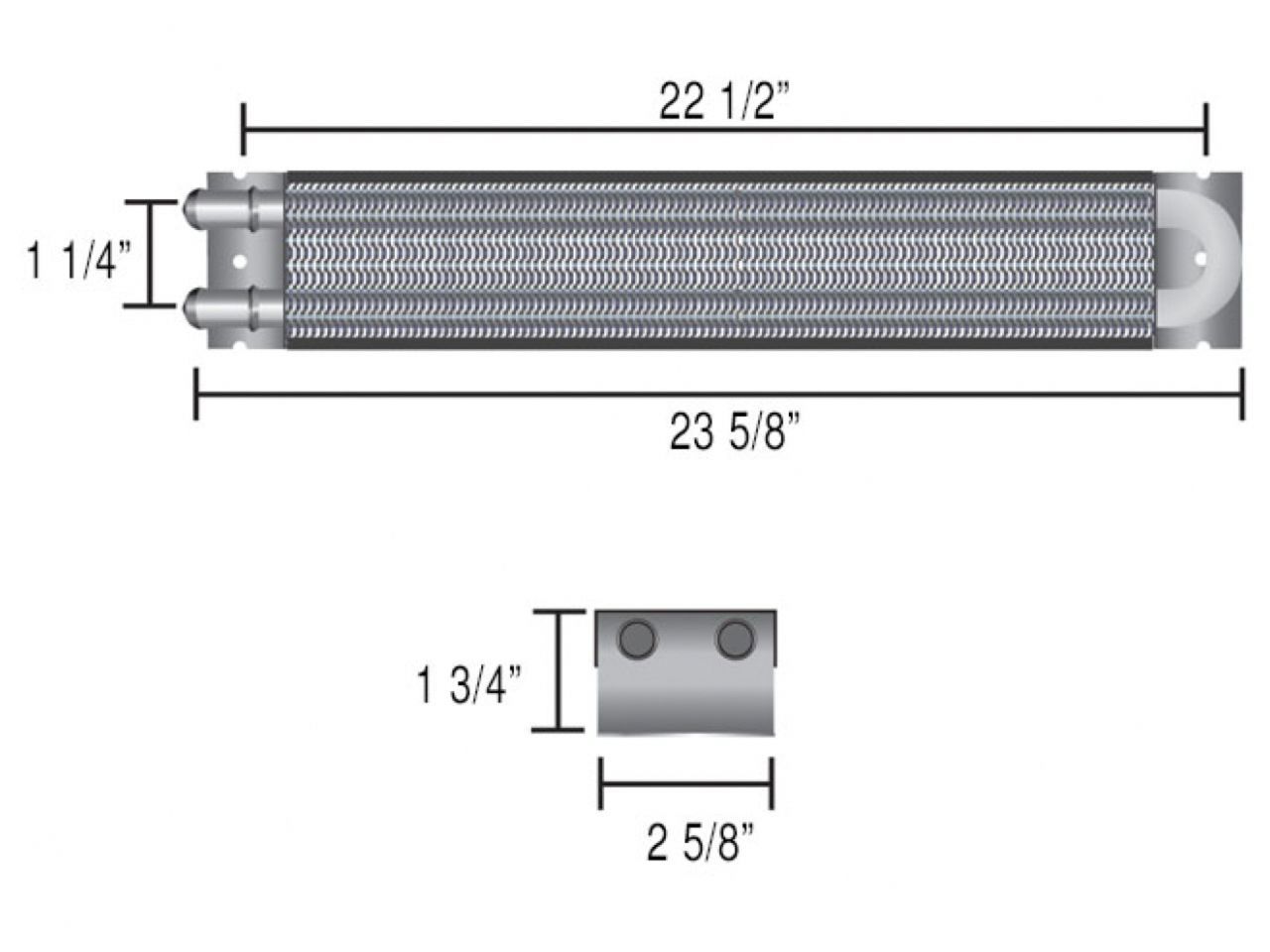

- Length: 23-5/8"
- Width: 2-5/8"
- Depth: 1-3/4"
- Inlet dim: 1-1/4"
- Mounting: 22-1/2"
- Core Length: 20-3/4"
- Hose size: 11/32"
- Hose length: 4'
Features
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- 2 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
- 11/32" hose barb inlets
- Fluid Capacity: 4.5 oz.

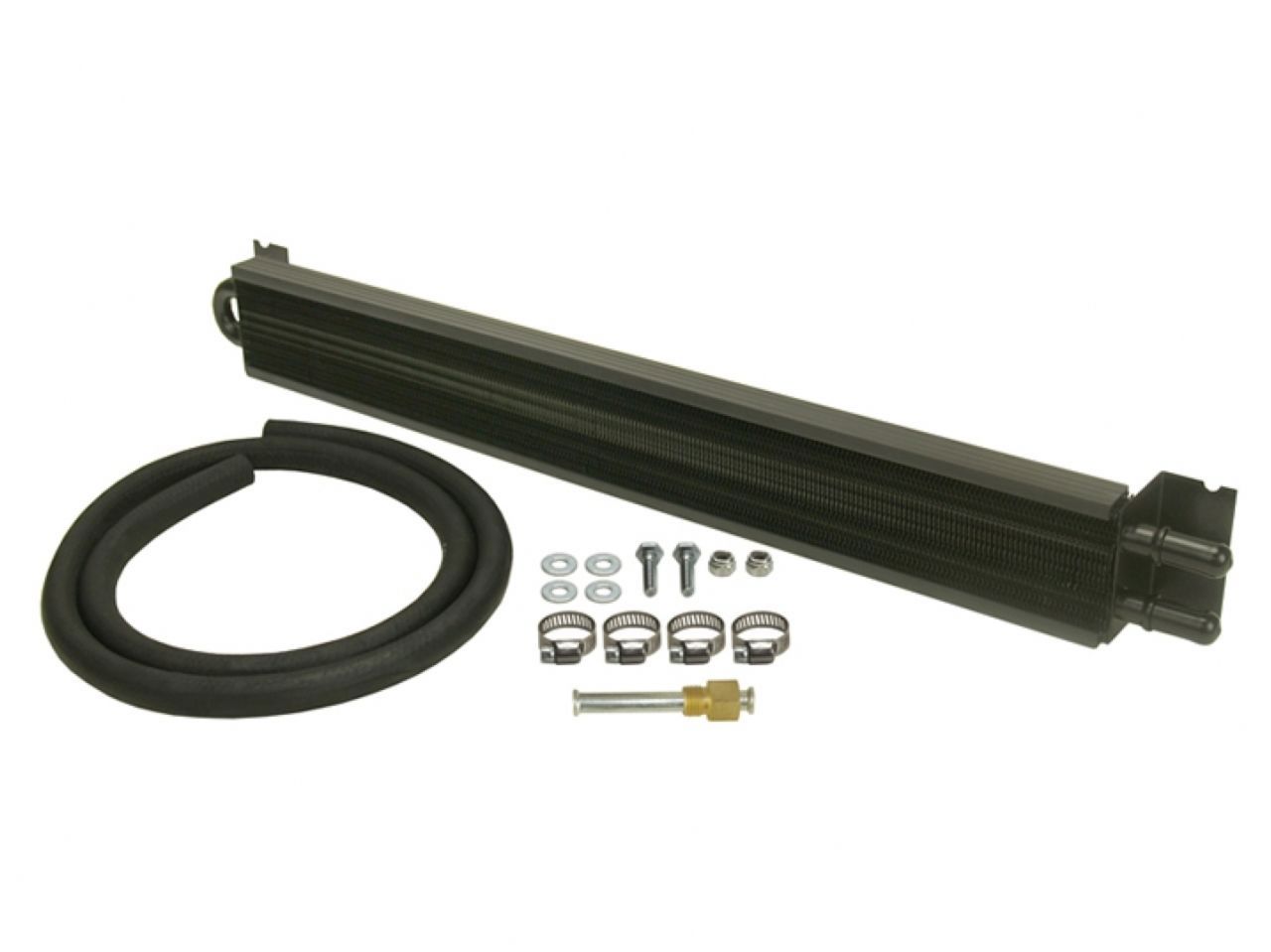

- Complete hardware kit included
Derale Frame Rail Transmission Cooler, 2 Pass 24" Series 7000, 11/32" barb
Sale price$62.38 USD
