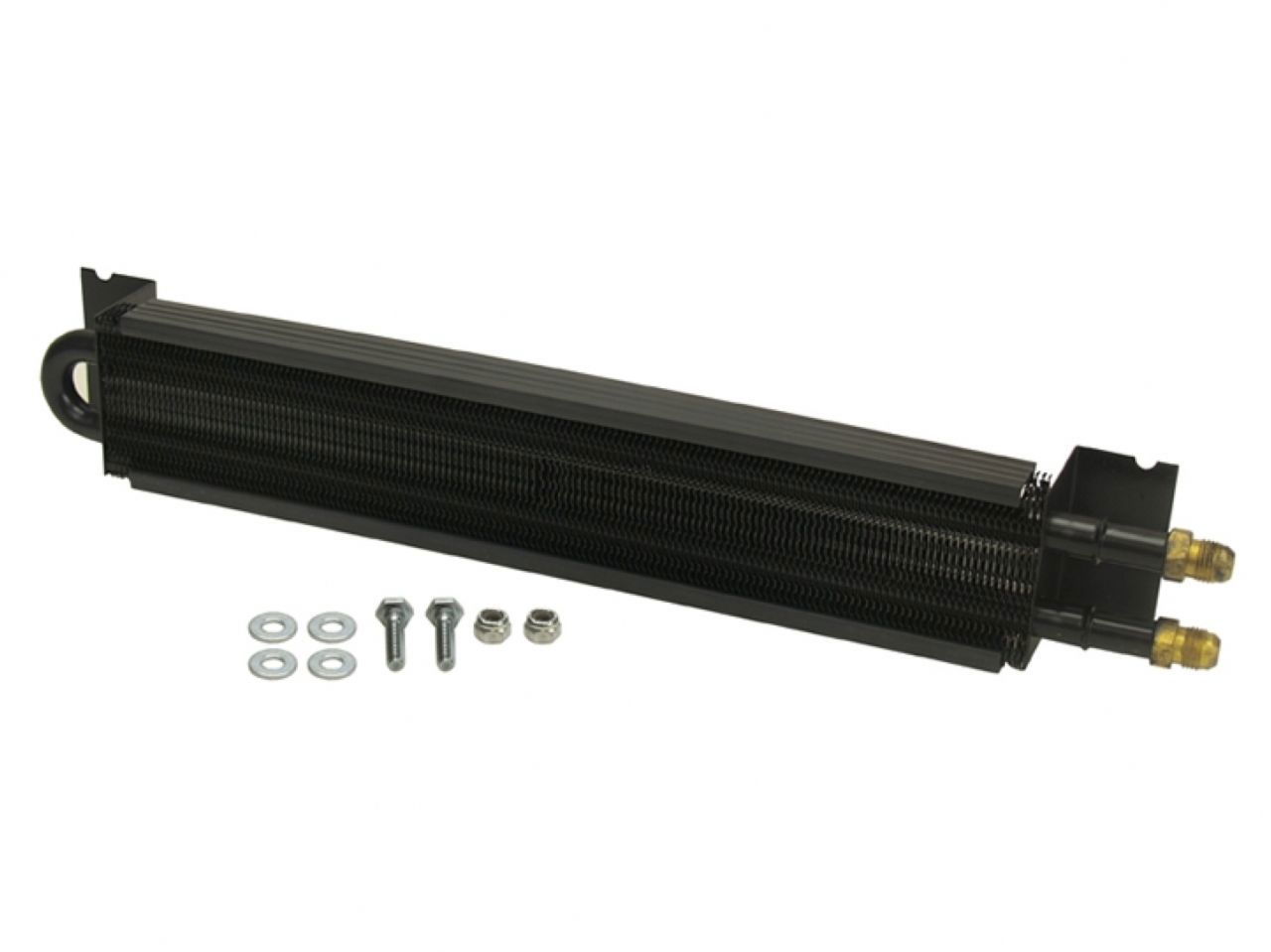

Derale 2 Pass Series 7000 Copper/Aluminum Frame Rail Cooler, 17 (-6AN)
2 Pass Series 7000 Copper/Aluminum Frame Rail Cooler, 17 (-6AN)
Description

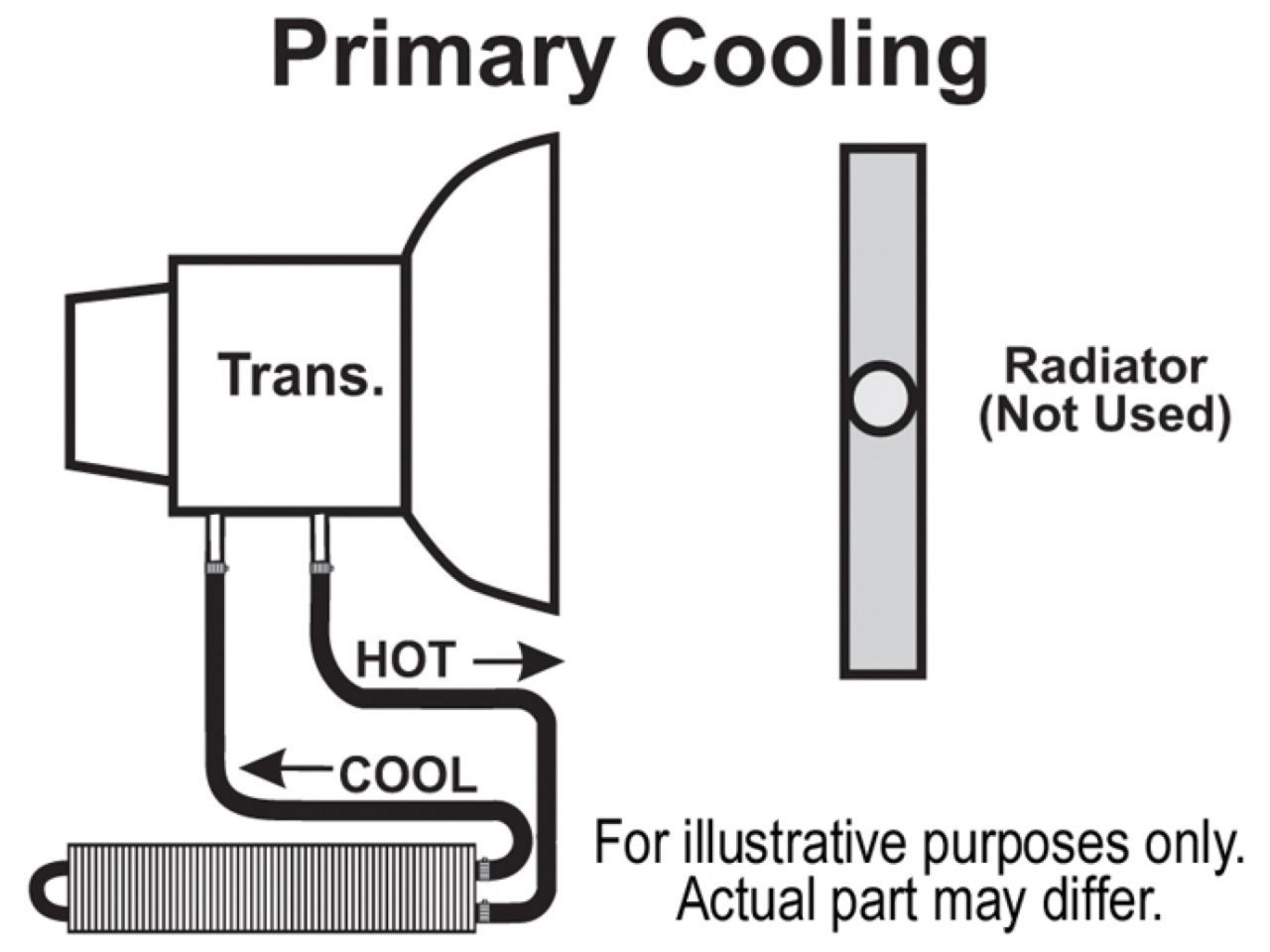

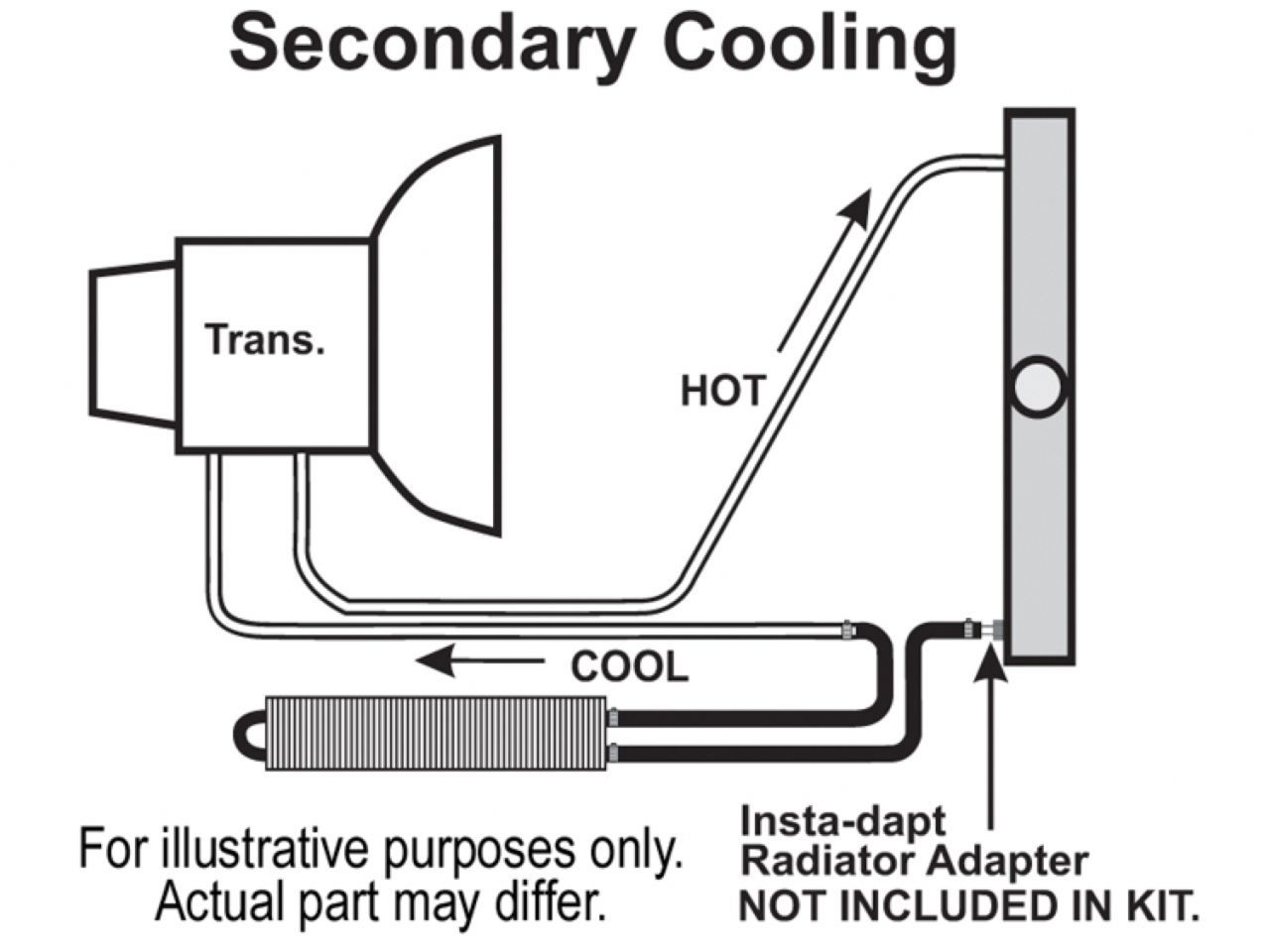

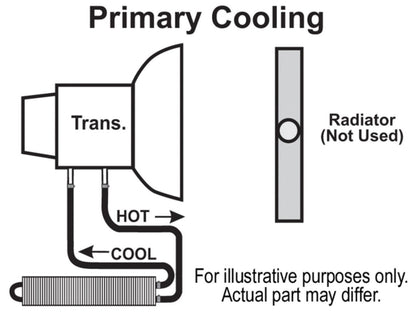

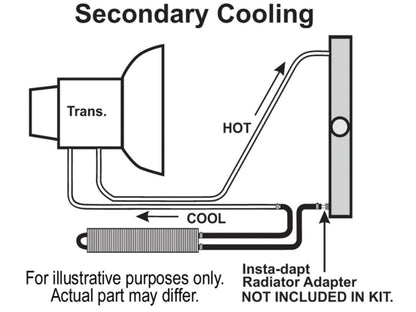

With the same 1/2" copper tubing expanded into aluminum cooling fins and embossed turbulators as our larger transmission coolers, this cooler uses a slim design to enable frame mounting in limited space applications. It includes -6AN inlets and can be used as a transmission cooler, power steering or fuel cooler with equal efficiency. Includes mounting hardware only.
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: -6AN male

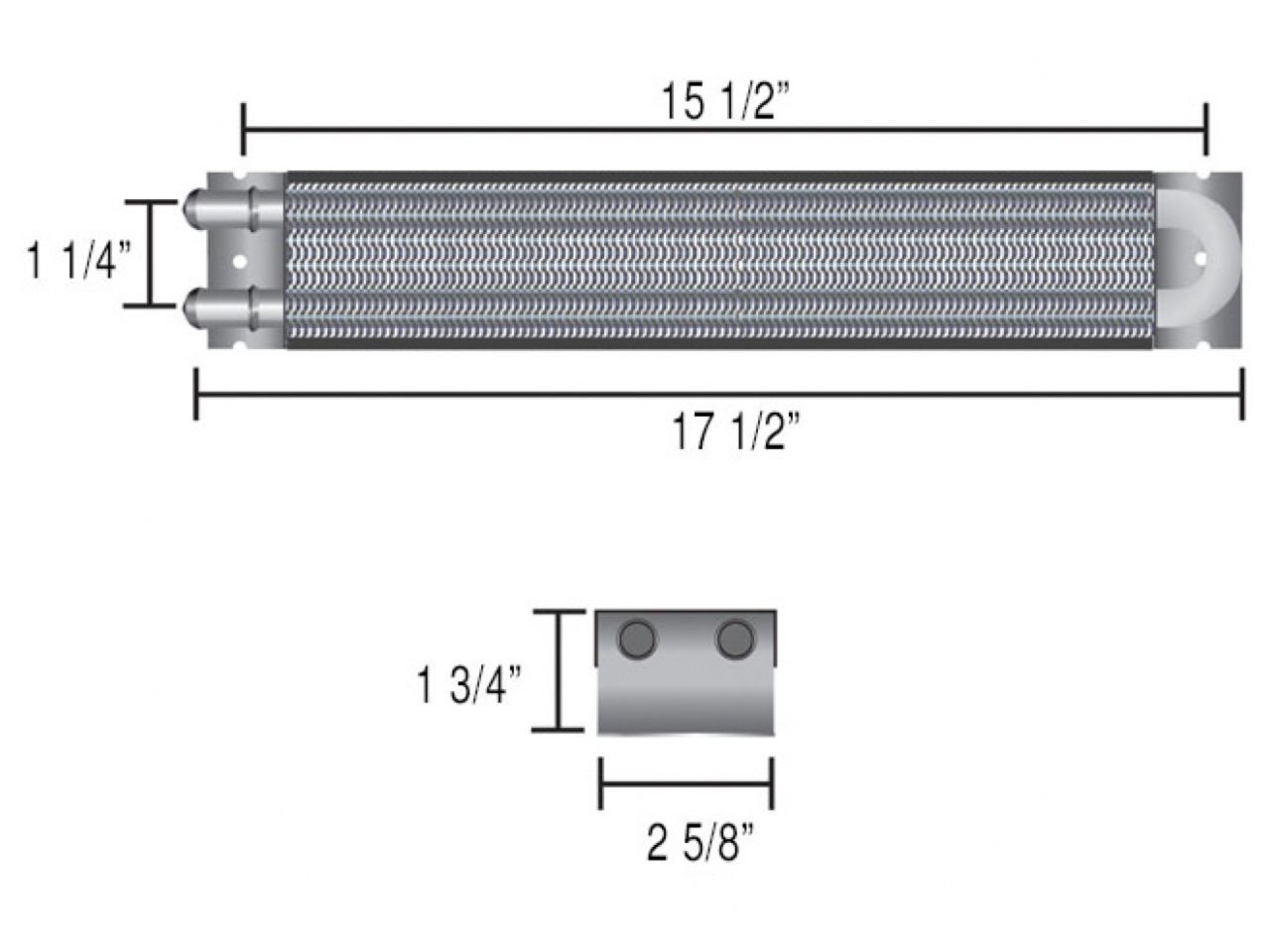

- Length: 17-1/2"
- Width: 2-5/8"
- Depth: 1-3/4"
- Inlet dim: 1-1/4"
- Core Length: 13-3/4"
- Mounting: 15-1/2"
Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- 2 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
- -6AN inlets
- Hardware kit included
- Fluid Capacity: 3.25 oz.
Derale 2 Pass Series 7000 Copper/Aluminum Frame Rail Cooler, 17 (-6AN)
Sale price$38.84 USD
