Derale Trans Cooler, Full Size (Skinboard)

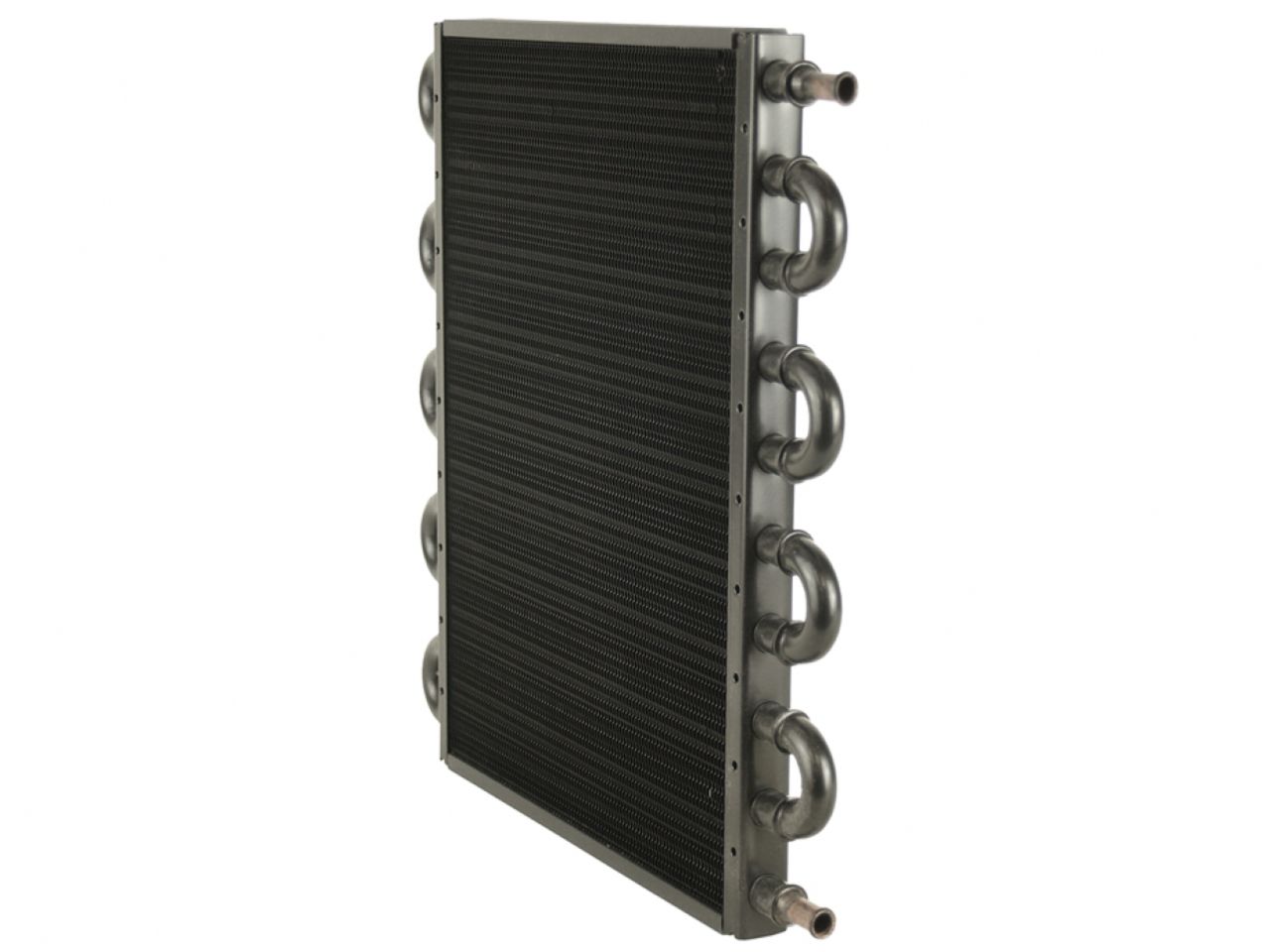

This Tube & Fin transmission cooler features 1/2" copper tubing expanded into aluminum cooling fins. Perfect for full-size cars and medium size trucks and SUVs' that are used for part time towing, they improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Specifications:

• Cooler style: Tube & Fin
• Construction: Copper tube and aluminum fin
• Inlet size: 11/32" barb
• GVW: 20500

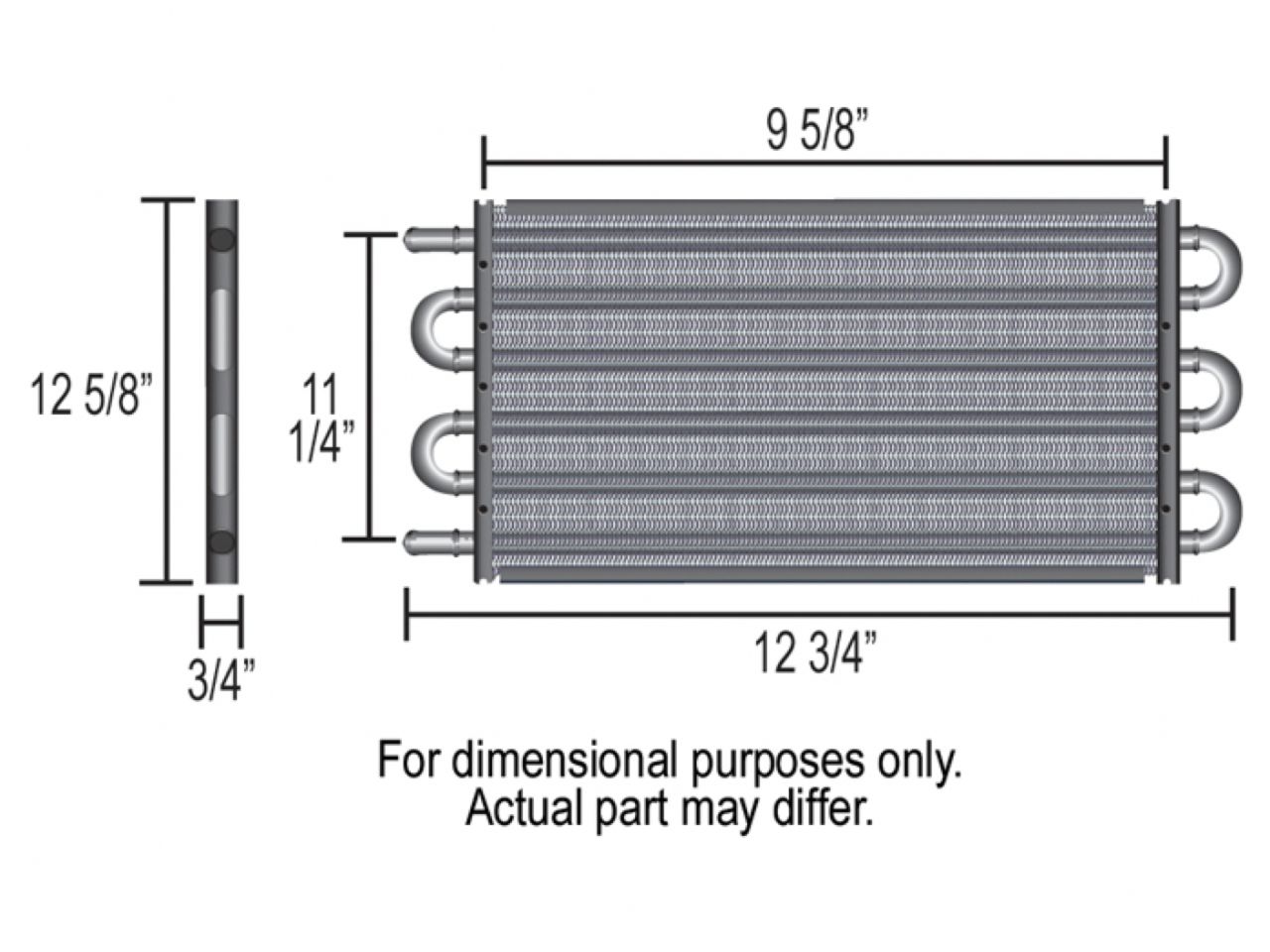

• Width: 12-3/4"
• Height: 12-5/8"
• Depth: 3/4"
• Inlet dim: 11-1/4"
• Mounting: 9-5/8"
• Hose size: 11/32"
• Hose length: 4'

Features:

• Prevents heat related transmission failures
• Extends life of transmission
• Improves transmission performance
• Extruded plastic cooling fin guards
• 10 pass cooler design
• 1/2" copper tubing expanded into aluminum cooling fins
• 11/32" hose barb inlets
• 20500 GVW rated

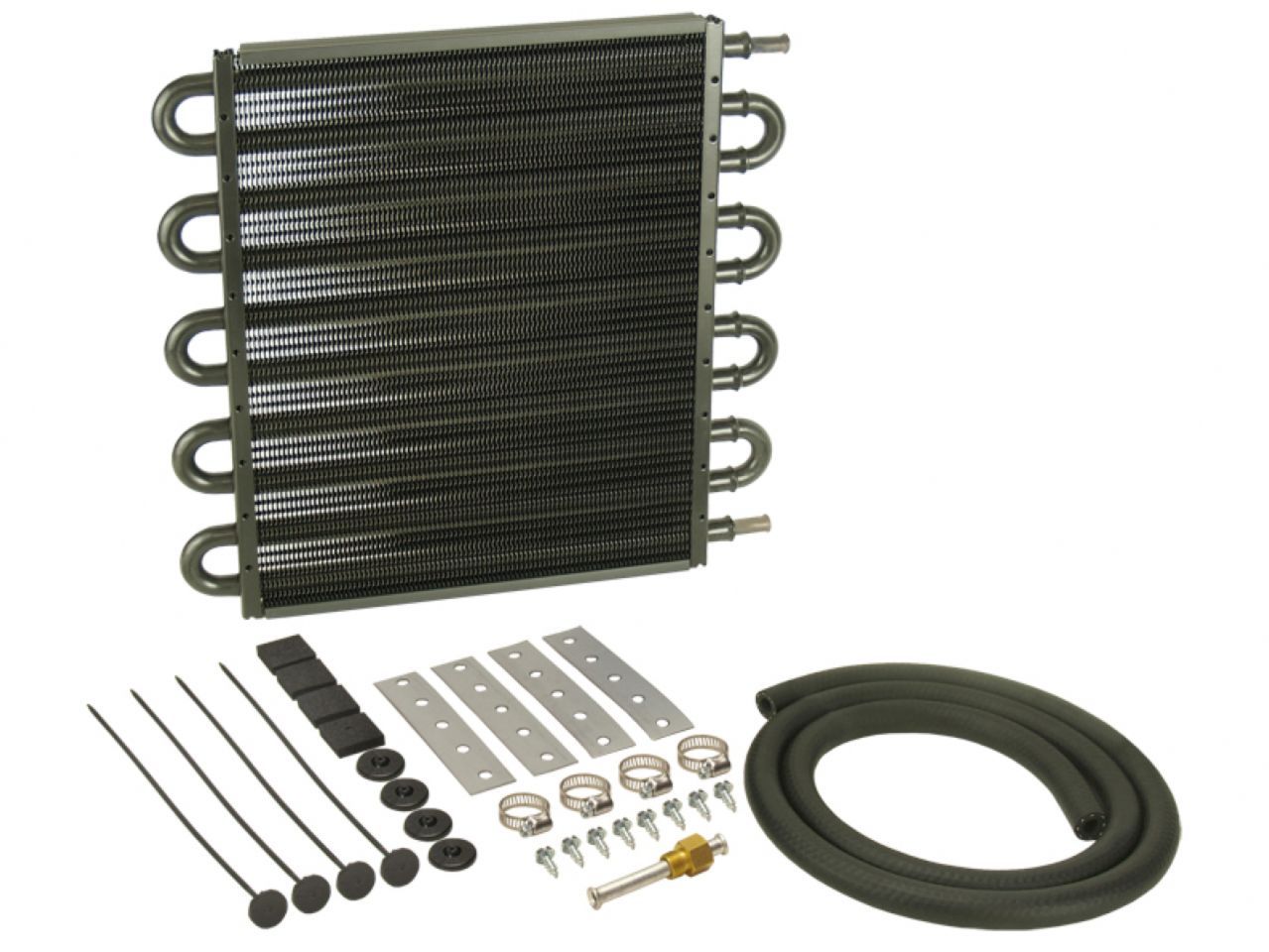

• Complete hardware kit included
