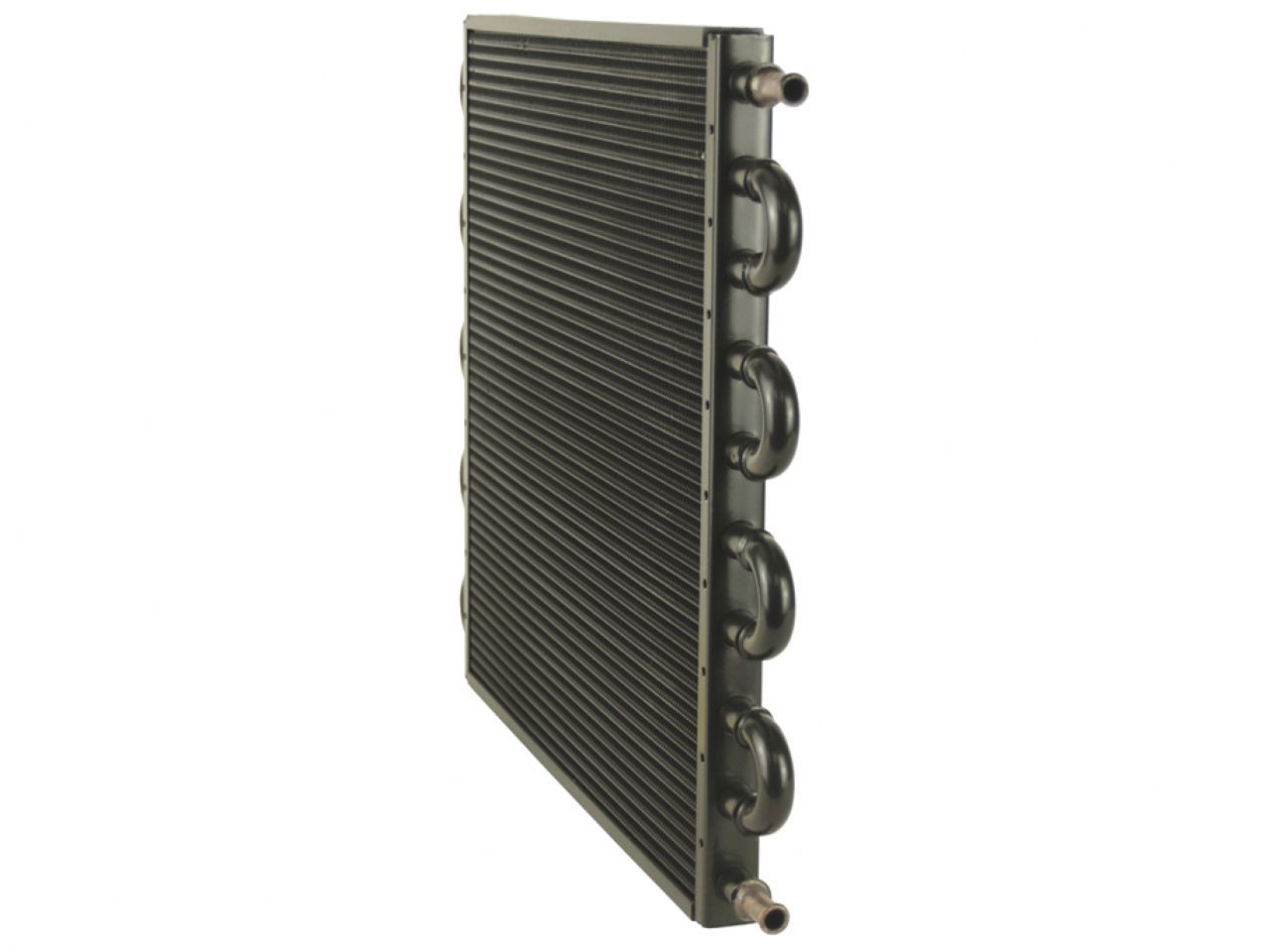

Derale 10 Pass 17"Series 7000 Copper/Aluminum Trans Cooler, Truck/RV (Carton)

10 Pass 17"Series 7000 Copper/Aluminum Trans Cooler, Truck/RV (Carton)
Description
This Tube & Fin transmission cooler features 1/2" copper tubing expanded into aluminum cooling fins and include embossed turbulators which serve to agitate fluid for maximum heat transfer. Perfect for full-size trucks and RV's used often for towing and hauling, they improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. 11/32" hose barb inlets and complete hardware kit included.
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: 11/32" barb
- GVW: 22500

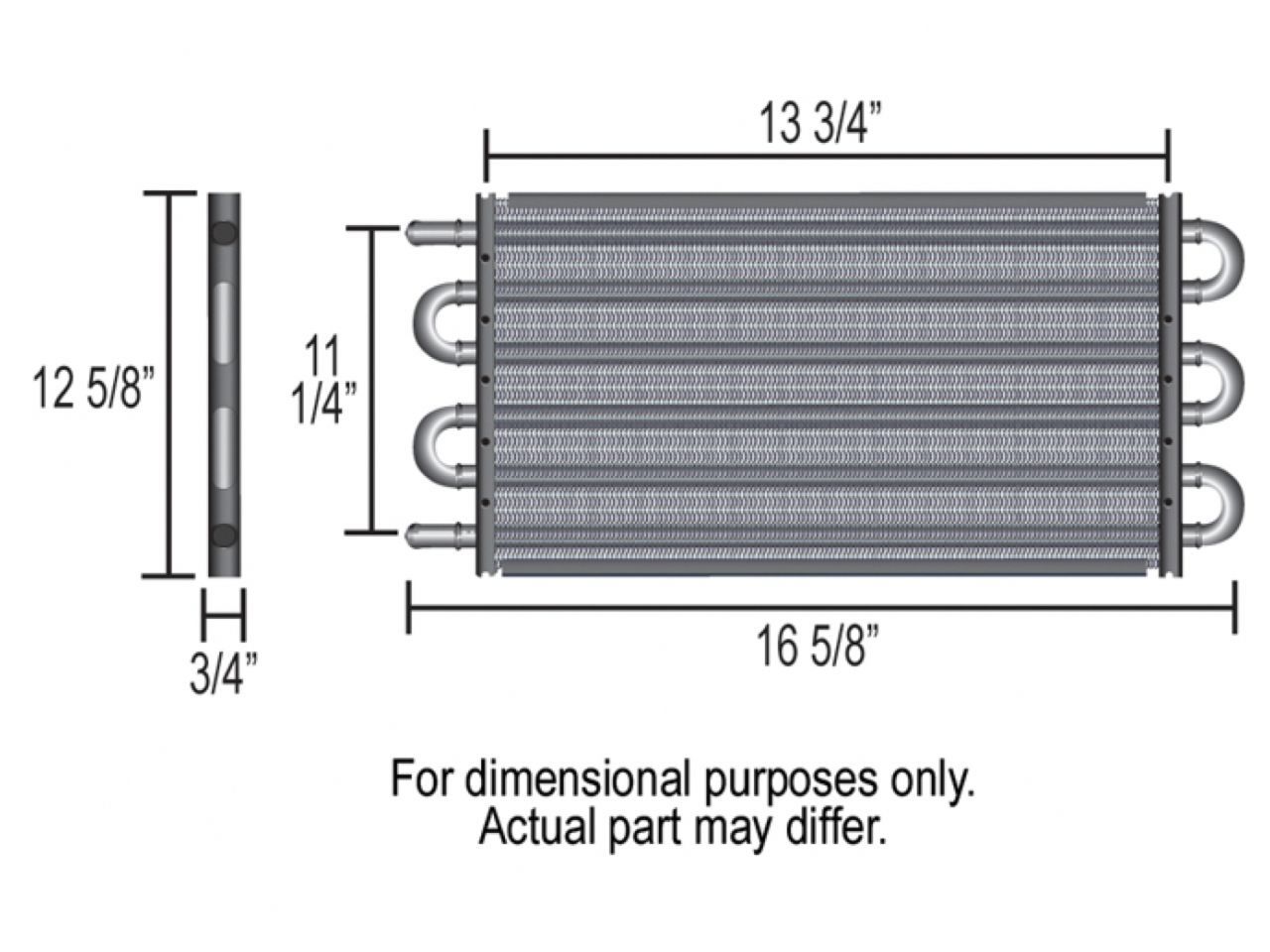

- Width: 16-5/8"
- Height: 12-5/8"
- Depth: 3/4"
- Inlet dim: 11-1/4"
- Mounting: 13-3/4"
- Hose size: 11/32"
- Hose length: 4'
Features
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- 10 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
- 11/32" hose barb inlets
- 22500 GVW rated

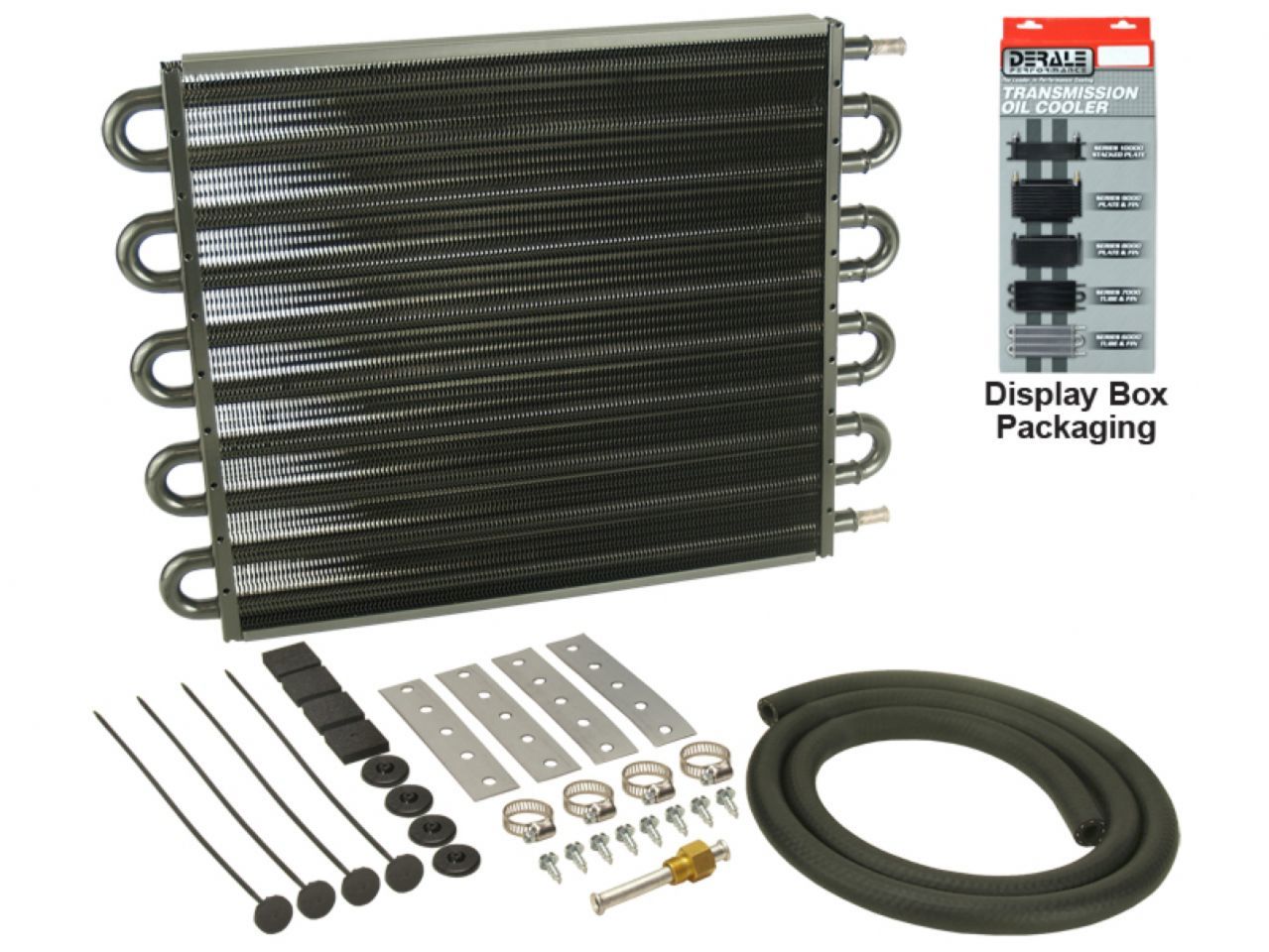

- Complete hardware kit included

Derale 10 Pass 17"Series 7000 Copper/Aluminum Trans Cooler, Truck/RV (Carton)
Sale price$95.23 USD
