Derale Premium Remote Transmission Filter Kit
Derale Premium Remote Transmission Filter Kit
sku: 1447B | mpn: 13091
Regular price
$212.56
Regular price
$212.56
Sale price
$212.56
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

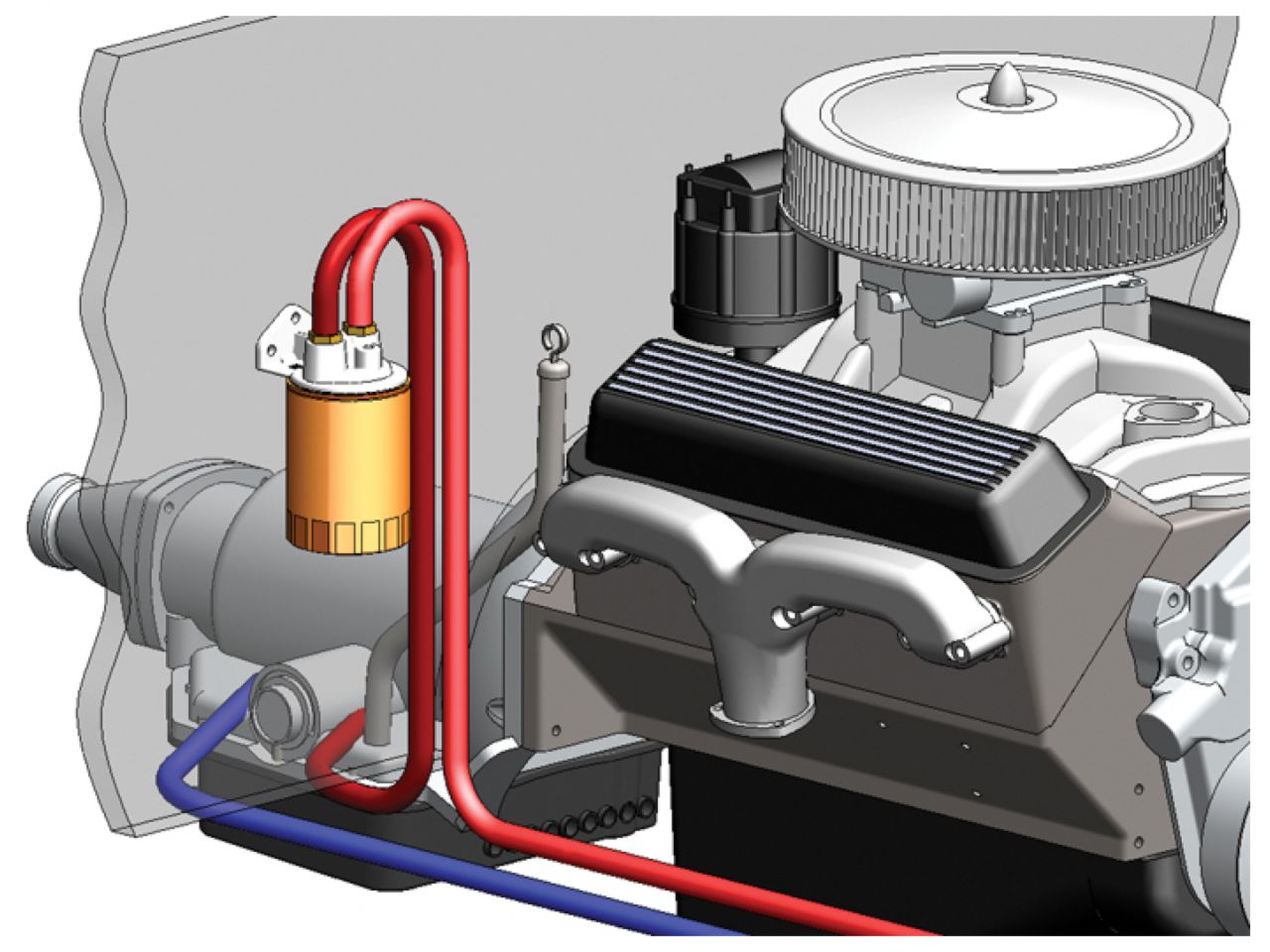

Universal remote transmission filter kits enable quick and efficient filter changes and filter out contaminants that pass through OE-screen type filters. The premium version also includes our temperature gauge package with sending unit, mounting brackets and hardware. The increased fluid capacity also cools fluid temperatures helping to extend the life of the transmission.
Specifications
- Filter Nominal Micron Rating: 21
- By-Pass Valve Setting-PSI: 8-11
- Anti-Drain Back Valve: Yes
- Burst Pressure-PSI: 340
- Max Flow Rate: 7-9 GPM
- Filter Dimensions: 3-1/2" OD x 3-7/8"
- Filter thread size: 3/4"-16
- Filter landing: 2-1/2" to 3-1/2"
- Inlet size: 3/8" NPT
- Barb size: 3/8"
- Hose size: 3/8"
- Hose length: 4'
- Gauge temperature range: 140-300°F
- Gauge size: 2-1/16"
- Sending unit thread size: 1/8" NPT
Features
- Extends life of transmission
- Filters out contaminants more efficiently than OE screen type filters
- Universal - fits all automatic transmissions
- Increases fluid capacity

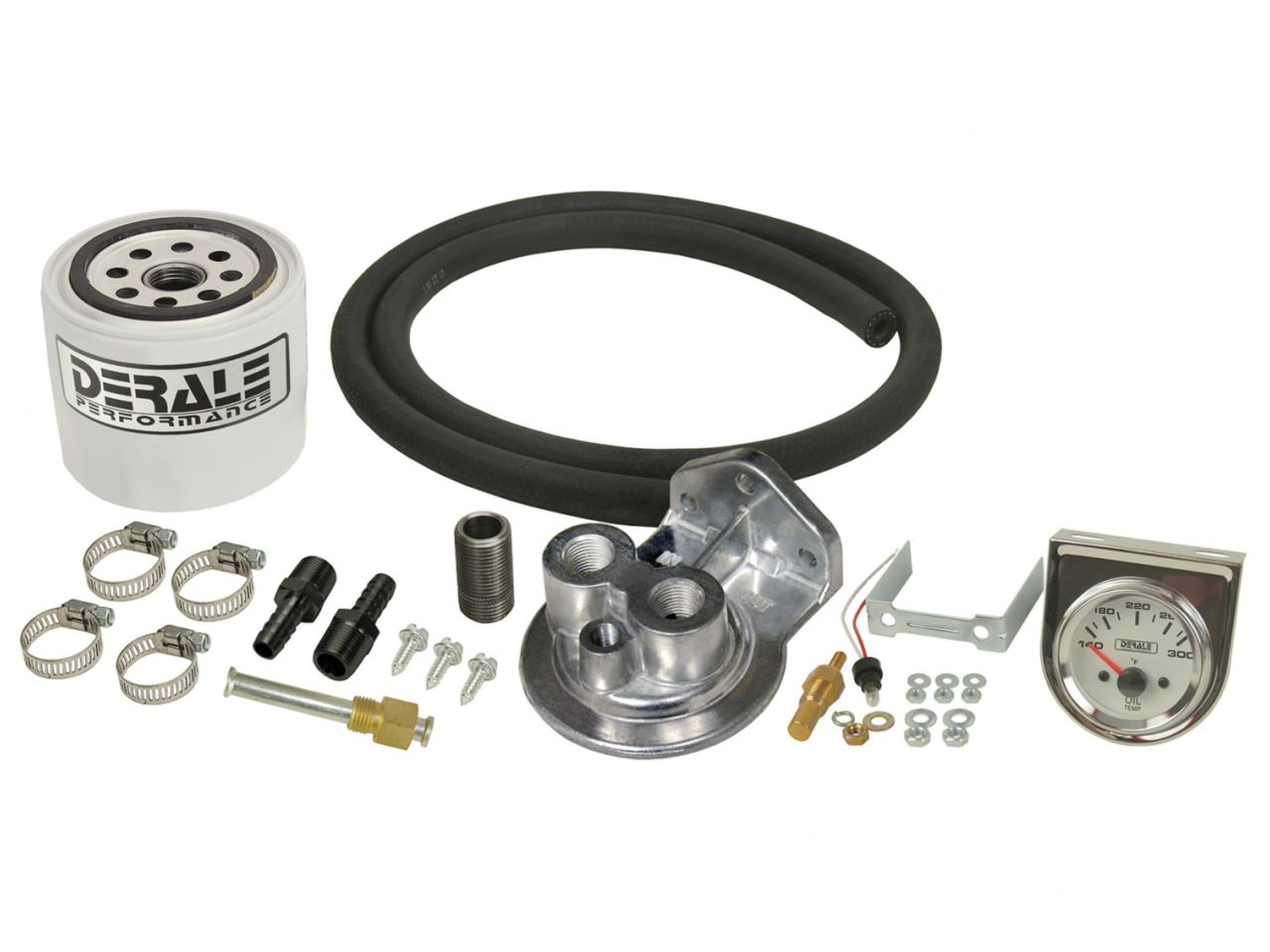

- Premium kit includes all remote filter mount, premium gauge kit, 4' hose, filter and mounting hardware
