Demon Carburetion 650 CFM Speed Demon Carburetor

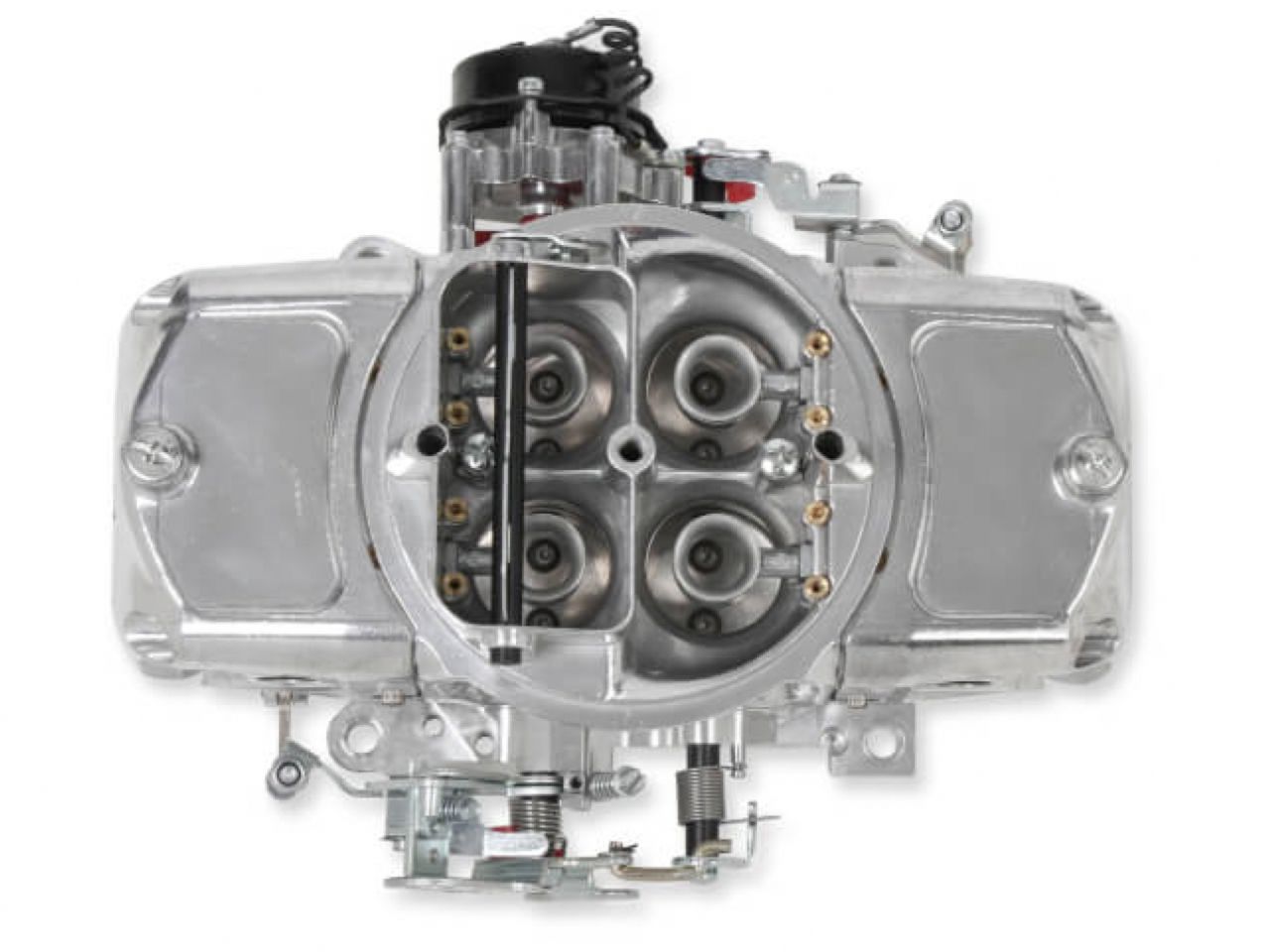

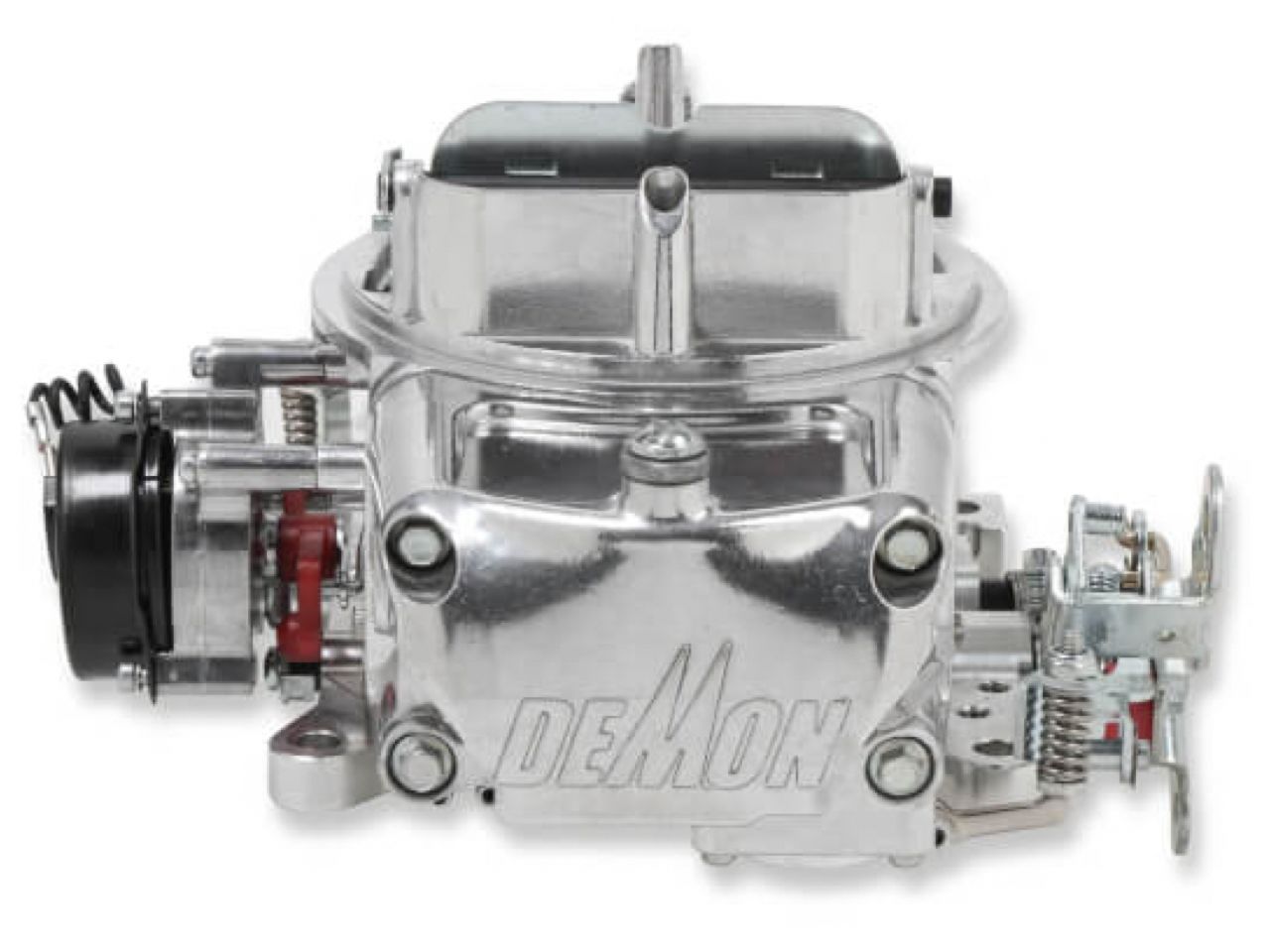

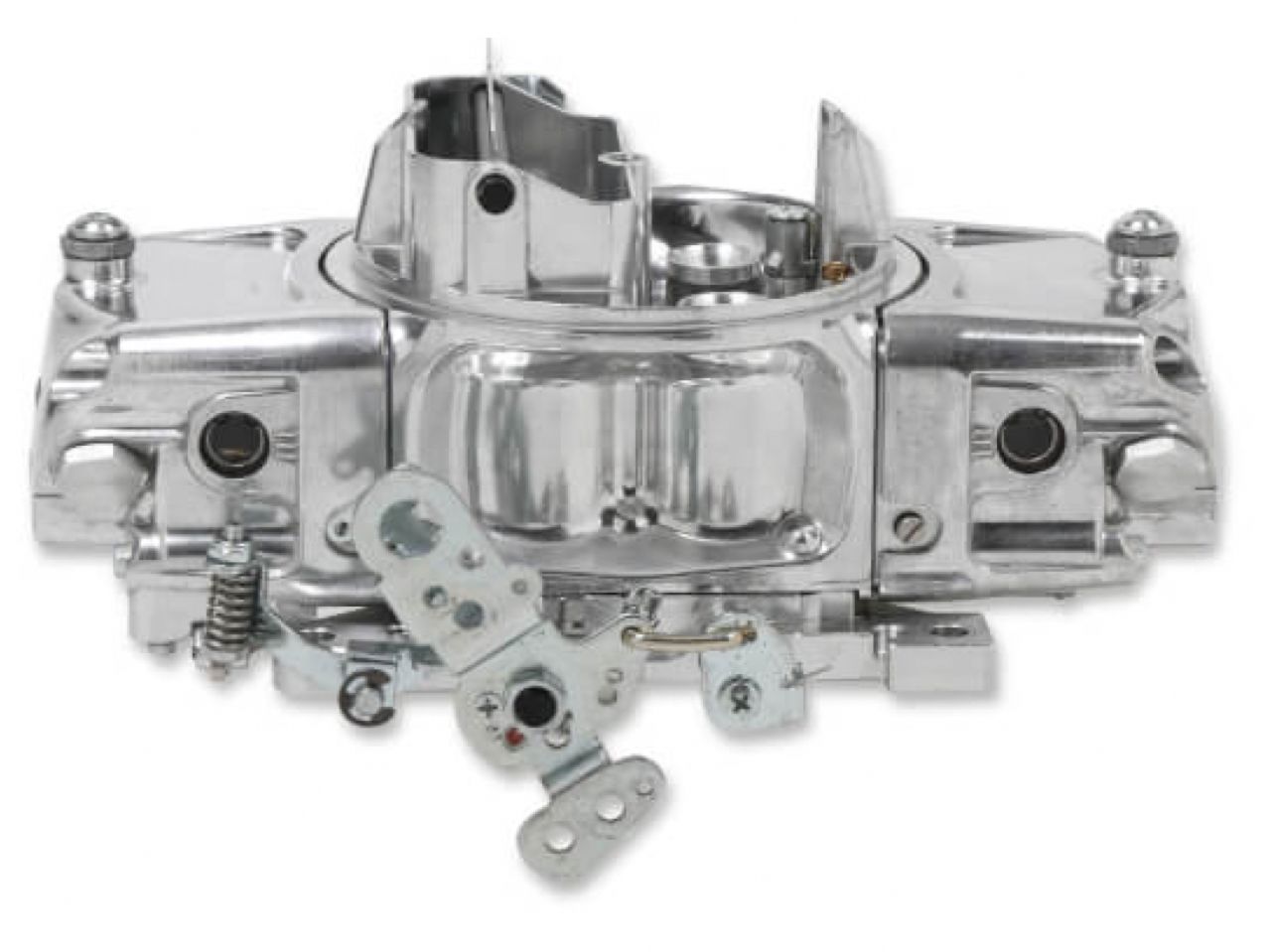

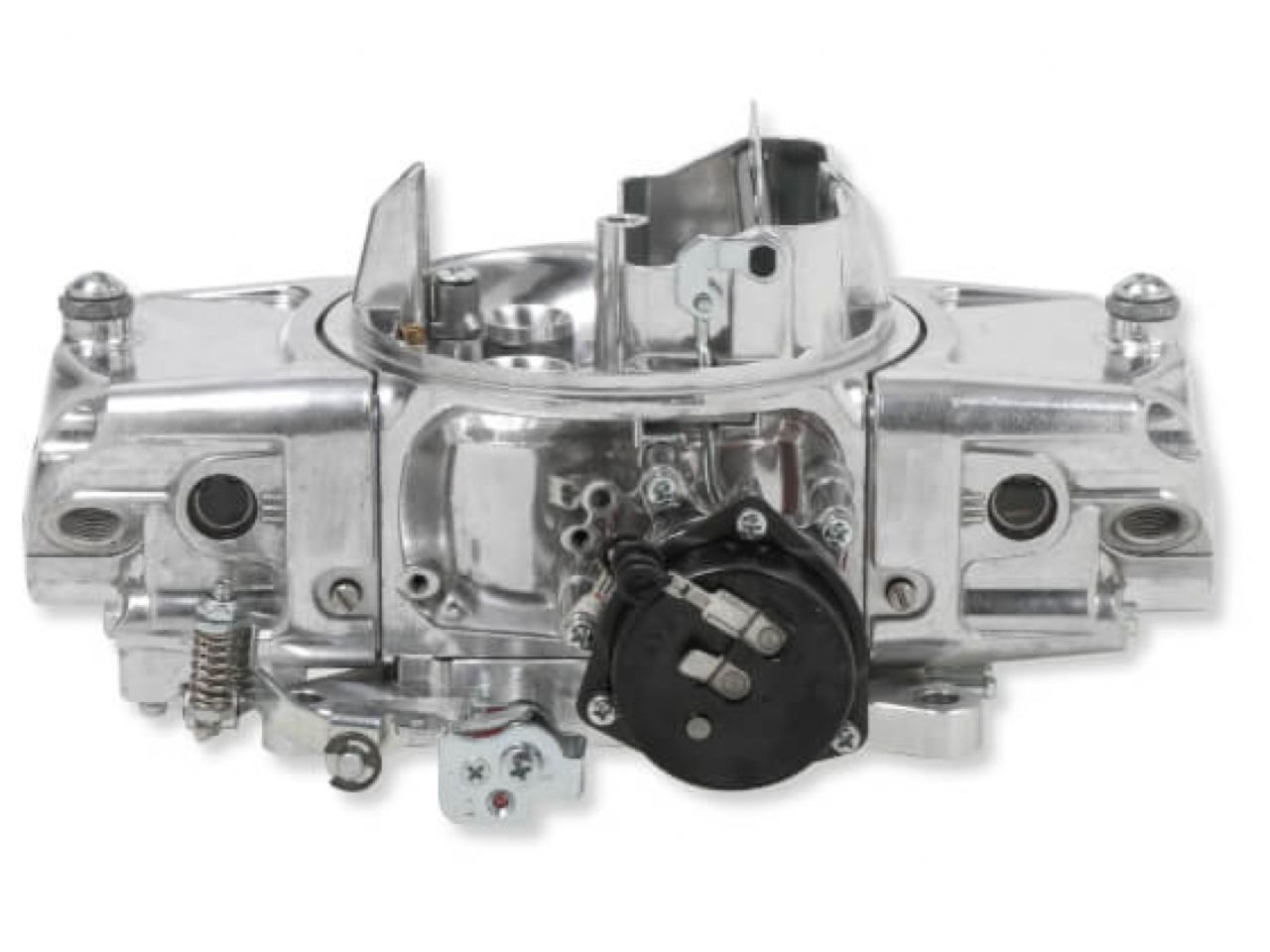

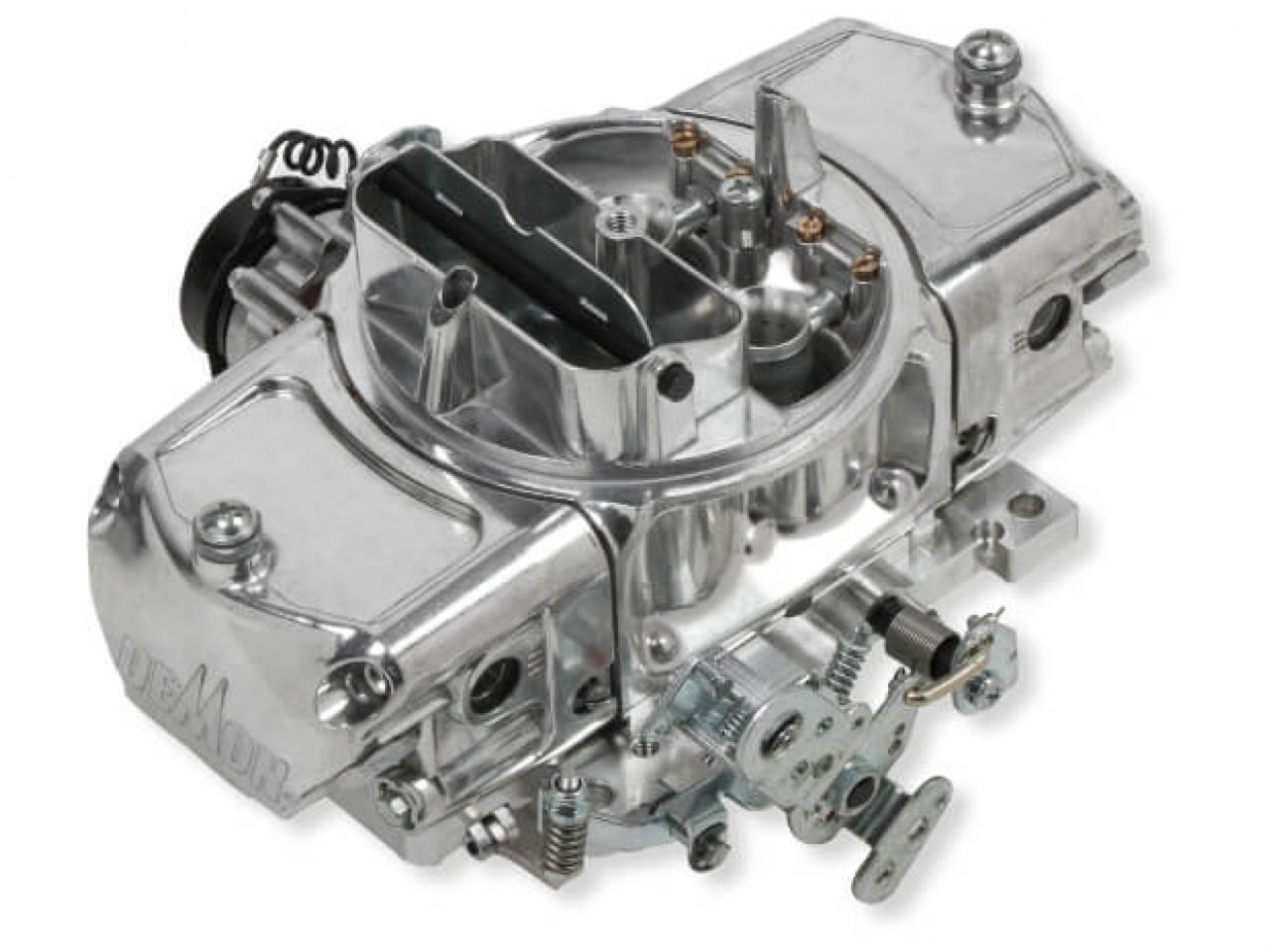

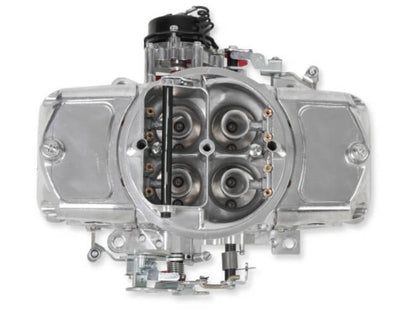

650 CFM Speed Demon Carburetor

The next generation of Speed Demon™ carburetors have arrived. The new aluminum Speed Demon™ series is the most formidable performance street carburetor available today and it's 40% lighter than the original. It features the most advanced design manufacturing processes that provides street enthusiasts with racing carburetor technology in a very drivable package. The Speed Demon™ line offers a wide range of sizes with vacuum and mechanical secondary designs. Across the range of sizes, from 650 cfm to 850 cfm, the Speed Demons deliver balanced, high–velocity airflow and exceptional fuel metering capacity to match the fuel requirements most street engines. A Speed Demon™ carburetor is ideal for muscle cars, stock rebuilds, mild performance applications, and crate motors. They are designed for mild engines from 302-427 cid with cam profiles between 220 and 240 degrees duration at 0.050".

Features:

• All aluminum polished construction with billet metering blocks and base plate (Now 40% lighter than the original Demons!).

• Fuel bowls and main body have been redesigned for a sleeker, more stylish appearance

• Completely re-engineered and re-calibrated for better drivability and full throttle performance.

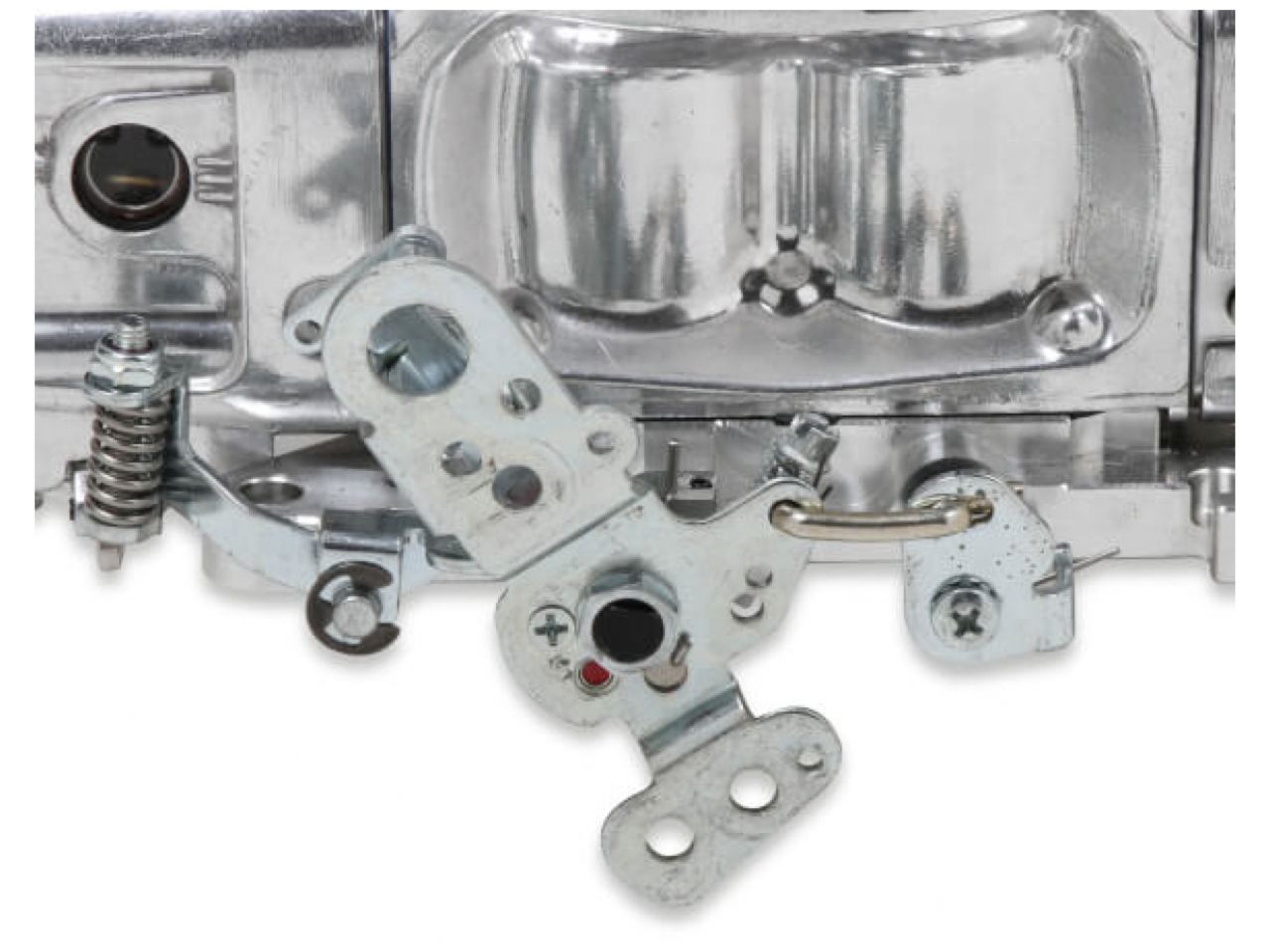

• Re-designed throttle lever with integrated Ford A/T, 700-R4, and Chrysler kick down options.

• Fuel bowls now have dual threaded inlets on each side, dual sight glass windows, and internal baffling for improved fuel slosh control.

• Changeable idle, high-speed air bleeds & power valve restrictions for precise tuning.

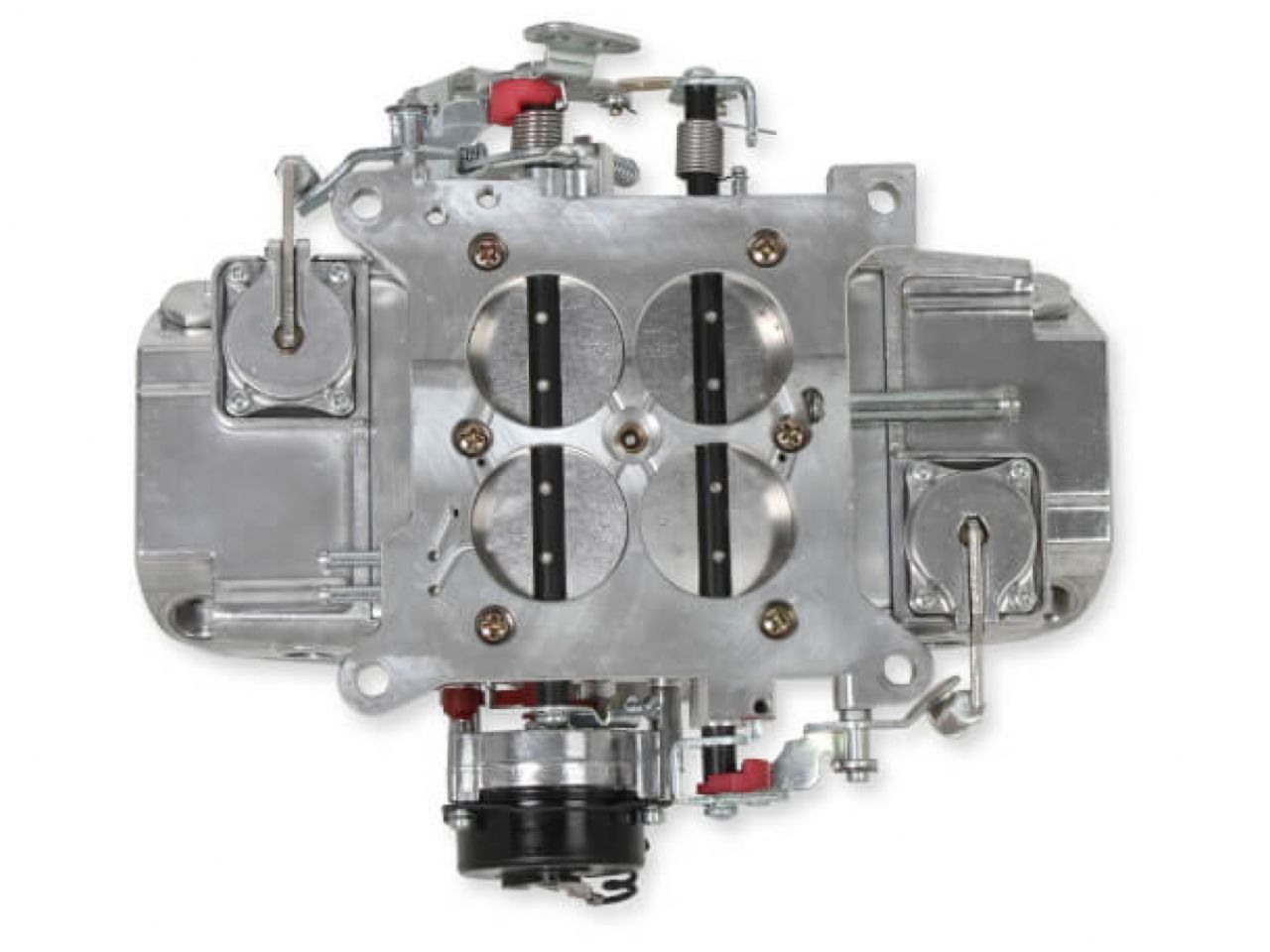

• Billet Baseplate with Idle-Eze™ allows precision fine tuning of the idle speed resulting in a smoother transition from off-idle.

• New simple part numbering system: Start with SPD (Speed Demon) Add the carburetor cfm size (650, 750, or 850) and then add the model suffix; MS (Mechanical Secondaries); VS (Vacuum Secondaries); AN (Annular Discharge Boosters).

Specifications

Barrels: 4

Billet Color: Shiny

Booster: Annular

CFM: 650

Choke: Electric

Circuit: 2

Emission Code: 3

Finish: Shiny

Fuel: Gasoline

Fuel Inlet: Dual

Fuel System: Carbureted

High Speed Air Bleed: 36

Idle Air Bleed Size: 70

Material: Aluminum

Model: Screamin Demon

Primary Main Jet: 68

Primary Power Valve: 6.5

Primary Pump Nozzle Size: 31;31

Product Type: Carburetor

Secondaries: Mechanical

Secondary Main Jet: 74

Supercharged Application: No

Throttle Bore: 1.688 Inch
