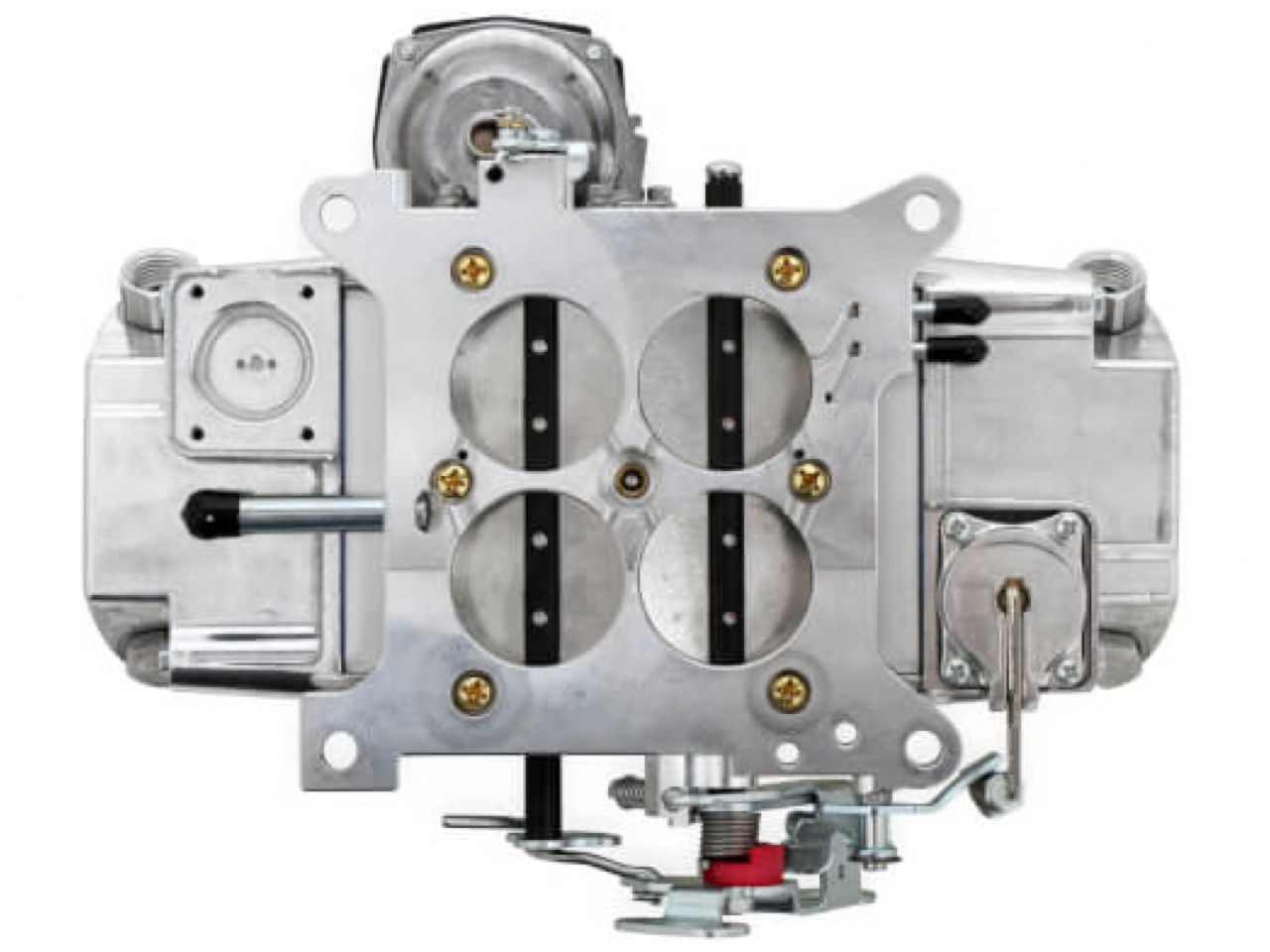

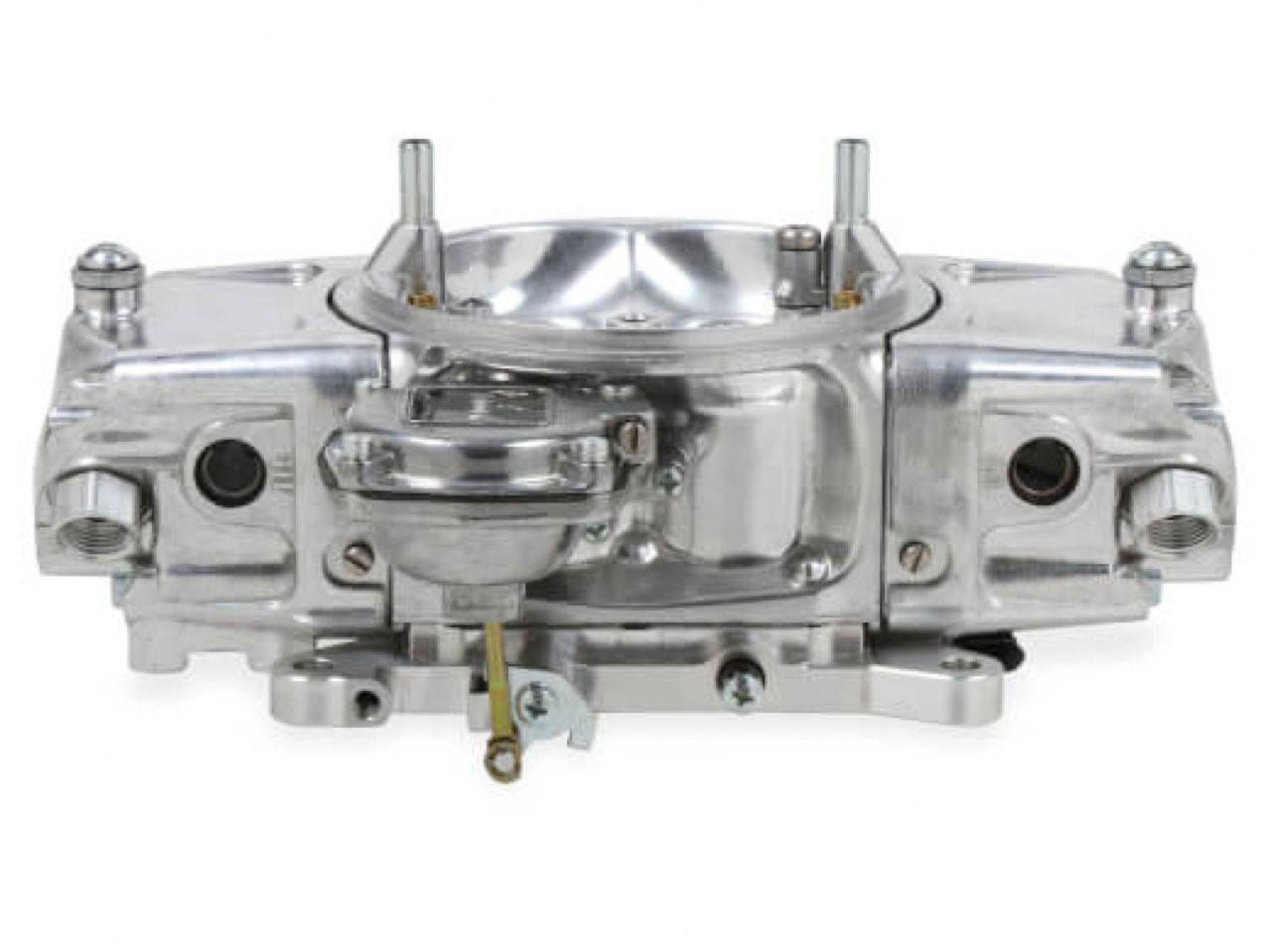

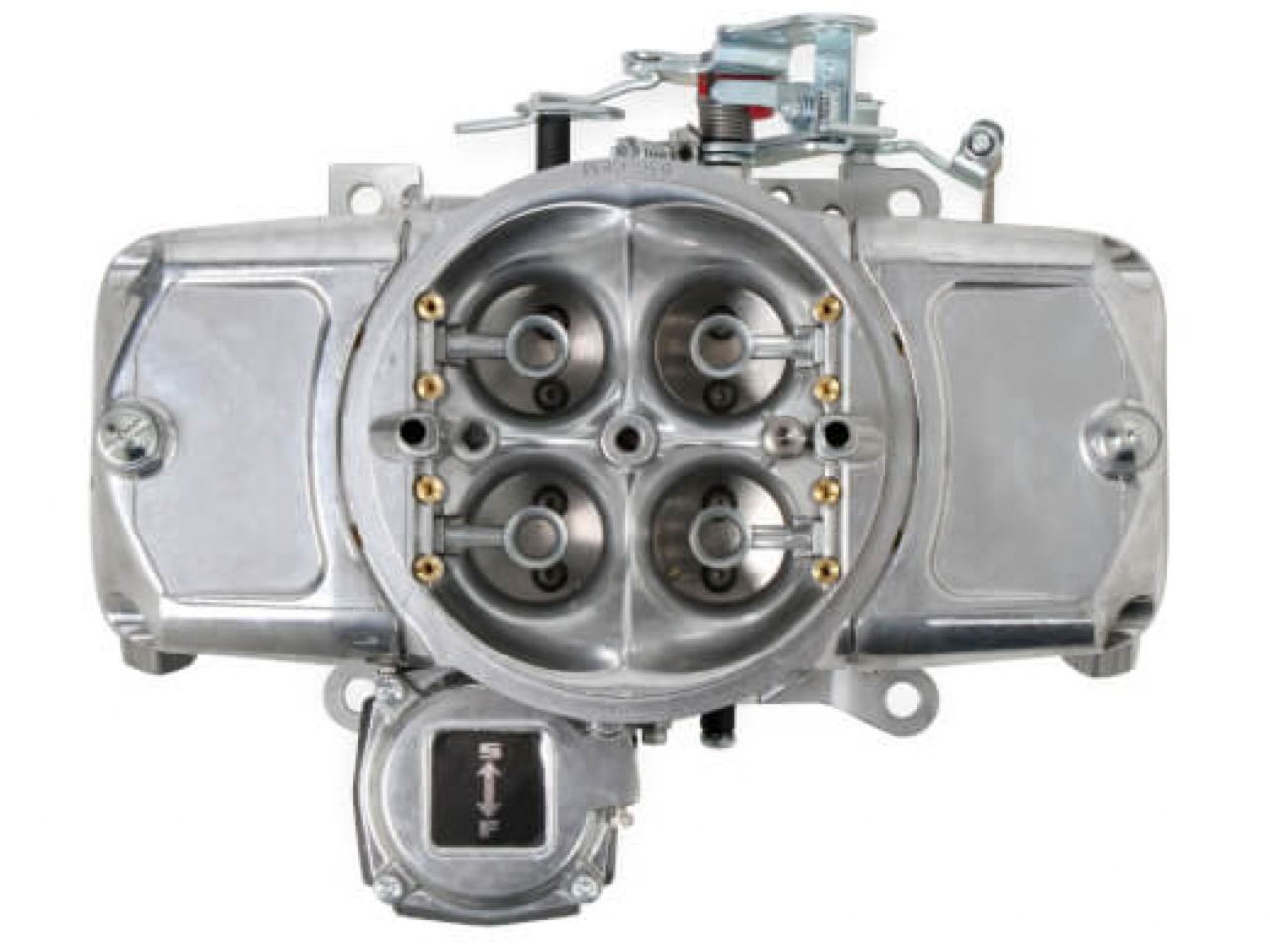

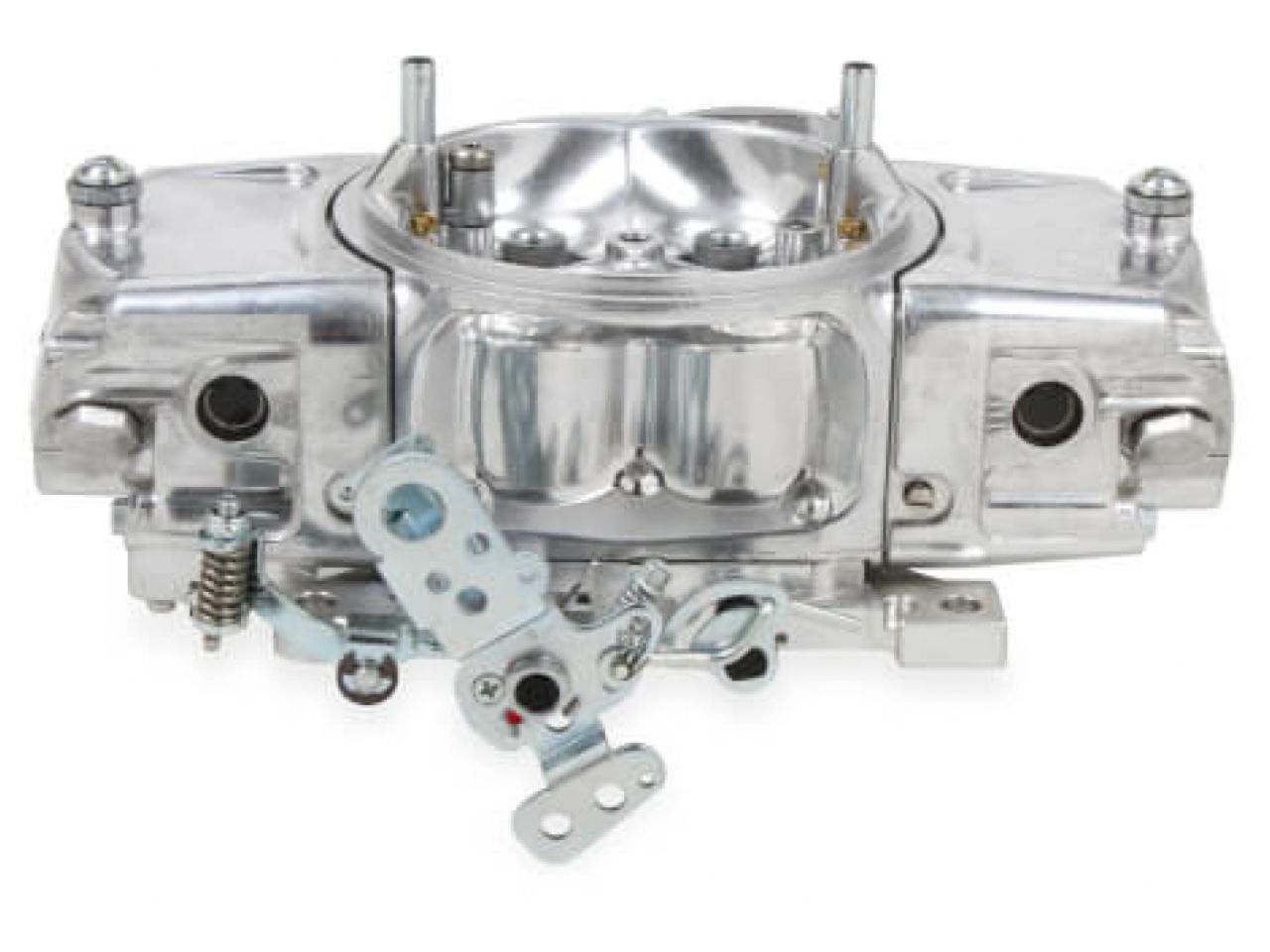

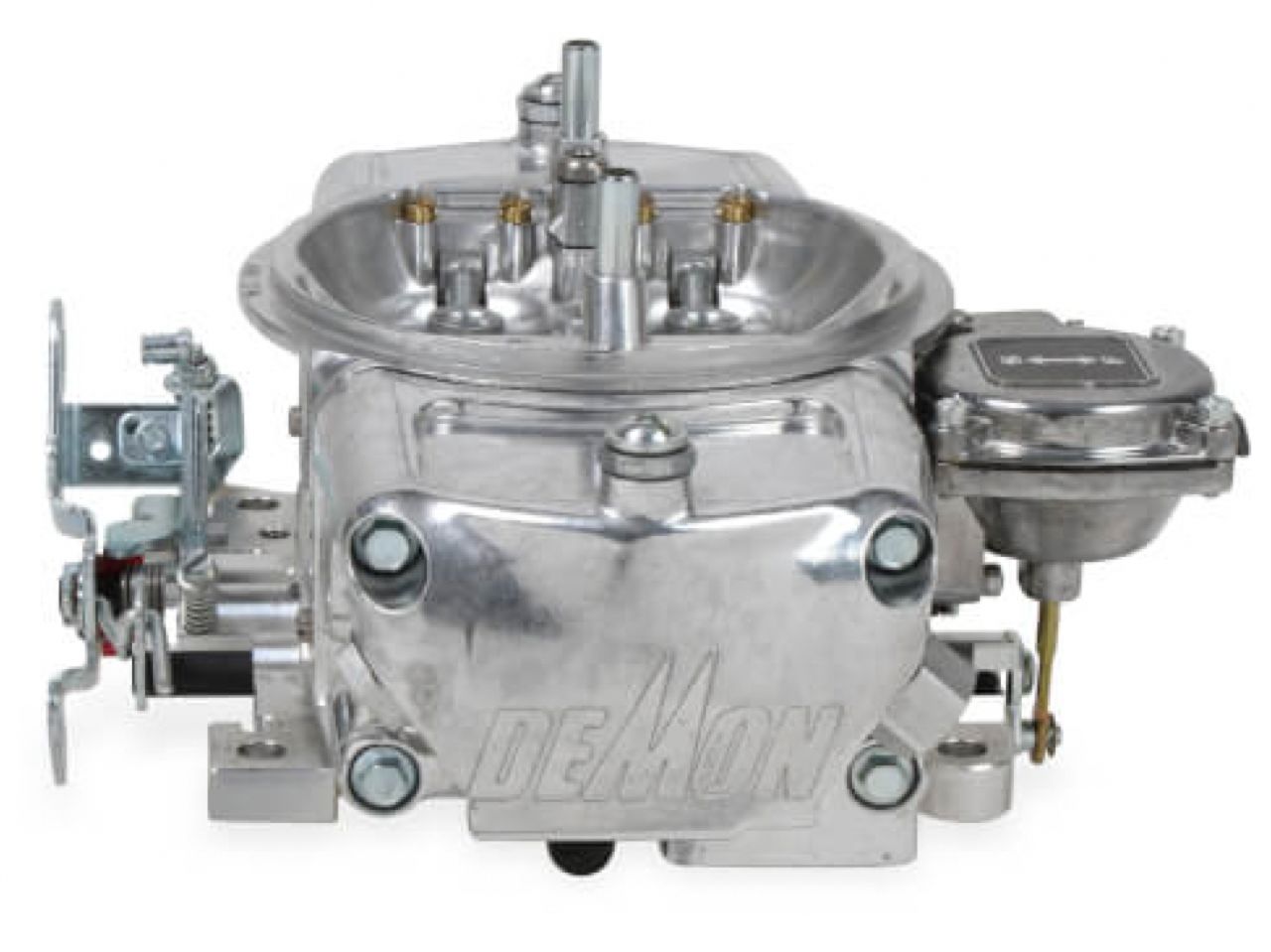

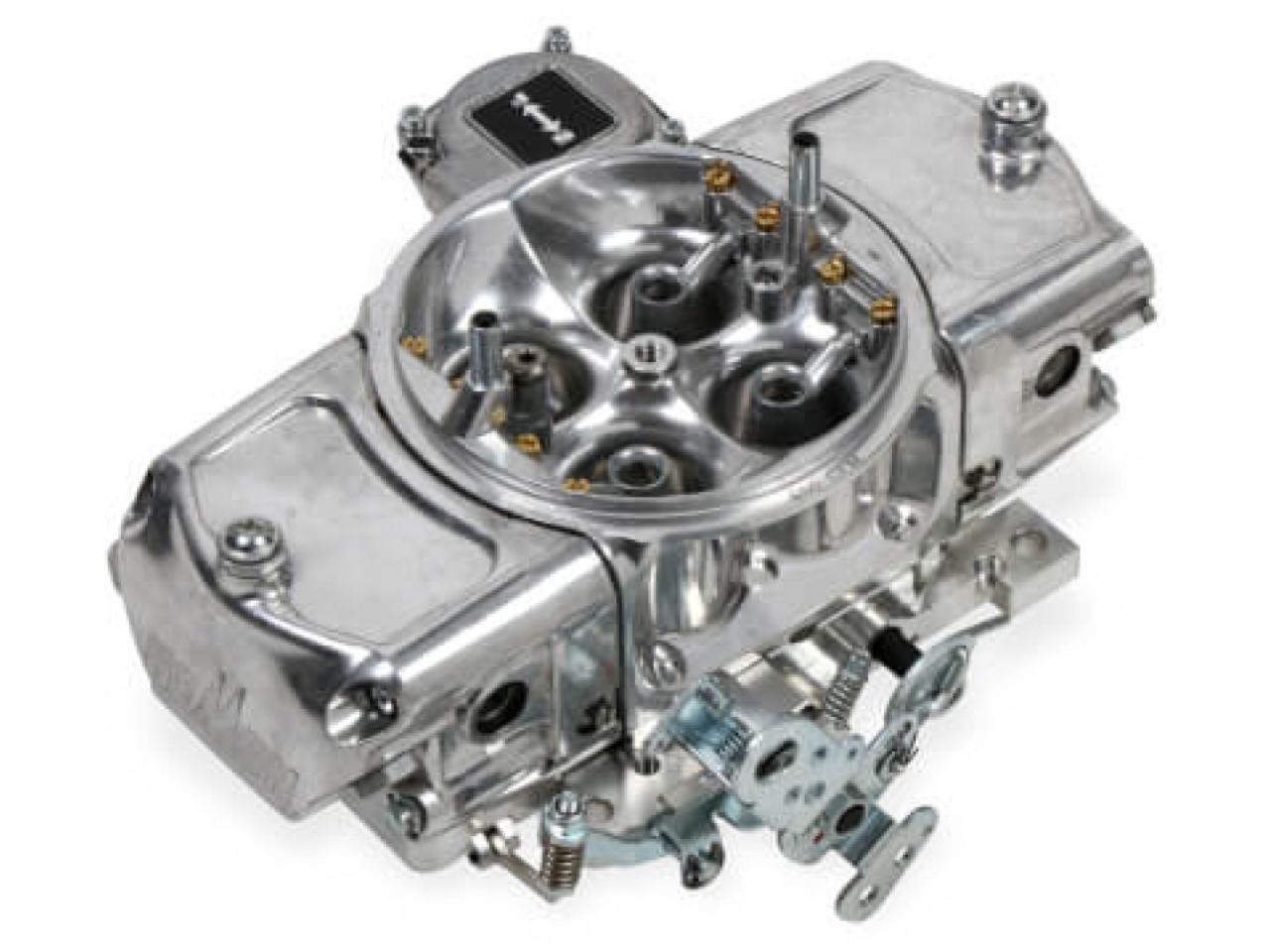

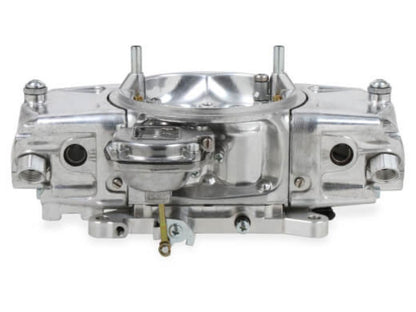

Demon Carburetion 750 CFM Aluminum Screamin' Demon Carburetor

750 CFM Aluminum Screamin' Demon Carburetor

Screamin' Demons are the latest development in the evolving family of Demon performance carburetors. Screamin' Demons were designed with the weekend racer in mind. They are available in 650-850 cfm mechanical secondary models, as well as a 750 cfm vacuum secondary model. Screamin' Demons feature lightweight die-cast aluminum construction, large capacity fuel bowls complete with dual sight glasses, dual threaded inlets on each side, and internal baffling to prevent fuel slosh when you are on the track. Engineered and calibrated for better drivability and full throttle performance, Screamin' Demons include four corner idle, changeable idle and high-speed air bleeds with all the tunability that you would find from more expensive carburetors in the market.

Features:

• Polished die-cast aluminum construction.

• Engineered and calibrated for better drivability and full throttle performance.

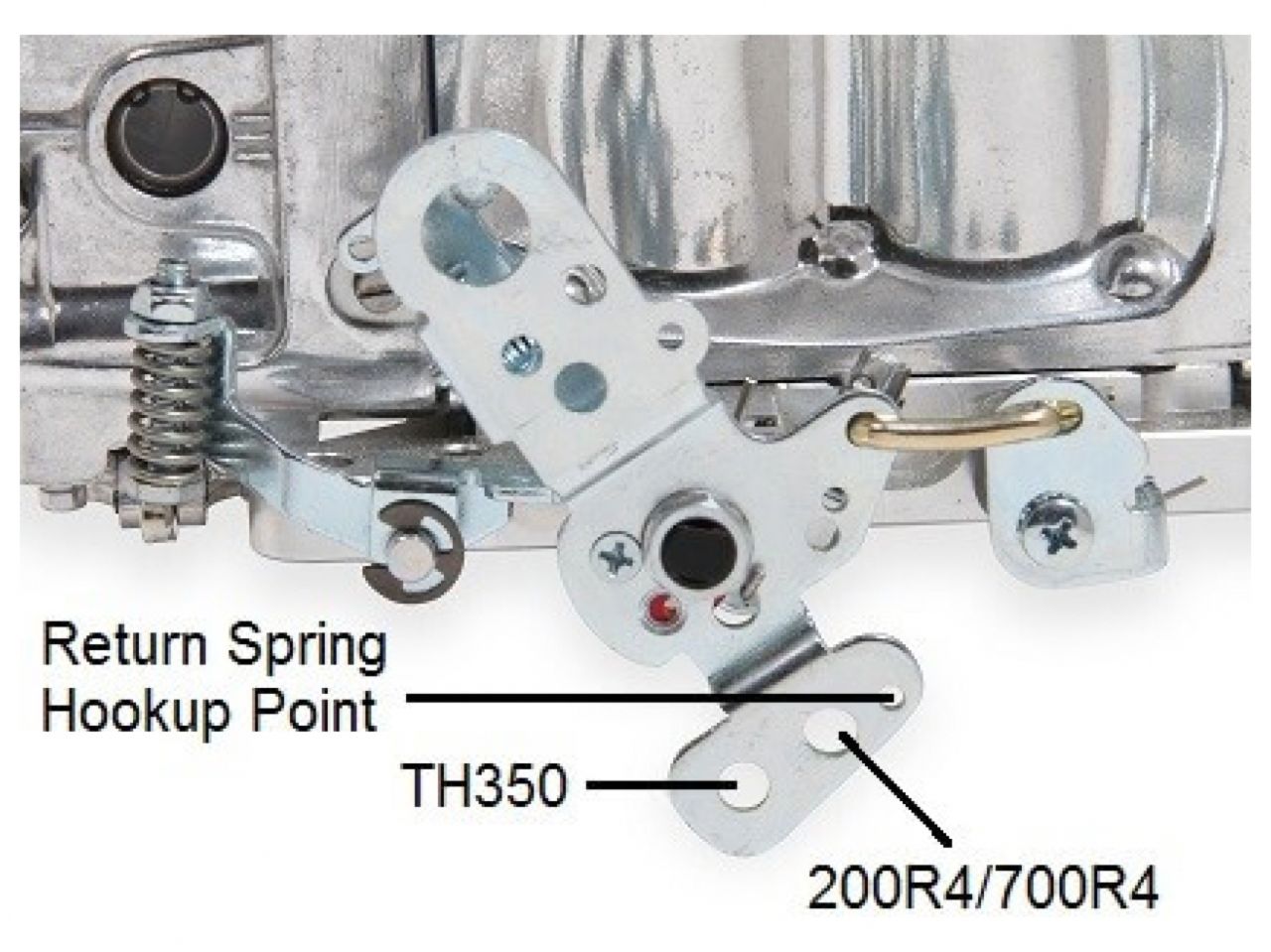

• New throttle lever with integrated Ford A/T, 700-R4, and Chrysler kick down options.

• Fuel bowls have dual threaded inlets on each side, dual sight glass windows, and internal baffling for improved fuel slosh control.

• Secondary fuel bowls include notched floats and jet extensions to prevent fuel starvation during hard launches.

• Changeable idle, high-speed air bleeds & power valve restrictions for precise tuning.

Specifications

Barrels: 4

Booster: Down Leg

CFM: 750

Choke: None

Circuit: 2

Emission Code: 3

Finish: Shiny

Fuel: Gasoline

Fuel Inlet: Dual

Fuel System: Carbureted

High Speed Air Bleed: 33

Idle Air Bleed Size: 73

Material: Aluminum

Model: Screamin Demon

Primary Main Jet: 74

Primary Power Valve: 4.5

Primary Pump Nozzle Size: 31

Product Type: Carburetor

Secondaries: Vacuum

Secondary Main Jet: 84

Supercharged Application: No

Throttle Bore: 1.688 inch
