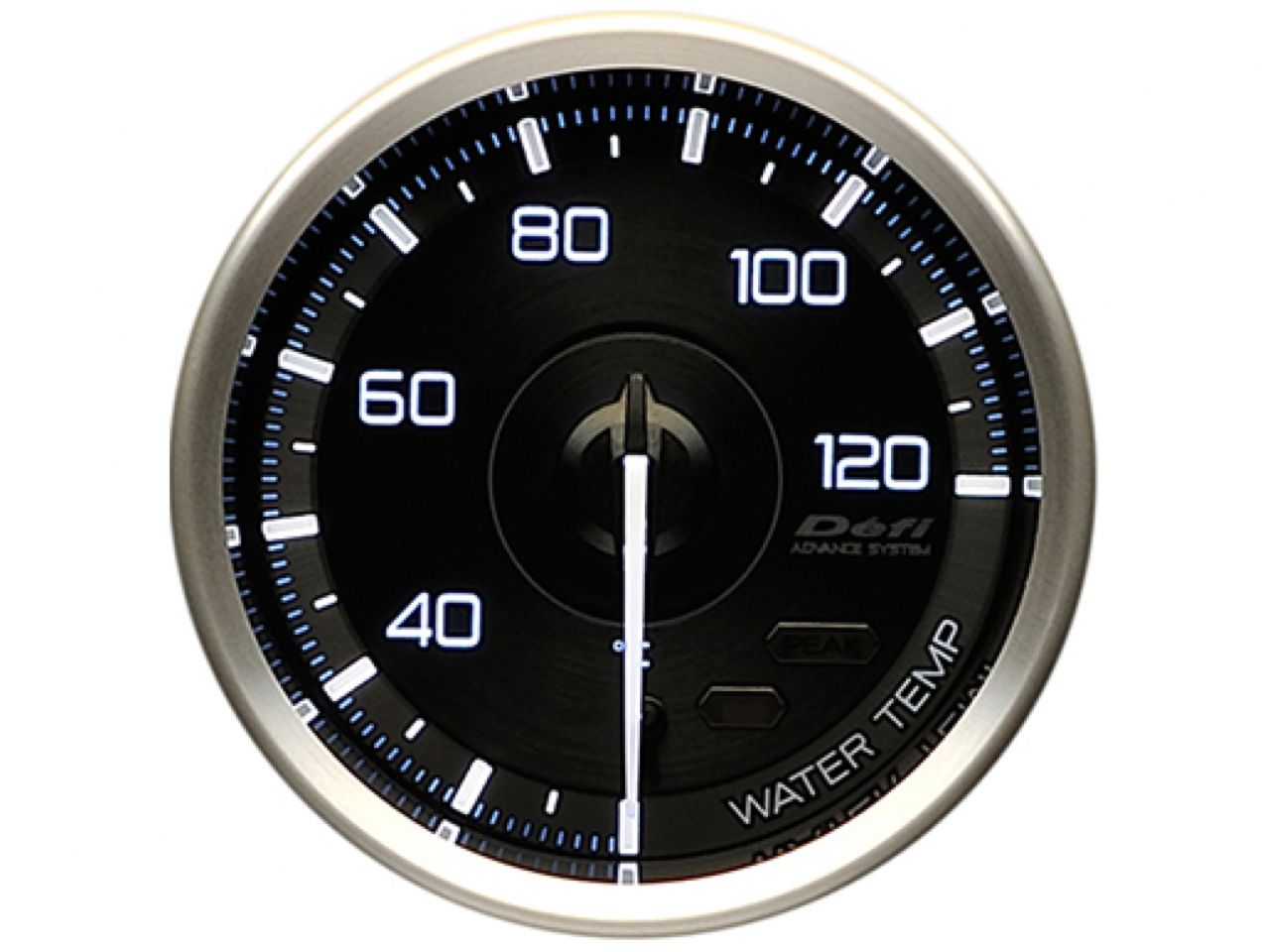

Defi Advance A1 60mm Water Temp Gauge w/ Sensor

Defi Advance A1 60mm Water Temp Gauge w/ Sensor

sku: 0X5X1 | mpn: DF15301
$375.00
$375.00 $375.00
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Summary

Defi-Link Meter ADVANCE A1 is a series of gauges which need to be connected to Defi-Link ADVANCE Control Unit.

ADVANCE A1 is a series of premium models which contains a metallic tone dial plate with convex scales. It also provides a high visibility by using a low-reflection glass.

The numbers are not visible until the ignition is turned on.

  • There are turbo 200kPa, turbo 300kPa, oil presure, fuel pressure, oil temperature, water temperature, and exhaust temperature in 60mm gauges. In addition, there is a 80 mm tachometer.Lineup
  • The scales and pointer is white while ignition is off. The numbers light up after ignition is turned on.
  • A low-reflection glass provides a high visibility.
  • The metallic tone dial plate with concave scales and fine circular hairlines gives a premium texture.
  • The mounting bracket fits in your dashboard and ADVANCE A1 by using the accessory cover
  • One ADVANCE Control Unit operates up to 7 gauges or displays in total.

Main specifications, functions, and features

  • ADVANCE System
  • ADVANCE Control Unit necessary
  • Commercial attachment necessary
  • Stepping motor: STS26/VS2
  • Illumination color: white
  • Illumination ON/OFF: interlocked with vehicle illumination switch
  • LED illumination
  • Indicator output
  • Built-in indicators
  • Driving data can be recorded & replayed
  • Opening mode/Ending mode
  • Size: 60mm/80mm tachometer
  • Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
  • Mounting bracket and cover attached
