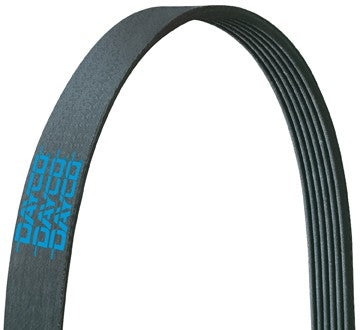

Dayco Serpentine Belt 4PK926EE
Serpentine Belt. (4PK926EE) by Dayco
Dayco ® ela⢠(elastic) or stretch belts are specifically designed for two, three, and four point drives that are designed to use self-tensioning belts. Although these belts may look like standard poly rib belts, they are very different. These specially designed elastic belts have self-tensioning capabilities required by specific OE drives. Vehicles that are manufactured with stretch belts must replace them with stretch belts. These belts are not interchangeable with standard constructed belts of their same size. Dayco ® ela⢠belts utilize a proprietary EPDM construction that is designed to elongate over the fixed pulley system, and then maintain the required belt tension over the life of the belt. The backbone behind the Dayco ® ela⢠belt is its specially developed polyamide tensile member, which allows for high elongation required for installation, yet provides the proper tension maintenance properties to transmit the accessory loads demanded for the drive. This belt construction incorporates a wear resistant EPDM rib material, along with a highly elastic EPDM cushion rubber that surrounds the polyamide tensile cord, thus providing the required adhesion and flexibility to maintain lasting performance. Stretch belts have unique installation instructions depending on the OE application. Installation may require a specialized tool for the application or a simple zip tie. Do not attempt to install by prying the belt on the pulleys. Dayco provides detailed instructions on the reverse side of the sleeve.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2009 - 2014 | Cadillac | Escalade | Base, Platinum |
2009 - 2013 | Cadillac | Escalade | Hybrid |
2010 - 2013 | Cadillac | Escalade | Hybrid Platinum |
2011 - 2014 | Cadillac | Escalade | Luxury, Premium |
2012 | Cadillac | Escalade | Special Edition |
2009 - 2014 | Cadillac | Escalade ESV | Base, Platinum |
2011 - 2014 | Cadillac | Escalade ESV | Luxury, Premium |
2012 | Cadillac | Escalade ESV | Special Edition |
2009 - 2013 | Cadillac | Escalade EXT | Base |
2011 - 2013 | Cadillac | Escalade EXT | Luxury, Premium |
2009 - 2013 | Chevrolet | Avalanche | Base |
2013 | Chevrolet | Avalanche | Black Diamond LTZ, Black Diamond LS, Black Diamond LT |
2009 - 2012 | Chevrolet | Avalanche | LTZ, LT, LS |
2009 - 2012 | Chevrolet | Colorado | Base, LT, WT |
2009 - 2014 | Chevrolet | Express 1500 | LS, Base, LT |
2009 - 2020 | Chevrolet | Express 2500 | Base, LS, LT |
2009 - 2020 | Chevrolet | Express 3500 | LS, LT, Base |
2009 - 2016 | Chevrolet | Express 4500 | Base |
2009 - 2013 | Chevrolet | Silverado 1500 | Base, LS, Hybrid, WT, LT, LTZ |
2010 - 2013 | Chevrolet | Silverado 1500 | XFE |
2015 - 2019 | Chevrolet | Silverado 2500 HD | High Country |
2009 - 2019 | Chevrolet | Silverado 2500 HD | WT, LT, LTZ |
2015 - 2019 | Chevrolet | Silverado 3500 HD | High Country |
2009 - 2019 | Chevrolet | Silverado 3500 HD | LTZ, WT, LT |
2009 - 2012 | Chevrolet | Suburban 1500 | Base |
2009 - 2014 | Chevrolet | Suburban 1500 | LT, LS, LTZ |
2009 | Chevrolet | Suburban 2500 | Base |
2009 - 2013 | Chevrolet | Suburban 2500 | LT, LS |
2016 - 2019 | Chevrolet | Suburban 3500 HD | LS, LT |
2009 - 2012 | Chevrolet | Tahoe | Base |
2009 - 2013 | Chevrolet | Tahoe | Hybrid |
2009 - 2014 | Chevrolet | Tahoe | LT, LTZ, LS |
2012 - 2014 | Chevrolet | Tahoe | SSV, PPV |
2009 | Chevrolet | Tahoe | Z71 |
2009 | Chevrolet | W3500 Tiltmaster | W3S042 |
2009 | Chevrolet | W4500 Tiltmaster | W4S042 |
2019 - 2022 | Ford | Transit Connect | XLT, Titanium, XL |
2009 - 2012 | GMC | Canyon | WT, Base, SLT, SLE |
2009 | GMC | Envoy | SLT, SLE, Denali |
2009 - 2014 | GMC | Savana 1500 | LS, Base, LT |
2009 - 2013 | GMC | Savana 1500 | SL, SLE |
2009 - 2020 | GMC | Savana 2500 | LT, Base, LS |
2009 - 2013 | GMC | Savana 2500 | SLE, SL |
2009 - 2020 | GMC | Savana 3500 | LS, Base, LT |
2009 - 2013 | GMC | Savana 3500 | SL, SLE |
2009 - 2020 | GMC | Savana 4500 | Base |
2009 - 2013 | GMC | Sierra 1500 | SLT, SLE, Hybrid, Denali, WT, SL |
2010 - 2013 | GMC | Sierra 1500 | XFE |
2015 - 2019 | GMC | Sierra 2500 HD | Base |
2011 - 2019 | GMC | Sierra 2500 HD | Denali |
2009 - 2019 | GMC | Sierra 2500 HD | SLE, SLT |
2009 - 2014 | GMC | Sierra 2500 HD | WT |
2015 - 2019 | GMC | Sierra 3500 HD | Base |
2011 - 2019 | GMC | Sierra 3500 HD | Denali |
2009 - 2019 | GMC | Sierra 3500 HD | SLE, SLT |
2009 - 2014 | GMC | Sierra 3500 HD | WT |
2009 - 2012 | GMC | Yukon | Base |
2010 - 2013 | GMC | Yukon | Denali Hybrid |
2009 - 2013 | GMC | Yukon | Hybrid |
2009 - 2014 | GMC | Yukon | SLT, Denali, SLE |
2009 - 2014 | GMC | Yukon XL 1500 | SLT, Denali, SLE |
2009 - 2013 | GMC | Yukon XL 2500 | SLT, SLE |
2009 | Hummer | H2 | Adventure, Luxury, Base |
2008 - 2010 | Hummer | H3 | Alpha, Luxury, Base, Adventure |
2009 | Hummer | H3 | Championship Series |
2008 - 2009 | Hummer | H3 | X |
2010 | Hummer | H3T | Adventure |
2009 - 2010 | Hummer | H3T | Alpha, Base |
2009 - 2018 | Isuzu | NPR | Base |
2012 - 2020 | Isuzu | NPR-HD | Base |
