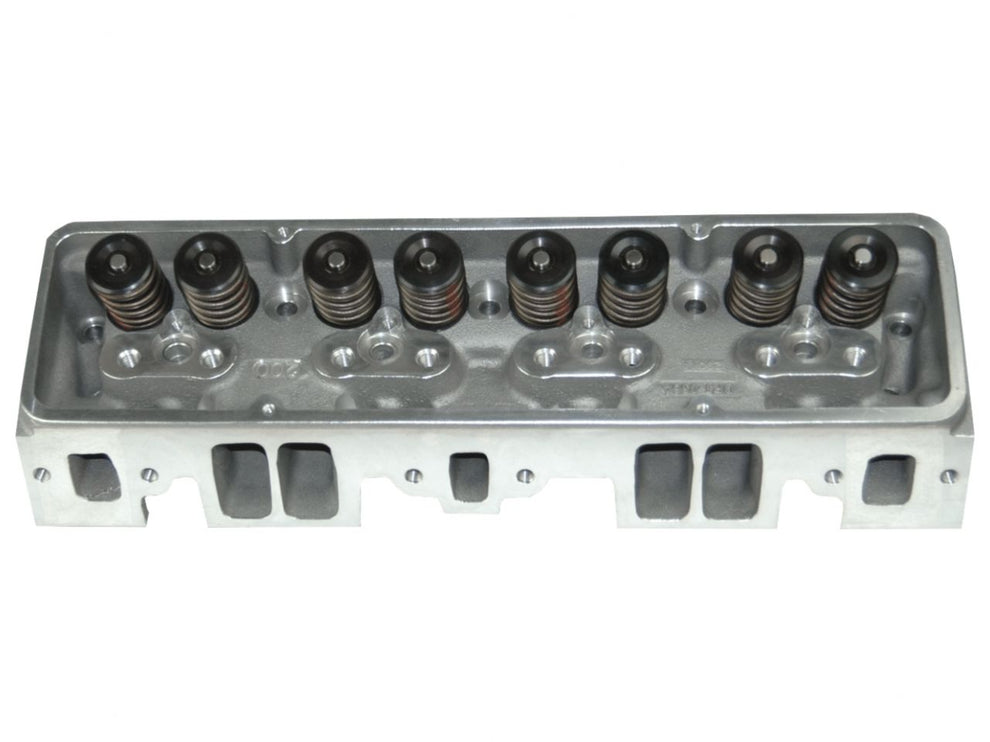

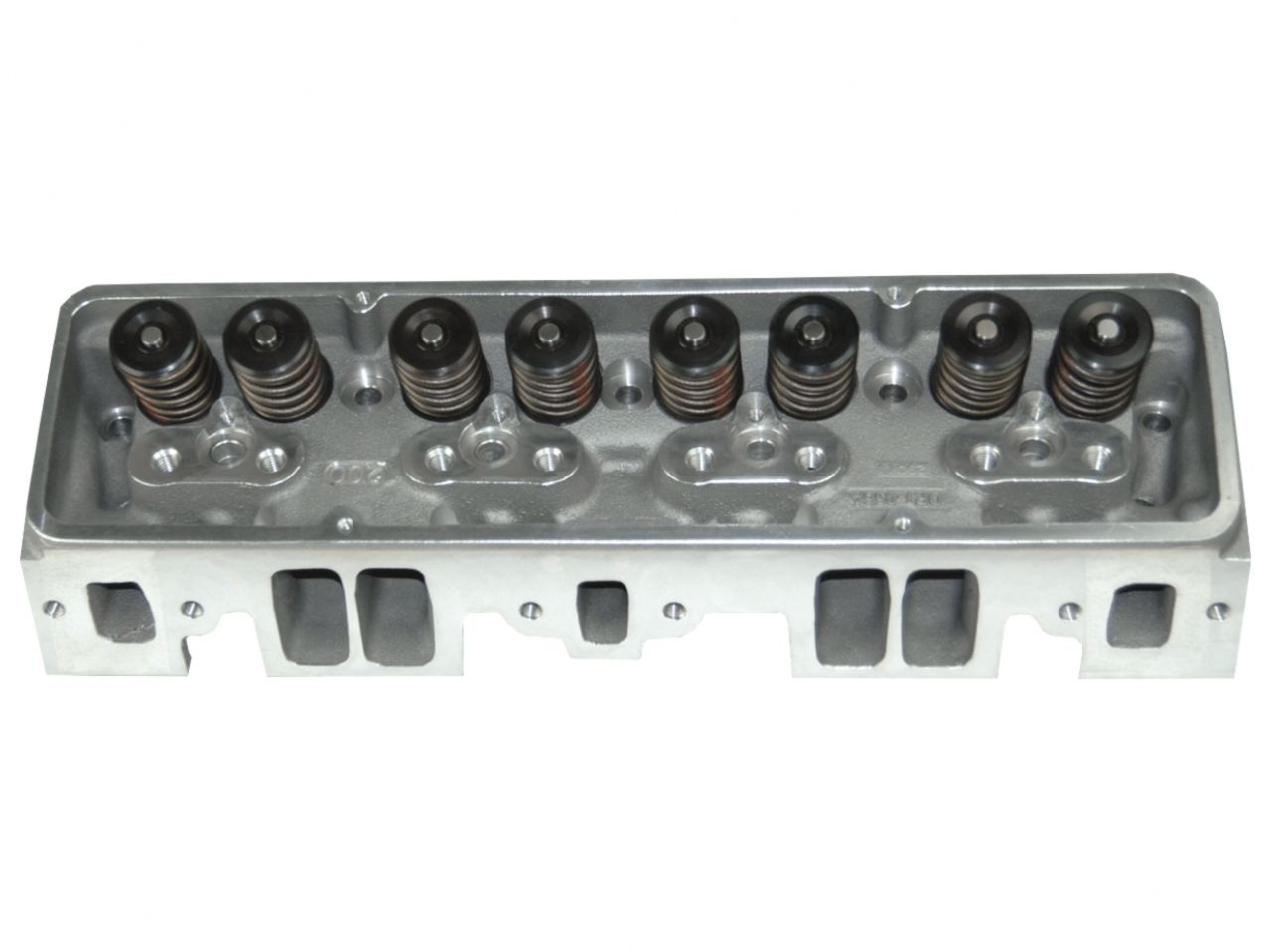

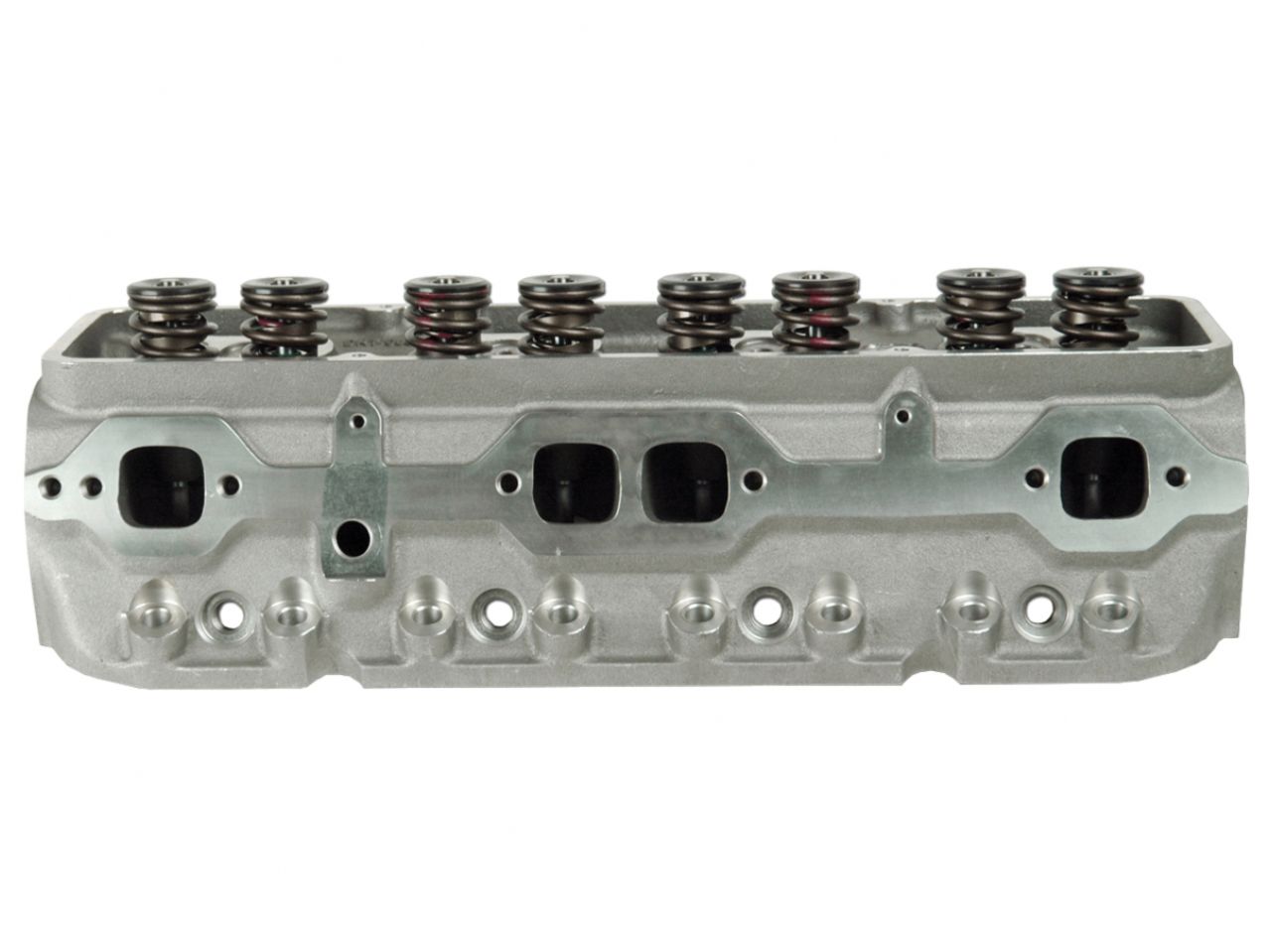

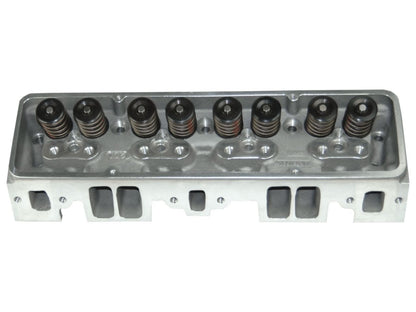

Dart SHP Aluminum Small Block Chevy Cylinder Heads

Street performance, restricted oval track, and marine performance upgrade. Mid-range to 6,500 RPM. Best for 383-434 cubic inch engines.

Dart’s SHP (Special High Performance) 23° 200cc cylinder heads provide an affordable option for larger displacement street performance engines. The SHP is designed to work with most off the shelf components.

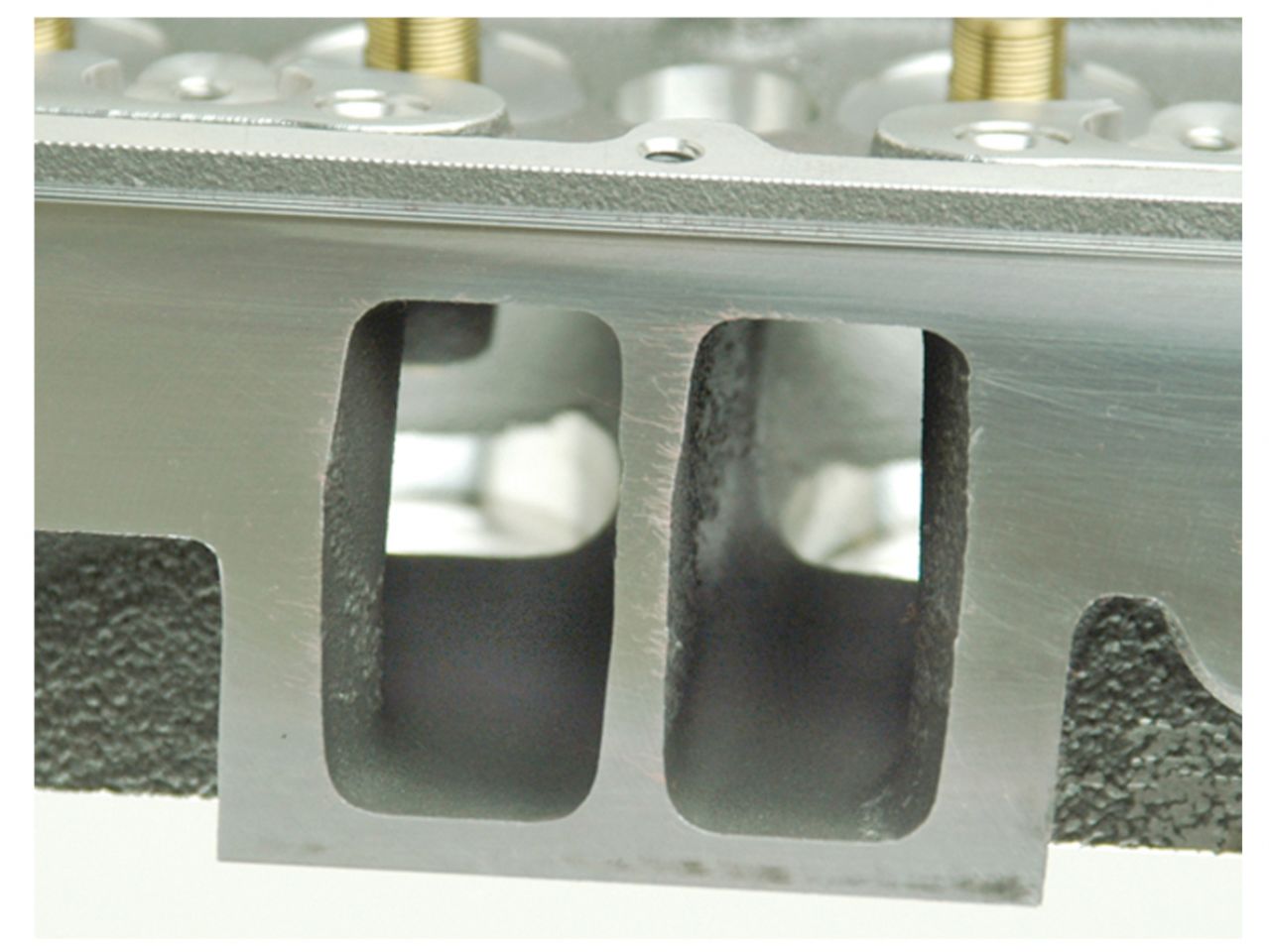

The SHP head’s precision cast ports are designed to offer excellent flow and power without the need for CNC porting. Optimized chambers increase combustion efficiency, and multi-angle intake seats and radiused exhaust seats dramatically increase performance. Manganese Bronze valve guides increase the life of the head.

Heads are sold individually.

Features:

• Material: RMR Cast Aluminum Alloy
• Valve Angle: 23° (stock)
• Intake Port Volume: 200cc
• Intake Valve: 2.020”
• Exhaust Valve: 1.600”
• Chamber Volume: 64 or 72cc
• Plug Type: Straight

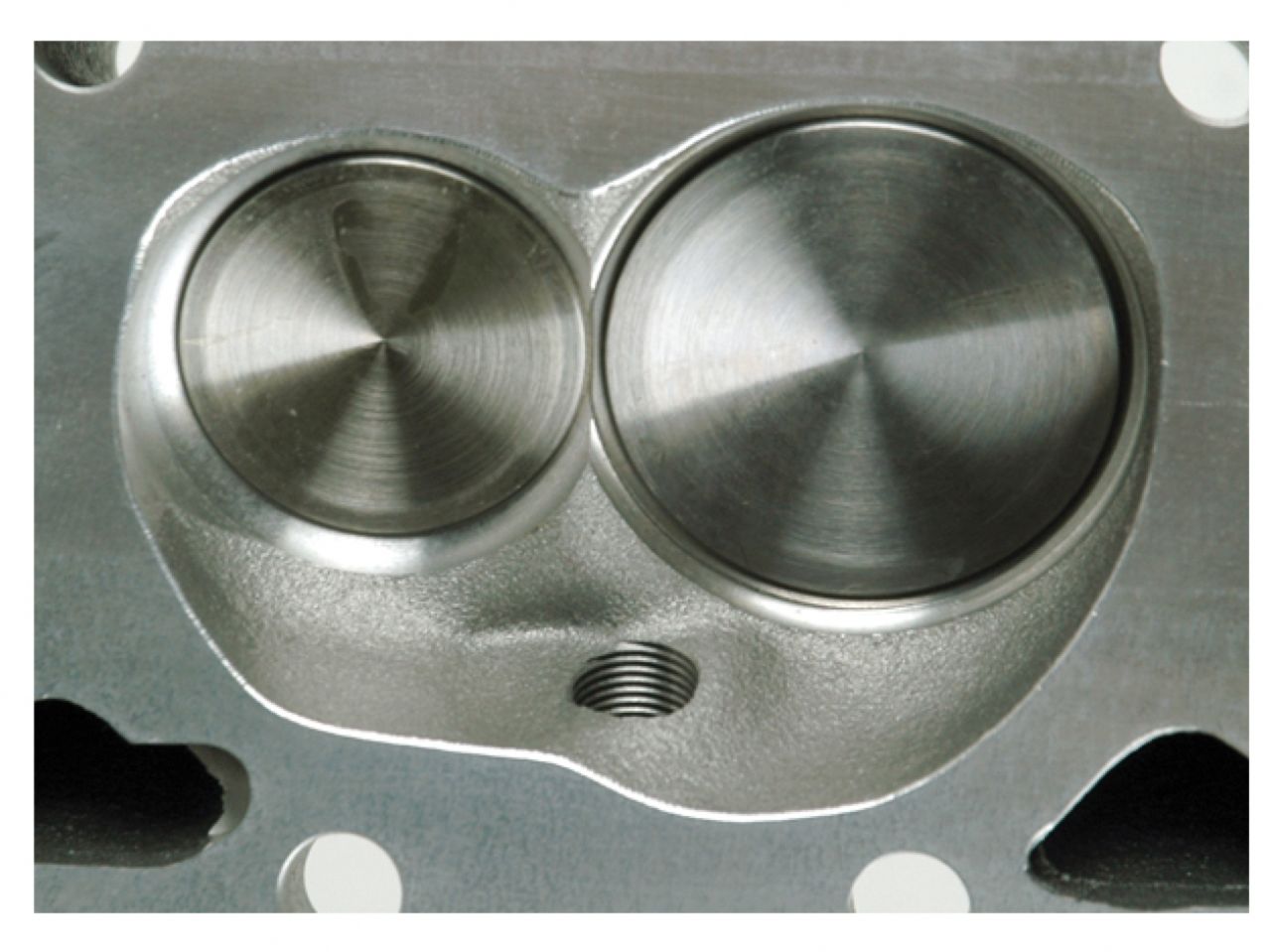

72cc Combustion Chambers

• 1.437” Dual Springs for Hydraulic Roller or Solid Flat Tappet Cam .620”
