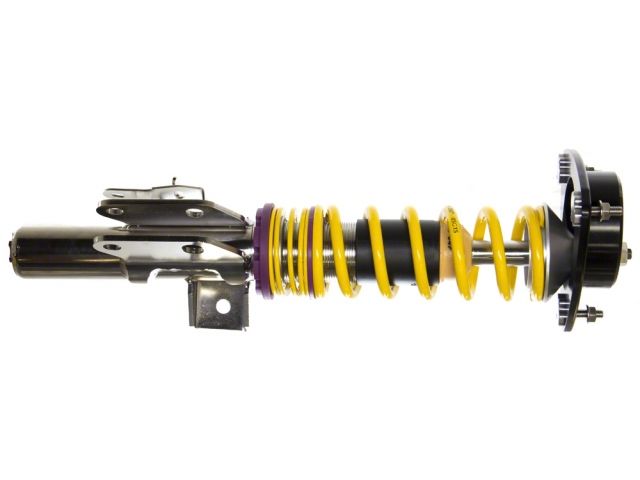

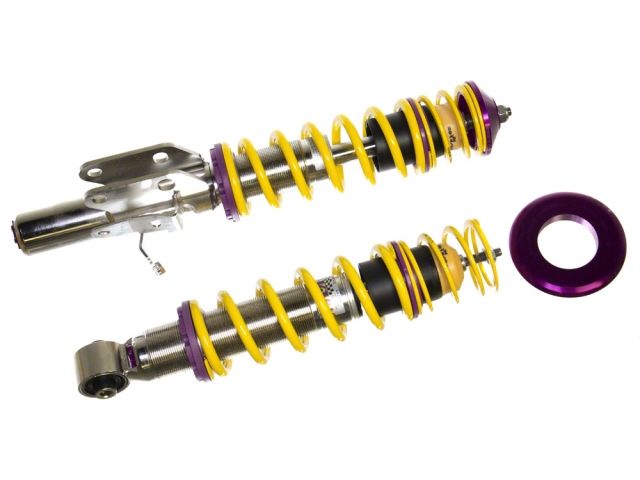

Damperworks KW V3 FRS/BRZ Double Adjustable Suspension with DIF Hats 0UG5Z

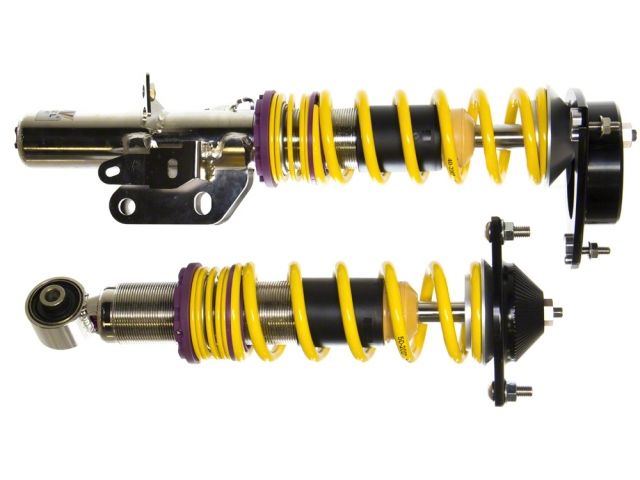

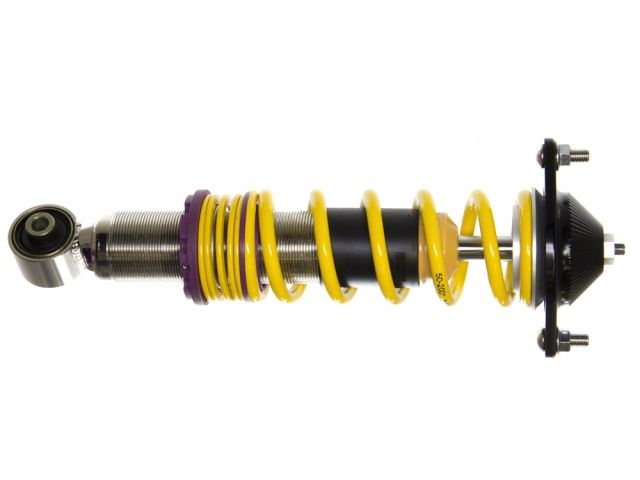

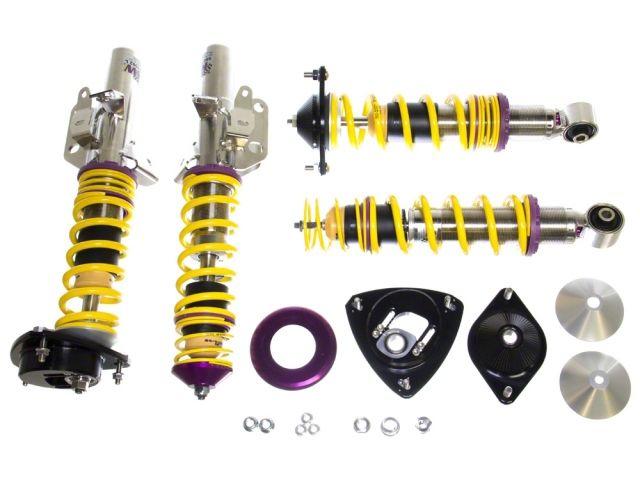

KW Coilover Variant 3 kit with DIF front caster/camber top hat and rear coaxial top hat, Scion FR-S Subaru BRZ Toyota GT86
State-of-the-art technology from motor sports for more performance on the road. The separate and independently adjustable rebound- and compression damping allows for an individual suspension setup for different uses and preferences. The unique patented system with its two-stage valves allows a rebound damping adjustment (comfort) and a compression adjustment (driving dynamics) in the low-speed range while the high-speed range which controls the driving safety, is fixed.
FEATURES:
- Damping technology with individually adjustable rebound- and compression technology
- inox-line* stainless steel technology
- Individually height adjustable
- Adjustment parameters approved by the German Technical Control Board (TÜV)
- High-quality components for long durability
- Infinitely variable rebound damping adjustment
- 14-way adjustable compression damping
- Unique, individually working damping force adjustment
- Comprehensive documentation for easy use

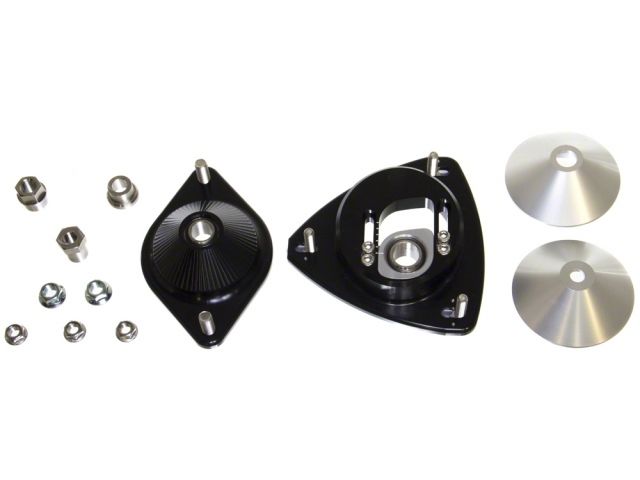

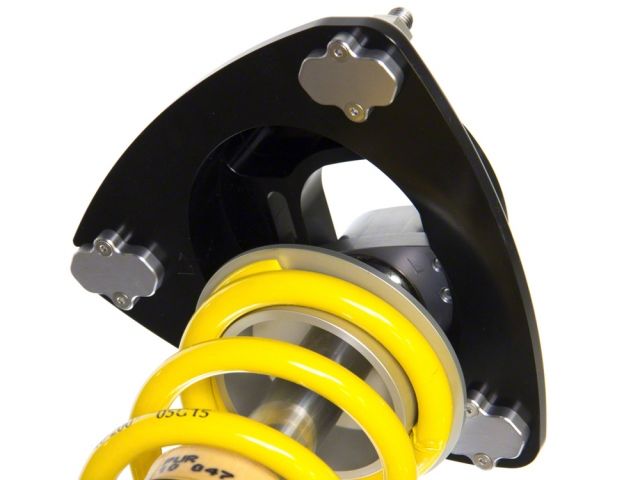

DIF suspension top hats are designed, manufactured, and assembled in Southern California.
FEATURES:
- High clearance spring perch for maximum compression travel
- Manufactured out of 7075 aluminum material

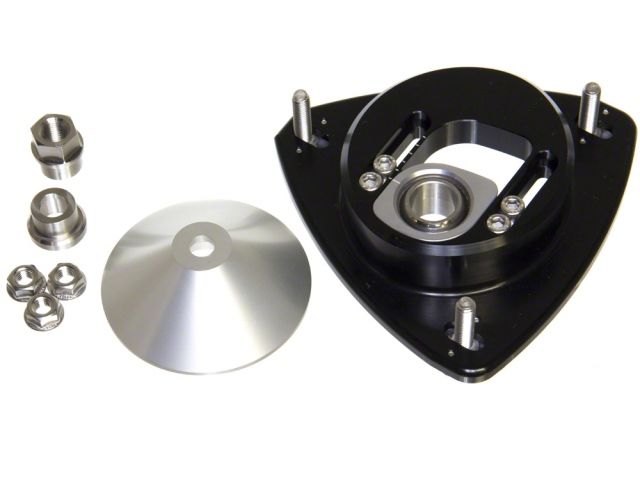

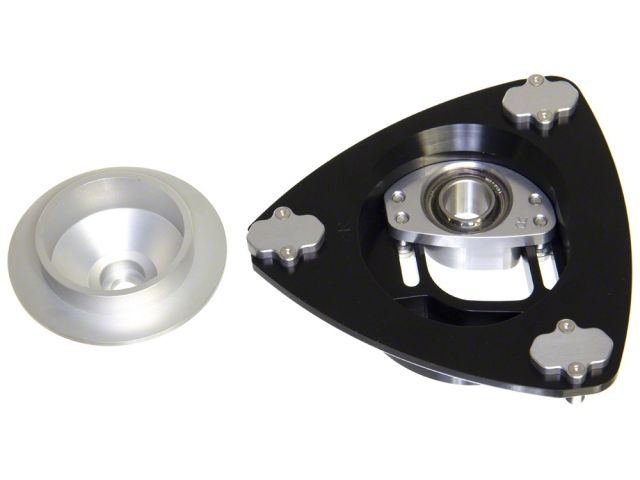

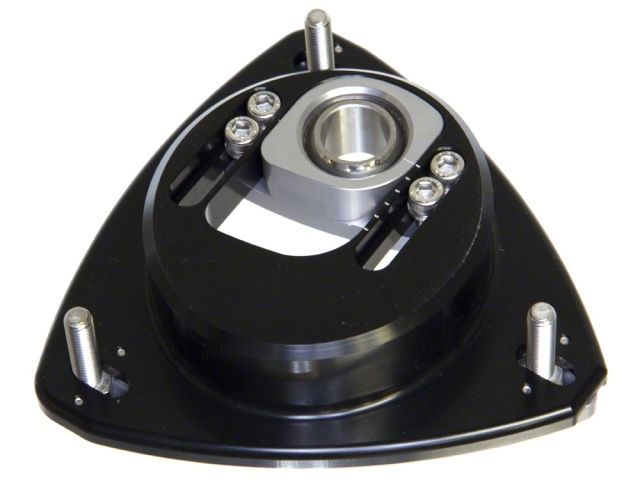

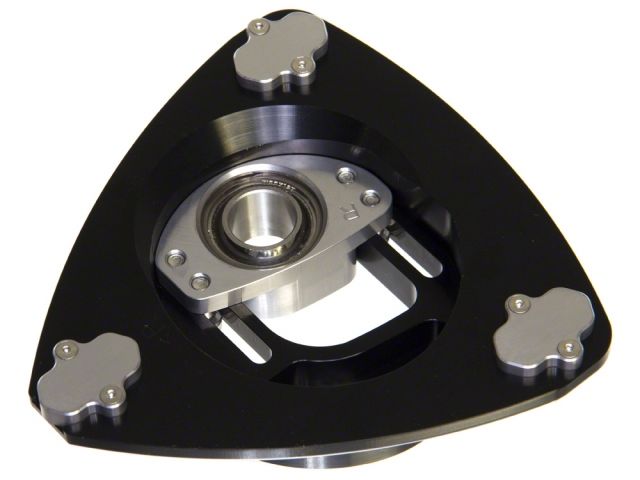

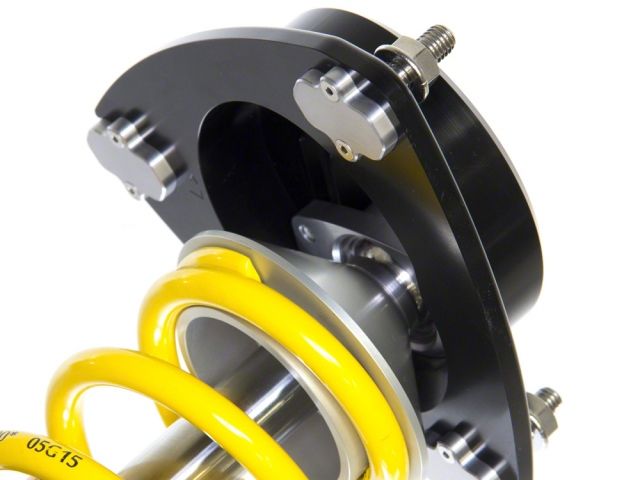

- 0 ~ -3 degrees camber adjustment without eccentric bolt
- Adjustment parameters approved by the German Technical Control Board (TÜV)
- 18-8 stainless steel mounting screws
- 303 stainless camber washers
- FK teflon-lined bearings
- Mounting bolt retainers allow easy top-side only mounting and caster adjustment

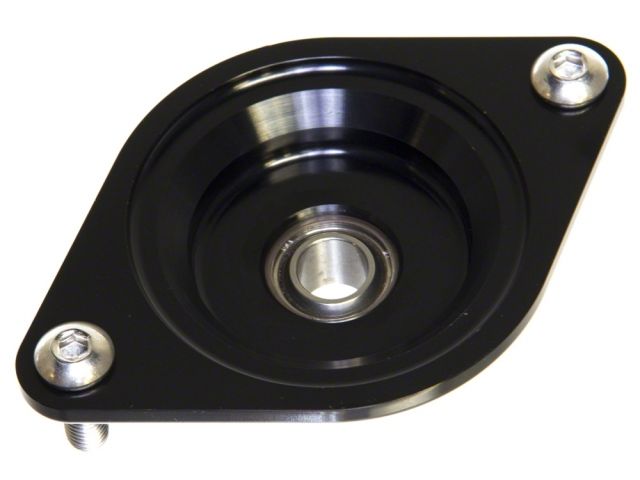

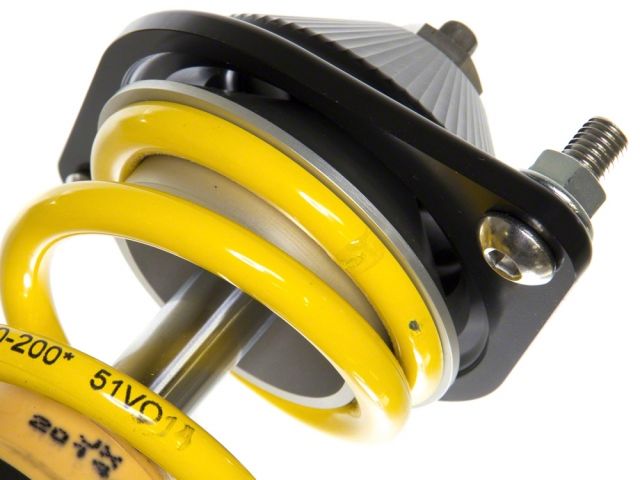

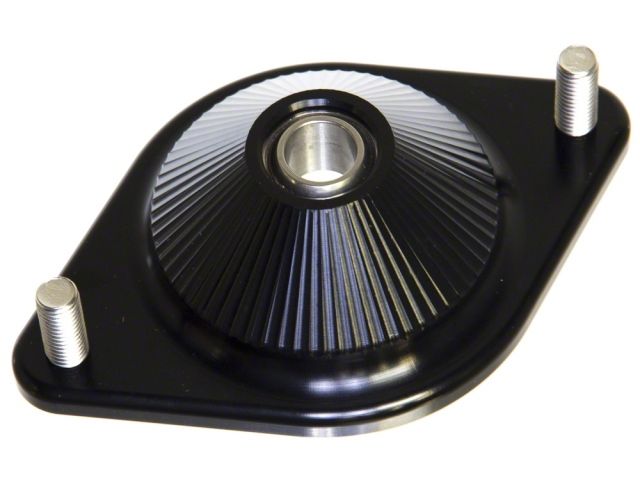

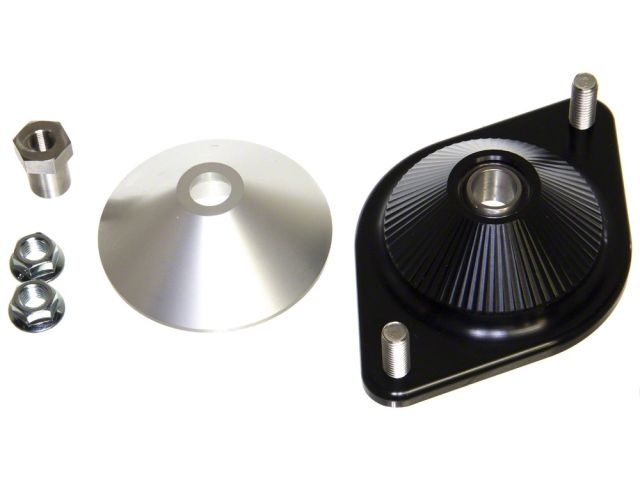

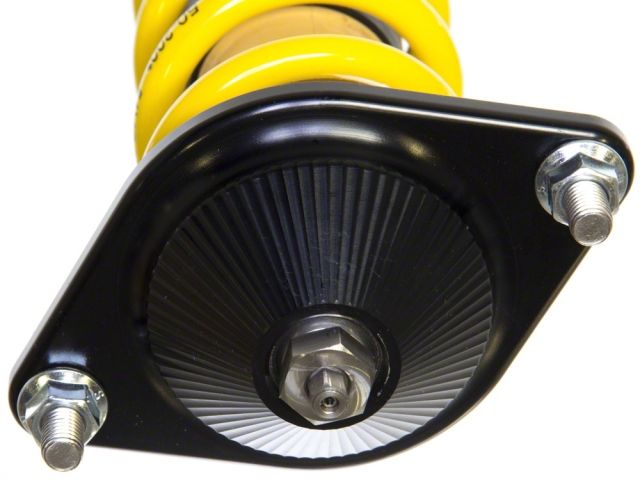

- True coaxial design in rear hat that minimizes spring bind when lowering the car
- Raised bearing mounting point frees up to 0.750" of compression stroke compared to stock in front, up to 0.836" of compression stroke (1.115" at the wheel) compared to stock in rear
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2013 - 2017 | Subaru | BRZ | Premium, Base, Limited, Sport-tech |
| 2015 | Subaru | BRZ | Series.Blue, Aozora Edition |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2017 | Toyota | 86 | Special Edition, Base |
Damperworks KW V3 FRS/BRZ Double Adjustable Suspension with DIF Hats 0UG5Z
Sale price$3,549.99 USD
