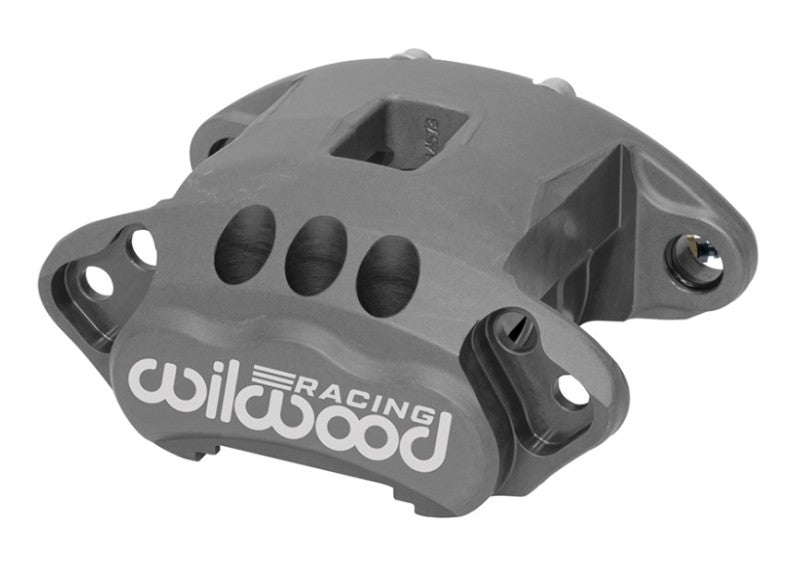

Wilwood D154-R Single Piston Floater

D154-R Single Piston Floater

Wilwood's newest race caliper, the D154-R starts with a forged aluminum Type III hard anodized body with stainless steel piston. With a choice of 2.50” or 2.00” pistons and covering rotors from .81” to 1.04” thickness up to 12.19” diameter. Caliper fluid inlet port centered directly behind the piston eliminates any interference with slide pins. Lower deflection rate and higher volumetric efficiency than all the competitions’ heavier cast models, D154-R calipers with a 2.50" piston weighs only 3.3 pounds and use standard metric D154 pads. Caliper mounting uses stock height and offset.

Features:

Pistons

Piston Count: 1

Piston Area (in²): 3.14

Piston Type: Stainless

Dust Boot: No

Rotor Dimensions

Rotor Width (in):1.04

Rotor Diameter(in): 12.19

Pad Dimensions

Pad Area (in²):8.7

Pad Volume (in³): 2.9

Duty Rating & Material

Material: Aluminum

Weight(Lbs):3.4

Colors & Finish

Color:Ano

Finish: Type III Ano

Mounting

Mount Center(in): 5.46

Mount Side: Universal

Mount Type:Floating
