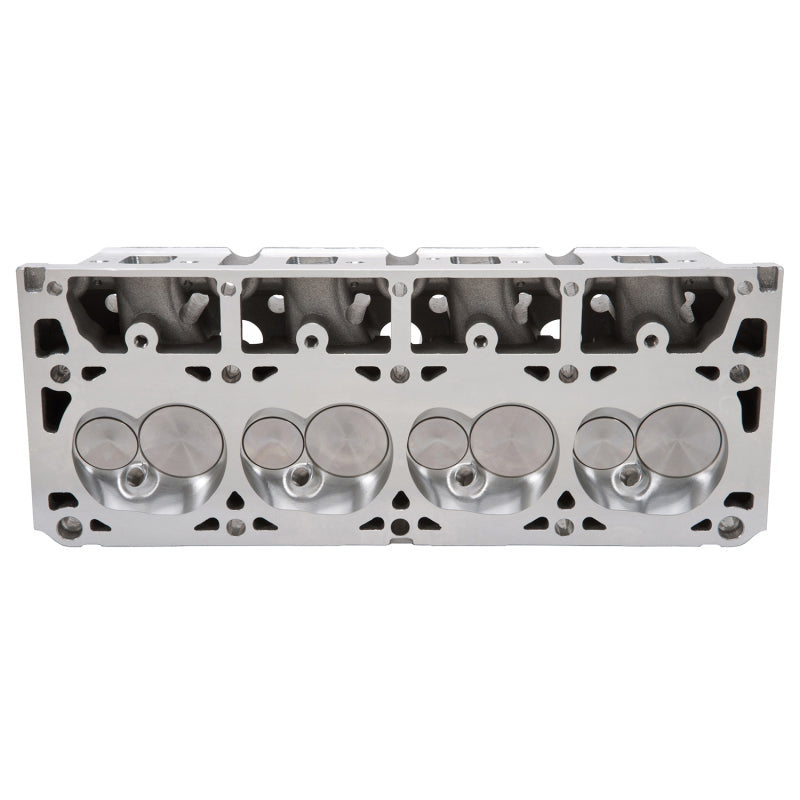

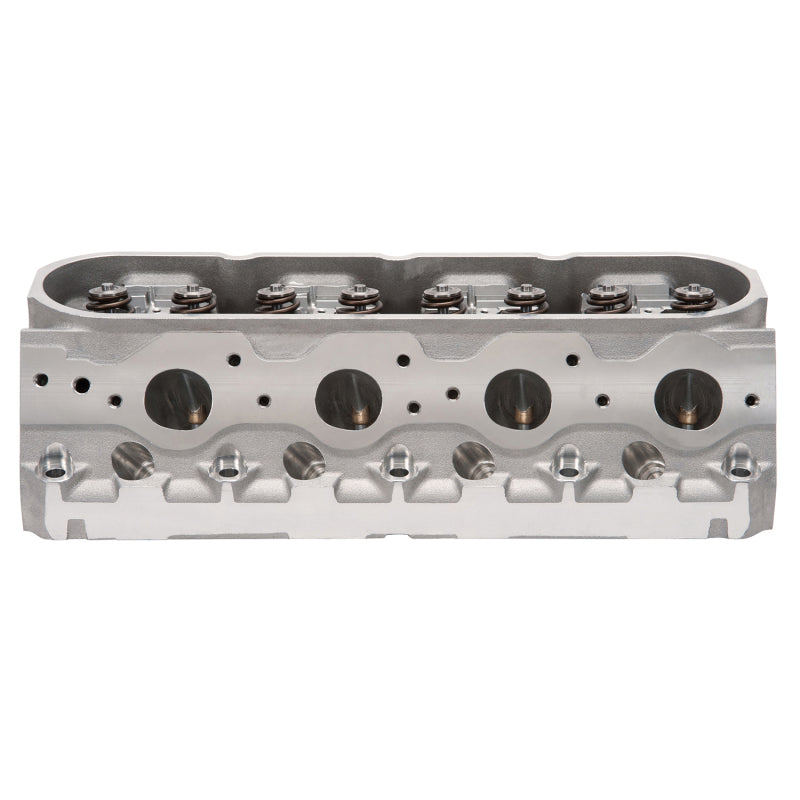

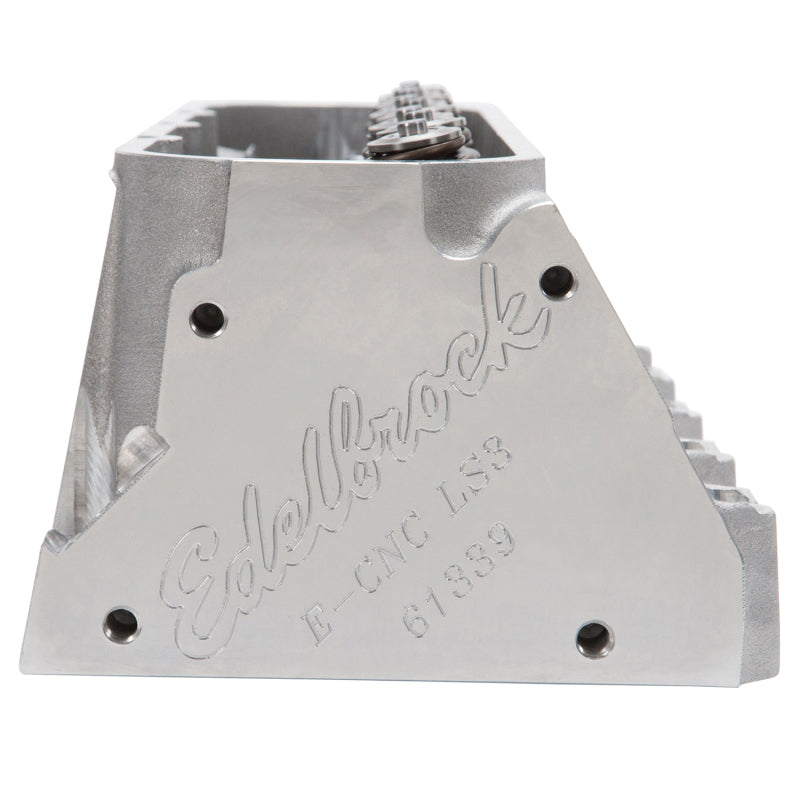

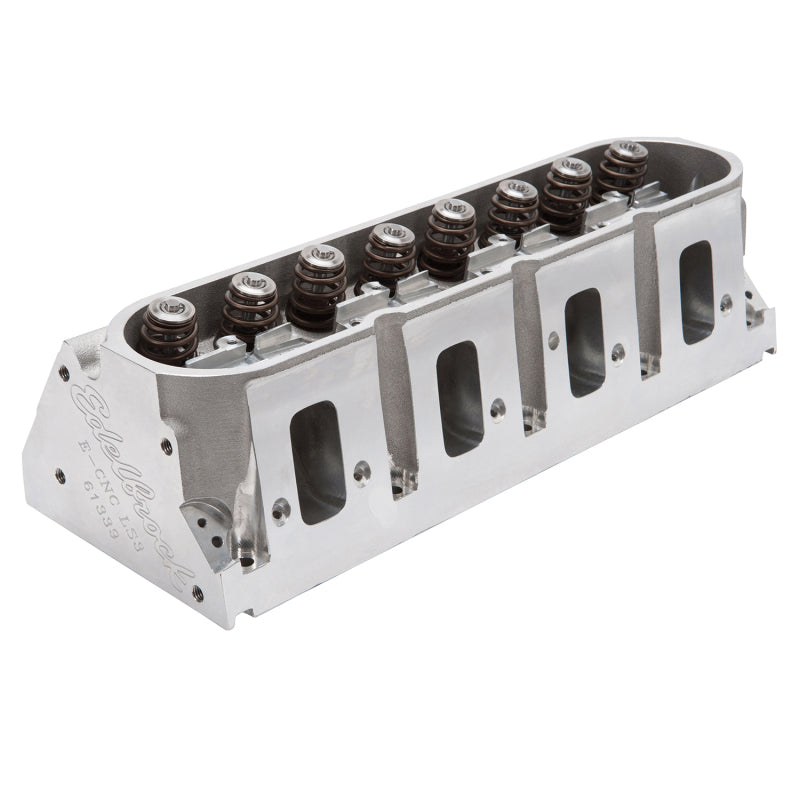

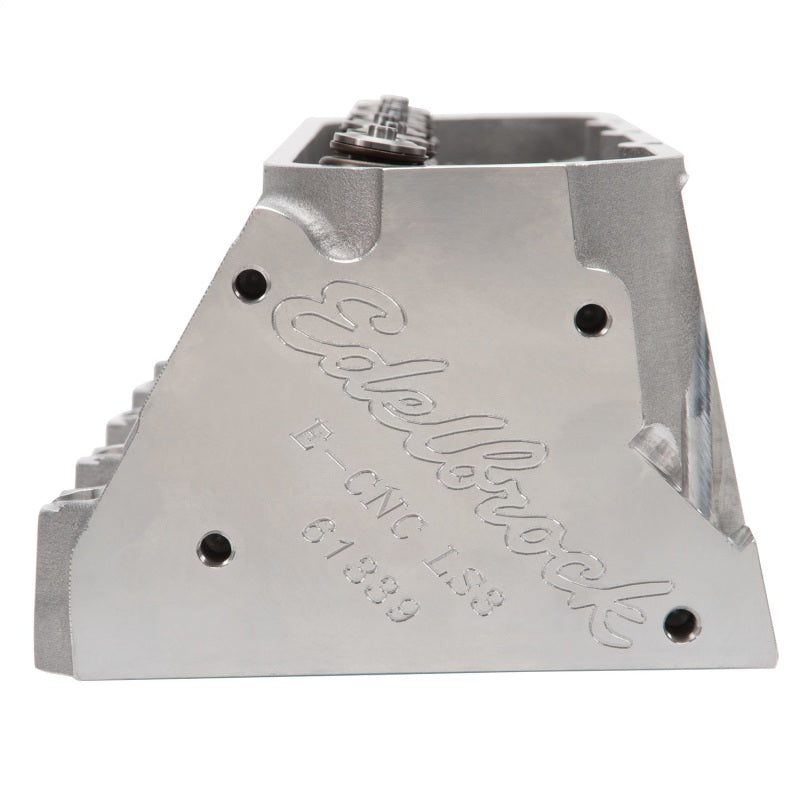

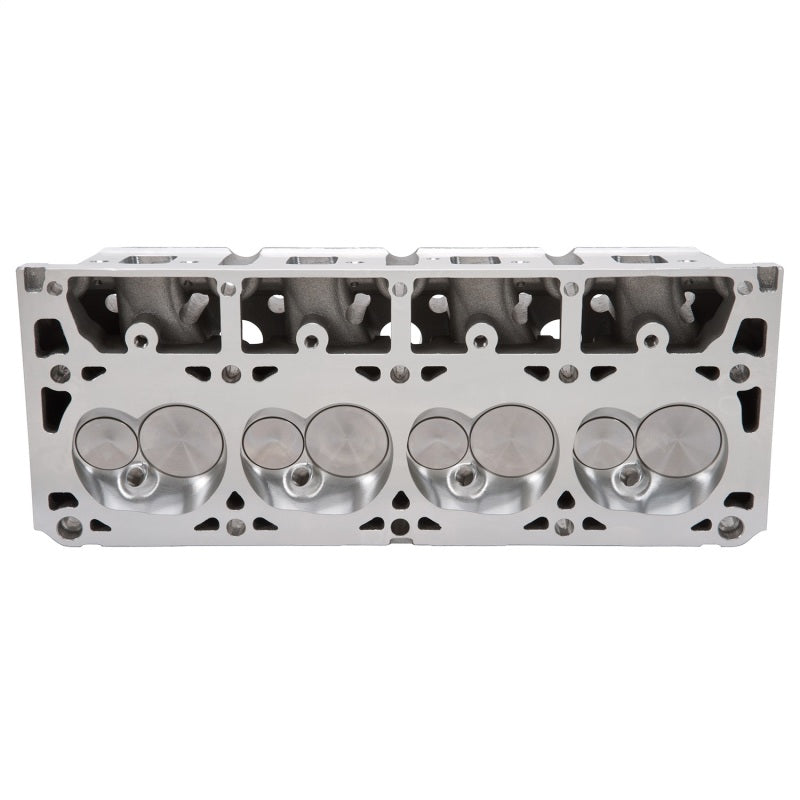

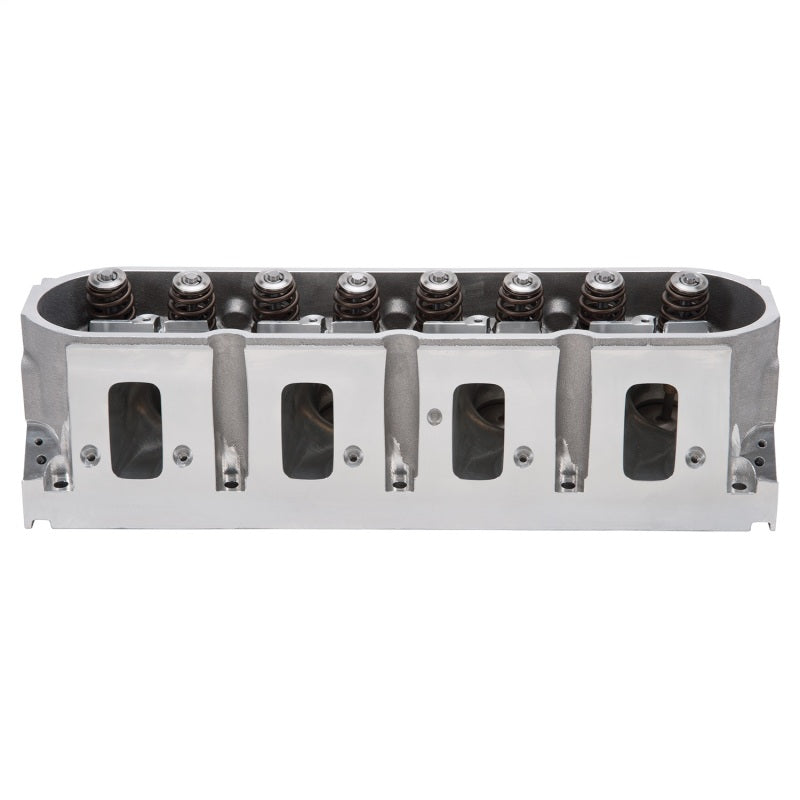

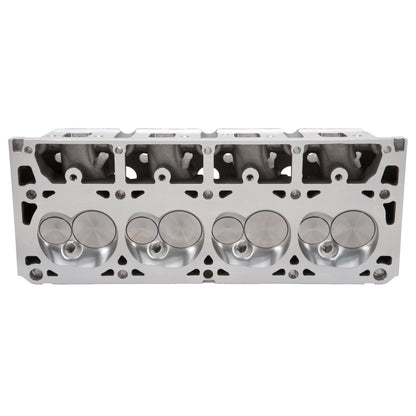

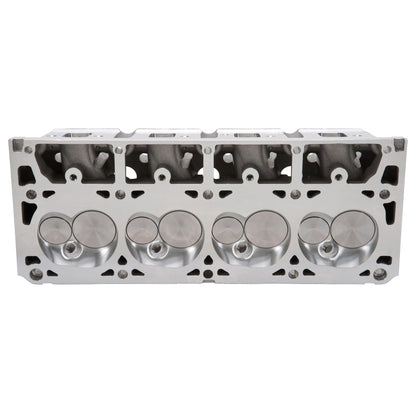

Edelbrock Cylinder Head LS3 GM Gen III/IV Victor JR Standard Block
![](http://frsport.com/cdn/shop/files/we-ship-worldwide_3.webp?v=1709782563&width=300)
Victor Jr Gen III/ IV LS Chevy Cylinder Head Standard Block
The Edelbrock #61339 Victor Jr. LS3 cylinder heads are ideal for use in high performance street and competition engines that have reached their limit with a stock-style cylinder head design. Most aftermarket LS3 cylinder heads on the market today are simply stock head designs with larger ports. Our Victor Jr. LS3 cylinder heads are an all-new ground up design that incorporates subtle changes for improved flow and combustion. These changes were made to improve the limitations encountered in the stock cylinder heads when increasing the performance level of the engine. Changes include a 2.20" diameter intake valve with a canted configuration similar to what is utilized in the GM LT1 Gen V engine. The intake valve change along with the unique port shape produce almost 400cfm peak flow. These cylinder heads also feature fully CNCT intake ports, combustion chambers and exhaust ports for consistency and improved performance. All of these changes make these cylinder heads capable of producing 600+ hp on an LS3 engine with stock rocker arms, intake manifold and exhaust manifolds.
INSTALLATION NOTE:
Equipped with Springs for use in Hydraulic Roller Camshaft Applications
- For Standard LS Block
Specs:
- Application: Universal
- GTIN: 00085347613397
- Combustion Chamber Volume: 69.0 cu.in
- Deck Height: 9.240 Inches
- Deck Thickness: 0.625 Inches
- Exhaust Valve Diameter: 1.600 Inches
- Intake Runner Volume: 280.0 cu.in
- Intake Valve Diameter: 2.200 Inches
- Material: Aluminum
- Push Rod Diameter: 0.312 Inches
- Valve Angle: 11 Degrees
- Valve Spring Diameter: 1.300 Inches
- Valve Spring Maximum Lift: 0.680 Inches
- Valve Stem Diameter: 0.313 Inches
