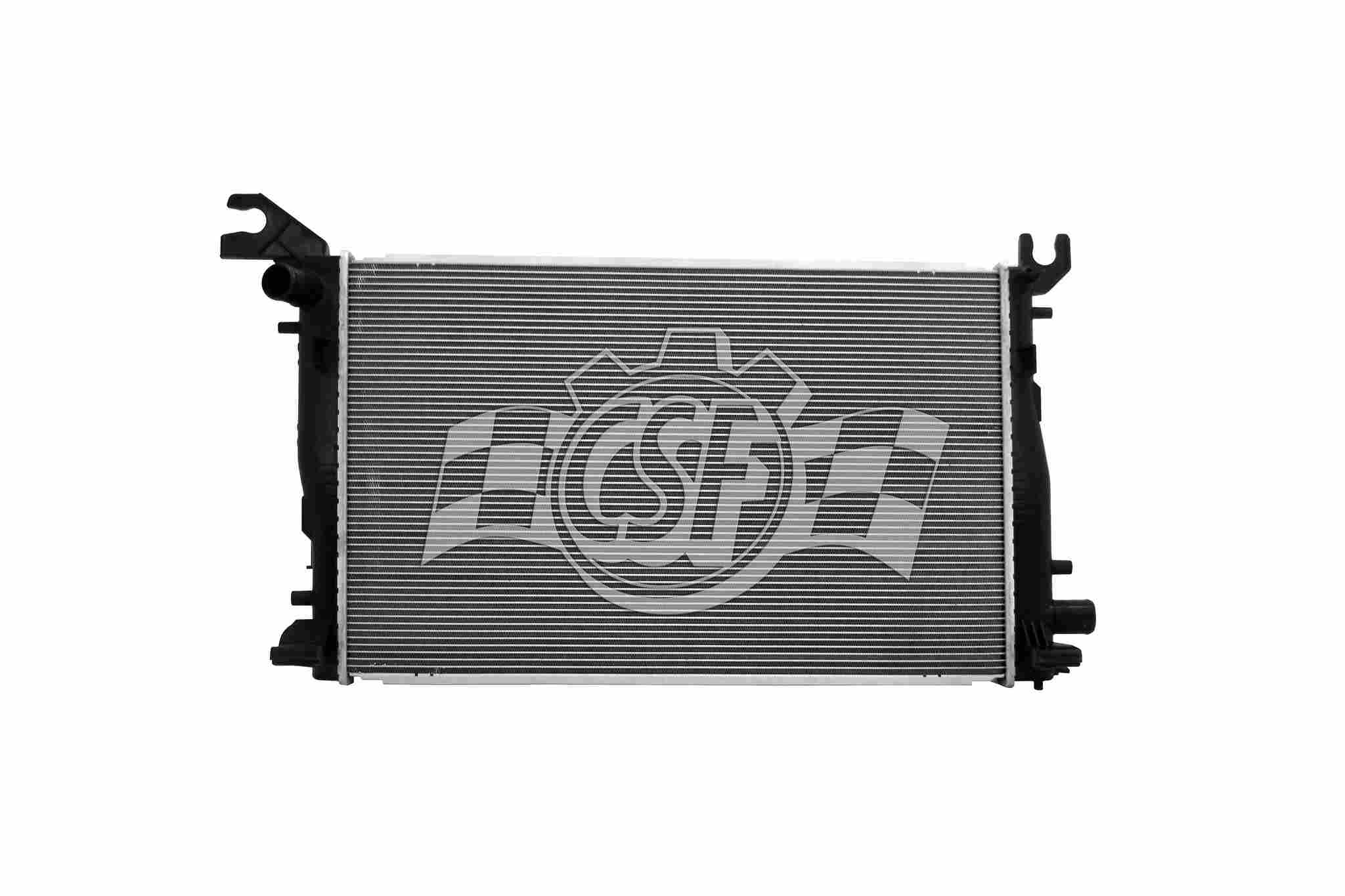

CSF Dodge Ram 2500/3500/ Ram Pickup

OEM specified Plastic Tank-Aluminum Core Construction; Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability; Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F; Tubes - Welded Type or Latest Generation "B-Tube" Design; Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec; 100% leak tested before leaving factory at 150% of operating pressure; Industry Best Packaging - "10 Foot Drop Test" Standard; Drop-in Fit; High Performance Transmission Cooler with special Built-in Turburlator, when applicable; All components are installed, torqued, & tested on Radiator during assembly.

Specifications

Bottom Hose Fitting (In): 1 3/8 Right

Box Height (In): 6 4/16

Box Length (In): 35 3/8

Box Weight (lbs): 10

Box Width (In): 21 3/4

Core Length (in): 25 9/16

Core Material: Aluminum

Core Thickness (In): 7/8

Core Width (in): 15 7/8

Cross-flow/ Down-flow: Down Flow

Hazardous Material: No

Inlet Length (In): 16 9/16

Inlet Width (In): 1 3/8

No. of Rows: 1

Outlet Length (In): 16 9/16

Outlet Width (In): 1 3/8

Radiator Cap Supplied: No

Tank Material: Plastic

Tech Note: O.E.M. style Plastic tanks & Aluminum core

Top Hose Fitting (In): 1 3/8 Left

Vehicle Fitments:
