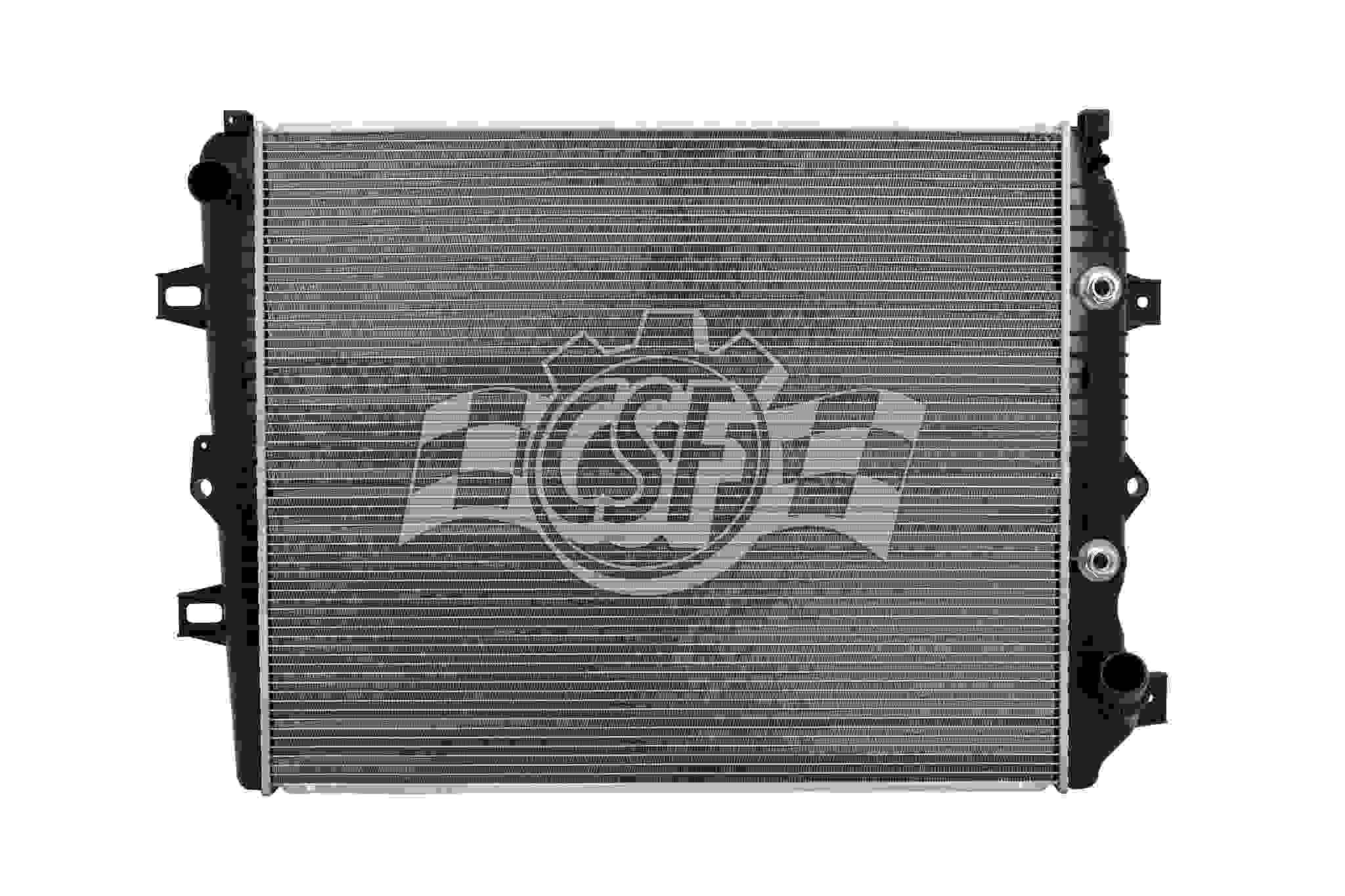

CSF Super Duty Diesel replacement radiator - 6.0L 11-15
Radiator
Feature and Benefit: OEM specified Plastic Tank-Aluminum Core Construction; Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability; Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F; Tubes - Welded Type or Latest Generation "B-Tube" Design; Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec; 100% leak tested before leaving factory at 150% of operating pressure; Industry Best Packaging - "10 Foot Drop Test" Standard; Drop-in Fit; High Performance Transmission Cooler with special Built-in Turburlator, when applicable; All components are installed, torqued, & tested on Radiator during assembly.
- CSF factories are ISO/TSO certified
- CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!
- Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation
- We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road.
Box Height (In): 7 7/16
Box Length (In): 45 13/16
Box Weight (lbs): 29
Box Width (In): 31 5/8
Core Length (in): 33 7/16
Core Material: Aluminum
Core Thickness (In): 2 1/16
Core Width (in): 27 1/2
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (In): 28 1/8
Inlet Width (In): 2 7/16
No. of Rows: 2
Oil Cooler (In): 11 1/2 (high-efficiency Plate Type)
Outlet Length (In): 28 1/8
Outlet Width (In): 2 7/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe & quick-connect oil cooler fittings.
Top Hose Fitting (In): 1 13/16 Left
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2016 | Chevrolet | Silverado 2500 HD | High Country |
| 2011 - 2016 | Chevrolet | Silverado 2500 HD | LT, WT, LTZ |
| 2015 - 2016 | Chevrolet | Silverado 3500 HD | High Country |
| 2011 - 2016 | Chevrolet | Silverado 3500 HD | LTZ, WT, LT |
| 2015 - 2016 | GMC | Sierra 2500 HD | Base |
| 2011 - 2016 | GMC | Sierra 2500 HD | SLE, Denali, SLT |
| 2011 - 2014 | GMC | Sierra 2500 HD | WT |
| 2015 - 2016 | GMC | Sierra 3500 HD | Base |
| 2011 - 2016 | GMC | Sierra 3500 HD | SLT, Denali, SLE |
| 2011 - 2014 | GMC | Sierra 3500 HD | WT |
