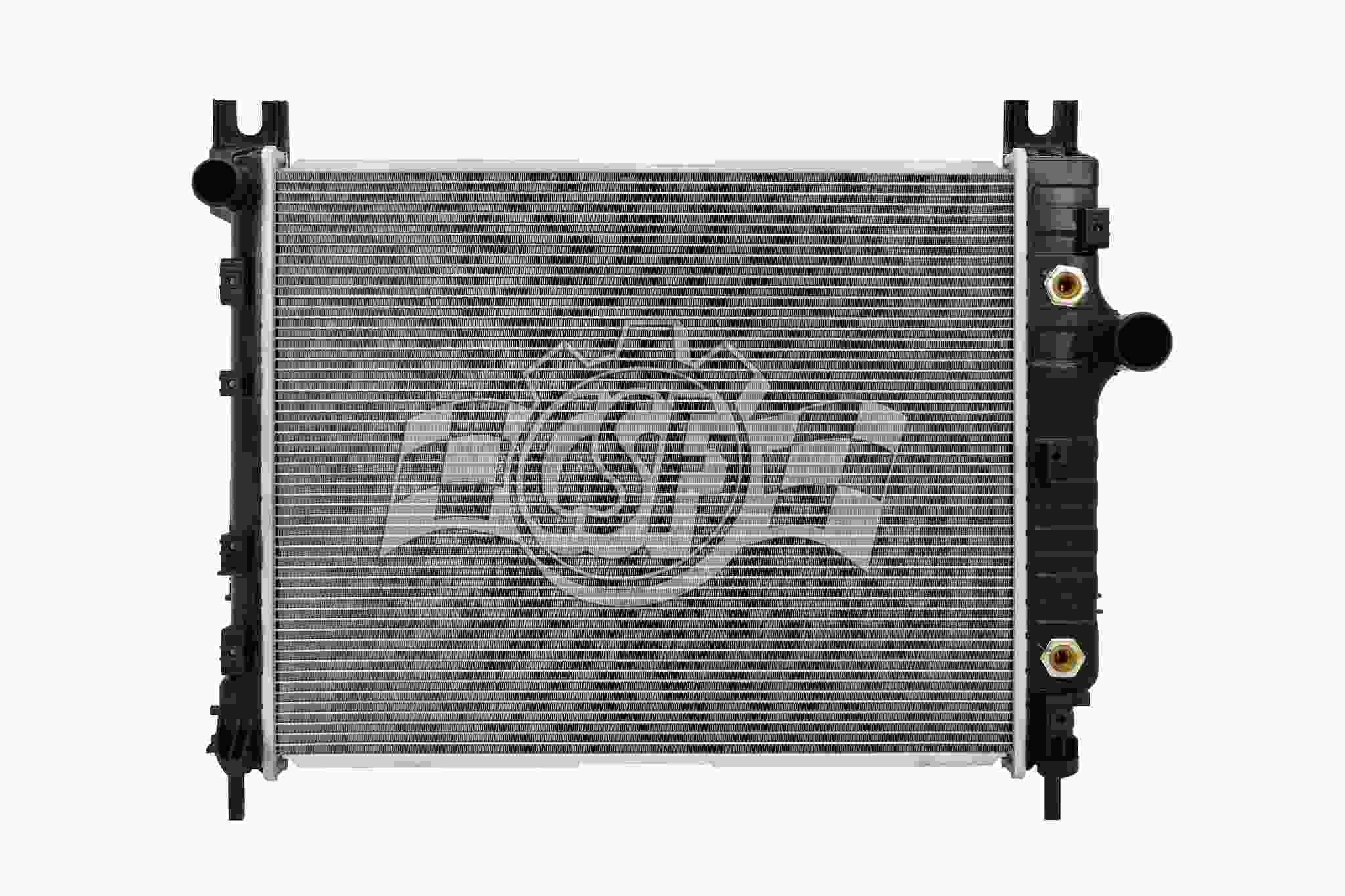

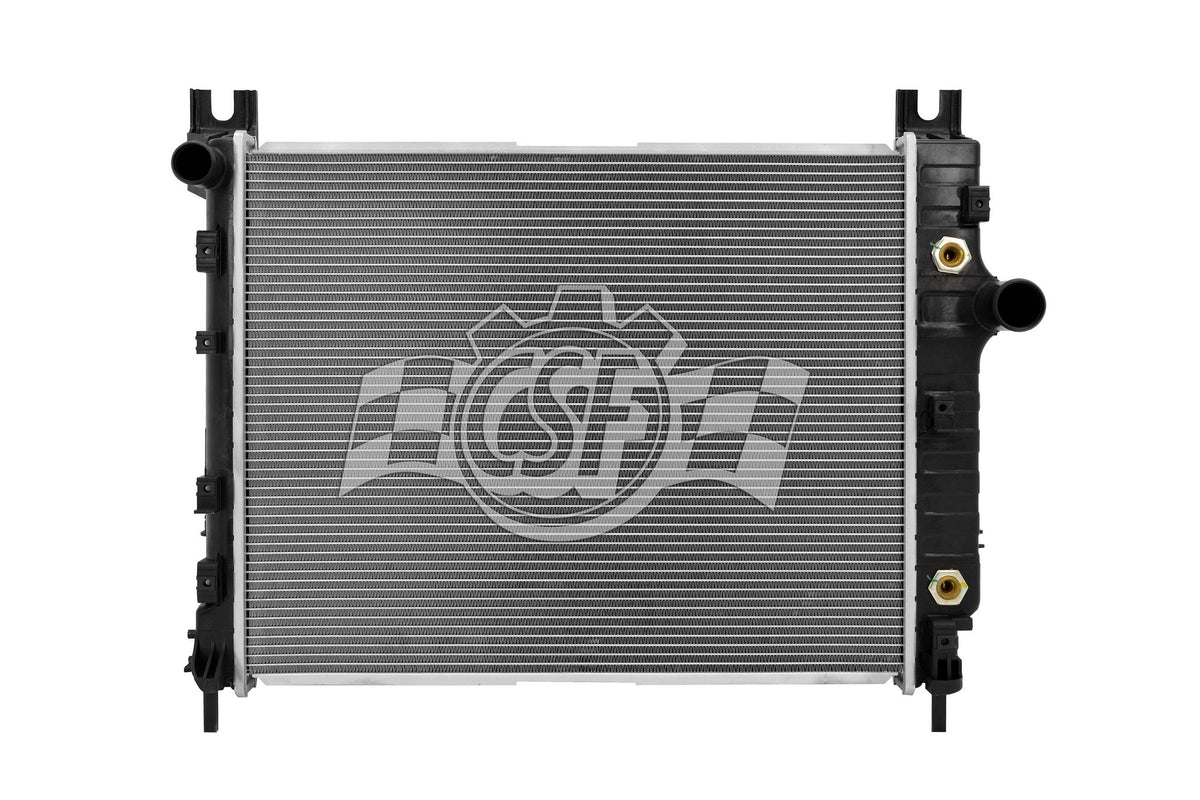

CSF Radiator

OEM specified Plastic Tank-Aluminum Core Construction; Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability; Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F; Tubes - Welded Type or Latest Generation "B-Tube" Design; Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec; 100% leak tested before leaving factory at 150% of operating pressure; Industry Best Packaging - "10 Foot Drop Test" Standard; Drop-in Fit; High Performance Transmission Cooler with special Built-in Turburlator, when applicable; All components are installed, torqued, & tested on Radiator during assembly.

Specifications

Bottom Hose Fitting (In): 1 3/4 Right

Box Height (In): 8 13/16

Box Length (In): 32 1/4

Box Weight (lbs): 16

Box Width (In): 25 11/16

Core Length (in): 23 1/2

Core Material: Aluminum

Core Thickness (In): 1 5/8

Core Width (in): 18 11/16

Cross-flow/ Down-flow: Down Flow

Hazardous Material: No

Inlet Length (In): 19 13/16

Inlet Width (In): 2 1/8

No. of Rows: 2

Oil Cooler (In): 12 (high-efficiency Plate Type)

Outlet Length (In): 19 13/16

Outlet Width (In): 2 1/8

Radiator Cap Supplied: No

Tank Material: Plastic

Tech Note: O.E.M. style Plastic tanks & Aluminum core;Manufactured with steel crimps to strengthen radiator by 40% O.E.

Top Hose Fitting (In): 1 1/2 Left

Vehicle Fitments:
