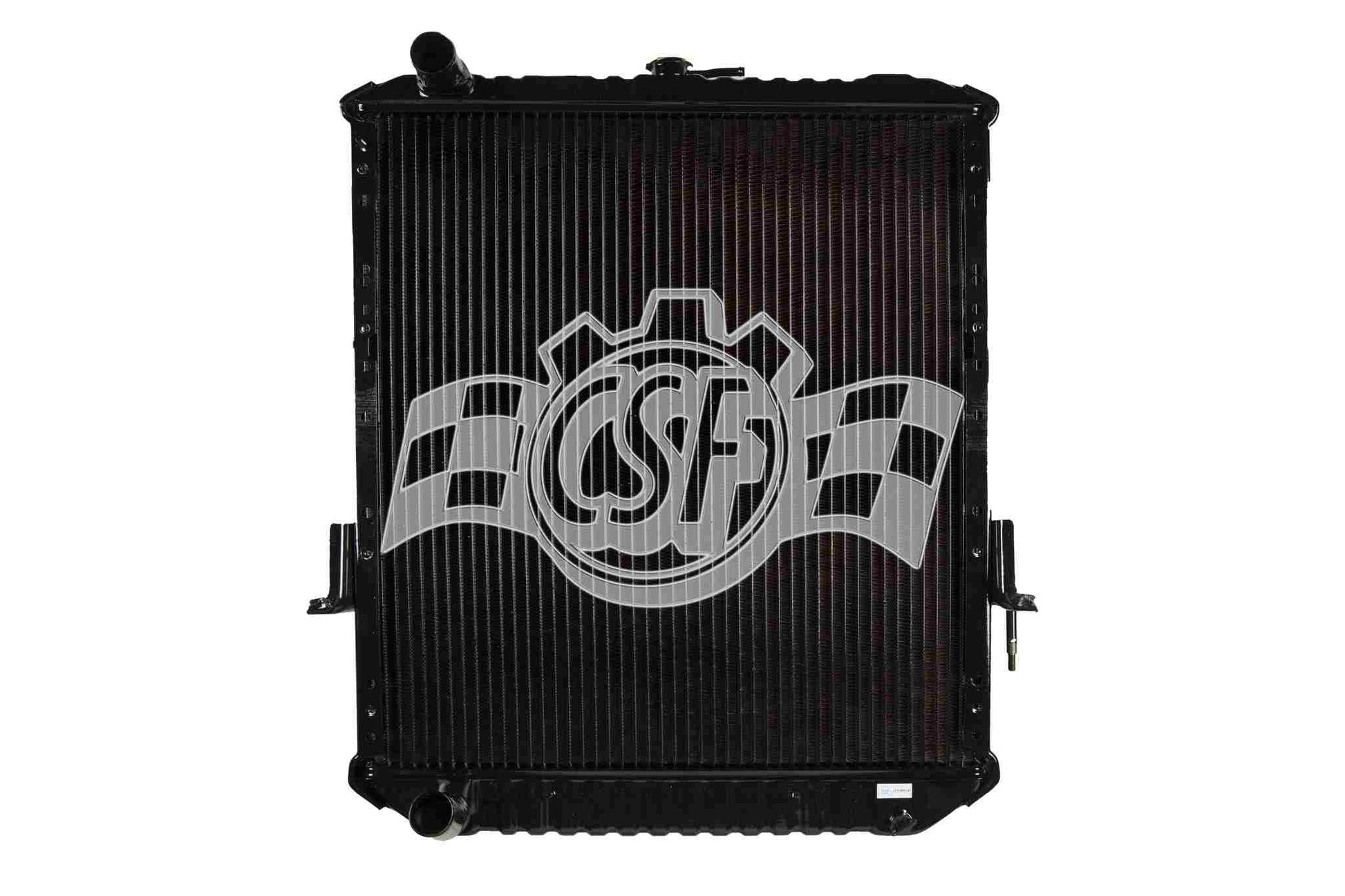

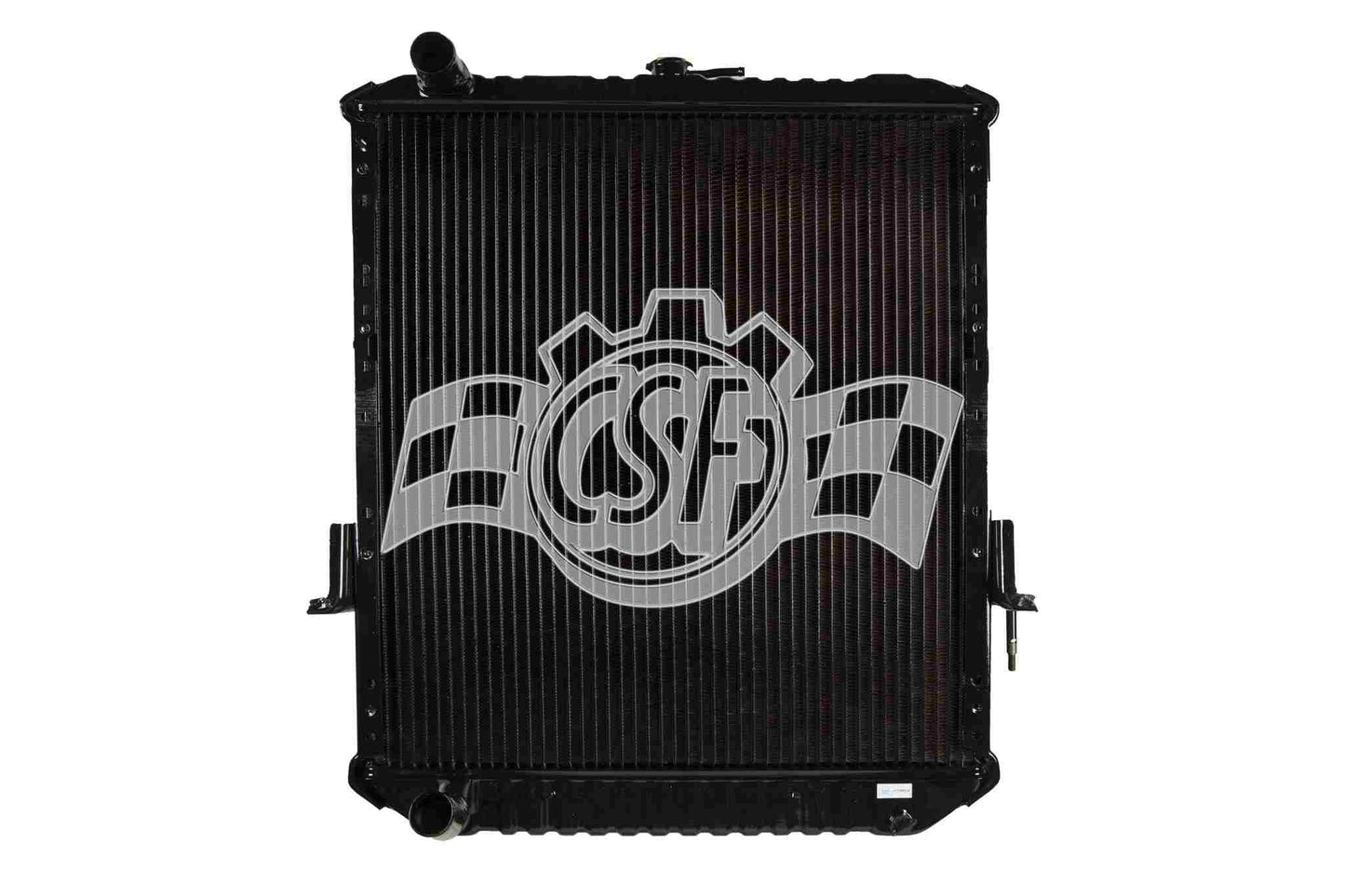

CSF Radiator

OEM specified Copper-Brass Construction; Easy to recore & repair; No risk for coolant contamination and damage to sensitive seals, water pump & thermostat; OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability; Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life; Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec; Side Channels - Coated Steel for Strength & Durability; Reinforced Inlet & Outlet Connections with "Thru Pipe Design"; 100% leak tested before leaving factory at 150% of operating pressure; Industry Best Packaging - "10 Foot Drop Test" Standard; Drop-in Fit; Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators; All components are installed, torqued & tested on Radiator during assembly.

Specifications

Bottom Hose Fitting (In): 1 1/2 Left

Box Height (In): 7 1/16

Box Length (In): 30 1/16

Box Weight (lbs): 28

Box Width (In): 28 7/16

Core Length (in): 23 1/4

Core Material: Copper

Core Thickness (In): 1 11/16

Core Width (in): 21 5/8

Cross-flow/ Down-flow: Down Flow

CSF Cap Number: 4502

Hazardous Material: No

Inlet Length (In): 22 3/16

Inlet Width (In): 2

No. of Rows: 3

Oil Cooler (In): 12 (high-effeciency Concentric Type)

Outlet Length (In): 22 3/16

Outlet Width (In): 2

Radiator Cap Supplied: No

Tank Material: Brass

Tech Note: All Metal Heavy Duty Model

Top Hose Fitting (In): 1 1/2 Left
