CSF 91-01 Cherokee (XJ) 2.5 & 4.0L LHD w/ filler neck (3 ROW copper core)
Radiator
Feature and Benefit: OEM specified Copper-Brass Construction; Easy to recore & repair; No risk for coolant contamination and damage to sensitive seals, water pump & thermostat; OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability; Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life; Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec; Side Channels - Coated Steel for Strength & Durability; Reinforced Inlet & Outlet Connections with "Thru Pipe Design"; 100% leak tested before leaving factory at 150% of operating pressure; Industry Best Packaging - "10 Foot Drop Test" Standard; Drop-in Fit; Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators; All components are installed, torqued & tested on Radiator during assembly.
- CSF factories are ISO/TSO certified
- CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!
- Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation
- We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road.
Box Height (In): 8 5/8
Box Length (In): 38 3/4
Box Weight (lbs): 19
Box Width (In): 16 1/16

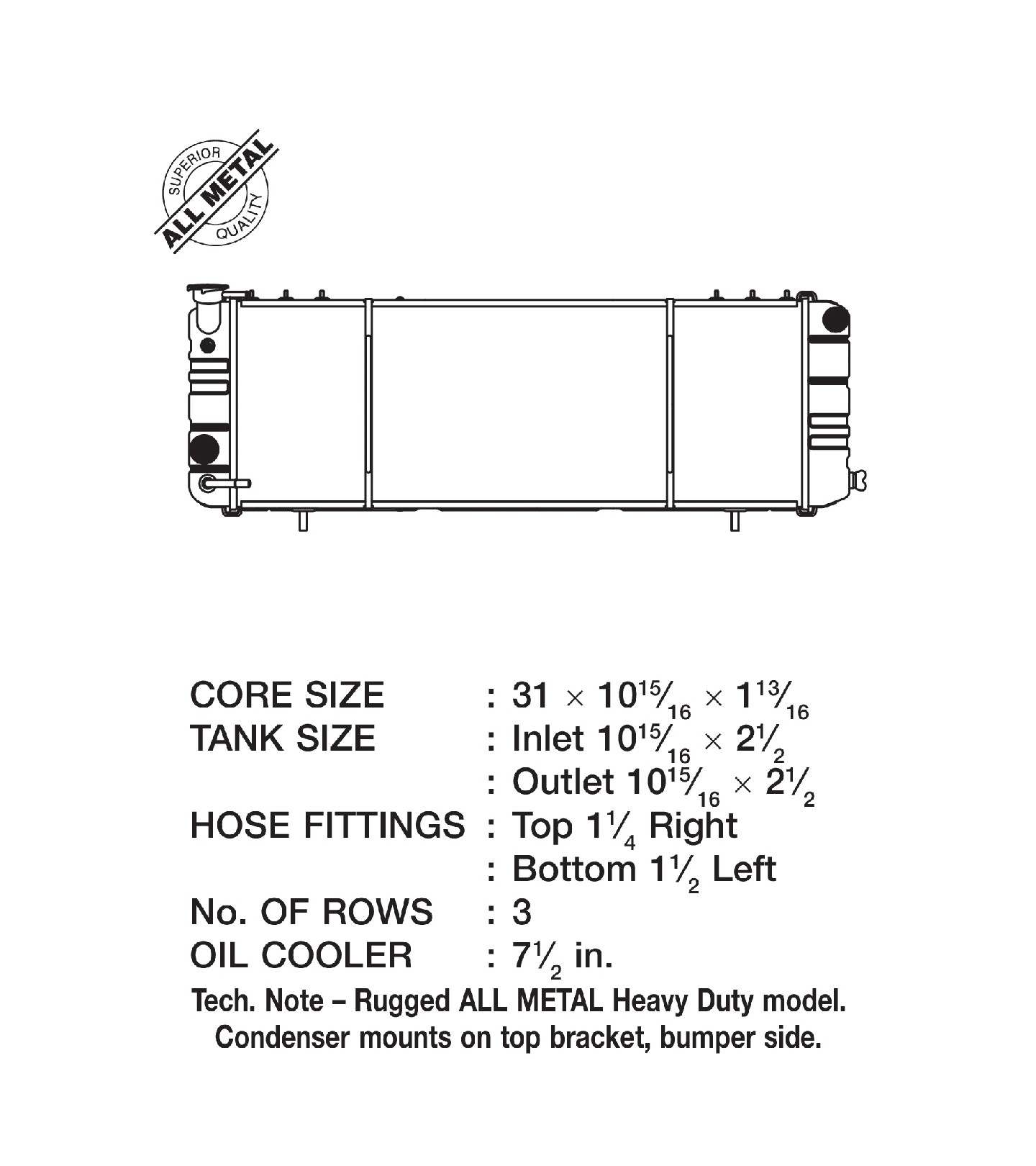

Core Length (in): 31
Core Material: Copper
Core Thickness (In): 1 11/16
Core Width (in): 10 15/16
Cross-flow/ Down-flow: Cross Flow
CSF CAP NUMBER: 4501
Hazardous Material: No
Inlet Length (In): 11 1/8
Inlet Width (In): 2 1/2
No. of Rows: 3
Oil Cooler (In): 7 1/2 (high-effeciency Concentric Type)
Outlet Length (In): 11 1/8
Outlet Width (In): 2 1/2
Radiator Cap Supplied: No
Tank Material: Brass
Tech Note: Rugged ALL METAL Heavy Duty model;Condenser mounts on top bracket, bumper side.
Top Hose Fitting (In): 1 1/4 Right
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003 - 2008 | INFINITI | FX35 | Base |
| 2003 - 2008 | INFINITI | FX45 | Base |
| 1991 - 1994 | Jeep | Cherokee | Base |
| 1991 - 1992 | Jeep | Cherokee | Briarwood, Laredo |
| 1996 - 2001 | Jeep | Cherokee | Classic |
| 1993 - 1997 | Jeep | Cherokee | Country |
| 1994 - 2001 | Jeep | Cherokee | SE |
| 1991 - 2001 | Jeep | Cherokee | Sport, Limited |
