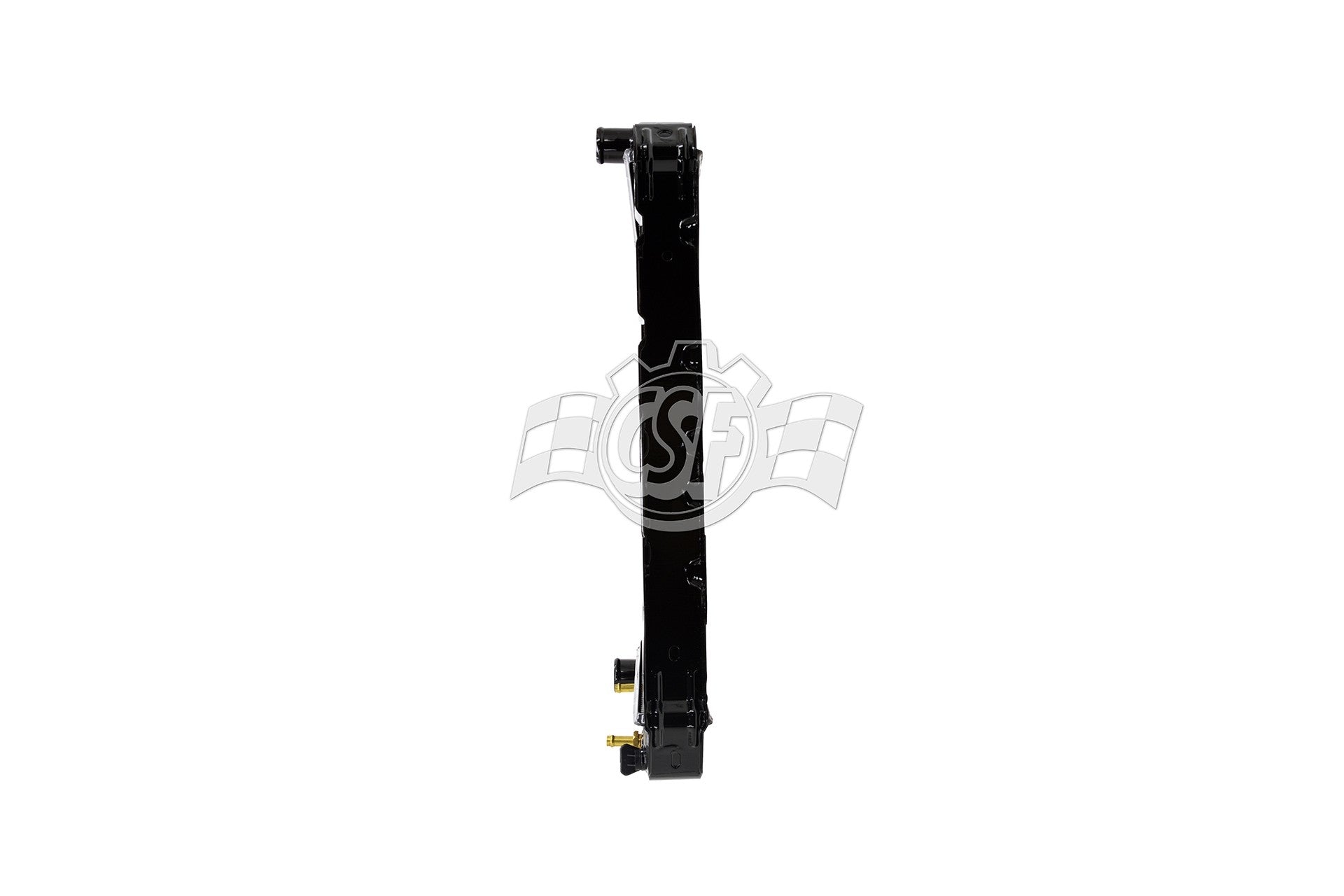

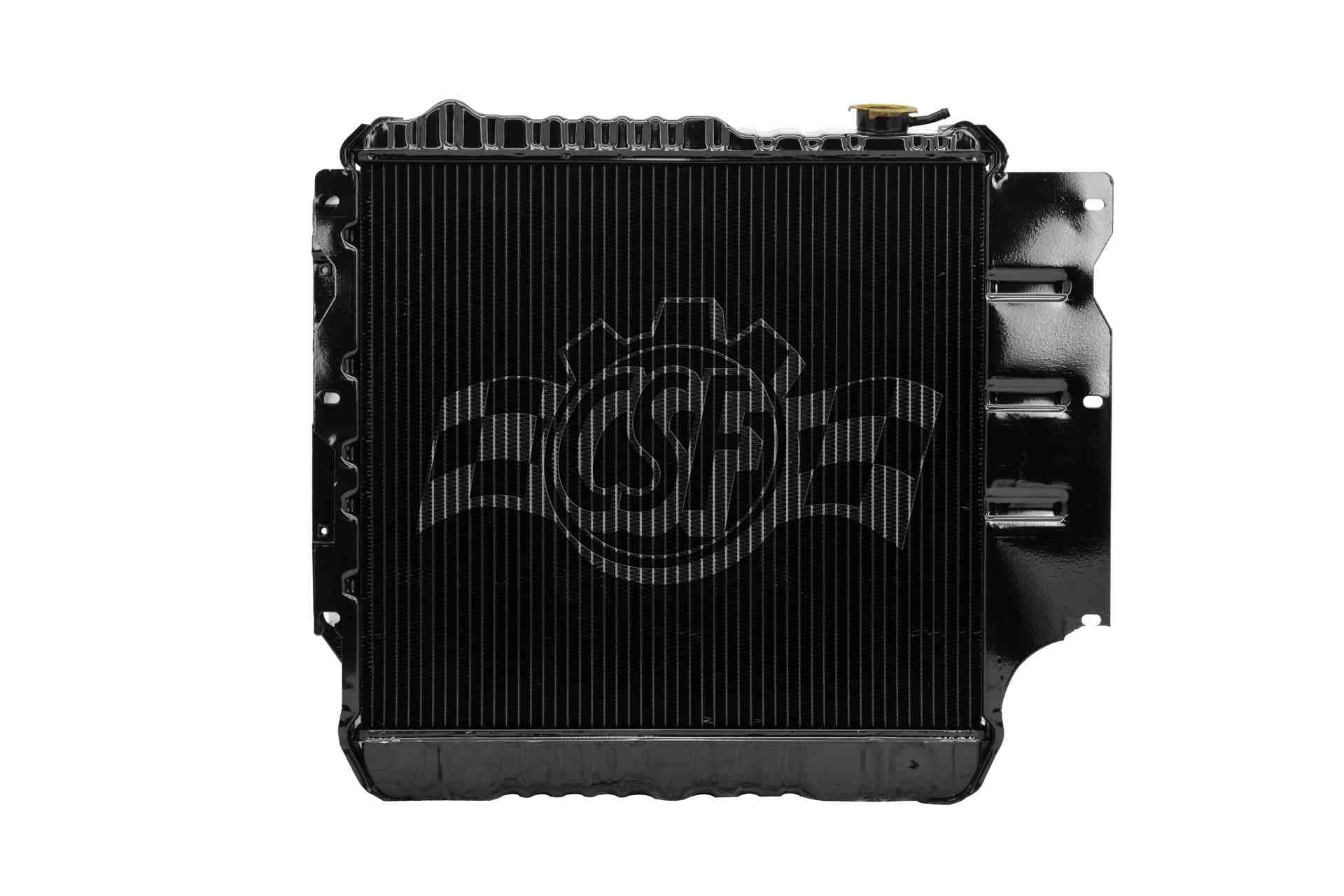

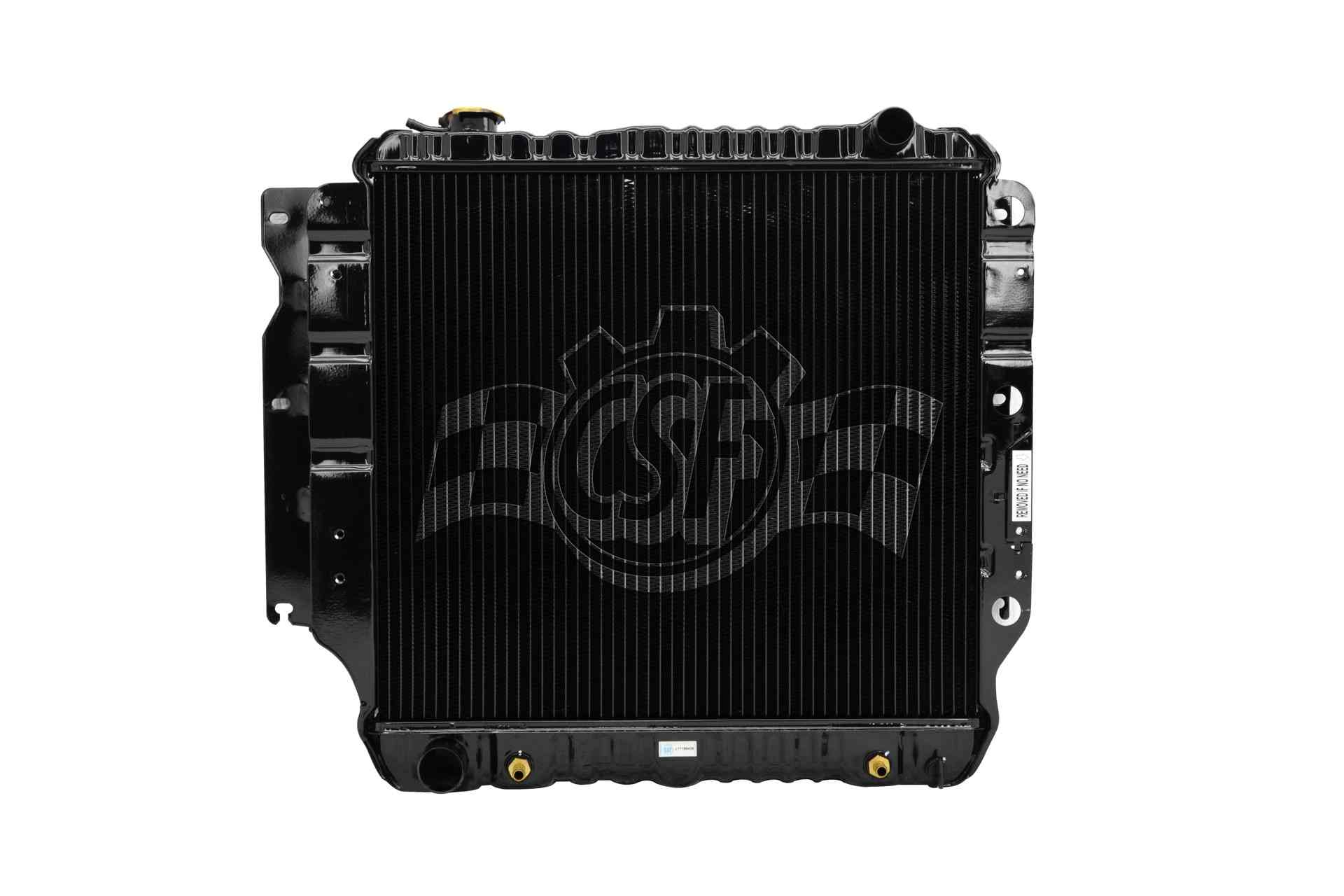

CSF 87-04 Jeep Wrangler (3 ROW copper core)
Radiator
Feature and Benefit: OEM specified Copper-Brass Construction; Easy to recore & repair; No risk for coolant contamination and damage to sensitive seals, water pump & thermostat; OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability; Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life; Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec; Side Channels - Coated Steel for Strength & Durability; Reinforced Inlet & Outlet Connections with "Thru Pipe Design"; 100% leak tested before leaving factory at 150% of operating pressure; Industry Best Packaging - "10 Foot Drop Test" Standard; Drop-in Fit; Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators; All components are installed, torqued & tested on Radiator during assembly.
- CSF factories are ISO/TSO certified
- CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!
- Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation.
Box Height (In): 5 11/16
Box Length (In): 28 1/16
Box Weight (lbs): 20
Box Width (In): 25 5/16

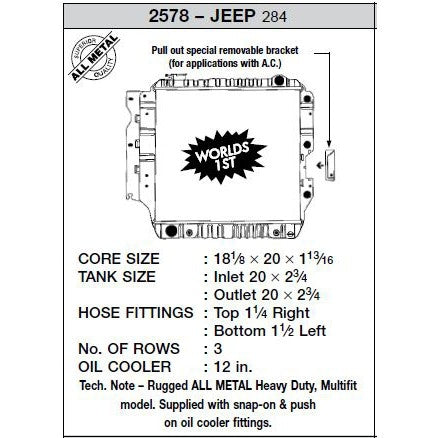

Core Length (in): 18 1/8
Core Material: Copper
Core Thickness (In): 1 11/16
Core Width (in): 20
Cross-flow/ Down-flow: Down Flow
CSF CAP NUMBER: 4501
Hazardous Material: No
Inlet Length (In): 20 1/16
Inlet Width (In): 2 1/16
No. of Rows: 3
Oil Cooler (In): 12 (high-effeciency Concentric Type)
Outlet Length (In): 20 1/16
Outlet Width (In): 2
Radiator Cap Supplied: No
Tank Material: Brass
Tech Note: Rugged ALL METAL Heavy Duty, Multifit model;Supplied with snap-on & push-on oil cooler fittings.
Top Hose Fitting (In): 1 1/4 Right
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001 | Jeep | Wrangler | 60 Aniversario |
| 1987 - 1997 | Jeep | Wrangler | Base |
| 1988 - 1992 | Jeep | Wrangler | Islander |
| 1987 - 1990 | Jeep | Wrangler | Laredo |
| 1991 - 1994 | Jeep | Wrangler | Renegade |
| 1995 | Jeep | Wrangler | Rio Grande |
| 2003 - 2004 | Jeep | Wrangler | Rubicon |
| 1988 - 1994 | Jeep | Wrangler | S |
| 1988 - 2004 | Jeep | Wrangler | Sahara |
| 1994 - 2004 | Jeep | Wrangler | SE |
| 1987 - 2004 | Jeep | Wrangler | Sport |
| 2004 | Jeep | Wrangler | Unlimited |
| 2002 - 2004 | Jeep | Wrangler | X |
| 2003 | Jeep | Wrangler | X AT |
