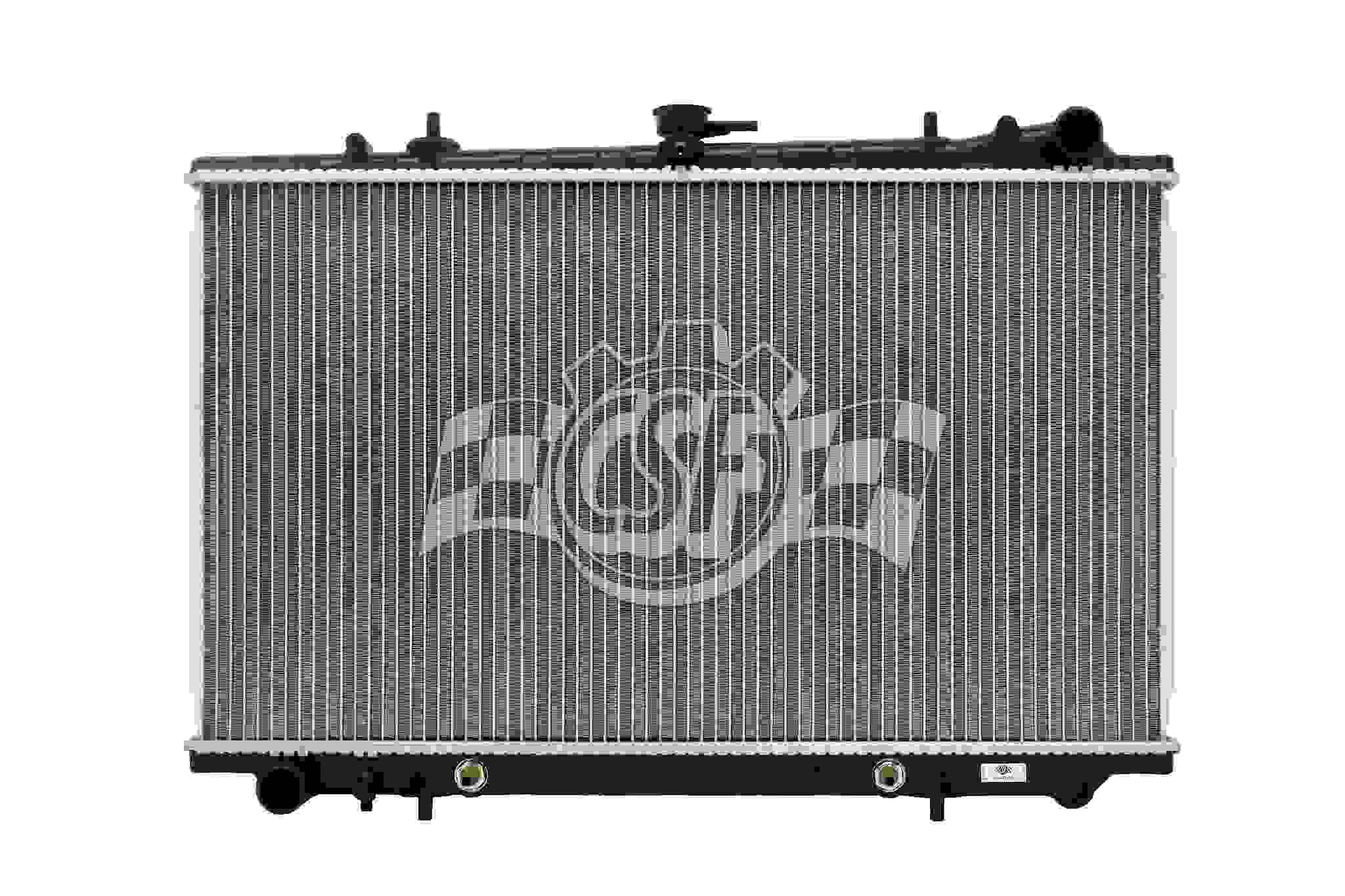

CSF Nissan 810
Radiator
Feature and Benefit: OEM specified Plastic Tank-Aluminum Core Construction; Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability; Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F; Tubes - Welded Type or Latest Generation "B-Tube" Design; Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec; 100% leak tested before leaving factory at 150% of operating pressure; Industry Best Packaging - "10 Foot Drop Test" Standard; Drop-in Fit; High Performance Transmission Cooler with special Built-in Turburlator, when applicable; All components are installed, torqued, & tested on Radiator during assembly.
- CSF factories are ISO/TSO certified
- CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!
- Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation
- We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road.
Box Height (In): 4 1/8
Box Length (In): 29 11/16
Box Weight (lbs): 9
Box Width (In): 21 15/16
Core Length (in): 15 13/16
Core Material: Aluminum
Core Thickness (In): 7/8
Core Width (in): 27 1/16
Cross-flow/ Down-flow: Down Flow
CSF CAP NUMBER: 4502
Hazardous Material: No
Inlet Length (In): 27 13/16
Inlet Width (In): 1 5/8
No. of Rows: 1
Oil Cooler (In): 11 13/16 (high-effeciency Concentric Type)
Outlet Length (In): 27 13/16
Outlet Width (In): 1 5/8
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core.
Top Hose Fitting (In): 1 3/8 Right
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1991 - 1993 | Nissan | Maxima | Base |
| 1989 - 1994 | Nissan | Maxima | SE, GXE |
| 2005 - 2007 | Subaru | Impreza | Outback Sport |
| 2002 - 2005 | Subaru | Impreza | RS |
| 2002 - 2004 | Subaru | Impreza | TS, Outback |
| 2002 - 2007 | Subaru | Impreza | WRX |
| 2006 - 2007 | Subaru | Impreza | WRX Limited, 2.5i, WRX TR |
| 2004 - 2007 | Subaru | Impreza | WRX STI |
| 2007 | Subaru | Impreza | WRX STI Limited |
