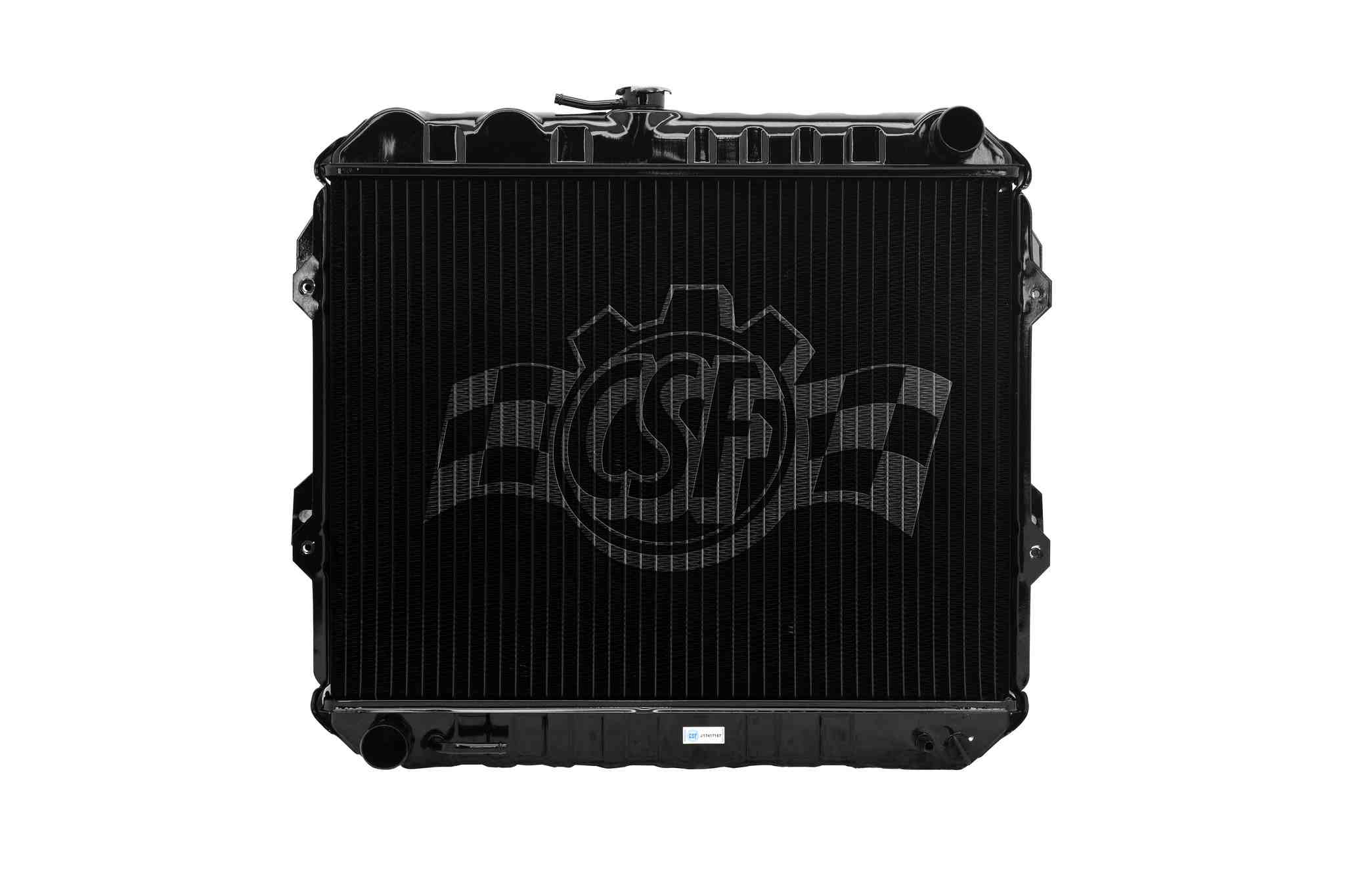

CSF Toyota 4Runner (HD)
Radiator
Feature and Benefit: OEM specified Copper-Brass Construction; Easy to recore & repair; No risk for coolant contamination and damage to sensitive seals, water pump & thermostat; OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability; Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life; Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec; Side Channels - Coated Steel for Strength & Durability; Reinforced Inlet & Outlet Connections with "Thru Pipe Design"; 100% leak tested before leaving factory at 150% of operating pressure; Industry Best Packaging - "10 Foot Drop Test" Standard; Drop-in Fit; Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators; All components are installed, torqued & tested on Radiator during assembly.
- CSF factories are ISO/TSO certified
- CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!
- Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation
- We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road.
Box Height (In): 4 14/16
Box Length (In): 22 9/16
Box Weight (lbs): 16
Box Width (In): 25 5/16
Core Length (in): 15 3/4
Core Material: Copper
Core Thickness (In): 1 11/16
Core Width (in): 20 13/16
Cross-flow/ Down-flow: Down Flow
CSF CAP NUMBER: 4502
Hazardous Material: No
Inlet Length (In): 20 11/16
Inlet Width (In): 2 1/4
No. of Rows: 3
Oil Cooler (In): 14 3/4 (high-effeciency Concentric Type)
Outlet Length (In): 20 11/16
Outlet Width (In): 2 1/4
Radiator Cap Supplied: No
Tank Material: Brass
Tech Note: Rugged ALL METAL model.
Top Hose Fitting (In): 1 3/8 Right
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1984 - 1989 | Toyota | 4Runner | DLX |
| 1984 - 1995 | Toyota | 4Runner | SR5 |
| 1987 | Toyota | Pickup | LN67 |
| 1986 | Toyota | Pickup | LN76 |
| 1993 | Toyota | Pickup | RN02 |
| 1985 | Toyota | Pickup | RN60, DLX Turbo |
| 1986 - 1987 | Toyota | Pickup | RN63, Base Turbo, LN55 DLX |
| 1985 - 1988 | Toyota | Pickup | SR5 Turbo |
| 1985 - 1995 | Toyota | Pickup | SR5, Base, DLX |
