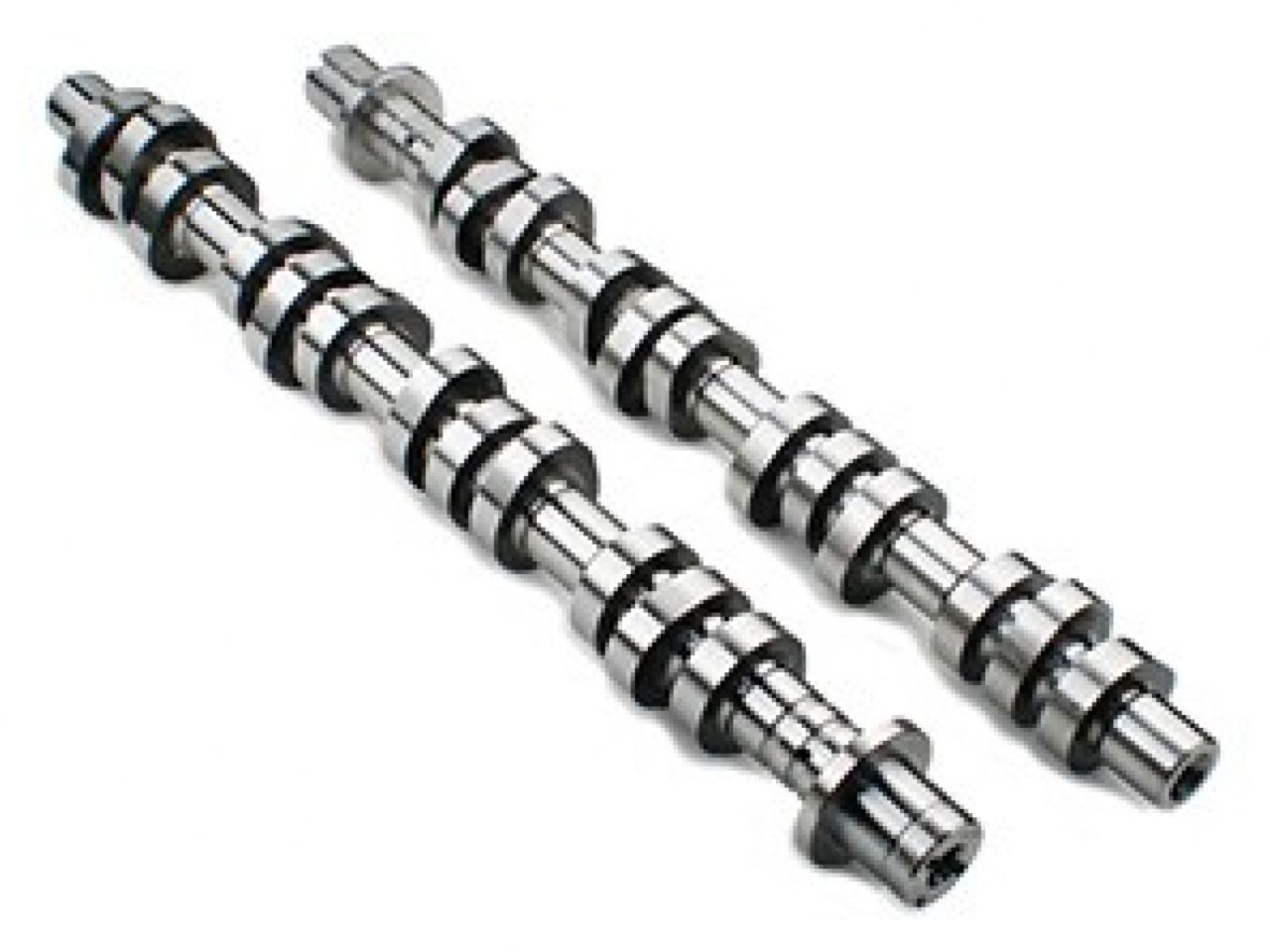

Crower Forf Modular 3 Valve Camshafts - Pair

Ford - 4.6L & 5.4L 3 Valve
Performance level - Stage 1 - Excellent for stock replacement. Programming recommended.

INT/EXH - Dur @ .050" Lift: 188°/200° RR: 2/2 Gross Lift: .480"/.468" LSA: 114° RPM: 1000 to 5900 Redline: 6400

Part Number: 62830-2
Engine Make: Ford
Year: 2005-up
Part Class: Camshaft
Camshaft Name: Stage 1
Camshaft Series: Original
Engine Type: V8
Valves: 24
Engine Size: 4.6L & 5.4L 3 Valve
Valve Lash: .000" intake and .000" exhaust
Lobe center: 114
Advertised Duration: Intake / Exhaust 245 / 262
Advertised Duration at the Valve: Intake / Exhaust 261 / 278
Duration @ .050" Lift: Intake / Exhaust 188 / 200
Duration @ .050" Lift at the Valve: Intake / Exhaust 208 / 222
Lobe Lift: Intake / Exhaust .240 / .234
Rocker Ratio: Intake / Exhaust 2 / 2
Gross Valve Lift: Intake / Exhaust .480 / .468
Low RPM: 1000
Peak HP: 5900
Redline: 6400
Performance Description: Excellent for stock replacement. Programming recommended.
Recommended Kit #1: 84708
