Advance Adapters Crank Pilot Bushing

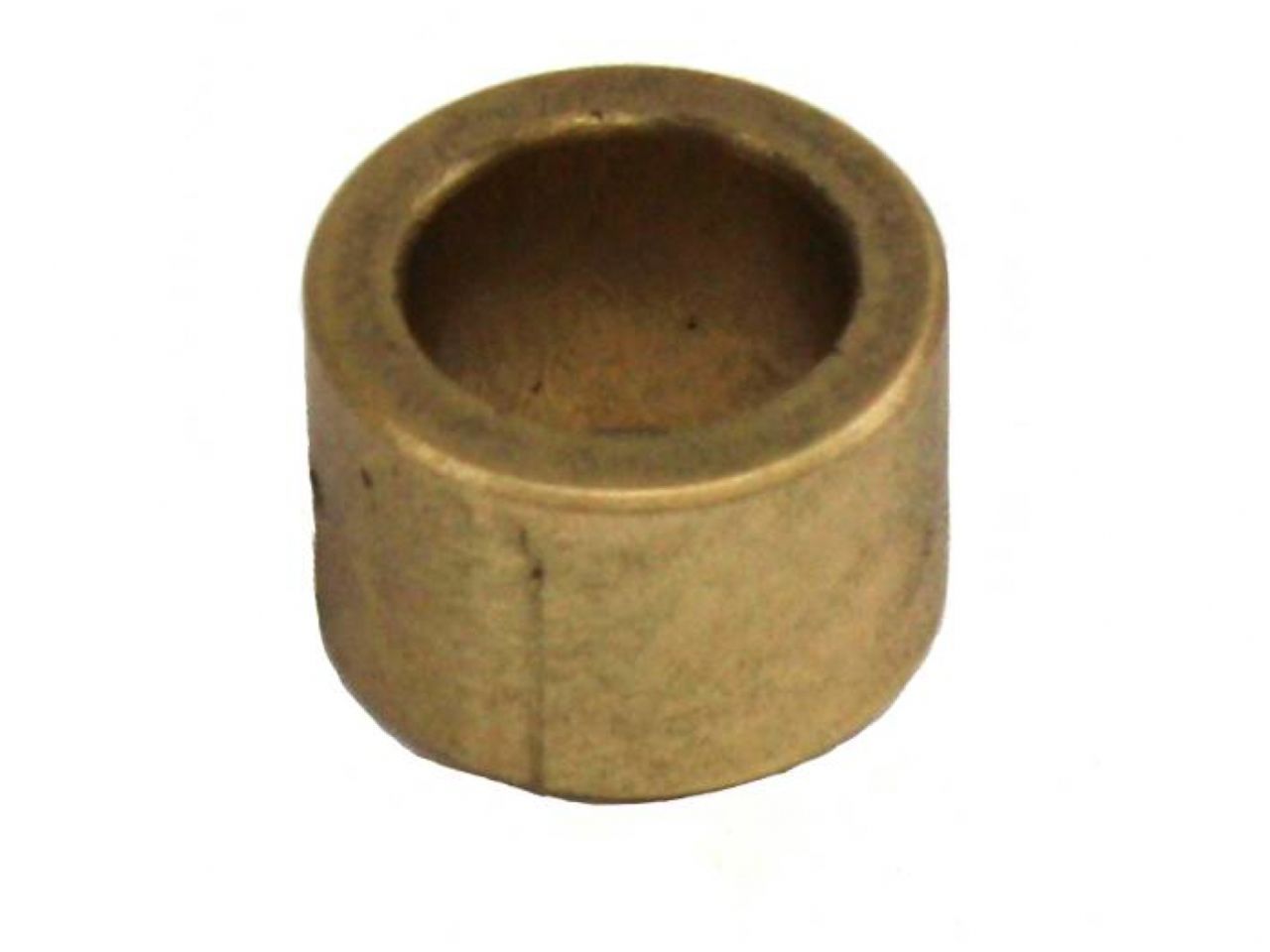

The 716168 is a custom pilot bushing for adapting ChevyV8 engines to transmissions with a .750"? pilot tip. The bushing is normally supplied in some of our kits for mating a Chevy V8 to several transmissions including: T15, T18, AX15, NV3550 and NV4500. The pilot bushing is sometimes purchased separately by customers attempting unique conversions where the OEM Chevy factory pilot bushing cannot be used due to its smaller .59"? pilot bore.

Advance Adapters designed this special pilot bushing to solve the issue. The pilot bushing is manufactured of a special bronze oilite material. It is essentially a bronze alloy material that has be penetrated with oil. The bushing essentially has "pores"? where oil can permeate throughout the bushing, thus keeping the bushing properly lubricated for the transmission input shaft. This pilot bushing can also be used with Buick 231 V6 engines.

The dimensions of the 716168 pilot bushing are: O.D X I.D. X Lenth 1.09" X .750" X .750".
