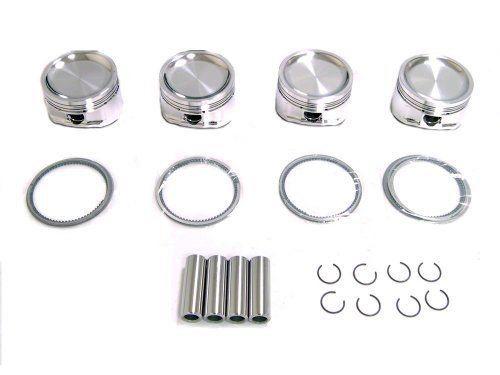

• CP-Carrillo Pistons SC7021 Item Image
1 1
CP Pistons Authorized Dealer

CP-Carrillo 84.50mm Bore - 8.3:1 Piston Kit - Honda - Acura B16A

CP-Carrillo 84.50mm Bore - 8.3:1 Piston Kit - Honda - Acura B16A

sku: 05V40 | mpn: SC7021
$885.15
$885.15 $885.15
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

CP pistons are compatible with oversized valves and high lift camshafts. Part numbers ending in a "X" are on a X-style forging for additional strength, durability and weight reduction. The X-style has a full radius dome design, high performance rings and light weight wrist pins.

CP Pistons represent the highest quality and is engineered for maximum power. Pistons can be ordered with gas ports, skirt coating, ceramic top coating, and stronger wrist pins if desired.

Standard features include:

  • Deep valve reliefs accommodate high lift camshafts;
  • Larger valve reliefs for +1mm valve sizes;
  • Custom skirt cam and barrel design; Accumulator grooves;
  • High strength aluminum forgings; High performance rings;
  • Fully CNC machined and balanced to +/- 1 gram;
  • Wrist pins included at no additional cost;
  • Double pin oilers force fed from oil ring groove;
  • Pin lock grooves for easy lock removal; Pin fitting included.
Bore (mm) Size Stroke Rod CR Gram Pin (mm) Ring Thickness
84.50 +3.5mm 77.4 134.3 8.3 298 21 1.0x1.2x2.8mm
