CP-Carrillo Automotive Piston, Each, Cyl: 1, Material ID: 995 0DF08

CP-Carrillo Automotive Piston, Each, Cyl: 1, Material ID: 995 0DF08

sku: 0DF08 | mpn: S9818-1
$138.11
$138.11 $138.11
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

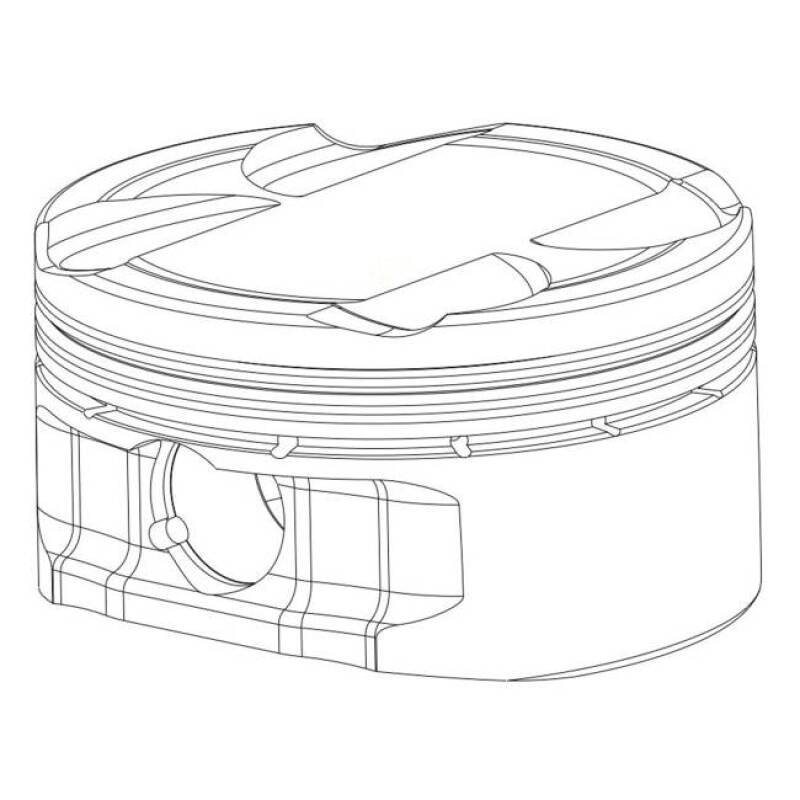

Small Block Chevy LS1 Piston

  • SBC LS1 Flat Top & Dish
  • Designed on X-style forging to clear reluctor wheel
  • Fit LS1, LS2 and LS6 heads
  • Designed for shorter wrist pins
  • Pinfitting included at no cost
  • Chamfered pins and wire locks included
  • Accumulator and anti-detonation grooves included
  • Designed for back-cut rings
  • Double pin oilers, force fed from oil ring
  • Pick lock grooves for easy lock removal
  • Custom skirt cam and barrel shapes
  • Supplied with Wire Locks and 927×2.250 Pin (106g)
  • CP Pistons are priced and sold per piston. 8 Cylinder engines will require Quantity 8 of each part #.
  • Individual CP Piston Supplied with .927 x 2.500 pin (98g) Supplied with Double Spiral Locks
  • 2nd Ring: 1.5
  • Bore: 3.552
  • Comp Height: 1.220
  • Comp Ratio: 8.5:1
  • Dome VR CC: -18cc
  • Gas Ports: No
  • Oil Ring: 3.0
  • Rod: 5.933
  • Stroke: 3.543
  • Top Ring: 1.5
  • Weight: 356
