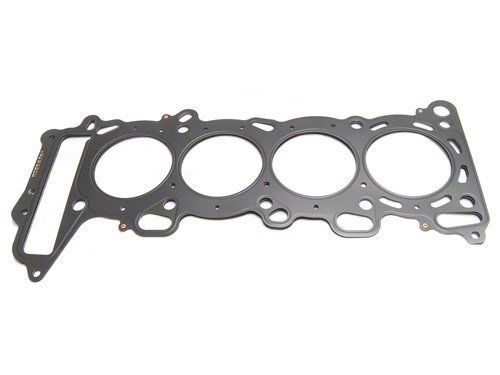

Cosworth Metal Head gasket Nissan SR20DET 90mm 1.1mm
Cosworth Nissan SR20DET metal head gasket is a high performance gasket designed to seal under high power under the most demanding conditions. Cosworth's Nissan SR20DET head gasket is available in 90mm bore with a variety of thicknesses. Each Cosworth Nissan SR20DET headgasket features:
- Individual die cut layers of stainless steel with superior consistency compared to laser cut gaskets.
- Pre-coated stainless steel with a 0.25 micron layer of nitrile rubber ensures consistent distribution of coating with no high or low areas.
- Manufacturing dimensional tolerance of 0.002".
- Die cut manufacturing process ensures smooth edges, unlike laser cut gaskets.
- Cosworth gaskets feature a "stopper" sealing layer for additional torque around each cylinder. The width of sealing area is specific for each application thereby providing ultimate sealing properties.
- Available in a range of thicknesses for specific applications.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997 - 1998 | Nissan | 180SX | Type-G |
| 1989 - 1995 | Nissan | 180SX | Type-I, Type-II |
| 1992 - 1994 | Nissan | 180SX | Type-III |
| 1994 - 1998 | Nissan | 180SX | Type-R, Type-X |
| 1996 - 1998 | Nissan | 180SX | Type-S |
| 1991 - 1998 | Nissan | 240SX | LE |
| 1989 - 1998 | Nissan | 240SX | SE, Base |
| 1989 - 1990 | Nissan | 240SX | XE |
| 1999 - 2000 | Nissan | Silvia | Autech |
| 1989 - 1991 | Nissan | Silvia | Convertible |
| 1989 - 1998 | Nissan | Silvia | J's, K's, Q's |
| 1999 - 2002 | Nissan | Silvia | Spec R, Spec S |
| 2002 | Nissan | Silvia | Spec S / V Package, Spec R / V Package |
| 2000 - 2002 | Nissan | Silvia | Varietta |
Cosworth Metal Head gasket Nissan SR20DET 90mm 1.1mm
Sale price$178.00 USD
