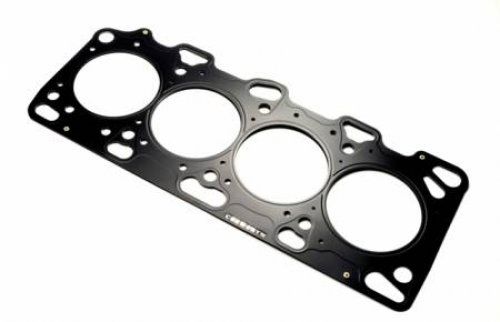

Cosworth Metal Head gasket EVO IX/9 4G63 86mm 1.3mm Thick
Cosworth Metal Head gasket EVO IX/9 4G63 86mm 1.3mm Thick
sku: 02QW4 | mpn: 20001689
Regular price
$141.55
Regular price
$149.00
Sale price
$141.55
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Cosworth Mitsubishi EVO IX 4G63 metal head gasket is a high performance gasket designed to seal under high power under the most demanding conditions. Cosworth's Mitsubishi EVO IX 4G63 head gasket is available in 86mm bore with a variety of thicknesses. Each Cosworth Mitsubishi EVO 4G63 headgasket features:
- Individual die cut layers of stainless steel with superior consistency compared to laser cut gaskets.
- Pre-coated stainless steel with a 0.25 micron layer of nitrile rubber ensures consistent distribution of coating with no high or low areas.
- Manufacturing dimensional tolerance of 0.002".
- Die cut manufacturing process ensures smooth edges, unlike laser cut gaskets.
- Cosworth gaskets feature a "stopper" sealing layer for additional torque around each cylinder. The width of sealing area is specific for each application thereby providing ultimate sealing properties.
- Available in a range of thicknesses for specific applications.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 | Mitsubishi | Lancer | SE, Evolution MR, Evolution SE, ES, Evolution, DE, LS Diamond, Ralliart, Evolution RS, OZ Rally, LS |
