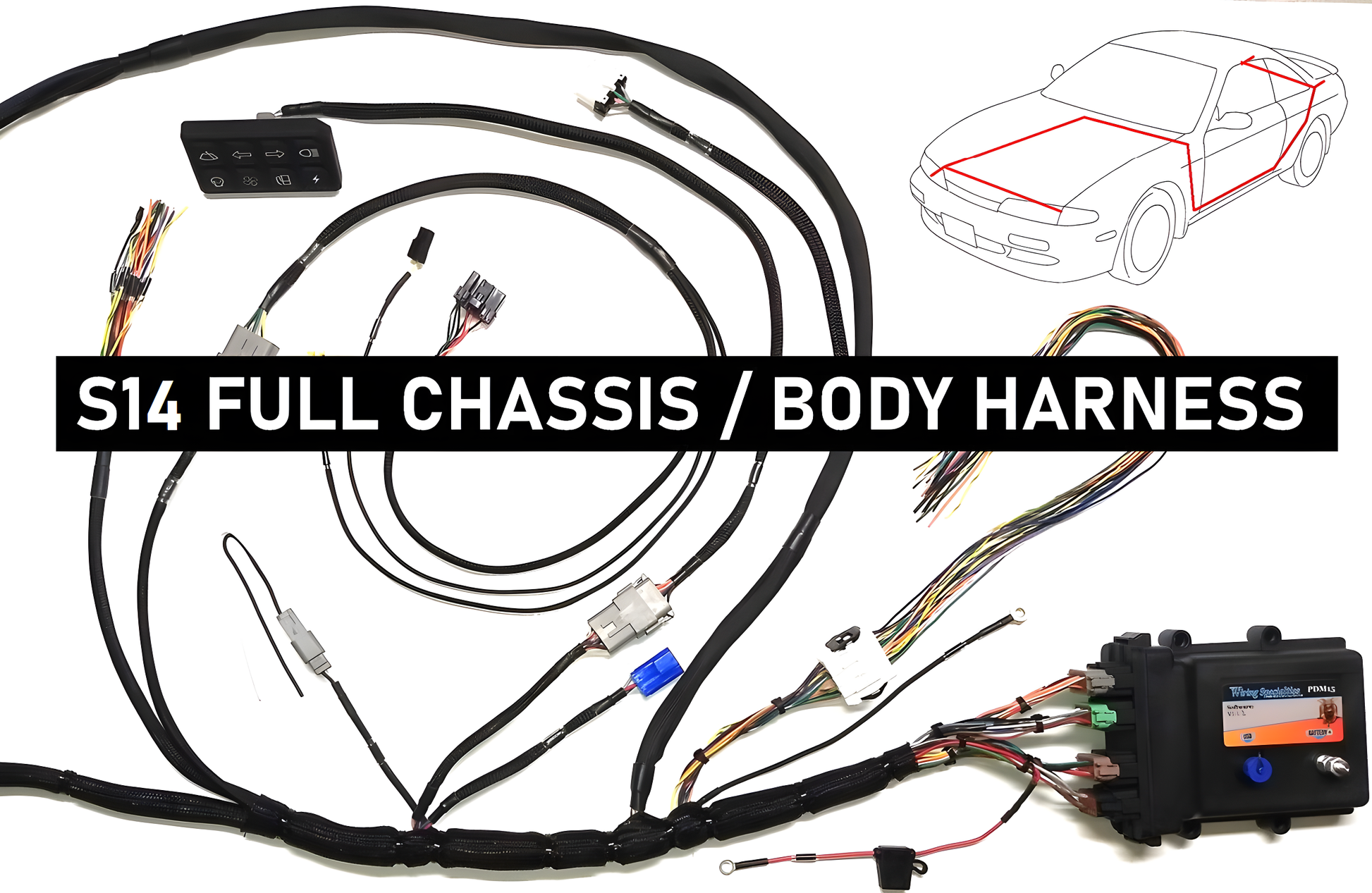

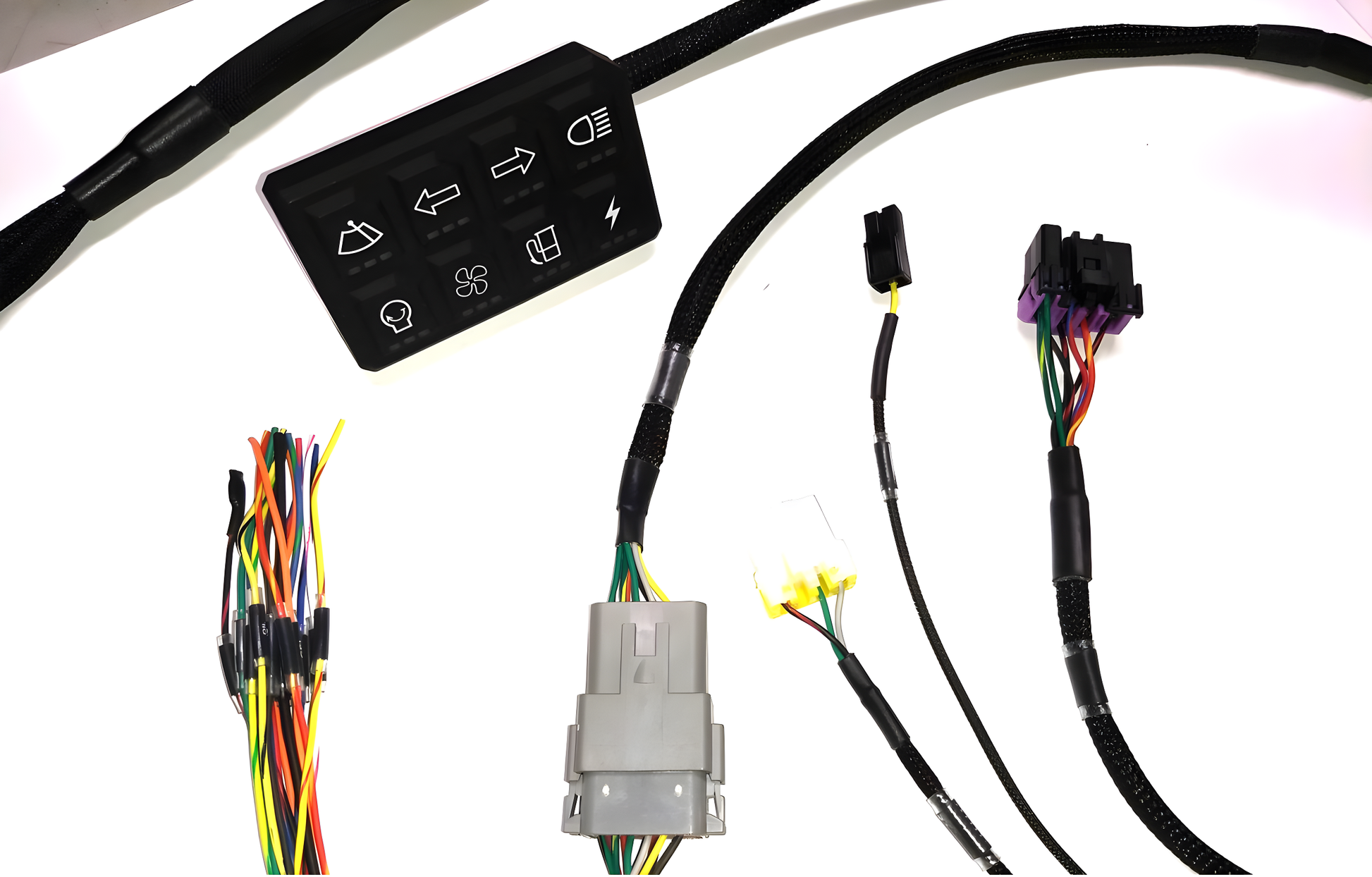

Read the shipping policyFor use with an Aftermarket ECU like ECU Master, AEM Infinity, Haltech Elite or LINK G4X Series. Please contact sales if you have any questions. Complete Replacement Chassis Harness & Power Distribution Management Solution for Nissan S14 vehicles includes:

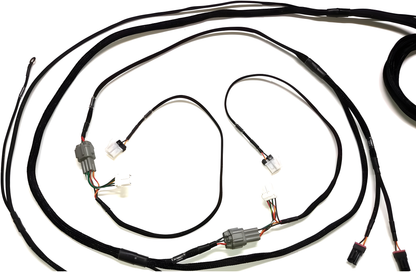

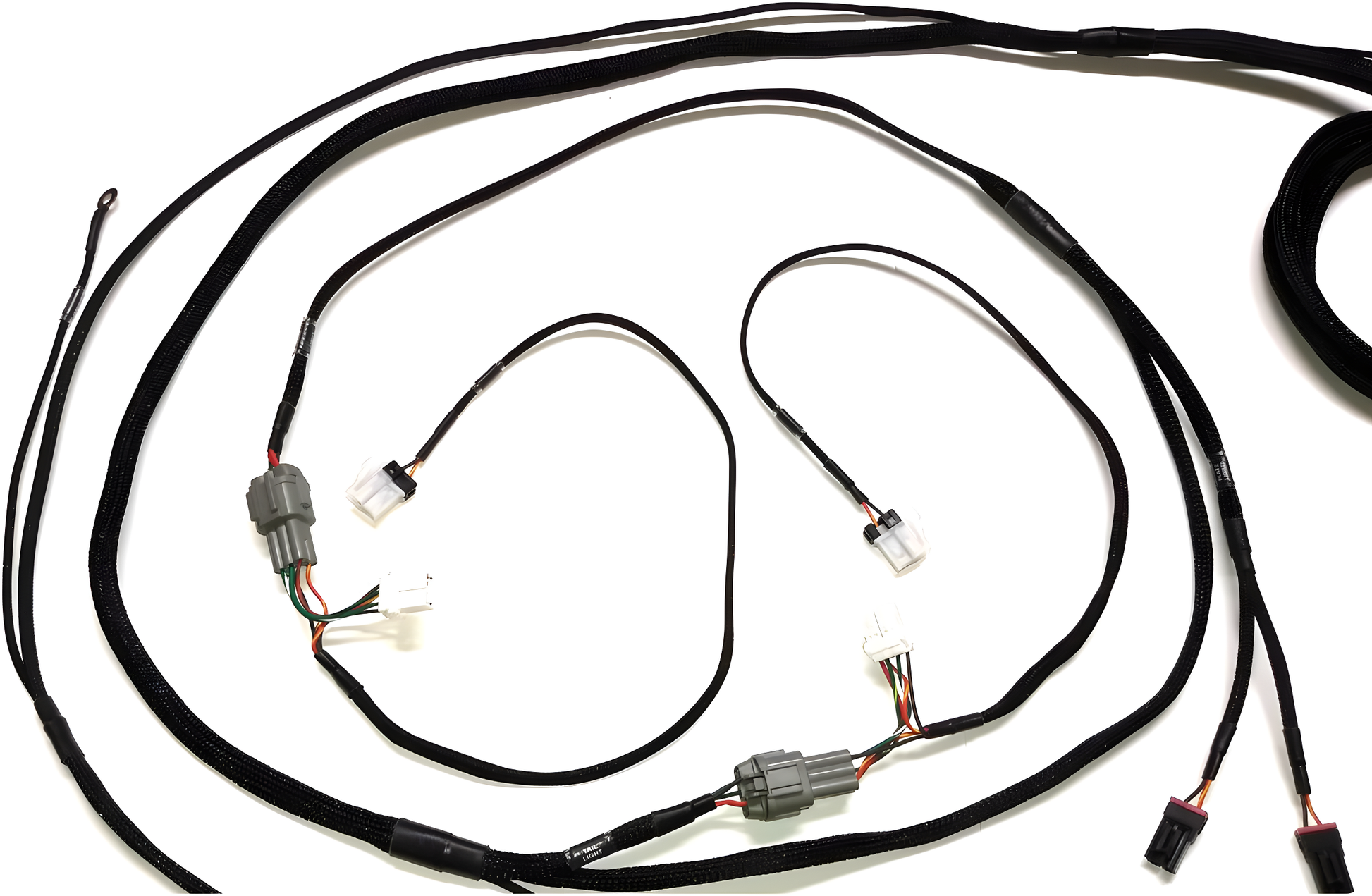

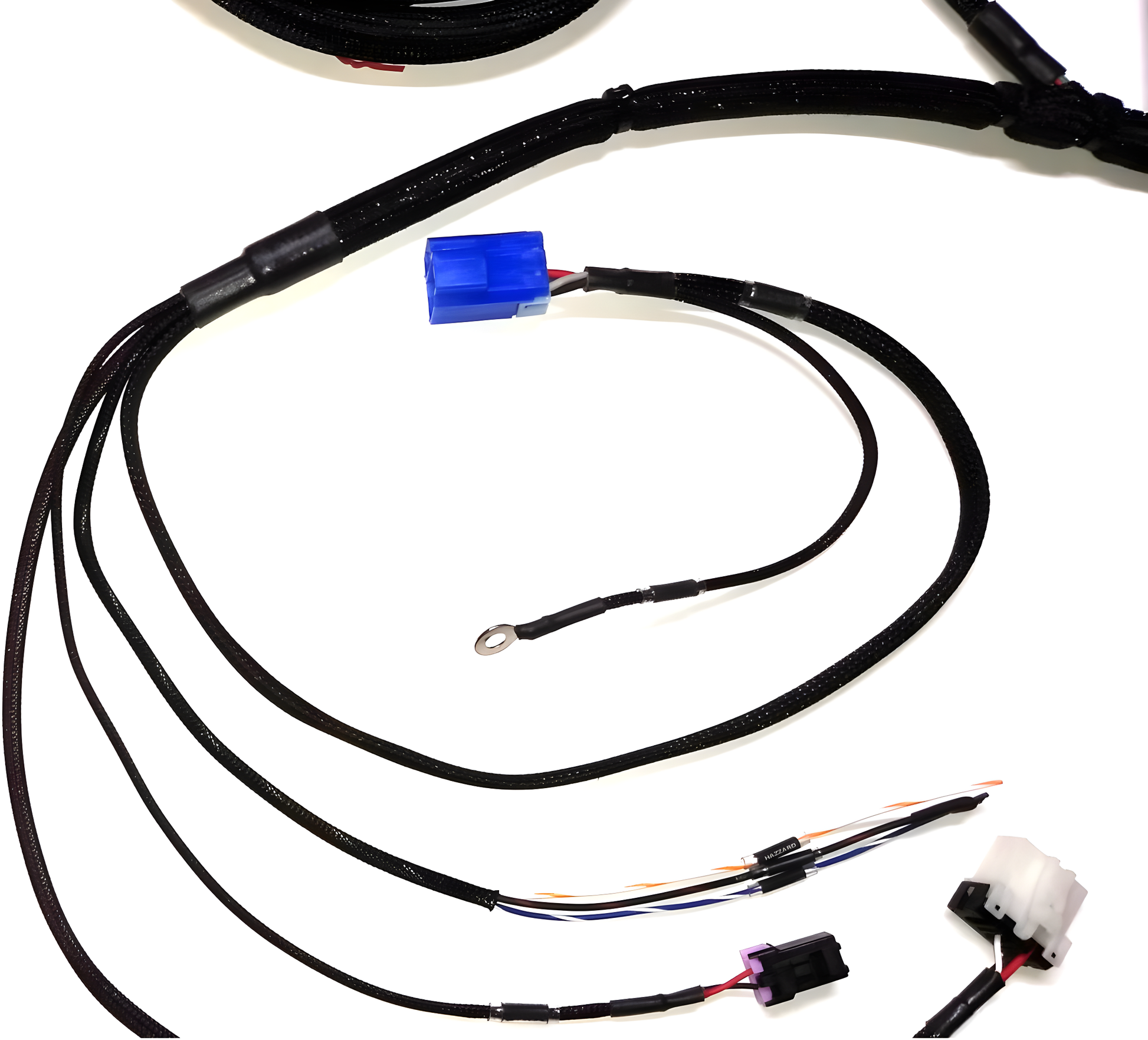

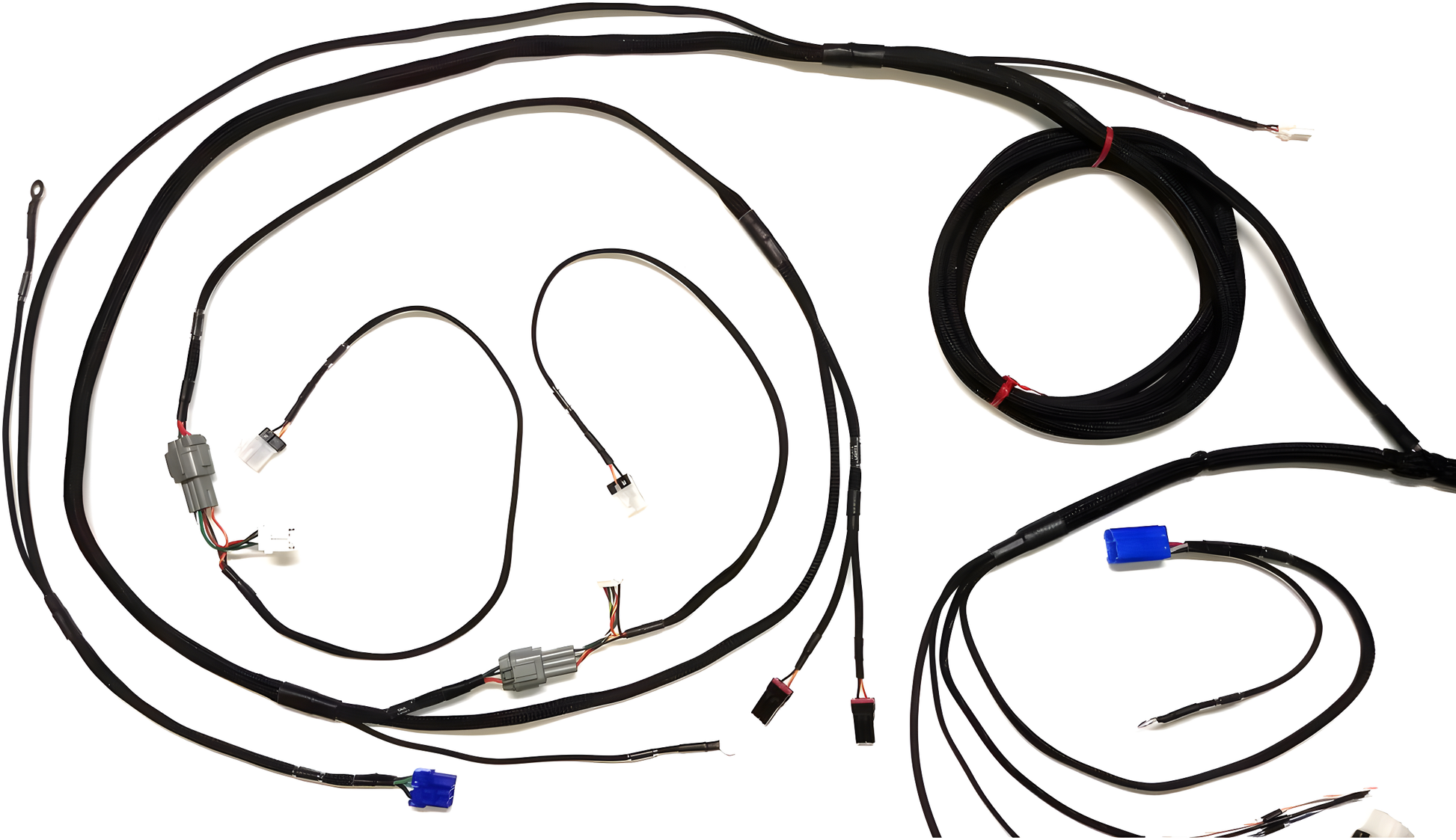

- Complete replacement body wiring harness
- finally available!

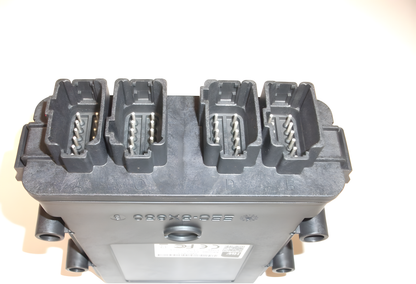

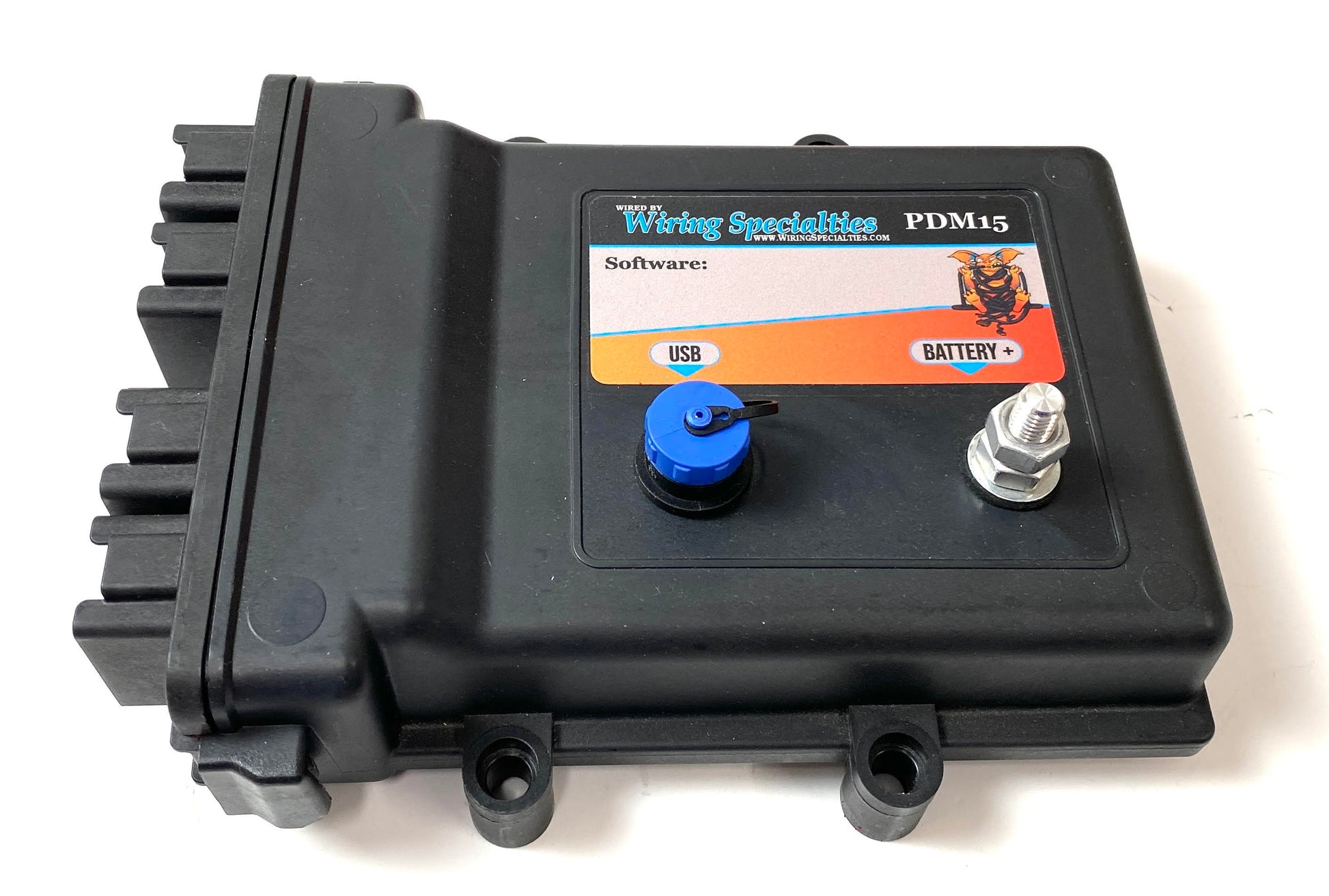

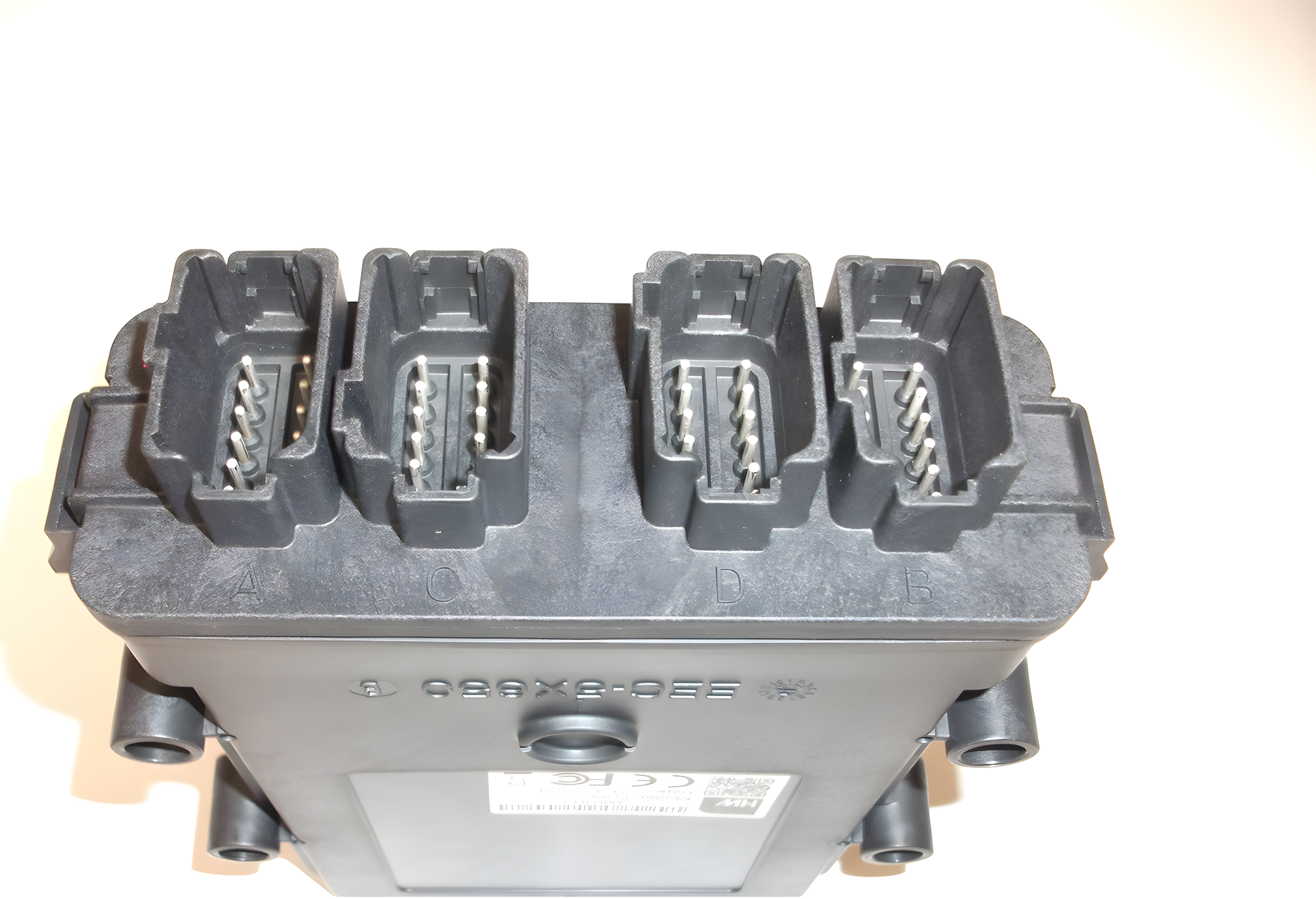

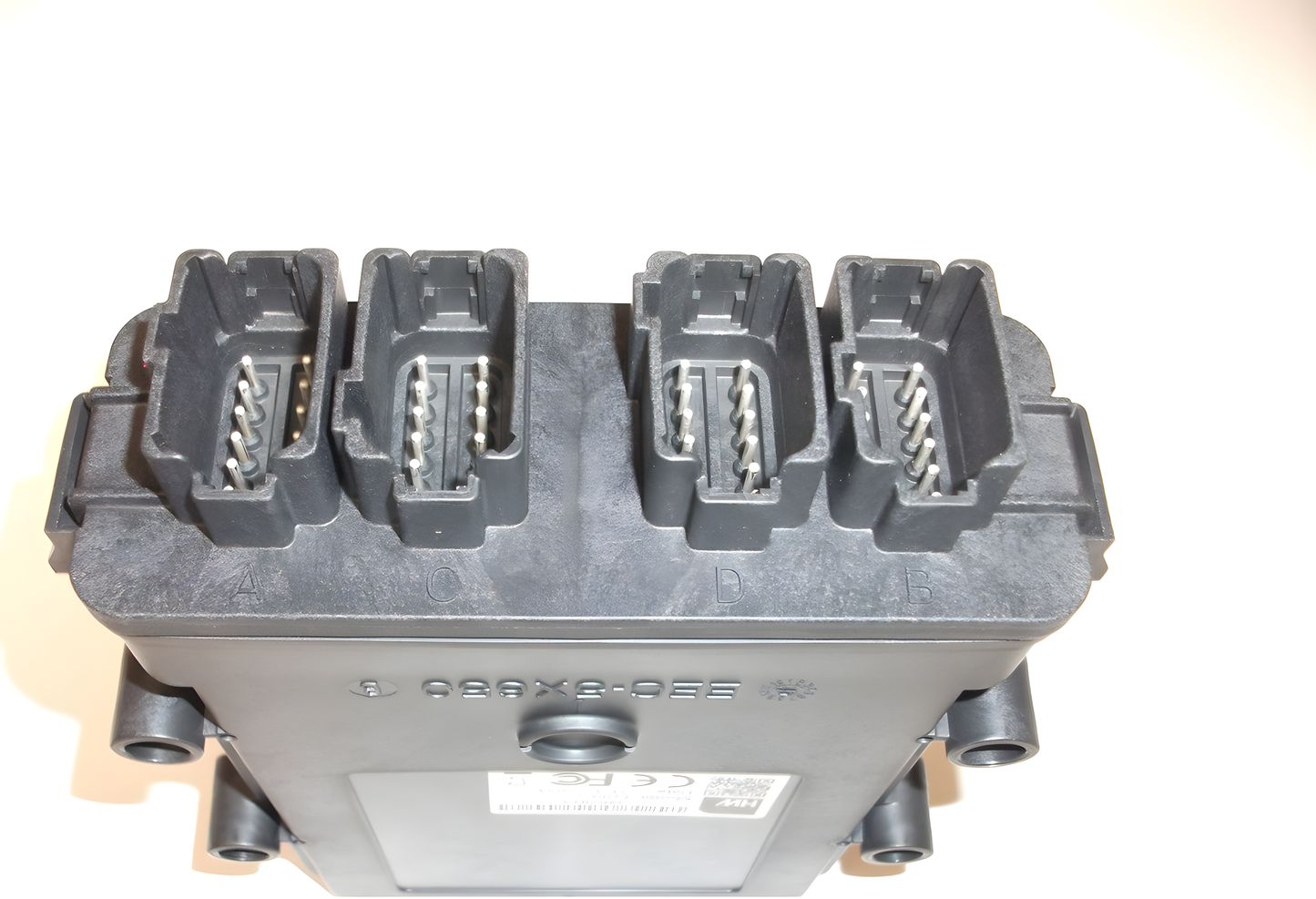

- Pre-Programmed 15-Circuit Solid-State Power Distribution Management Unit (PDM15)

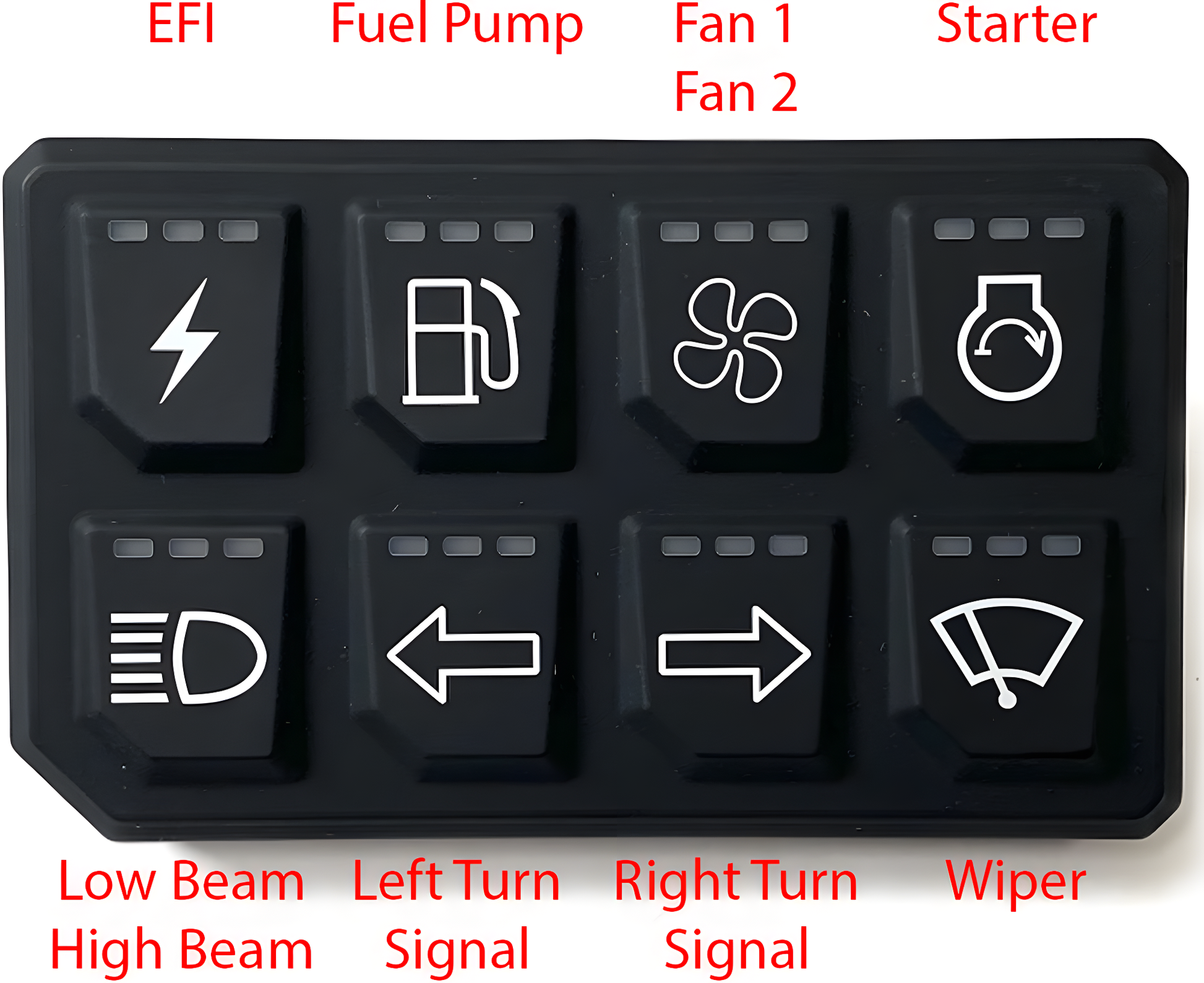

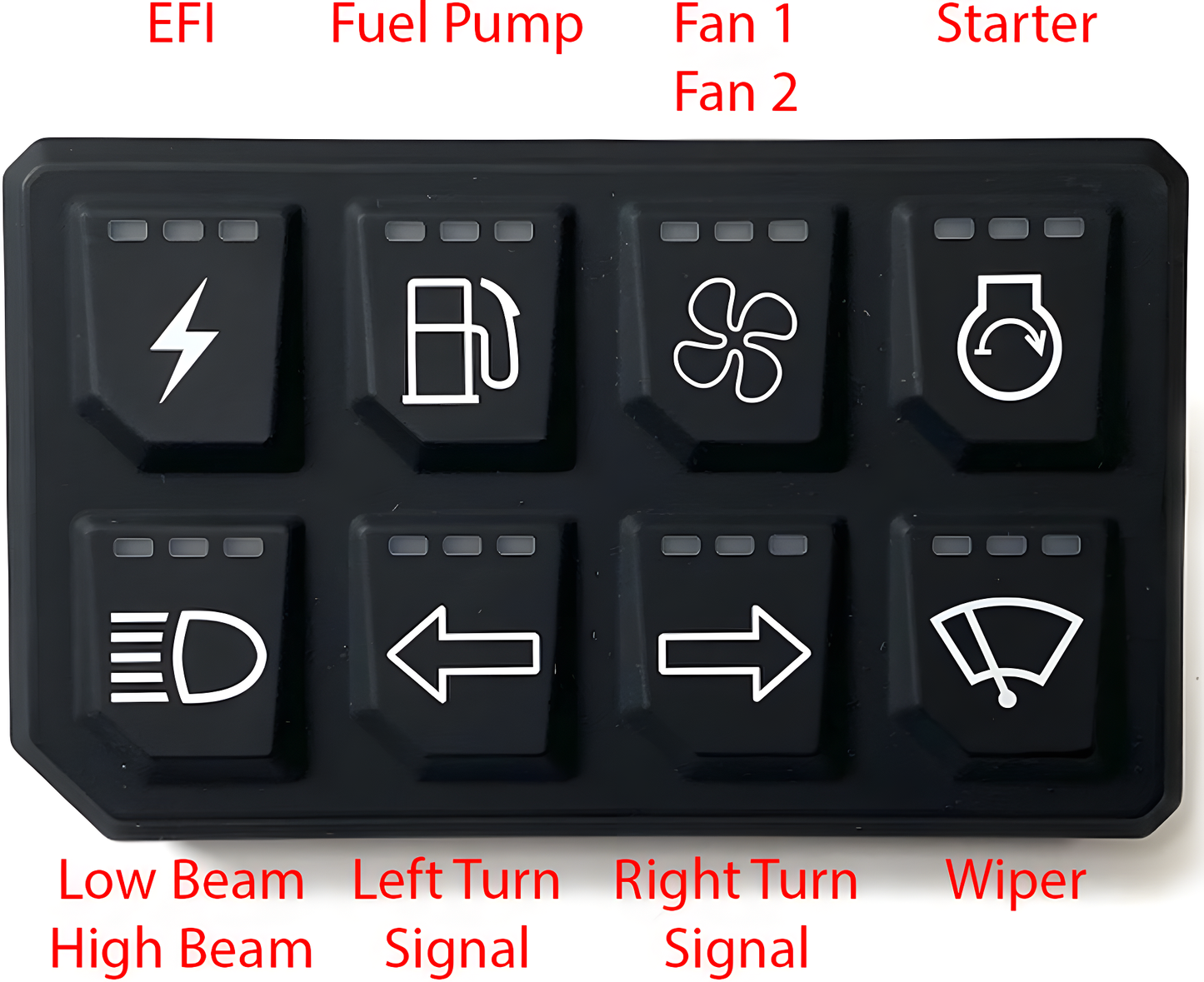

- Choice of 8-position CAN Keypad OR use your OEM S14 Stalks (for an additional charge) to control lights, turn signals, wipers etc.
- Directly Terminated Signal connections based on Chassis
- we make this as Plug-N-Play as possible
- Add our Complete Battery Wiring Power Management Kit (for an additional charge) for total peace of mind This chassis harness is perfect for Race / Track cars, cars running a stripped interior / switch panel, and restoration projects
- all using an aftermarket ECU. It was developed in house on actual S14 LHD & RHD Chassis' to ensure a perfect fit to all connections. Please NOTE: This item is NOT ELIGIBLE for coupon discounts. Call Sales!
Specifications
APPLICATIONS: Nissan S14 Chassis
- JDM RHD Nissan S14 Silvia Zenki 1994-1996
- JDM RHD Nissan S14 Silvia Kouki 1997-1998
- USDM LHD Nissan 240sx Zenki 1995-1996
- USDM LHD Nissan 240sx Kouki 1997-1998 Supported Outputs
- Ignition & EFI + Starter
- Dual Engine Cooling Fans controlled via Aftermarket ECU
- Single Fuel Pump, Dual Pump Upgrade Available
- Running Lights, Marker Lights, and License Plate Lights
- Low Beam & High Beam Headlights
- Left & Right Turn Signals (manual, no auto cancel) at All Four Corners + Marker Lights
- Brake Lights
- Single Windshield Wiper Speed
- High
- Power Windows Upgrade Available
- Requires all OEM door modules, switches & harnesses to be in place
- Power Sunroof Upgrade Available
- Single Blower Motor/ HVAC Speed
- Horn
- Hazard Lights Supported Inputs
- OEM Key Switch Required for Ignition Signal
- Choice of:
- OEM Stalks for Lighting and Wipers (Additional charge), OEM Key Switch operates starter
- CANbus 8-Button Keypad for all functions Tech Support Included for our Customers 7 days a week For the Dual Fuel Pump Option, please click HERE for additional specifications & details. For the Complete Battery Wiring Power Management Kit Option, please click HERE for additional specifications & details. PRO-SERIES HARNESS TECHNICAL SPECS
- Point-to-Point continuity tested on every wire
- Constructed using exact OEM connectors and seals
- Made with high temp TXL wire with adhesive shrink tubing (-40°C/-40°F to +125°C/+257°F operating temperature)
- Wrapped in lightweight nylon loom (-94°C/-137°F to +125°C/+257°F operating temperature)
- Fully tested after production for an easy plug-and-play installation Read more
