Nitrous Express Compact Distribution Block; w/ Gauge Port

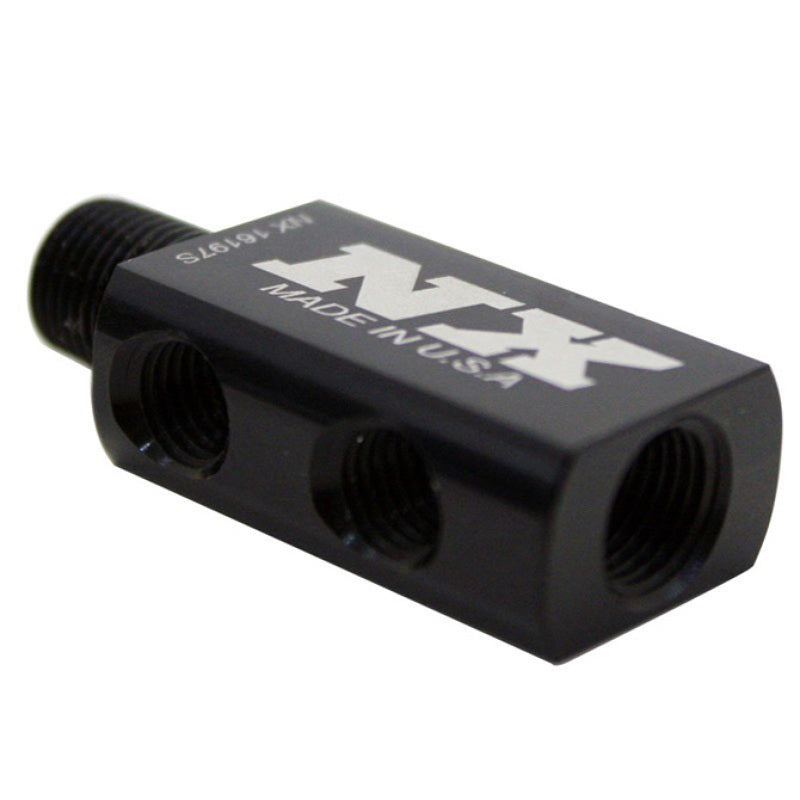

Compact Distribution Block w/Gauge Port

• Compact distribution blocks were designed to assist in intake plumbing where space is very constrained.
• These blocks are 5/8" wide, and 3/8" deep and threads directly into the bottom of a solenoid.
• The 4 outlets are 5/16-24 thread, inlet is 1/8" male NPT and the gauge port is 1/8" female NPT
• for AN outlet fittings use NX Part 16150
• for compression outlet fittings use NX Part 16149C
