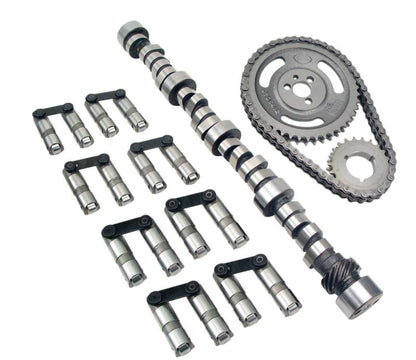

Comp Cams Xtreme Energy XR288HR (Hydraulic) Cam,Lifters,Timing Set '58-'02 CSB
Xtreme Energy" XR288HR (Hydraulic) Cam, Lifters, Timing Set '58-'02 Chevy Small Block

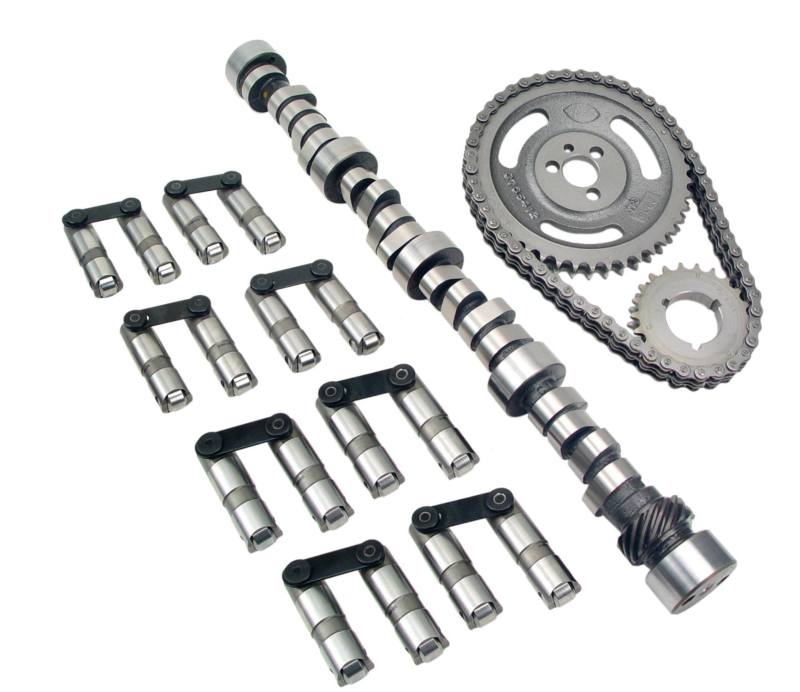

Includes Cam, Lifters, & Timing Set
For Retro-Fit (Link Bar) Hydraulic Roller Lifters; Fits '58-'021 262-400 cid Chevy Small Blocks.
Street/strip applications;9:1 compression;Rough idle;Intake, headers, 2800+ stall, gears.
Xtreme Energy" cams are designed to maximize torque, acceleration and throttle response while providing excellent high RPM horsepower. A faster intake valve opening increases engine vacuum and enhances throttle response. Special intake closing ramps close the valve sooner, providing more cylinder pressure and torque without resulting in excessive valve train noise. Faster ramps achieve maximum velocity sooner, increasing the area under the lift curve and providing maximum horsepower. Smoother exhaust designs allow for a more effective purge of spent gasses from the combustion chamber to further increase horsepower. Feature CRC (Constant Radius of Curvature) technology that ensures durability with aggressive hydraulic roller designs.
Specifications
Lifter Type: Retro-Fit Hydraulic Roller
Engine Family: Chevrolet 262-400 c.i. 8 cyl. 1958-1998
Cam Family: Xtreme Energy"
RPM Range: 2500 to 6000
Valve Timing: 0.006
Lobe Separation: 110°
Intake Centerline: 106°
Valve Lash: Hyd.(Intake)/Hyd.(Exhaust)
Duration: 288(Intake)/ 294(Exhaust)
Duration @ .050" Lift: 236(Intake)/ 242(Exhaust)
Valve Lift: 0.52(Intake)/ 0.54(Exhaust)
Lobe Lift: 0.347(Intake)/ 0.36(Exhaust)
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1995 - 1996 | AM General | Hummer | Base |
1980 - 1991 | Avanti | II | Base |
1985 | Avanti | II | GT |
1980 | Buick | Century | Estate, Sport, Limited, Base |
1991 - 1996 | Buick | Commercial Chassis | Base |
1980 | Buick | Regal | Base, Limited, Sport |
1991 - 1995 | Buick | Roadmaster | Estate Wagon |
1996 | Buick | Roadmaster | Limited Collector's Edition, Estate Wagon Collector's Edition, Collector's Edition |
1992 - 1995 | Buick | Roadmaster | Limited, Base |
1990 - 1992 | Cadillac | Brougham | Base, d'Elegance |
1992 - 1996 | Cadillac | Commercial Chassis | Base, Brougham |
1993 - 1996 | Cadillac | Fleetwood | Brougham, Base |
1980 - 1982 | Checker | Marathon | Deluxe, Base |
1992 - 1993 | Chevrolet | Blazer | Cheyenne |
1987 | Chevrolet | Blazer | Custom Deluxe |
1991 - 1994 | Chevrolet | Blazer | Nevada |
1988 - 1991 | Chevrolet | Blazer | Scottsdale |
1987 - 1994 | Chevrolet | Blazer | Silverado |
1994 | Chevrolet | Blazer | Silverado Sport, Base |
1980 | Chevrolet | C10 | Big Ten, Custom Deluxe |
1980 - 1981 | Chevrolet | C10 | Cheyenne |
1980 - 1986 | Chevrolet | C10 | Custom, Scottsdale, Silverado |
1981 | Chevrolet | C10 | Deluxe |
1981 - 1986 | Chevrolet | C10 Suburban | Custom |
1980 | Chevrolet | C10 Suburban | Custom Deluxe |
1981 | Chevrolet | C10 Suburban | Deluxe |
1980 - 1986 | Chevrolet | C10 Suburban | Silverado, Scottsdale |
1990 - 1993 | Chevrolet | C1500 | 454 SS |
1989 - 1995 | Chevrolet | C1500 | Base |
1988 - 1995 | Chevrolet | C1500 | Cheyenne, Silverado |
1988 - 1992 | Chevrolet | C1500 | Scottsdale |
1990 - 1995 | Chevrolet | C1500 | WT |
1992 - 1995 | Chevrolet | C1500 Suburban | Base |
1995 | Chevrolet | C1500 Suburban | LS, LT |
1992 - 1994 | Chevrolet | C1500 Suburban | Silverado |
1986 | Chevrolet | C20 | Base |
1981 - 1986 | Chevrolet | C20 | Custom |
1980 | Chevrolet | C20 | Custom Deluxe |
1981 | Chevrolet | C20 | Deluxe |
1980 - 1986 | Chevrolet | C20 | Scottsdale, Silverado, Cheyenne |
1981 - 1986 | Chevrolet | C20 Suburban | Custom |
1980 | Chevrolet | C20 Suburban | Custom Deluxe |
1981 | Chevrolet | C20 Suburban | Deluxe |
1980 - 1986 | Chevrolet | C20 Suburban | Silverado, Scottsdale |
1993 | Chevrolet | C2500 | 400 SS, Custom |
1988 - 1995 | Chevrolet | C2500 | Base, Cheyenne, Silverado |
1988 - 1992 | Chevrolet | C2500 | Scottsdale |
1994 - 1995 | Chevrolet | C2500 | WT |
1992 - 1995 | Chevrolet | C2500 Suburban | Base |
1995 | Chevrolet | C2500 Suburban | LT, LS |
1992 - 1994 | Chevrolet | C2500 Suburban | Silverado |
1980 - 1982 | Chevrolet | C30 | Base |
1980 - 1981 | Chevrolet | C30 | Cheyenne |
1981 - 1986 | Chevrolet | C30 | Custom |
1980 | Chevrolet | C30 | Custom Deluxe |
1981 | Chevrolet | C30 | Deluxe |
1980 - 1986 | Chevrolet | C30 | Scottsdale, Silverado |
1994 - 1995 | Chevrolet | C3500 | Base |
1988 - 1992 | Chevrolet | C3500 | Scottsdale |
1988 - 1995 | Chevrolet | C3500 | Silverado, Cheyenne |
1980 | Chevrolet | Camaro | Base, Rally Sport |
1980 - 1986 | Chevrolet | Camaro | Berlinetta, Z28 |
1985 - 1986 | Chevrolet | Camaro | Iroc-Z |
1981 - 1986 | Chevrolet | Camaro | Sport |
1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
1980 - 1992 | Chevrolet | Caprice | Base |
1980 - 1996 | Chevrolet | Caprice | Classic |
1986 - 1990 | Chevrolet | Caprice | Classic Brougham |
1981 - 1982 | Chevrolet | Caprice | Classic Estate |
1980 - 1981 | Chevrolet | Caprice | Classic Landau |
1993 - 1994 | Chevrolet | Caprice | Classic LS |
1987 - 1990 | Chevrolet | Caprice | Classic LS Brougham |
1991 - 1993 | Chevrolet | Caprice | Classic LTZ |
1980 | Chevrolet | Caprice | Classic Sport |
1991 - 1994 | Chevrolet | Commercial Chassis | Base |
1980 - 1986 | Chevrolet | Corvette | Base |
1982 | Chevrolet | Corvette | Collector's Edition |
1986 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
1981 - 1986 | Chevrolet | El Camino | Conquista |
1980 - 1981 | Chevrolet | El Camino | Royal Knight |
1980 - 1987 | Chevrolet | El Camino | SS, Base |
1996 | Chevrolet | Express 2500 | Base, LS |
1983 | Chevrolet | G10 | Base |
1981 - 1987 | Chevrolet | G10 | Bonaventure |
1980 - 1995 | Chevrolet | G10 | Sportvan, Chevy Van, Beauville |
1995 | Chevrolet | G20 | Base |
1980 - 1995 | Chevrolet | G20 | Beauville, Chevy Van, Sportvan |
1983 - 1984 | Chevrolet | G20 | Bonaventure |
1980 - 1981 | Chevrolet | G20 | Nomad |
1980 - 1996 | Chevrolet | G30 | Beauville, Chevy Van, Sportvan, Hi-Cube |
1983 - 1984 | Chevrolet | G30 | Bonaventure |
1980 - 1985 | Chevrolet | Impala | Base |
1981 - 1982 | Chevrolet | Impala | Estate |
1980 | Chevrolet | Impala | Sport |
1994 - 1996 | Chevrolet | Impala | SS |
1980 - 1981 | Chevrolet | K10 | Cheyenne |
1981 - 1986 | Chevrolet | K10 | Custom |
1980 | Chevrolet | K10 | Custom Deluxe |
1981 | Chevrolet | K10 | Deluxe |
1980 - 1986 | Chevrolet | K10 | Silverado, Scottsdale |
1981 - 1986 | Chevrolet | K10 Suburban | Custom |
1980 | Chevrolet | K10 Suburban | Custom Deluxe |
1981 | Chevrolet | K10 Suburban | Deluxe |
1980 - 1986 | Chevrolet | K10 Suburban | Scottsdale, Silverado |
1994 - 1995 | Chevrolet | K1500 | Base |
1988 - 1995 | Chevrolet | K1500 | Cheyenne, Silverado |
1988 - 1992 | Chevrolet | K1500 | Scottsdale |
1991 | Chevrolet | K1500 | Sport |
1990 - 1995 | Chevrolet | K1500 | WT |
1992 - 1995 | Chevrolet | K1500 Suburban | Base |
1995 | Chevrolet | K1500 Suburban | LS, LT |
1992 - 1994 | Chevrolet | K1500 Suburban | Silverado |
1980 - 1981 | Chevrolet | K20 | Cheyenne |
1981 - 1986 | Chevrolet | K20 | Custom |
1980 | Chevrolet | K20 | Custom Deluxe |
1981 | Chevrolet | K20 | Deluxe |
1980 - 1986 | Chevrolet | K20 | Silverado, Scottsdale |
1981 - 1986 | Chevrolet | K20 Suburban | Custom |
1980 | Chevrolet | K20 Suburban | Custom Deluxe |
1981 | Chevrolet | K20 Suburban | Deluxe |
1980 - 1986 | Chevrolet | K20 Suburban | Silverado, Scottsdale |
1988 - 1995 | Chevrolet | K2500 | Cheyenne, Silverado |
1988 - 1992 | Chevrolet | K2500 | Scottsdale |
1994 - 1995 | Chevrolet | K2500 | WT, Base |
1992 - 1995 | Chevrolet | K2500 Suburban | Base |
1995 | Chevrolet | K2500 Suburban | LS, LT |
1992 - 1994 | Chevrolet | K2500 Suburban | Silverado |
1980 - 1981 | Chevrolet | K30 | Cheyenne |
1981 - 1986 | Chevrolet | K30 | Custom |
1980 | Chevrolet | K30 | Custom Deluxe |
1981 | Chevrolet | K30 | Deluxe |
1980 - 1986 | Chevrolet | K30 | Silverado, Scottsdale |
1994 - 1995 | Chevrolet | K3500 | Base |
1988 - 1995 | Chevrolet | K3500 | Cheyenne, Silverado |
1988 - 1992 | Chevrolet | K3500 | Scottsdale |
1980 | Chevrolet | K5 Blazer | Cheyenne, Custom Deluxe |
1981 - 1986 | Chevrolet | K5 Blazer | Custom |
1981 | Chevrolet | K5 Blazer | Deluxe |
1984 | Chevrolet | K5 Blazer | Scottsdale |
1980 - 1986 | Chevrolet | K5 Blazer | Silverado |
1980 - 1983 | Chevrolet | Malibu | Classic |
1980 - 1981 | Chevrolet | Malibu | Classic Landau, Base |
1980 | Chevrolet | Malibu | Sport, Classic Estate, Estate, Classic Sport |
1981 - 1988 | Chevrolet | Monte Carlo | Base |
1983 | Chevrolet | Monte Carlo | CL |
1980 - 1981 | Chevrolet | Monte Carlo | Landau |
1986 - 1988 | Chevrolet | Monte Carlo | LS |
1980 | Chevrolet | Monte Carlo | Sport |
1983 - 1988 | Chevrolet | Monte Carlo | SS |
1980 - 1989 | Chevrolet | P20 | Base, Step-Van |
1980 - 1996 | Chevrolet | P30 | Base |
1980 - 1990 | Chevrolet | P30 | Step-Van |
1987 | Chevrolet | R10 | Silverado, Custom Deluxe, Scottsdale |
1987 | Chevrolet | R10 Suburban | Custom Deluxe |
1987 - 1988 | Chevrolet | R10 Suburban | Silverado, Scottsdale |
1989 - 1991 | Chevrolet | R1500 Suburban | Scottsdale, Silverado |
1988 | Chevrolet | R20 | Cheyenne |
1987 - 1988 | Chevrolet | R20 | Silverado, Custom Deluxe, Scottsdale |
1987 | Chevrolet | R20 Suburban | Custom Deluxe |
1987 - 1988 | Chevrolet | R20 Suburban | Silverado, Scottsdale |
1989 | Chevrolet | R2500 | Cheyenne, Silverado, Scottsdale |
1989 - 1991 | Chevrolet | R2500 Suburban | Silverado, Scottsdale |
1988 | Chevrolet | R30 | Cheyenne |
1987 - 1988 | Chevrolet | R30 | Custom Deluxe, Silverado, Scottsdale |
1989 - 1990 | Chevrolet | R3500 | Scottsdale |
1989 - 1991 | Chevrolet | R3500 | Silverado, Cheyenne |
1995 | Chevrolet | Tahoe | LT, Base, LS |
1987 | Chevrolet | V10 | Silverado, Custom Deluxe, Scottsdale |
1987 | Chevrolet | V10 Suburban | Custom Deluxe |
1987 - 1988 | Chevrolet | V10 Suburban | Scottsdale, Silverado |
1989 - 1991 | Chevrolet | V1500 Suburban | Scottsdale, Silverado |
1987 | Chevrolet | V20 | Custom Deluxe, Silverado, Scottsdale |
1987 | Chevrolet | V20 Suburban | Custom Deluxe |
1987 - 1988 | Chevrolet | V20 Suburban | Silverado, Scottsdale |
1989 - 1991 | Chevrolet | V2500 Suburban | Silverado, Scottsdale |
1988 | Chevrolet | V30 | Cheyenne |
1987 - 1988 | Chevrolet | V30 | Silverado, Scottsdale, Custom Deluxe |
1989 - 1990 | Chevrolet | V3500 | Scottsdale |
1989 - 1991 | Chevrolet | V3500 | Silverado, Cheyenne |
1993 | Excalibur | Limited | Base |
1985 | Excalibur | Phaeton | Anniversary |
1980 - 1989 | Excalibur | Phaeton | Base |
1980 | GMC | C1500 | Heavy Half |
1980 - 1986 | GMC | C1500 | High Sierra, Sierra Classic, Base |
1980 - 1982 | GMC | C1500 | Sierra Grande, Street Coupe |
1988 - 1995 | GMC | C1500 | Sierra SLE |
1994 - 1995 | GMC | C1500 | Sierra SLT, Sierra SL, Sierra Special |
1988 - 1993 | GMC | C1500 | Sierra, Sierra SLX |
1980 - 1995 | GMC | C1500 Suburban | Base |
1980 - 1986 | GMC | C1500 Suburban | High Sierra, Sierra Classic |
1980 - 1982 | GMC | C1500 Suburban | Sierra Grande |
1992 - 1995 | GMC | C1500 Suburban | SLE |
1995 | GMC | C1500 Suburban | SLT |
1980 - 1986 | GMC | C2500 | High Sierra, Base, Sierra Classic |
1980 - 1982 | GMC | C2500 | Sierra Grande |
1988 - 1995 | GMC | C2500 | Sierra SLE |
1994 - 1995 | GMC | C2500 | Sierra SLT, Sierra SL |
1988 - 1993 | GMC | C2500 | Sierra, Sierra SLX |
1980 - 1995 | GMC | C2500 Suburban | Base |
1980 - 1986 | GMC | C2500 Suburban | Sierra Classic, High Sierra |
1980 - 1982 | GMC | C2500 Suburban | Sierra Grande |
1992 - 1995 | GMC | C2500 Suburban | SLE |
1995 | GMC | C2500 Suburban | SLT |
1980 - 1986 | GMC | C3500 | Base, High Sierra, Sierra Classic |
1980 - 1982 | GMC | C3500 | Sierra Grande |
1994 - 1995 | GMC | C3500 | Sierra SL, Sierra SLT |
1988 - 1995 | GMC | C3500 | Sierra SLE |
1988 - 1993 | GMC | C3500 | Sierra, Sierra SLX |
1981 - 1986 | GMC | Caballero | Amarillo |
1980 - 1987 | GMC | Caballero | Diablo, Base |
1980 | GMC | Caballero | Laredo |
1981 | GMC | Caballero | Royal Knight, Conquista |
1983 - 1984 | GMC | G1500 | Rally Custom |
1980 - 1995 | GMC | G1500 | Rally, Rally STX, Vandura |
1983 - 1984 | GMC | G2500 | Rally Custom |
1980 - 1995 | GMC | G2500 | Rally STX, Vandura, Rally |
1981 - 1988 | GMC | G3500 | Rally Custom |
1980 - 1996 | GMC | G3500 | Rally, Vandura, Rally STX, Vandura Special, Rally Camper Special, Magnavan |
1980 - 1991 | GMC | Jimmy | Base |
1980 - 1985 | GMC | Jimmy | High Sierra |
1980 - 1990 | GMC | Jimmy | Sierra Classic |
1986 | GMC | Jimmy | Silverado |
1980 - 1982 | GMC | Jimmy | Street Coupe, Sierra Grande |
1980 - 1986 | GMC | K1500 | Base, Sierra Classic, High Sierra |
1980 - 1982 | GMC | K1500 | Sierra Grande |
1988 - 1995 | GMC | K1500 | Sierra SLE |
1995 | GMC | K1500 | Sierra SLS |
1994 - 1995 | GMC | K1500 | Sierra SLT, Sierra Special, Sierra SL |
1988 - 1993 | GMC | K1500 | Sierra SLX, Sierra |
1993 | GMC | K1500 | Sierra Sport |
1980 - 1995 | GMC | K1500 Suburban | Base |
1980 - 1986 | GMC | K1500 Suburban | Sierra Classic, High Sierra |
1980 - 1982 | GMC | K1500 Suburban | Sierra Grande |
1992 - 1995 | GMC | K1500 Suburban | SLE |
1995 | GMC | K1500 Suburban | SLT |
1980 - 1986 | GMC | K2500 | Sierra Classic, Base, High Sierra |
1980 - 1982 | GMC | K2500 | Sierra Grande |
1994 - 1995 | GMC | K2500 | Sierra SL, Sierra SLT |
1988 - 1995 | GMC | K2500 | Sierra SLE |
1988 - 1993 | GMC | K2500 | Sierra, Sierra SLX |
1980 - 1995 | GMC | K2500 Suburban | Base |
1980 - 1986 | GMC | K2500 Suburban | High Sierra, Sierra Classic |
1980 - 1982 | GMC | K2500 Suburban | Sierra Grande |
1992 - 1995 | GMC | K2500 Suburban | SLE |
1995 | GMC | K2500 Suburban | SLT |
1980 - 1986 | GMC | K3500 | High Sierra, Base, Sierra Classic |
1980 - 1982 | GMC | K3500 | Sierra Grande |
1988 - 1995 | GMC | K3500 | Sierra SLE |
1994 - 1995 | GMC | K3500 | Sierra SLT, Sierra SL |
1988 - 1993 | GMC | K3500 | Sierra, Sierra SLX |
1980 - 1989 | GMC | P2500 | Base, Value Van |
1980 - 1996 | GMC | P3500 | Base |
1980 - 1990 | GMC | P3500 | Value Van |
1987 | GMC | R1500 | Base, Sierra Classic, High Sierra |
1987 - 1991 | GMC | R1500 Suburban | Base |
1987 | GMC | R1500 Suburban | High Sierra |
1987 - 1989 | GMC | R1500 Suburban | Sierra Classic |
1990 | GMC | R1500 Suburban | SLE |
1987 - 1989 | GMC | R2500 | High Sierra, Base, Sierra Classic |
1987 - 1991 | GMC | R2500 Suburban | Base |
1987 | GMC | R2500 Suburban | High Sierra |
1987 - 1989 | GMC | R2500 Suburban | Sierra Classic |
1990 | GMC | R2500 Suburban | SLE |
1987 - 1991 | GMC | R3500 | Base |
1987 - 1989 | GMC | R3500 | High Sierra, Sierra Classic |
1990 - 1991 | GMC | R3500 | SLE |
1987 | GMC | V1500 | High Sierra, Base, Sierra Classic |
1987 - 1991 | GMC | V1500 Suburban | Base |
1987 | GMC | V1500 Suburban | High Sierra |
1987 - 1989 | GMC | V1500 Suburban | Sierra Classic |
1990 | GMC | V1500 Suburban | SLE |
1987 | GMC | V2500 | Base, High Sierra, Sierra Classic |
1987 - 1991 | GMC | V2500 Suburban | Base |
1987 | GMC | V2500 Suburban | High Sierra |
1987 - 1989 | GMC | V2500 Suburban | Sierra Classic |
1990 | GMC | V2500 Suburban | SLE |
1987 - 1991 | GMC | V3500 | Base |
1987 - 1989 | GMC | V3500 | Sierra Classic, High Sierra |
1990 - 1991 | GMC | V3500 | SLE |
1993 | GMC | Yukon | GT |
1992 - 1995 | GMC | Yukon | SLE, Base |
1995 | GMC | Yukon | SLT |
1992 - 1994 | GMC | Yukon | Sport |
1991 - 1992 | Oldsmobile | Custom Cruiser | Base |
1980 | Oldsmobile | Cutlass | Brougham, Base, LS |
1980 | Oldsmobile | Cutlass Calais | Base |
1980 - 1982 | Oldsmobile | Cutlass Cruiser | Base |
1980 | Oldsmobile | Cutlass Cruiser | Brougham |
1980 | Oldsmobile | Cutlass Salon | Brougham, Base |
1980 | Oldsmobile | Cutlass Supreme | Brougham, Base |
1983 - 1986 | Pontiac | Bonneville | Base, Brougham |
1984 - 1986 | Pontiac | Bonneville | LE |
1980 - 1981 | Pontiac | Firebird | Esprit |
1982 - 1986 | Pontiac | Firebird | S/E |
1994 | Pontiac | Firebird | Trans Am GT |
1989 - 1992 | Pontiac | Firebird | Trans Am GTA |
1989 | Pontiac | Firebird | Trans Am GTA SE |
1980 - 2002 | Pontiac | Firebird | Trans Am, Base, Formula |
1980 | Pontiac | Grand Am | Base |
1980 | Pontiac | Grand LeMans | Safari, Base, LE |
1980 - 1987 | Pontiac | Grand Prix | Base |
1983 - 1987 | Pontiac | Grand Prix | Brougham |
1984 - 1987 | Pontiac | Grand Prix | LE |
1980 - 1983 | Pontiac | Grand Prix | LJ |
1980 | Pontiac | Grand Prix | SJ |
1980 | Pontiac | LeMans | Base, Safari |
1983 - 1986 | Pontiac | Parisienne | Brougham, Base |
