Comp Cams Camshaft, LS1 XR269HR-14
Comp Cams XFI RPM cam and lifter kits are designed to provide an excellent increase in your ride's performance. Featuring the newest and quickest lobe profiles, these kits are tuned for use in EFI applications, where the extra airflow signal through a carburetor is not required. COMP Cams XFI RPM kits include matching lifters for the ultimate in performance. These kits are great for use with aftermarket cylinder heads.
Features:

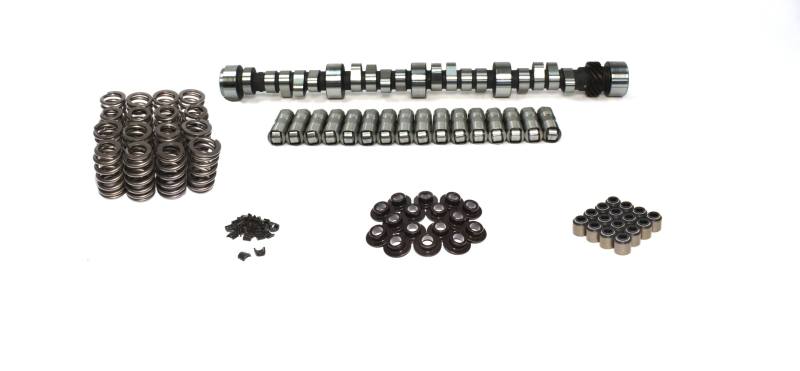

- Cam and Lifters
- Hydraulic Roller Tappet
- Advertised Duration 269/273
- Lift .525/.532
Specifications
Cam Style:Hydraulic roller tappet
Basic Operating RPM Range:1,300-6,300
Intake Duration at 050 inch Lift:216
Exhaust Duration at 050 inch Lift:220
Duration at 050 inch Lift:216 int./220 exh.
Advertised Intake Duration:269
Advertised Exhaust Duration:273
Advertised Duration:269 int./273 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:0.525 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:0.532 in.
Valve Lift with Factory Rocker Arm Ratio:0.525 int./0.532 exh.
Lobe Separation (degrees):114
Camshaft Gear Attachment:3-bolt
Grind Number:XR269HR
Computer-Controlled Compatible:Yes
Lifters Included:Yes
Lifter Style:Hydraulic roller
Valve Springs Included:Yes
Outside Diameter of Outer Spring (in):1.055 in.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001 - 2004 | Avanti | II | Base |
| 2008 | Buick | LaCrosse | CXS |
| 2008 - 2009 | Buick | LaCrosse | Super, CX, CXL |
| 2004 - 2007 | Buick | Rainier | CXL |
| 2004 - 2005 | Buick | Rainier | CXL Plus |
| 2012 | Cadillac | CTS | 3.6L, 3.0L |
| 2011 - 2014 | Cadillac | CTS | Coupe |
| 2009 - 2015 | Cadillac | CTS | Luxury, Premium |
| 2010 - 2015 | Cadillac | CTS | Performance |
| 2013 | Cadillac | CTS | V Luxury |
| 2004 - 2015 | Cadillac | CTS | V, Base |
| 2014 - 2015 | Cadillac | CTS | Vsport Premium, Vsport |
| 2002 - 2014 | Cadillac | Escalade | Base |
| 2009 - 2013 | Cadillac | Escalade | Hybrid |
| 2010 - 2013 | Cadillac | Escalade | Hybrid Platinum |
| 2011 - 2014 | Cadillac | Escalade | Luxury, Premium |
| 2008 - 2014 | Cadillac | Escalade | Platinum |
| 2012 | Cadillac | Escalade | Special Edition |
| 2007 - 2014 | Cadillac | Escalade ESV | Base |
| 2008 - 2014 | Cadillac | Escalade ESV | Platinum |
| 2011 - 2014 | Cadillac | Escalade ESV | Premium, Luxury |
| 2012 | Cadillac | Escalade ESV | Special Edition |
| 2007 - 2013 | Cadillac | Escalade EXT | Base |
| 2011 - 2013 | Cadillac | Escalade EXT | Luxury, Premium |
| 2007 - 2013 | Chevrolet | Avalanche | Base |
| 2013 | Chevrolet | Avalanche | Black Diamond LT, Black Diamond LTZ, Black Diamond LS |
| 2007 - 2012 | Chevrolet | Avalanche | LS, LT, LTZ |
| 2002 - 2003 | Chevrolet | Avalanche 1500 | North Face, On Road Edition |
| 2003 | Chevrolet | Avalanche 1500 | WBH |
| 2004 - 2006 | Chevrolet | Avalanche 1500 | Z66 |
| 2002 - 2006 | Chevrolet | Avalanche 1500 | Z71, LS, LT, Base |
| 2011 - 2012 | Chevrolet | Camaro | 1SS, 2SS, 1LT |
| 2010 - 2015 | Chevrolet | Camaro | LS, LT, SS |
| 1998 | Chevrolet | Camaro | Lujo |
| 2014 - 2015 | Chevrolet | Camaro | Z/28 |
| 1998 - 2002 | Chevrolet | Camaro | Z28 SS, Z28, Base |
| 2012 - 2015 | Chevrolet | Camaro | ZL1 |
| 2011 - 2017 | Chevrolet | Caprice | PPV |
| 2009 - 2012 | Chevrolet | Colorado | WT, LT, Base |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2013 | Chevrolet | Corvette | 427, LT |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition, 50th Anniversary Edition Pace Car |
| 1997 - 2013 | Chevrolet | Corvette | Base |
| 2010 - 2013 | Chevrolet | Corvette | Grand Sport |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001 - 2013 | Chevrolet | Corvette | Z06 |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2009 - 2013 | Chevrolet | Corvette | ZR1 |
| 2003 - 2014 | Chevrolet | Express 1500 | LS, Base |
| 2006 - 2014 | Chevrolet | Express 1500 | LT |
| 2003 - 2019 | Chevrolet | Express 2500 | LS, Base |
| 2010 - 2019 | Chevrolet | Express 2500 | LT |
| 2010 - 2019 | Chevrolet | Express 3500 | LT, Base, LS |
| 2008 | Chevrolet | Impala | 50th Anniversary Edition |
| 2006 - 2009 | Chevrolet | Impala | SS, Police, LS, LT, LTZ |
| 2016 - 2017 | Chevrolet | LCF 3500 | Base |
| 2006 | Chevrolet | Monte Carlo | LTZ |
| 2006 - 2007 | Chevrolet | Monte Carlo | SS, LS, LT |
| 2002 | Chevrolet | Silverado 1500 | Custom |
| 2004 - 2013 | Chevrolet | Silverado 1500 | Hybrid |
| 1999 - 2013 | Chevrolet | Silverado 1500 | LS, LT, Base |
| 2007 - 2013 | Chevrolet | Silverado 1500 | LTZ |
| 2003 - 2006 | Chevrolet | Silverado 1500 | SS |
| 2002 - 2013 | Chevrolet | Silverado 1500 | WT |
| 2010 - 2013 | Chevrolet | Silverado 1500 | XFE |
| 2004 | Chevrolet | Silverado 1500 | Z71 |
| 2007 | Chevrolet | Silverado 1500 Classic | Hybrid, LT, LS, WT, SS |
| 1999 - 2000 | Chevrolet | Silverado 2500 | LT, Base, LS |
| 2015 - 2019 | Chevrolet | Silverado 2500 HD | High Country |
| 2010 - 2019 | Chevrolet | Silverado 2500 HD | WT, LT, LTZ |
| 2015 - 2019 | Chevrolet | Silverado 3500 HD | High Country |
| 2010 - 2019 | Chevrolet | Silverado 3500 HD | LT, LTZ, WT |
| 2014 - 2017 | Chevrolet | SS | Base |
| 2003 - 2006 | Chevrolet | SSR | Base |
| 2000 - 2012 | Chevrolet | Suburban 1500 | Base |
| 2000 - 2014 | Chevrolet | Suburban 1500 | LT, LS |
| 2006 - 2014 | Chevrolet | Suburban 1500 | LTZ |
| 2004 - 2007 | Chevrolet | Suburban 1500 | Z71 |
| 2010 - 2013 | Chevrolet | Suburban 2500 | LS, LT |
| 2016 - 2019 | Chevrolet | Suburban 3500 HD | LS, LT |
| 2000 - 2012 | Chevrolet | Tahoe | Base |
| 2008 - 2013 | Chevrolet | Tahoe | Hybrid |
| 2000 | Chevrolet | Tahoe | Limited |
| 2000 - 2014 | Chevrolet | Tahoe | LT, LS |
| 2007 - 2014 | Chevrolet | Tahoe | LTZ |
| 2012 - 2014 | Chevrolet | Tahoe | SSV, PPV |
| 2000 - 2009 | Chevrolet | Tahoe | Z71 |
| 2006 - 2007 | Chevrolet | Trailblazer | B, A, LS |
| 2006 - 2008 | Chevrolet | Trailblazer | SS, Base, LT |
| 2003 - 2006 | Chevrolet | Trailblazer EXT | LS, LT |
| 2003 - 2004 | Chevrolet | Trailblazer EXT | North Face |
| 2009 - 2012 | GMC | Canyon | SLE, Base, WT, SLT |
| 2005 - 2009 | GMC | Envoy | Denali, SLT, SLE |
| 2005 - 2006 | GMC | Envoy XL | Denali |
| 2003 - 2006 | GMC | Envoy XL | SLE, SLT |
| 2004 - 2005 | GMC | Envoy XUV | SLE, SLT |
| 2003 - 2014 | GMC | Savana 1500 | Base |
| 2006 - 2014 | GMC | Savana 1500 | LT, LS |
| 2009 - 2013 | GMC | Savana 1500 | SL |
| 2003 - 2013 | GMC | Savana 1500 | SLE |
| 2003 - 2019 | GMC | Savana 2500 | Base |
| 2010 - 2019 | GMC | Savana 2500 | LS, LT |
| 2010 - 2013 | GMC | Savana 2500 | SL |
| 2003 - 2013 | GMC | Savana 2500 | SLE |
| 2010 - 2019 | GMC | Savana 3500 | LS, Base, LT |
| 2010 - 2013 | GMC | Savana 3500 | SLE, SL |
| 2002 - 2005 | GMC | Sierra 1500 | Base |
| 2001 | GMC | Sierra 1500 | C3 |
| 2002 - 2013 | GMC | Sierra 1500 | Denali, WT |
| 2002 | GMC | Sierra 1500 | HT |
| 2005 - 2013 | GMC | Sierra 1500 | Hybrid |
| 1999 - 2013 | GMC | Sierra 1500 | SL, SLT, SLE |
| 2010 - 2013 | GMC | Sierra 1500 | XFE |
| 2007 | GMC | Sierra 1500 Classic | SLE, SL, WT, SLT, Denali, Hybrid |
| 1999 - 2000 | GMC | Sierra 2500 | SLT, SL, SLE |
| 2015 - 2019 | GMC | Sierra 2500 HD | Base |
| 2011 - 2019 | GMC | Sierra 2500 HD | Denali |
| 2010 - 2019 | GMC | Sierra 2500 HD | SLT, SLE |
| 2010 - 2014 | GMC | Sierra 2500 HD | WT |
| 2015 - 2019 | GMC | Sierra 3500 HD | Base |
| 2011 - 2019 | GMC | Sierra 3500 HD | Denali |
| 2010 - 2019 | GMC | Sierra 3500 HD | SLE, SLT |
| 2010 - 2014 | GMC | Sierra 3500 HD | WT |
| 2007 - 2012 | GMC | Yukon | Base |
| 2010 - 2013 | GMC | Yukon | Denali Hybrid |
| 2008 - 2013 | GMC | Yukon | Hybrid |
| 2006 | GMC | Yukon | SL |
| 2000 - 2014 | GMC | Yukon | SLE, SLT, Denali |
| 2001 - 2014 | GMC | Yukon XL 1500 | Denali |
| 2006 | GMC | Yukon XL 1500 | SL |
| 2000 - 2014 | GMC | Yukon XL 1500 | SLE, SLT |
| 2010 - 2013 | GMC | Yukon XL 2500 | SLT, SLE |
| 2004 - 2009 | Hummer | H2 | Base |
| 2007 - 2009 | Hummer | H2 | Luxury, Adventure |
| 2007 | Hummer | H2 | Special Edition |
| 2008 - 2010 | Hummer | H3 | Alpha, Adventure, Base, Luxury |
| 2009 | Hummer | H3 | Championship Series |
| 2008 - 2009 | Hummer | H3 | X |
| 2010 | Hummer | H3T | Adventure |
| 2009 - 2010 | Hummer | H3T | Base, Alpha |
| 2003 - 2005 | Isuzu | Ascender | Limited |
| 2003 - 2006 | Isuzu | Ascender | LS, Base |
| 2004 - 2005 | Isuzu | Ascender | S |
| 1998 - 2002 | Pontiac | Firebird | Formula, Trans Am, Base |
| 2008 - 2009 | Pontiac | G8 | Base, GT |
| 2009 | Pontiac | G8 | GXP |
| 2005 - 2007 | Pontiac | Grand Prix | GT |
| 2005 | Pontiac | Grand Prix | GTP |
| 2005 - 2008 | Pontiac | Grand Prix | GXP, Base |
| 2004 - 2006 | Pontiac | GTO | Base |
| 2006 - 2009 | Saab | 9-7x | 5.3i, 4.2i |
| 2008 - 2009 | Saab | 9-7x | Aero |
| 2005 | Saab | 9-7x | Linear, Arc |
Comp Cams Camshaft, LS1 XR269HR-14
Sale price$1,239.73 USD
