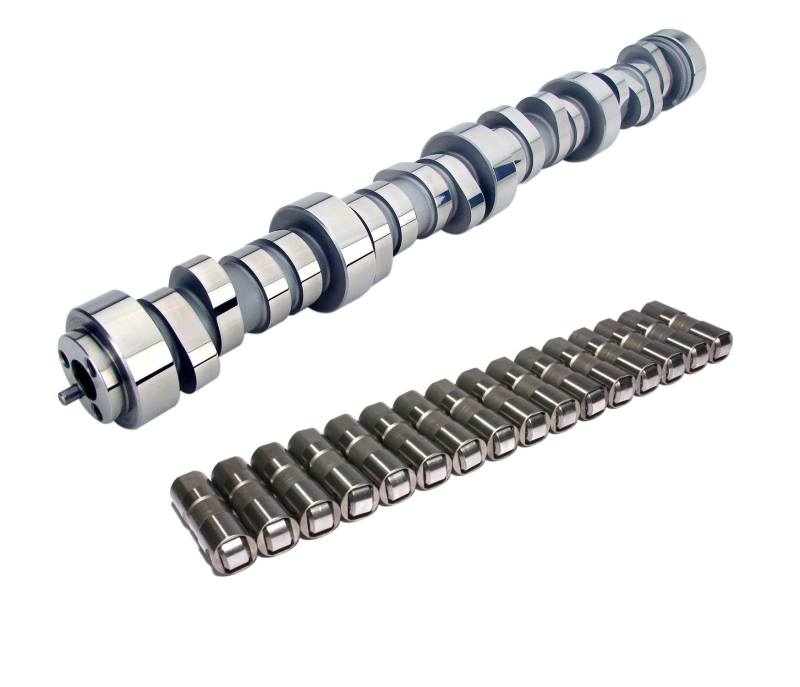

Comp Cams Cam & Lifter Kit, LS1 XR259HR-12
COMP Cams manufactures truly superior hydraulic and solid flat tappet, hydraulic and mechanical roller, and overhead camshafts for everything from OE replacement to full race, designed and manufactured using cutting-edge technology and the finest engineering in the industry. Whether your engine is naturally aspirated, or you run nitrous, or a supercharger or turbo, our cams make more horsepower than any other. Looking for that ultimate hard-hitting muscle car idle? Check out our aggressive new Thumpr Cams. Match our camshafts up with our competition-grade lifters, valve springs, timing sets, and other supporting components, and you'll experience the ultimate in race-winning reliability.
Ever since its introduction, GM's LSX/Gen III engine has quickly become the ''preferred choice'' among many engine builders and performance enthusiasts. Right from the factory, the GM LSX/Gen III engine boasts a surprisingly efficient induction design, reduced weight and impressive power output. As the leading developer of high performance LSX/Gen III valve train technology, Comp Cams has engineered a full line of products proven to release the incredible horsepower and torque hidden inside while never sacrificing ever-critical reliability.
Specifications
Intake Valve Lift (in.): 0.515
Exhaust Valve Lift (in.): 0.52
Int. Duration @ .050 in. (Deg): 206
Exh. Duration @ .050 in. (Deg): 212
Int. Duration Advertised (Deg): 259
Exh. Duration Advertised (Deg): 265
RPM Range: 800-5800
Lifter Type: Hydraulic Roller
Usage: Street/Performance
Engine Make/Size: Chevy Small Block LS1
Engine Make/Size: Chevy 350 Gen III
Engine Make/Size: Chevy 350 LS6
Gaskets Included: No
Lobe Separation (Deg): 112
Advertised Duration: 259 int./265 exh.
Advertised Exhaust Duration: 265
Advertised Intake Duration: 259
Assembly Lubricant Included: Yes
Basic Operating RPM Range: 800-5,800
Cam Style: Hydraulic roller tappet
Camshaft Gear Attachment: 3-bolt
Computer-Controlled Compatible: Yes
Duration at 050 inch Lift: 206 int./212 exh.
Exhaust Duration at 050 inch Lift: 212
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.522
Intake Duration at 050 inch Lift: 206
Intake Valve Lift with Factory Rocker Arm Ratio: 0.515
Lifter Style: Hydraulic roller
Lifters Included: Yes
Locks Included: No
Pushrods Included: No
Quantity: Sold as a kit
Retainers Included: No
Rocker Arms Included: No
Timing Chain and Gears Included: No
Valve Lift with Factory Rocker Arm Ratio:0.515 int./0.522 exh.
Valve Springs Included: No
Valve Springs Required:Yes
Valve Stem Seals Included:No
Features:
- Newest and quickest lobe profiles; provide a terrific increase in performance
- Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation without loss of responsiveness)
- Work well with aftermarket cylinder heads & feature high lift
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001 - 2004 | Avanti | II | Base |
| 2008 - 2009 | Buick | LaCrosse | CXL, CX, Super |
| 2008 | Buick | LaCrosse | CXS |
| 2004 - 2007 | Buick | Rainier | CXL |
| 2004 - 2005 | Buick | Rainier | CXL Plus |
| 2012 | Cadillac | CTS | 3.6L, 3.0L |
| 2011 - 2014 | Cadillac | CTS | Coupe |
| 2010 - 2015 | Cadillac | CTS | Performance |
| 2009 - 2015 | Cadillac | CTS | Premium, Luxury |
| 2013 | Cadillac | CTS | V Luxury |
| 2004 - 2015 | Cadillac | CTS | V, Base |
| 2014 - 2015 | Cadillac | CTS | Vsport Premium, Vsport |
| 2002 - 2014 | Cadillac | Escalade | Base |
| 2009 - 2013 | Cadillac | Escalade | Hybrid |
| 2010 - 2013 | Cadillac | Escalade | Hybrid Platinum |
| 2008 - 2014 | Cadillac | Escalade | Platinum |
| 2011 - 2014 | Cadillac | Escalade | Premium, Luxury |
| 2012 | Cadillac | Escalade | Special Edition |
| 2007 - 2014 | Cadillac | Escalade ESV | Base |
| 2008 - 2014 | Cadillac | Escalade ESV | Platinum |
| 2011 - 2014 | Cadillac | Escalade ESV | Premium, Luxury |
| 2012 | Cadillac | Escalade ESV | Special Edition |
| 2007 - 2013 | Cadillac | Escalade EXT | Base |
| 2011 - 2013 | Cadillac | Escalade EXT | Premium, Luxury |
| 2007 - 2013 | Chevrolet | Avalanche | Base |
| 2013 | Chevrolet | Avalanche | Black Diamond LT, Black Diamond LTZ, Black Diamond LS |
| 2007 - 2012 | Chevrolet | Avalanche | LS, LT, LTZ |
| 2002 - 2006 | Chevrolet | Avalanche 1500 | LT, LS, Z71, Base |
| 2002 - 2003 | Chevrolet | Avalanche 1500 | On Road Edition, North Face |
| 2003 | Chevrolet | Avalanche 1500 | WBH |
| 2004 - 2006 | Chevrolet | Avalanche 1500 | Z66 |
| 2011 - 2012 | Chevrolet | Camaro | 2SS, 1LT, 1SS |
| 2010 - 2015 | Chevrolet | Camaro | LS, SS, LT |
| 1998 | Chevrolet | Camaro | Lujo |
| 2014 - 2015 | Chevrolet | Camaro | Z/28 |
| 1998 - 2002 | Chevrolet | Camaro | Z28, Z28 SS, Base |
| 2012 - 2015 | Chevrolet | Camaro | ZL1 |
| 2011 - 2017 | Chevrolet | Caprice | PPV |
| 2009 - 2012 | Chevrolet | Colorado | LT, WT, Base |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2013 | Chevrolet | Corvette | 427, LT |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition, 50th Anniversary Edition Pace Car |
| 1997 - 2013 | Chevrolet | Corvette | Base |
| 2010 - 2013 | Chevrolet | Corvette | Grand Sport |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001 - 2013 | Chevrolet | Corvette | Z06 |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2009 - 2013 | Chevrolet | Corvette | ZR1 |
| 2003 - 2014 | Chevrolet | Express 1500 | Base, LS |
| 2006 - 2014 | Chevrolet | Express 1500 | LT |
| 2003 - 2019 | Chevrolet | Express 2500 | Base, LS |
| 2010 - 2019 | Chevrolet | Express 2500 | LT |
| 2010 - 2019 | Chevrolet | Express 3500 | Base, LT, LS |
| 2008 | Chevrolet | Impala | 50th Anniversary Edition |
| 2006 - 2009 | Chevrolet | Impala | LS, Police, LT, LTZ, SS |
| 2016 - 2017 | Chevrolet | LCF 3500 | Base |
| 2006 | Chevrolet | Monte Carlo | LTZ |
| 2006 - 2007 | Chevrolet | Monte Carlo | SS, LT, LS |
| 2002 | Chevrolet | Silverado 1500 | Custom |
| 2004 - 2013 | Chevrolet | Silverado 1500 | Hybrid |
| 1999 - 2013 | Chevrolet | Silverado 1500 | LS, Base, LT |
| 2007 - 2013 | Chevrolet | Silverado 1500 | LTZ |
| 2003 - 2006 | Chevrolet | Silverado 1500 | SS |
| 2002 - 2013 | Chevrolet | Silverado 1500 | WT |
| 2010 - 2013 | Chevrolet | Silverado 1500 | XFE |
| 2004 | Chevrolet | Silverado 1500 | Z71 |
| 2007 | Chevrolet | Silverado 1500 Classic | LT, Hybrid, SS, WT, LS |
| 1999 - 2000 | Chevrolet | Silverado 2500 | Base, LT, LS |
| 2015 - 2019 | Chevrolet | Silverado 2500 HD | High Country |
| 2010 - 2019 | Chevrolet | Silverado 2500 HD | WT, LT, LTZ |
| 2015 - 2019 | Chevrolet | Silverado 3500 HD | High Country |
| 2010 - 2019 | Chevrolet | Silverado 3500 HD | LTZ, LT, WT |
| 2014 - 2017 | Chevrolet | SS | Base |
| 2003 - 2006 | Chevrolet | SSR | Base |
| 2000 - 2012 | Chevrolet | Suburban 1500 | Base |
| 2000 - 2014 | Chevrolet | Suburban 1500 | LT, LS |
| 2006 - 2014 | Chevrolet | Suburban 1500 | LTZ |
| 2004 - 2007 | Chevrolet | Suburban 1500 | Z71 |
| 2010 - 2013 | Chevrolet | Suburban 2500 | LS, LT |
| 2016 - 2019 | Chevrolet | Suburban 3500 HD | LS, LT |
| 2000 - 2012 | Chevrolet | Tahoe | Base |
| 2008 - 2013 | Chevrolet | Tahoe | Hybrid |
| 2000 | Chevrolet | Tahoe | Limited |
| 2000 - 2014 | Chevrolet | Tahoe | LT, LS |
| 2007 - 2014 | Chevrolet | Tahoe | LTZ |
| 2012 - 2014 | Chevrolet | Tahoe | SSV, PPV |
| 2000 - 2009 | Chevrolet | Tahoe | Z71 |
| 2006 - 2007 | Chevrolet | Trailblazer | B, A, LS |
| 2006 - 2008 | Chevrolet | Trailblazer | Base, SS, LT |
| 2003 - 2006 | Chevrolet | Trailblazer EXT | LS, LT |
| 2003 - 2004 | Chevrolet | Trailblazer EXT | North Face |
| 2009 - 2012 | GMC | Canyon | SLE, Base, WT, SLT |
| 2005 - 2009 | GMC | Envoy | SLT, Denali, SLE |
| 2005 - 2006 | GMC | Envoy XL | Denali |
| 2003 - 2006 | GMC | Envoy XL | SLT, SLE |
| 2004 - 2005 | GMC | Envoy XUV | SLE, SLT |
| 2003 - 2014 | GMC | Savana 1500 | Base |
| 2006 - 2014 | GMC | Savana 1500 | LS, LT |
| 2009 - 2013 | GMC | Savana 1500 | SL |
| 2003 - 2013 | GMC | Savana 1500 | SLE |
| 2003 - 2019 | GMC | Savana 2500 | Base |
| 2010 - 2019 | GMC | Savana 2500 | LS, LT |
| 2010 - 2013 | GMC | Savana 2500 | SL |
| 2003 - 2013 | GMC | Savana 2500 | SLE |
| 2010 - 2019 | GMC | Savana 3500 | LT, LS, Base |
| 2010 - 2013 | GMC | Savana 3500 | SLE, SL |
| 2002 - 2005 | GMC | Sierra 1500 | Base |
| 2001 | GMC | Sierra 1500 | C3 |
| 2002 - 2013 | GMC | Sierra 1500 | Denali, WT |
| 2002 | GMC | Sierra 1500 | HT |
| 2005 - 2013 | GMC | Sierra 1500 | Hybrid |
| 1999 - 2013 | GMC | Sierra 1500 | SLE, SL, SLT |
| 2010 - 2013 | GMC | Sierra 1500 | XFE |
| 2007 | GMC | Sierra 1500 Classic | SL, Hybrid, WT, Denali, SLE, SLT |
| 1999 - 2000 | GMC | Sierra 2500 | SLT, SL, SLE |
| 2015 - 2019 | GMC | Sierra 2500 HD | Base |
| 2011 - 2019 | GMC | Sierra 2500 HD | Denali |
| 2010 - 2019 | GMC | Sierra 2500 HD | SLE, SLT |
| 2010 - 2014 | GMC | Sierra 2500 HD | WT |
| 2015 - 2019 | GMC | Sierra 3500 HD | Base |
| 2011 - 2019 | GMC | Sierra 3500 HD | Denali |
| 2010 - 2019 | GMC | Sierra 3500 HD | SLE, SLT |
| 2010 - 2014 | GMC | Sierra 3500 HD | WT |
| 2007 - 2012 | GMC | Yukon | Base |
| 2010 - 2013 | GMC | Yukon | Denali Hybrid |
| 2008 - 2013 | GMC | Yukon | Hybrid |
| 2006 | GMC | Yukon | SL |
| 2000 - 2014 | GMC | Yukon | SLT, Denali, SLE |
| 2001 - 2014 | GMC | Yukon XL 1500 | Denali |
| 2006 | GMC | Yukon XL 1500 | SL |
| 2000 - 2014 | GMC | Yukon XL 1500 | SLT, SLE |
| 2010 - 2013 | GMC | Yukon XL 2500 | SLE, SLT |
| 2007 - 2009 | Hummer | H2 | Adventure, Luxury |
| 2004 - 2009 | Hummer | H2 | Base |
| 2007 | Hummer | H2 | Special Edition |
| 2008 - 2010 | Hummer | H3 | Alpha, Adventure, Luxury, Base |
| 2009 | Hummer | H3 | Championship Series |
| 2008 - 2009 | Hummer | H3 | X |
| 2010 | Hummer | H3T | Adventure |
| 2009 - 2010 | Hummer | H3T | Base, Alpha |
| 2003 - 2005 | Isuzu | Ascender | Limited |
| 2003 - 2006 | Isuzu | Ascender | LS, Base |
| 2004 - 2005 | Isuzu | Ascender | S |
| 1998 - 2002 | Pontiac | Firebird | Base, Trans Am, Formula |
| 2008 - 2009 | Pontiac | G8 | Base, GT |
| 2009 | Pontiac | G8 | GXP |
| 2005 - 2007 | Pontiac | Grand Prix | GT |
| 2005 | Pontiac | Grand Prix | GTP |
| 2005 - 2008 | Pontiac | Grand Prix | GXP, Base |
| 2004 - 2006 | Pontiac | GTO | Base |
| 2006 - 2009 | Saab | 9-7x | 4.2i, 5.3i |
| 2008 - 2009 | Saab | 9-7x | Aero |
| 2005 | Saab | 9-7x | Arc, Linear |
