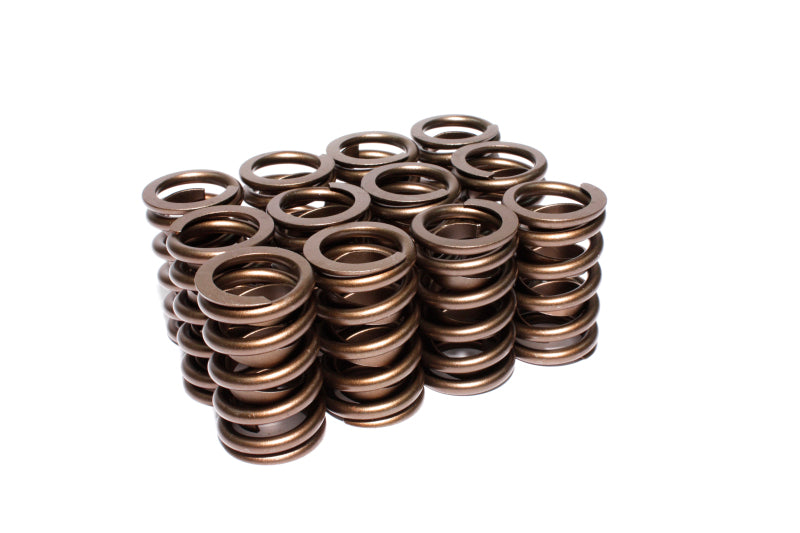

Comp Cams Ovate Wire Springs
COMP Cams Specialty Valve Springs
OVATE WIRE
- Oval shaped wire springs have more material in the same area as round wire to more efficiently distribute operation stresses
- Engineered for superior strength and durability to add valve train stability
- Super CleanT wire material is free of surface defects that shorten spring life
COMP Cams Ovate Wire Springs are constructed from oval shaped wire as opposed to round. The unique oval shaped wire means there is more material occupying the same area than round wire springs to more efficiently distribute the operation stresses. Engineered with advanced processing techniques for longevity and reliability, Ovate Wire Springs are free of life-shortening surface defects.
Specification
O.D. Dia. 1: 1.26
I.D. Dia. 2: 0.836
Seat Load: 105 @ 1.700
Open Load: 310 @ 1.200
Coil Bind: 1.15
Rate (Lbs./In.): 410
Titanium Retainer: N/A
Steel Retainer: 751
Cup Seat: N/A
Shims: N/A
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 2000 | Chevrolet | Astro | Base, LT |
| 1992 - 1995 | Chevrolet | Astro | CS, CL |
| 1996 - 2000 | Chevrolet | Astro | LS |
| 1995 - 1999 | Chevrolet | Blazer | Base |
| 1995 - 1997 | Chevrolet | Blazer | Deluxe |
| 1996 - 2003 | Chevrolet | Blazer | LS |
| 1995 - 2002 | Chevrolet | Blazer | LT |
| 2002 | Chevrolet | Blazer | LTZ |
| 1999 - 2001 | Chevrolet | Blazer | Trailblazer |
| 2001 - 2003 | Chevrolet | Blazer | Xtreme |
| 2003 | Chevrolet | Blazer | ZR2 |
| 1992 - 1993 | Chevrolet | C1500 | 454 SS |
| 1994 - 1997 | Chevrolet | C1500 | Base |
| 1992 - 1998 | Chevrolet | C1500 | Cheyenne, Silverado, WT |
| 1992 | Chevrolet | C1500 | Scottsdale |
| 1993 | Chevrolet | C2500 | 400 SS, Custom |
| 1992 - 1995 | Chevrolet | C2500 | Cheyenne, Base, Silverado |
| 1992 | Chevrolet | C2500 | Scottsdale |
| 1994 - 1995 | Chevrolet | C2500 | WT |
| 1993 | Chevrolet | Caprice | Classic, Classic LTZ, Classic LS |
| 1996 - 2003 | Chevrolet | Express 1500 | LS, Base |
| 2001 - 2002 | Chevrolet | Express 1500 | LT |
| 1996 - 2003 | Chevrolet | Express 2500 | Base, LS |
| 1992 - 1995 | Chevrolet | G10 | Sportvan, Beauville, Chevy Van |
| 1995 | Chevrolet | G20 | Base |
| 1992 - 1995 | Chevrolet | G20 | Chevy Van, Sportvan, Beauville |
| 1992 - 1995 | Chevrolet | G30 | Sportvan, Chevy Van, Beauville, Hi-Cube |
| 1994 - 1997 | Chevrolet | K1500 | Base |
| 1992 | Chevrolet | K1500 | Scottsdale |
| 1992 - 1998 | Chevrolet | K1500 | Silverado, Cheyenne, WT |
| 1994 - 1995 | Chevrolet | K2500 | Base, WT |
| 1992 - 1995 | Chevrolet | K2500 | Cheyenne, Silverado |
| 1992 | Chevrolet | K2500 | Scottsdale |
| 1992 - 2003 | Chevrolet | S10 | Base |
| 1992 - 1993 | Chevrolet | S10 | EL, Maxi |
| 1994 - 2003 | Chevrolet | S10 | LS, ZR2 |
| 1994 - 1998 | Chevrolet | S10 | SS |
| 1992 | Chevrolet | S10 | Tahoe |
| 1999 - 2003 | Chevrolet | S10 | Xtreme |
| 2002 - 2003 | Chevrolet | S10 | ZR5 |
| 1994 | Chevrolet | S10 Blazer | LT |
| 1992 | Chevrolet | S10 Blazer | Sport |
| 1992 - 1994 | Chevrolet | S10 Blazer | Tahoe, Base, Tahoe LT |
| 2002 | Chevrolet | Silverado 1500 | Custom |
| 1999 - 2003 | Chevrolet | Silverado 1500 | LS, LT, Base |
| 2003 | Chevrolet | Silverado 1500 | SS |
| 2002 - 2003 | Chevrolet | Silverado 1500 | WT |
| 1992 - 2001 | Oldsmobile | Bravada | Base |
Comp Cams Ovate Wire Springs
Sale price$90.25 USD
